    Be aware that grinding undersize/boring oversize is done on a case-by-case basis. It is quite possible to see some engines with a bunch of different bearing sizes in it.

    Diesel Dave and SmallPackage Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Binderdavemays1

    Binderdavemays1 Light Load Member

    151
    68
    Jul 30, 2024
    Luebbering Mo
    0
    Ok so your saying be diligent on documentation on each bearing and remove 1 at a time

  4. AModelCat

    AModelCat Road Train Member

    29,139
    158,319
    Jul 7, 2015
    Canuckistan
    0
    Yes. The more info you record the better.

    Oxbow and Diesel Dave Thank this.
  5. SmallPackage

    SmallPackage Road Train Member

    5,441
    17,249
    Dec 20, 2019
    Marion Texas
    0
    Yes. Just like @AModelCat reinforced. Check all bearings for size. That is what I meant. One rod journal can be standard and the one next to it could be .010 because it had a spun bearing or other damage on it previously and so on. Same with mains. Most Remans would not cut a crank journal unless it was absolutely necessary.

    Oxbow and Diesel Dave Thank this.
  6. Binderdavemays1

    Binderdavemays1 Light Load Member

    151
    68
    Jul 30, 2024
    Luebbering Mo
    0
    OK so I’m under here looking at the crank and on the back of the engine it looks like there is a thrush washer on both sides, see images….and on the front it appears that there’s nothing there. The crank moves back-and-forth maybe a 16th of an inch. My questions are does both ends of the crank get a thrush washer or is it just the back of the motor on an MTC 350 small cam 1976?
    Also Does it matter which Rod and Main cap I pull to start As long as I document everything?

  7. Binderdavemays1

    Binderdavemays1 Light Load Member

    151
    68
    Jul 30, 2024
    Luebbering Mo
    0

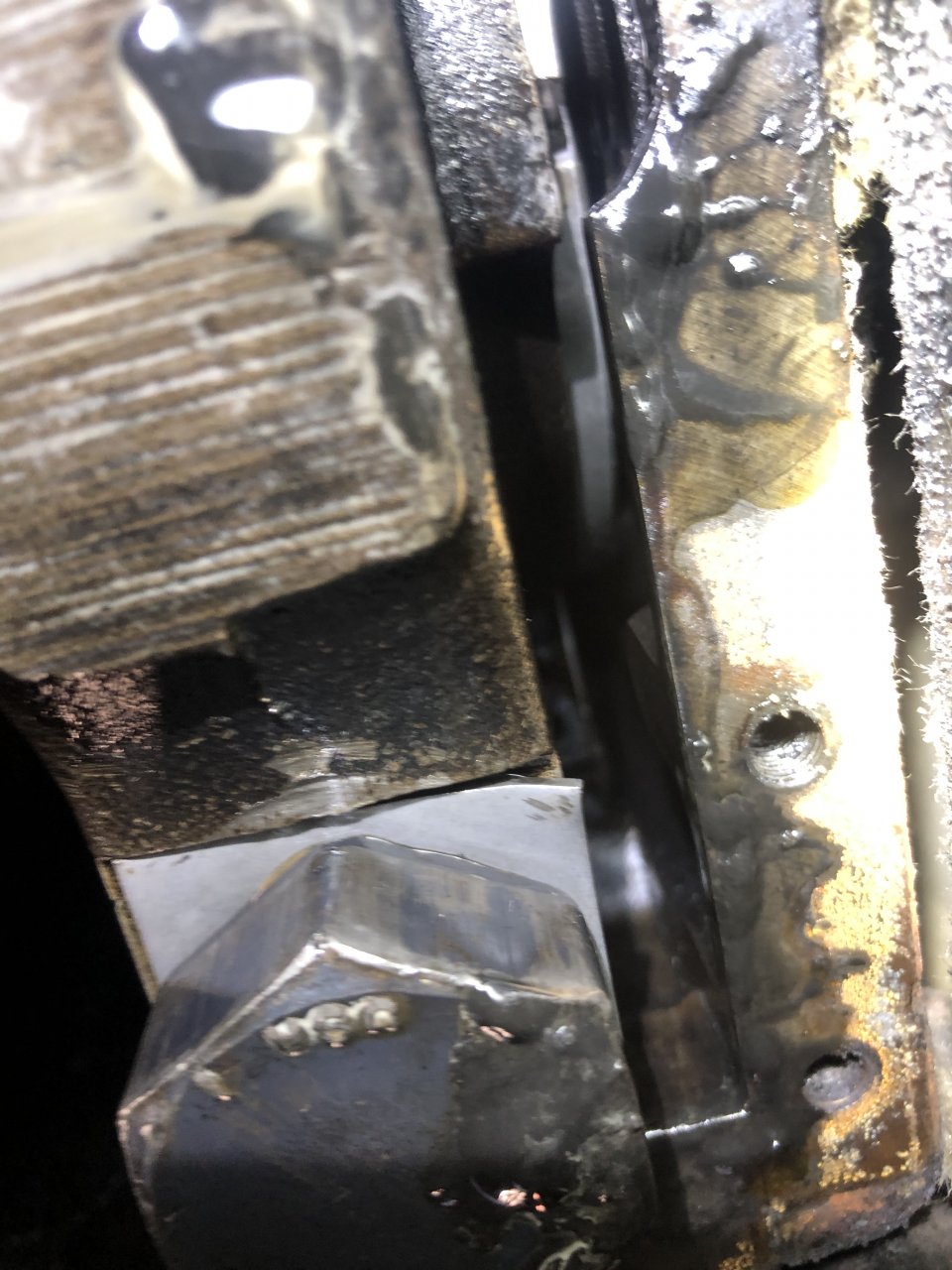

    IMG_3152.jpeg Back of motor


    Attached Files:

  8. Binderdavemays1

    Binderdavemays1 Light Load Member

    151
    68
    Jul 30, 2024
    Luebbering Mo
    0

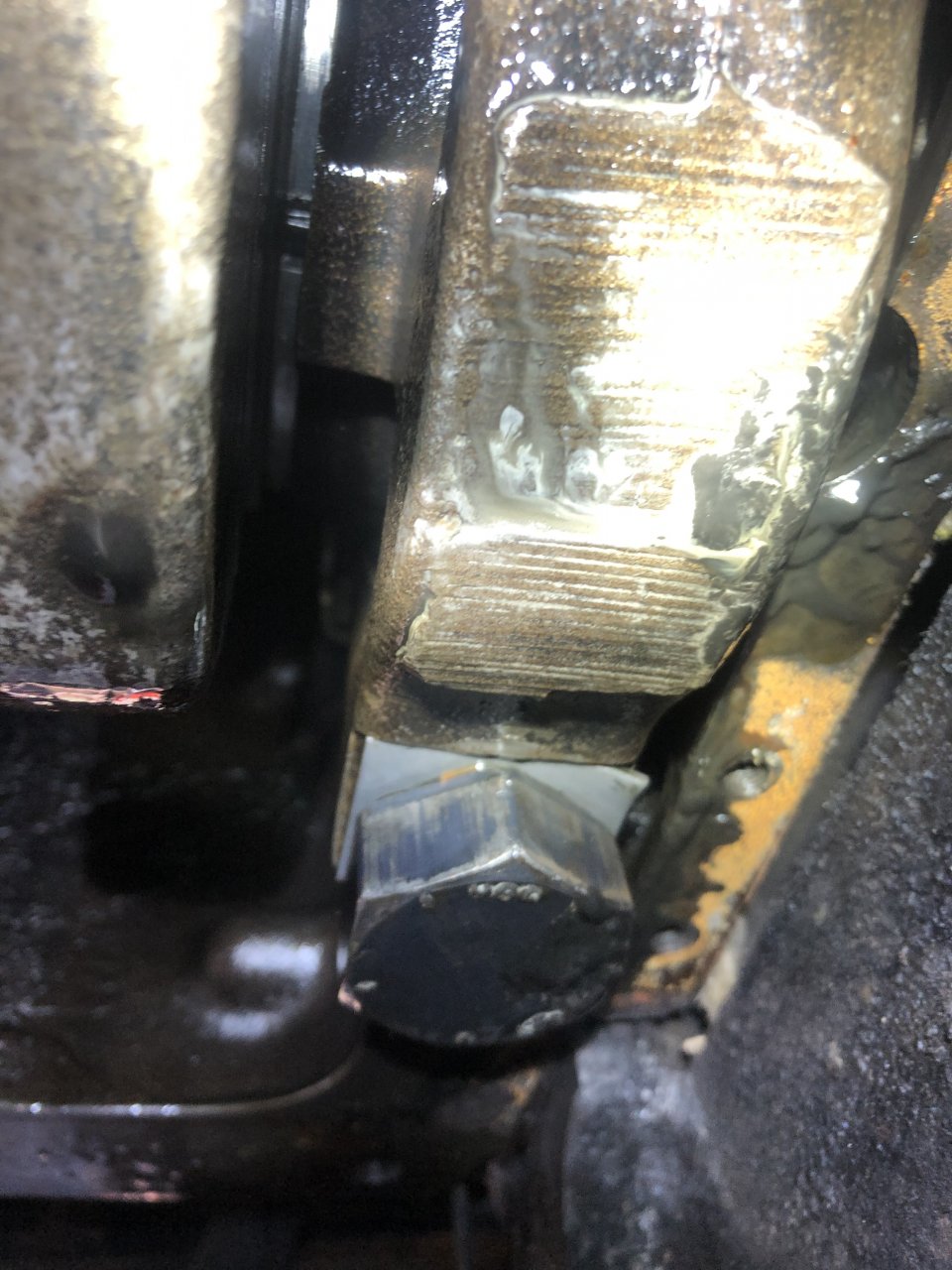

    Front of motor


    Attached Files:

  9. Binderdavemays1

    Binderdavemays1 Light Load Member

    151
    68
    Jul 30, 2024
    Luebbering Mo
    0
    If I’m looking at this correctly on the back of the motor, there are 2 thrush washers with little metal pins in the bottom of them to hold them in place on each side but I don’t see anything on top of those?
    is the tops what’s missing? Or should it only have bottoms
    Both bottoms are clearly on there and clearly intact
