How do these RGN ramps look?

I made mine, they look somewhat similar. Be mindful of rail clearance on the neck once you slide the fifth wheel up. If you load heavy and make a turn on a hump they will hang. At least on mine.



We have one or two trailers with a deep kingpin that will do the same on my ramps. I'm going to buy a taller 5th wheel riser and hope it helps.
I can't get weight on my steers and if I raise it up I might be able to get it more forward for weight on the steers.



I figured that's what I would do, just haven't got a round tuit yet. I have some 2x6 tubing that I used when pulling tanks. But I think I need taller saddles not just raise the whole slide assembly.

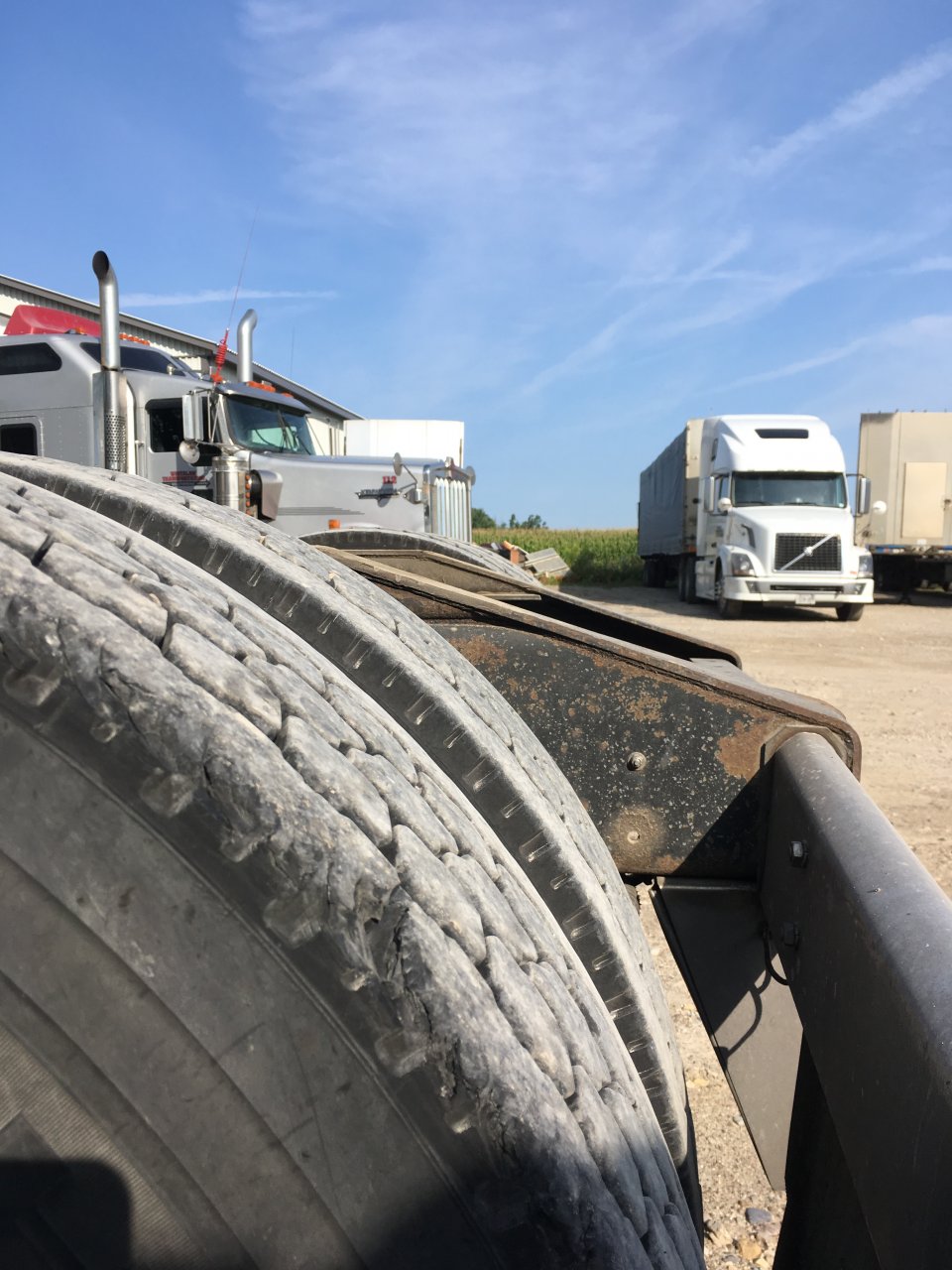

My tires are actually taller than my ramps. The tires rub too, it's pissing me off.
I can't get that GD thing to slide. I was 11,900 steers and 34,620 drives 1/2 tanks.



They look okay to me, not having a direct sideview to gauge tire clearance. The rollers will hop a bit at the sharp turns, but, I've used plenty of Cozad ramps that look like that without issue.



Air

Couldn't tell you. It was from a truck wreckers.



New air cylinder, pins are free. Washed and blown out rails. Penetrating fluid at least 8 times now over the last month. Unlock it check the pins are free and hit the pin on a loaded trailer 20 times over the last month.
No bueno
