How hard are the leaf bushings to replace?

Discussion in 'Kenworth Forum' started by irishluck09, Jun 6, 2022.

  1. irishluck09

    irishluck09 Light Load Member

    Joined:
    Nov 24, 2019
    Messages:
    271
    Thanks Received:
    136
    0
    98 kw w900 n14

    Plain and simple, how difficult is it?
    Mine are screw in pins, so I figured that wouldn't be that bad to beat out with a little heat.

    Any tips or tricks?
    Thanks

  2. W923

    W923 Road Train Member

    Joined:
    Feb 28, 2022
    Messages:
    1,334
    Thanks Received:
    4,066
    0
    Don’t heat the ends of the leaf spring unless your very comfortable with what your doing…springs are made from steel that is heat treated to get the right properties. Depending on how hot you heat it and how fast it cools you could be in big doodo.
    The bushings in the hanger and spring eyes with the threads press out…we use a track pin press intended for heavy equipment track pins it works great otherwise you might need to remove the spring and hanger and take to a press.

    spsauerland and RubyEagle Thank this.
  3. irishluck09

    irishluck09 Light Load Member

    Joined:
    Nov 24, 2019
    Messages:
    271
    Thanks Received:
    136
    0

    So if im unable to get my hands on one of those lol could I possibly make one? Is beating them out a challenge?

  4. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,147
    Thanks Received:
    158,403
    Location:
    Canuckistan
    0
    We would drive them out with a sledge while still in the truck. Takes 2 people and one of them better be skilled with swinging a 20lb sledge.

    Big Road Skateboard Thanks this.
  5. W923

    W923 Road Train Member

    Joined:
    Feb 28, 2022
    Messages:
    1,334
    Thanks Received:
    4,066
    0
    449A2227-7545-43B1-A2D2-AC84B730CC8B.jpeg 1DAA5668-4B5D-43AF-9908-BEE966E31D02.jpeg

    spsauerland Thanks this.
  6. W923

    W923 Road Train Member

    Joined:
    Feb 28, 2022
    Messages:
    1,334
    Thanks Received:
    4,066
    0

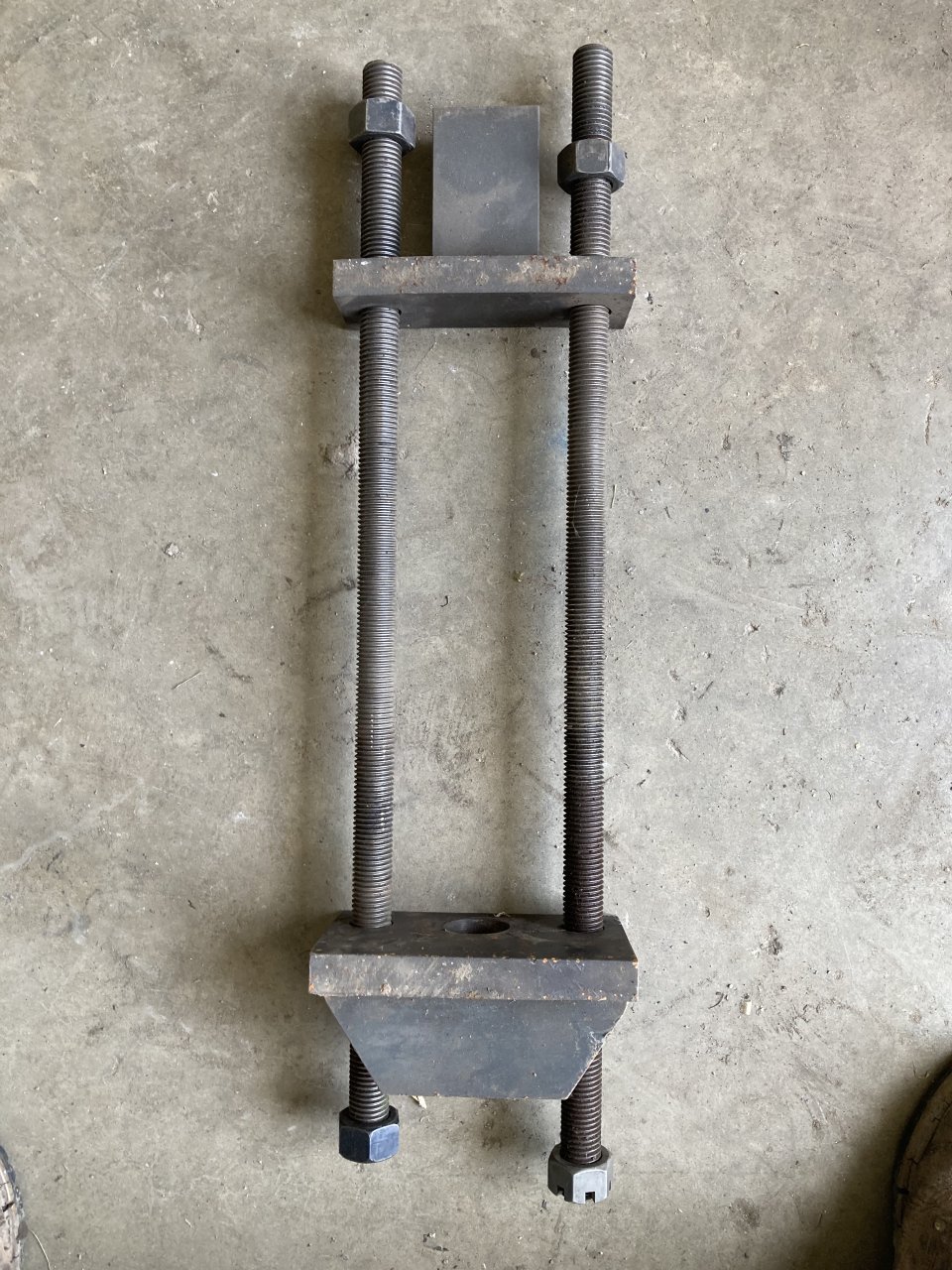

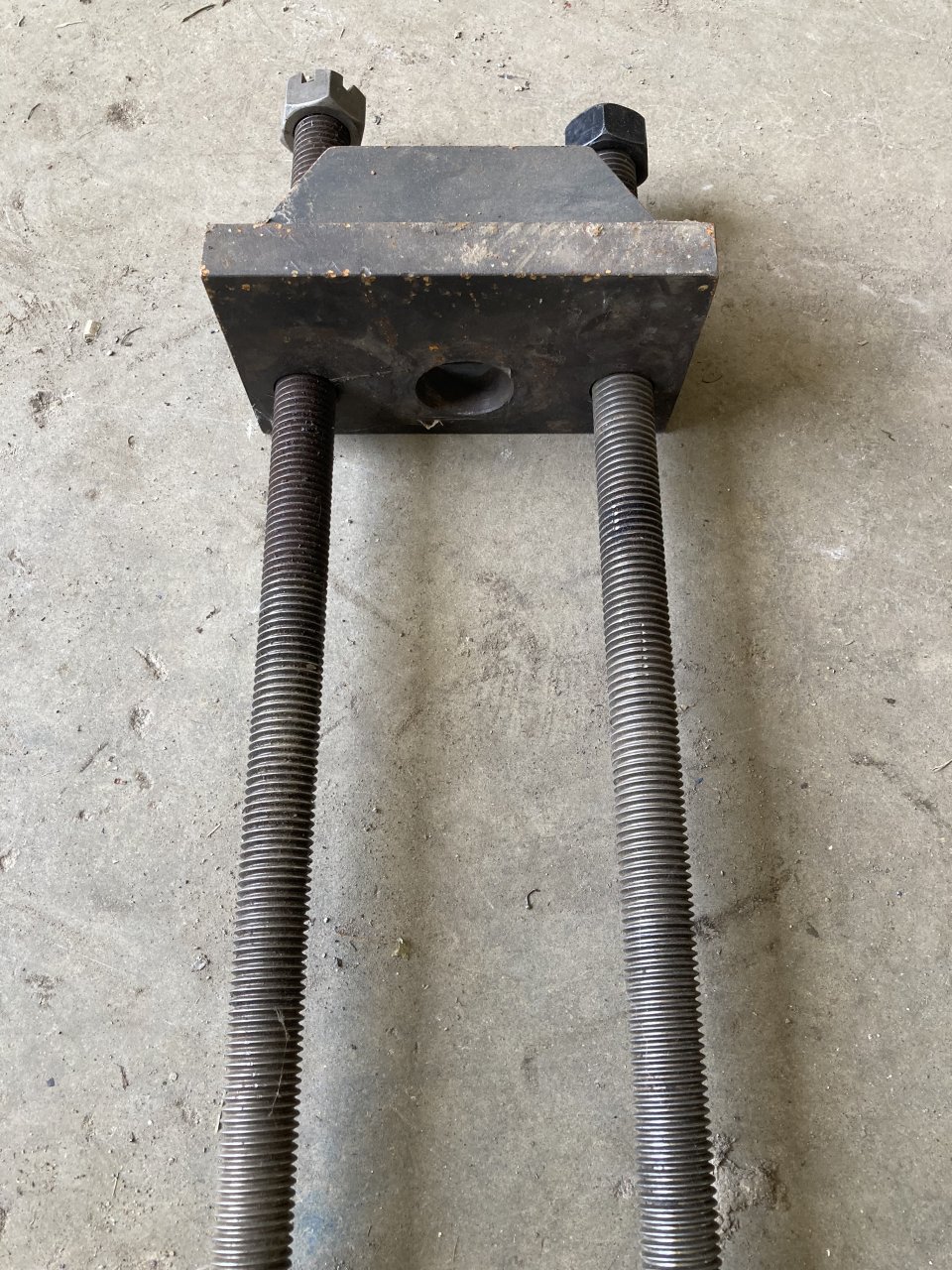

    This contraption fits a 30 ton porta power and has been used for spring bushings removal.
    It wouldn’t be to hard to make

  7. Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    Joined:
    Jan 20, 2010
    Messages:
    8,683
    Thanks Received:
    24,693
    Location:
    Hesperia, Ca.
    0
    I pressed them out with a bottle Jack on an old press stand, had plenty of WD-40. Was a walk in the park back in the day, but when your tweaking, everything is doable in the middle of the night.o_O

    Hammer166 Thanks this.
  8. Raturdz

    Raturdz Bobtail Member

    Joined:
    Aug 6, 2018
    Messages:
    1
    Thanks Received:
    0
    Location:
    White House, Tn
    0
    I’ve pressed them out while on the truck like w923, 1/2” all thread, some pipe for spacing and a socket, it can be done!

  9. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,887
    Location:
    West Harrison, In
    0

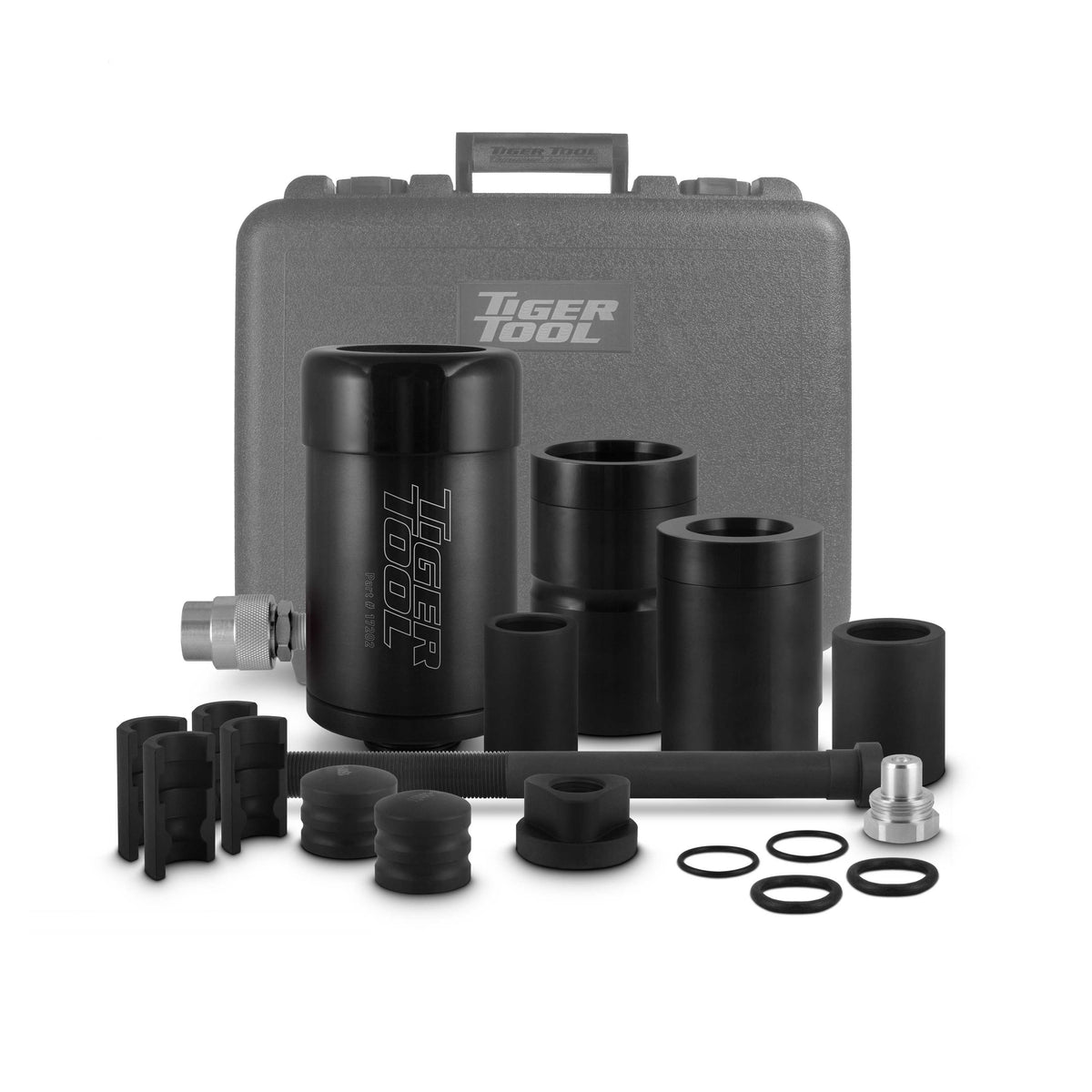

    I have one of these. 15000_Kit_1200x.jpg
    I have done probably over 100 pin and bushing and bar pin bushing jobs front and rear with it. Not something a one truck guy would need. I know @OLDSKOOLERnWV built his own tool to do his.

  10. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    Joined:
    Nov 29, 2011
    Messages:
    18,261
    Thanks Received:
    274,932
    Location:
    West Virginia
    0

    lol, you remember that my friend…

    Yes I built a tool when I replaced the passenger side leaf spring on my 95 W900L….. I’ll have to see if I can remember where I put it in my shop….
