How to chain excavator buckets without the excavator?

Discussion in 'Flatbed Trucking Forum' started by GiantBeard, Jul 30, 2021.

  1. GiantBeard

    GiantBeard Medium Load Member

    323
    343
    Oct 16, 2015
    Petaluma/Indio, CA
    0
    I'm very new to working with flatbed equipment and I had to drop off the excavator but keep three buckets.
    They're nested inside each other, from smallest to biggest, and I wasn't sure how to chain them the safest, because they're so small compared to the trailer.
    I threw two chains over them kind of in an X shaped and put the chain through the tops.
    After one stop to tighten they seem secure but I'm in a learn as you go type situation.
    Could I ask if there's a better way to secure them?

    D.Tibbitt Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. okiedokie

    okiedokie Road Train Member

    5,515
    16,025
    Jun 13, 2011
    PNWET
    0
    Pics would help but sounds like a good job of securment.

    D.Tibbitt and GiantBeard Thank this.
  4. GiantBeard

    GiantBeard Medium Load Member

    323
    343
    Oct 16, 2015
    Petaluma/Indio, CA
    0
    The trailer is dropped off at the yard for the weekend. First time in 5 years I've done any kind of local stuff. I kept forgetting my car keys in the work truck the first couple weeks.
    Life is strange without the home on wheels.

    D.Tibbitt and baha Thank this.
  5. beastr123

    beastr123 Road Train Member

    1,663
    15,078
    Jan 2, 2014
    Moose Jaw SK CAN
    0

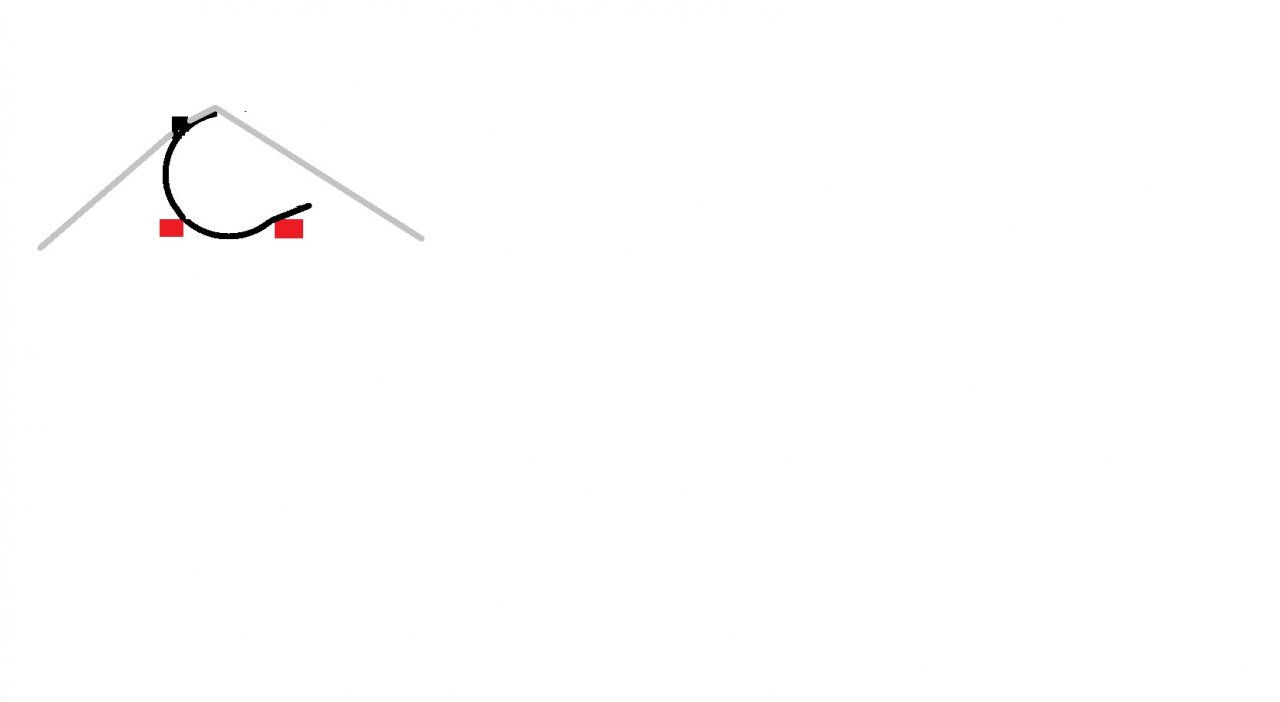

    I would nail a 4X4 under the tooth/cutting edge after rocking them back then a second behind them. The crossed chains should not go through any bushed pin holes but should cross between the attachment points. A 2X4 can be nailed on each side if you want some extra security.
    bucket tie.jpg


    Attached Files:

    Last edited: Jul 30, 2021
  6. GiantBeard

    GiantBeard Medium Load Member

    323
    343
    Oct 16, 2015
    Petaluma/Indio, CA
    0
    Thanks! I'll add some 2x4s to keep them from rocking and I've got the chains through the attachment points, through the tops.
    Everything seemed so sensible when the equipment has little spots to add a chain!
    Take away the actual equipment being hauled and I realized I had a lot to learn!

    beastr123 and D.Tibbitt Thank this.
