Hub leak seal

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Ejay 0615, Sep 5, 2020.

Page 1 of 2
  1. Sep 5, 2020 #1
    Ejay 0615

    Ejay 0615 Bobtail Member

    11
    8
    Sep 5, 2020
    0

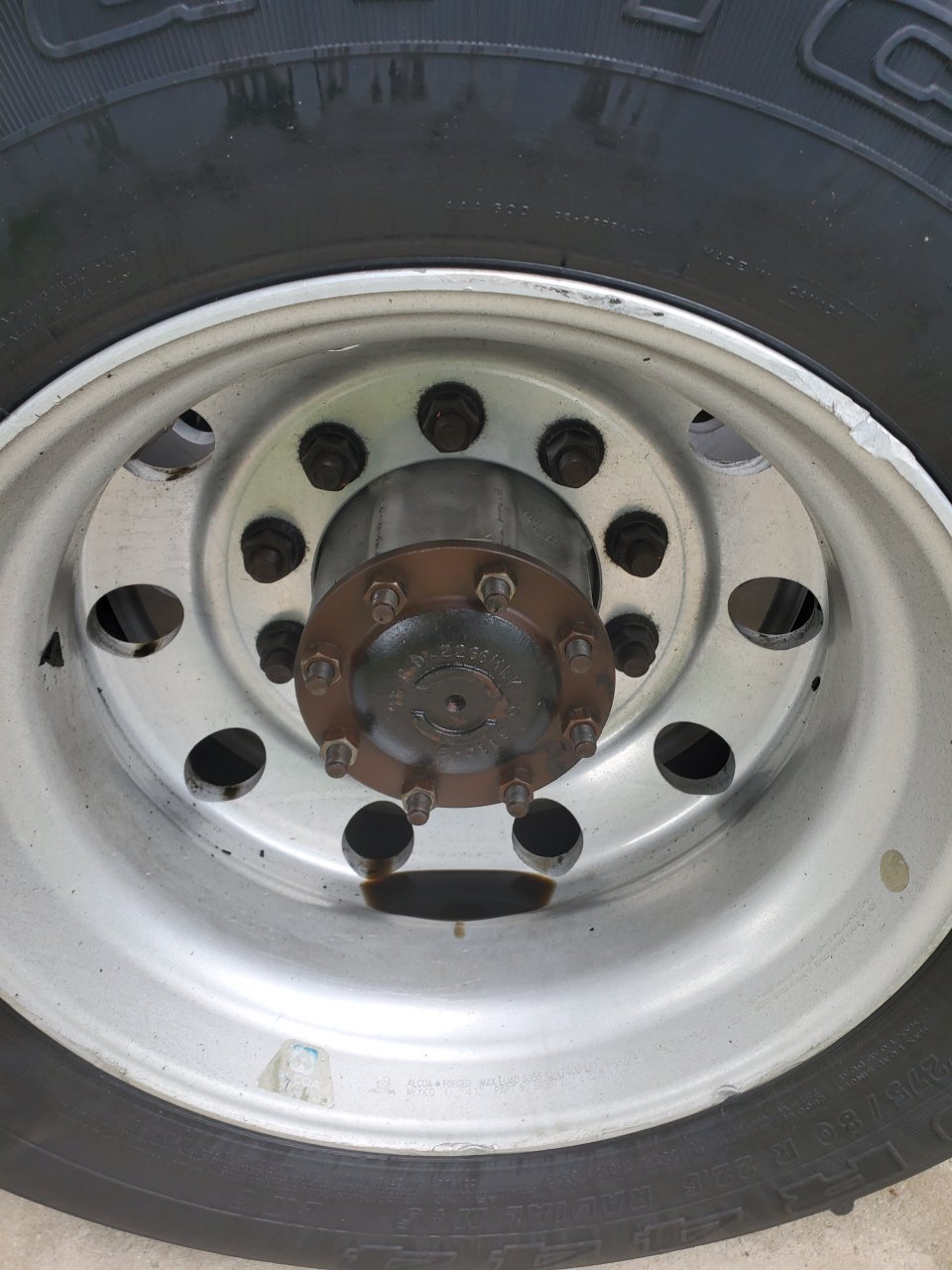

    Posted a photo of my drive wheel it has a leak would it be the hub seal or could it be the inner seal its a 2014 freightliner 20200830_125152.jpg 20200830_125152.jpg

    Ejay 0615, Sep 5, 2020
    Ejay 0615, Sep 5, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Sep 5, 2020 #2
    I glide 47

    I glide 47 Road Train Member

    1,426
    1,523
    Jun 3, 2017
    0
    Looks like the axle seal need pictures of the break shoes to see about the wheel seal.

    I glide 47, Sep 5, 2020
    I glide 47, Sep 5, 2020
    #2
  4. Sep 5, 2020 #3
    Ejay 0615

    Ejay 0615 Bobtail Member

    11
    8
    Sep 5, 2020
    0
    Will post once i get home appreciate it

    Ejay 0615, Sep 5, 2020
    Ejay 0615, Sep 5, 2020
    #3
    Rideandrepair Thanks this.
  5. Sep 5, 2020 #4
    Ejay 0615

    Ejay 0615 Bobtail Member

    11
    8
    Sep 5, 2020
    0
    It would be the outer one right not the one in the inside of the hub

    Ejay 0615, Sep 5, 2020
    Ejay 0615, Sep 5, 2020
    #4
    Rideandrepair Thanks this.
  7. Sep 5, 2020 #5
    InTooDeep

    InTooDeep Donner party survivor

    4,981
    37,363
    Jan 17, 2016
    Carmichael CA
    0
    Try to tighten up the axle bolts might have backed off mine did that once

    InTooDeep, Sep 5, 2020
    InTooDeep, Sep 5, 2020
    #5
    stillwurkin and Ejay 0615 Thank this.
  8. Sep 5, 2020 #6
    bad-luck

    bad-luck Road Train Member

    3,366
    6,225
    Nov 16, 2013
    Baltimore, Maryland
    0

    Looks like the axle seal, tighten up the bolts, see if that stops it.

    bad-luck, Sep 5, 2020
    bad-luck, Sep 5, 2020
    #6
    stillwurkin, Ejay 0615 and Rideandrepair Thank this.
  9. Sep 5, 2020 #7
    Ejay 0615

    Ejay 0615 Bobtail Member

    11
    8
    Sep 5, 2020
    0

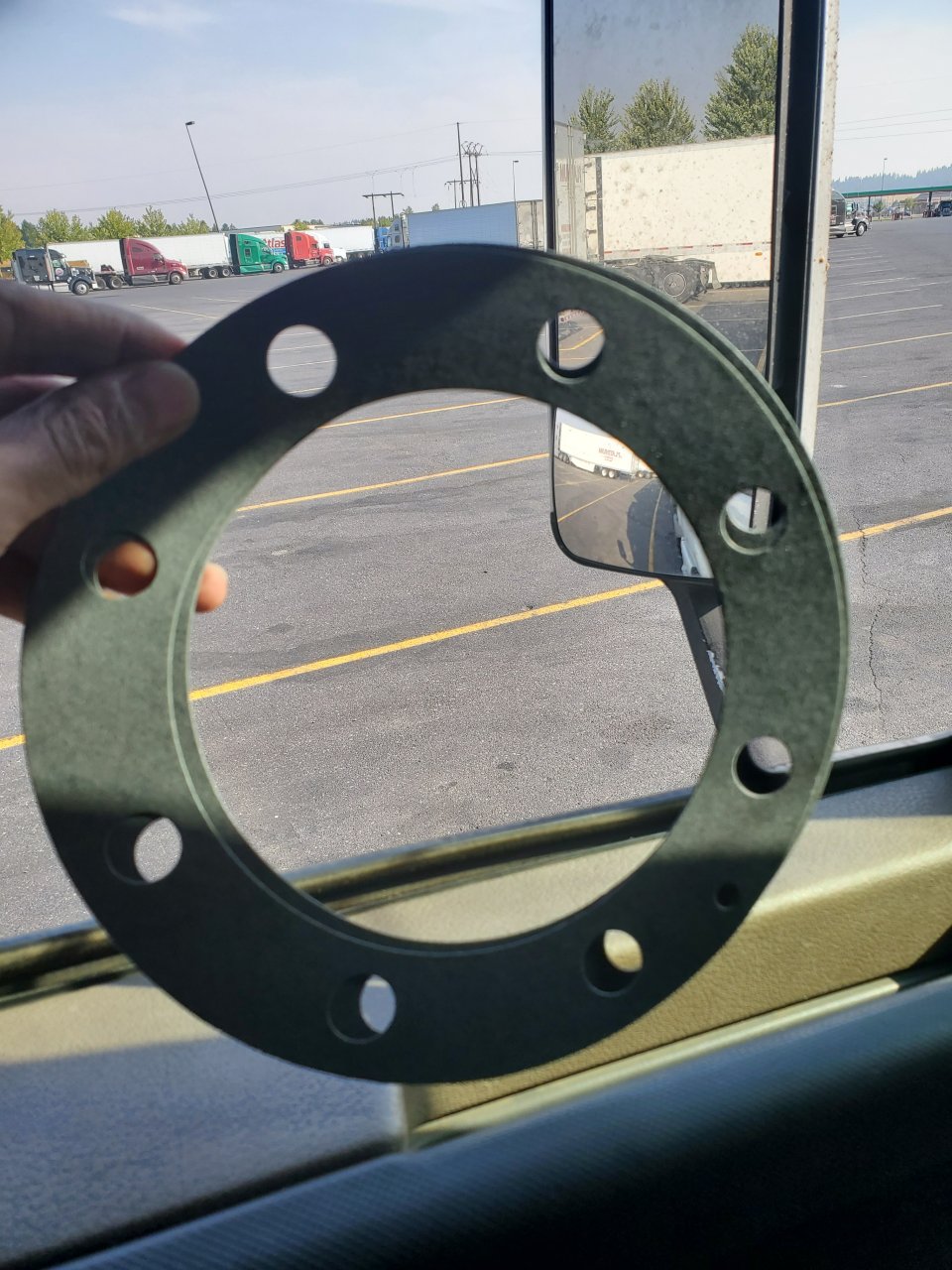

    Ejay 0615, Sep 5, 2020
    Ejay 0615, Sep 5, 2020
    #7
    Caterpillar Cowboy, stillwurkin, Dino soar and 2 others Thank this.
  10. Sep 5, 2020 #8
    Ejay 0615

    Ejay 0615 Bobtail Member

    11
    8
    Sep 5, 2020
    0
    cool once i get home i will post the brake shoes i appreciate your help

    Ejay 0615, Sep 5, 2020
    Ejay 0615, Sep 5, 2020
    #8
    Rideandrepair Thanks this.
  11. Sep 5, 2020 #9
    I glide 47

    I glide 47 Road Train Member

    1,426
    1,523
    Jun 3, 2017
    0
    Fifteen sixteenth socket and good impact 15 minutes and done then check lube level

    I glide 47, Sep 5, 2020
    I glide 47, Sep 5, 2020
    #9
    BoxCarKidd, Ejay 0615 and Rideandrepair Thank this.
  12. Sep 5, 2020 #10
    RDBG

    RDBG Medium Load Member

    309
    692
    Jun 23, 2016
    0
    I do remember they had a recall a few years ago for Freightliners that had exactly that problem from factory but I couldn't find a link.

    RDBG, Sep 5, 2020
    RDBG, Sep 5, 2020
    #10
    Ejay 0615, InTooDeep and Rideandrepair Thank this.
