Identify this style of drums and axle hubs

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mile marker 27, Mar 20, 2023.

Page 1 of 9
  1. Mar 20, 2023 #1
    mile marker 27

    mile marker 27 Road Train Member

    1,335
    1,694
    Dec 4, 2019
    0

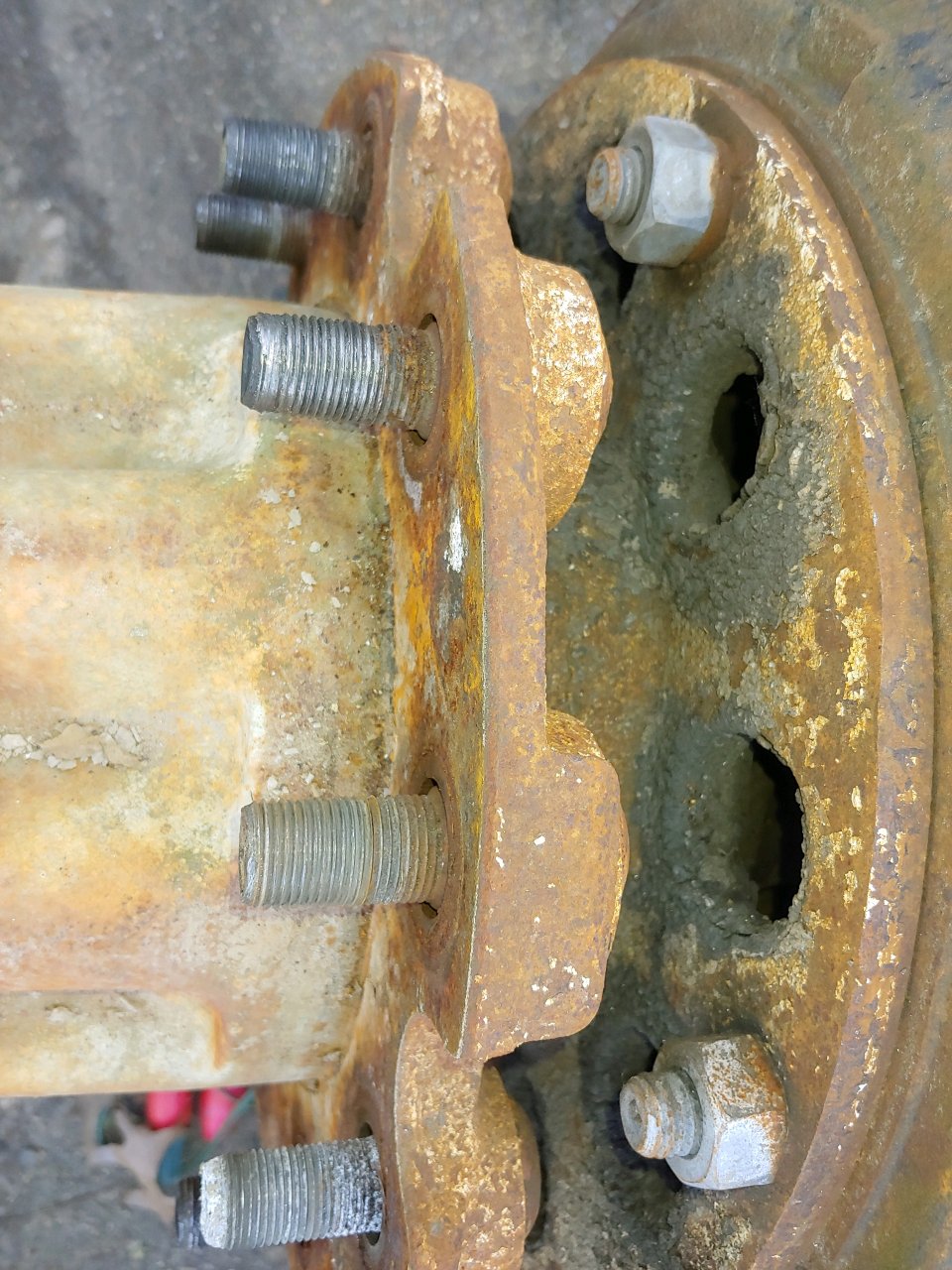

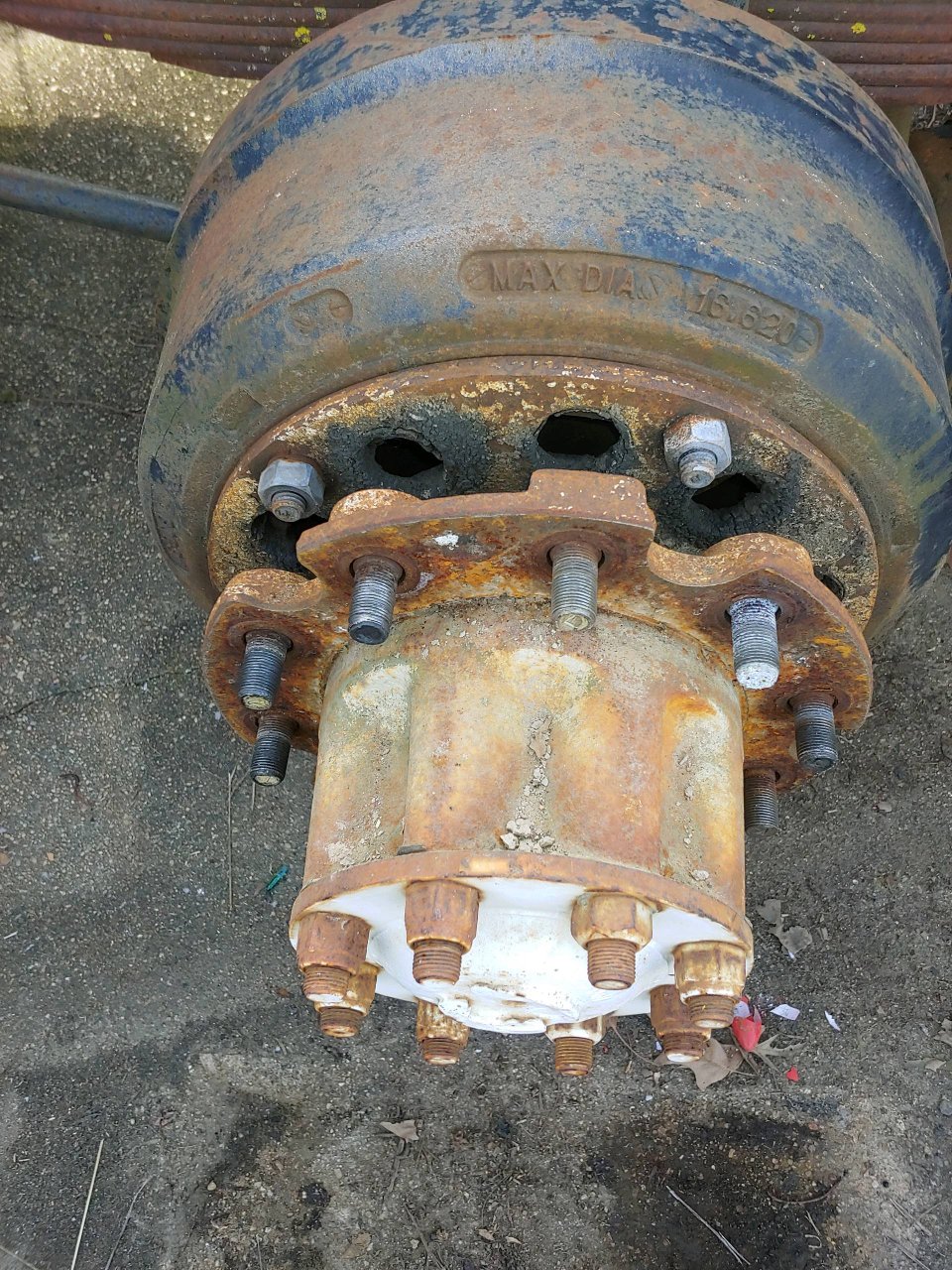

    This is a pic of my father in laws latest project. Truck is an ‘81 IH 4070B. He was wondering and I too, what style of axles, drums and hubs these are? We’ve got another 4070B but it has a different set up than this. 0A65B50F-7F1B-414F-82A0-F56CE86ECDD5.jpeg 56CB0D21-B17A-4EEE-B5A1-560ED96B39FA.jpeg

    mile marker 27, Mar 20, 2023
    mile marker 27, Mar 20, 2023
    #1
    W923 Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Mar 20, 2023 #2
    AModelCat

    AModelCat Road Train Member

    29,390
    161,300
    Jul 7, 2015
    Canuckistan
    0
    Looks like stud pilot hubs with inboard drums.

    AModelCat, Mar 20, 2023
    AModelCat, Mar 20, 2023
    #2
    W923, jamespmack, Crude Truckin' and 3 others Thank this.
  4. Mar 20, 2023 #3
    mile marker 27

    mile marker 27 Road Train Member

    1,335
    1,694
    Dec 4, 2019
    0
    Ok, is there an advantage or disadvantage? What’s the purpose?

    mile marker 27, Mar 20, 2023
    mile marker 27, Mar 20, 2023
    #3
    W923 Thanks this.
  5. Mar 20, 2023 #4
    BoxCarKidd

    BoxCarKidd Road Train Member

    4,518
    6,578
    Aug 26, 2014
    0
    But the studs look to small for that. I bet it has inner and outer lugs ( Budd ). Very odd and I have never seen that.

    BoxCarKidd, Mar 20, 2023
    BoxCarKidd, Mar 20, 2023
    #4
    Rideandrepair, W923, Jubal Early Times and 1 other person Thank this.
  7. Mar 20, 2023 #5
    Crude Truckin'

    Crude Truckin' Alien Spacecraft

    2,438
    6,796
    Oct 22, 2016
    North Dakota, Eh?
    0
    Makes it a pain in the ### to change brakes

    Crude Truckin', Mar 20, 2023
    Crude Truckin', Mar 20, 2023
    #5
    Hammer166, The Railsplitter, W923 and 3 others Thank this.
  8. Mar 20, 2023 #6
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,653
    37,338
    May 2, 2021
    0
    If it has std bearings, swap it to hub pilot. cheaper and 10x easier to service.

    Big Road Skateboard, Mar 20, 2023
    Big Road Skateboard, Mar 20, 2023
    #6
    W923 and AModelCat Thank this.
  9. Mar 20, 2023 #7
    BoxCarKidd

    BoxCarKidd Road Train Member

    4,518
    6,578
    Aug 26, 2014
    0
    And they are left hand thread and short. No way they a hub piloted.

    BoxCarKidd, Mar 20, 2023
    BoxCarKidd, Mar 20, 2023
    #7
    Rideandrepair and W923 Thank this.
  10. Mar 20, 2023 #8
    BoxCarKidd

    BoxCarKidd Road Train Member

    4,518
    6,578
    Aug 26, 2014
    0
    Something usually goes wrong when I try something like that but it would be nice.

    BoxCarKidd, Mar 20, 2023
    BoxCarKidd, Mar 20, 2023
    #8
    Rideandrepair, RockinChair and Big Road Skateboard Thank this.
  11. Mar 20, 2023 #9
    jamespmack

    jamespmack Road Train Member

    20,033
    216,319
    Mar 25, 2014
    OH
    0

    I've worked on alot of different things, with a good amount of old IH experiences. Never seen this. But I have a thought. 80's they built some trucks with disc brakes. Could this be the original disk, converted back to drum?

    Never seen one in person. Heard descriptions. Seen trailers converted back. Never seem the trucks in person.

    Idk, this is only my thoughts.

    jamespmack, Mar 20, 2023
    jamespmack, Mar 20, 2023
    #9
    homeskillet, W923, mile marker 27 and 1 other person Thank this.
  12. Mar 20, 2023 #10
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,653
    37,338
    May 2, 2021
    0
    Yeah, may not be possible with that one, never seen one. I have swapped plenty of budd's and spoke hubs to hub pilot on trucks and trailers.

    Big Road Skateboard, Mar 20, 2023
    Big Road Skateboard, Mar 20, 2023
    #10
