Identifying a switch on the dash of my 389

Discussion in 'Peterbilt Forum' started by Josiah Harder, Dec 5, 2022.

  1. Josiah Harder

    Josiah Harder Bobtail Member

    35
    18
    Sep 23, 2022
    0

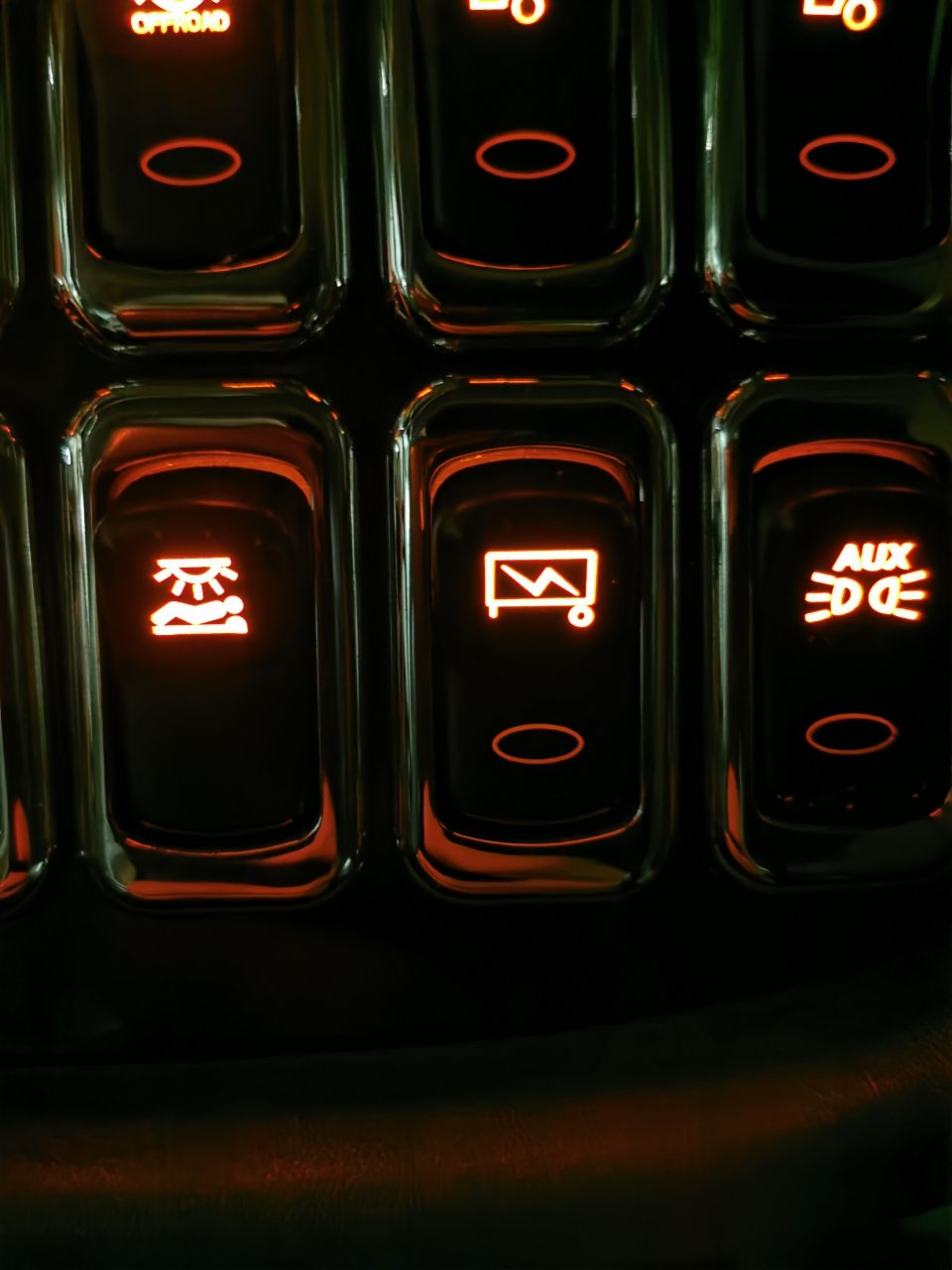

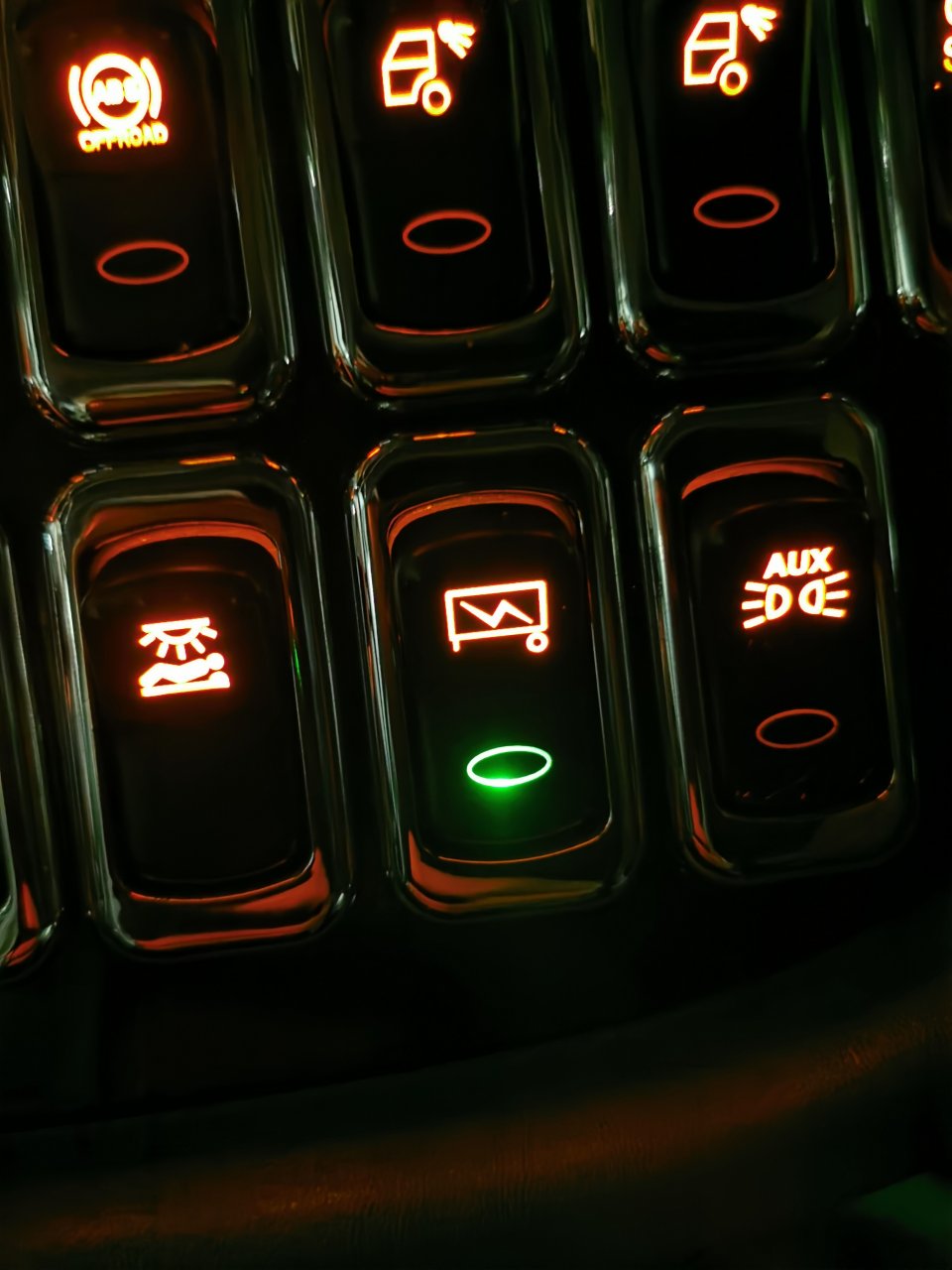

    Could someone let me know what this switch does? Looks like something to do with the trailer but I don't notice it do anything. I did notice when I use my brakes it lights up green though


    Attached Files:

    D.Tibbitt Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Lyle H

    Lyle H Heavy Load Member

    982
    2,017
    Apr 16, 2014
    0
    It’s a trailer hot line switch. It provides power to the center post of your pigtail. It’s used to supply power for your trailer Abs.
    Newer trucks have this post hot all the time and don’t have this switch normally.
    The reason it lights up when you hit your brakes is because the brake circuit provides power to the abs if the center post is not hot.
    I could be wrong, but I don’t think so.

  4. Josiah Harder

    Josiah Harder Bobtail Member

    35
    18
    Sep 23, 2022
    0
    Thanks Lyle. Should I be running with it on then? Because I've always had it off

  5. Lyle H

    Lyle H Heavy Load Member

    982
    2,017
    Apr 16, 2014
    0
    I would run with it on. Because that way you’re getting power to your ABS on the trailer at all times. Otherwise, the only time he gets power is when you step on the brakes. A good way to check would be take a test light to that center post of your pigtail coming out of the tractor and see if it gets hot when you flip that switch on and goes dead when you turn the switch off.

    Crude Truckin' Thanks this.
  6. Tall Mike

    Tall Mike Road Train Member

    6,466
    29,362
    Aug 20, 2014
    Upstate New York
    0
    That switch in my truck will raise and lower the front axel on our tanker trailers..

    D.Tibbitt Thanks this.
  7. Lyle H

    Lyle H Heavy Load Member

    982
    2,017
    Apr 16, 2014
    0
    With that switch turned off your trailer ABS light should come on for a brief second when you press the brakes .That will also verify what that switch does.

    Oxbow Thanks this.
  8. Lyle H

    Lyle H Heavy Load Member

    982
    2,017
    Apr 16, 2014
    0
    Since he mentioned, the light comes on when he touches the brakes that made me assume it was for the ABS hot wire. It could be used as a spare in certain situations like yours.

    Oxbow Thanks this.
  9. Josiah Harder

    Josiah Harder Bobtail Member

    35
    18
    Sep 23, 2022
    0
    Okay yes that does happen and I had the trailer in 2 shops because I thought there was a problem with the abs since the light would come on when I brake haha

  10. RocketScott

    RocketScott Medium Load Member

    502
    753
    Apr 10, 2013
    Kentucky
    0
    The switch of the left is for the tanning bed

  11. Josiah Harder

    Josiah Harder Bobtail Member

    35
    18
    Sep 23, 2022
    0
    Hahahaha yeah obviously
