Impeller removal isx15 cm2350

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Bias_racing, Dec 11, 2020.

  1. Bias_racing

    Bias_racing Light Load Member

    91
    55
    Aug 4, 2019
    0
    I bought a new water pump and its been updated. The impeller side has a conical shape to the end of it now and it doesnt fit into the old housing. If i start to finger tighten the bolts then i cannot freely spin the pulley.
    Does anyone have the procedure on pulling the impeller?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Heavyd

    Heavyd Road Train Member

    7,812
    6,265
    Feb 4, 2009
    0
    I have never needed to do this. Are you sure it is the right pump?

    p608, Goodysnap, spsauerland and 2 others Thank this.
  4. Bias_racing

    Bias_racing Light Load Member

    91
    55
    Aug 4, 2019
    0
    Vin serial number all that was given at international. They said rhe part was updated

  5. baha

    baha Road Train Member

    4,137
    2,837
    Jul 25, 2013
    ga
    0
    Take it back and get the right part that fits you motor?

    Bias_racing Thanks this.
  6. Bias_racing

    Bias_racing Light Load Member

    91
    55
    Aug 4, 2019
    0

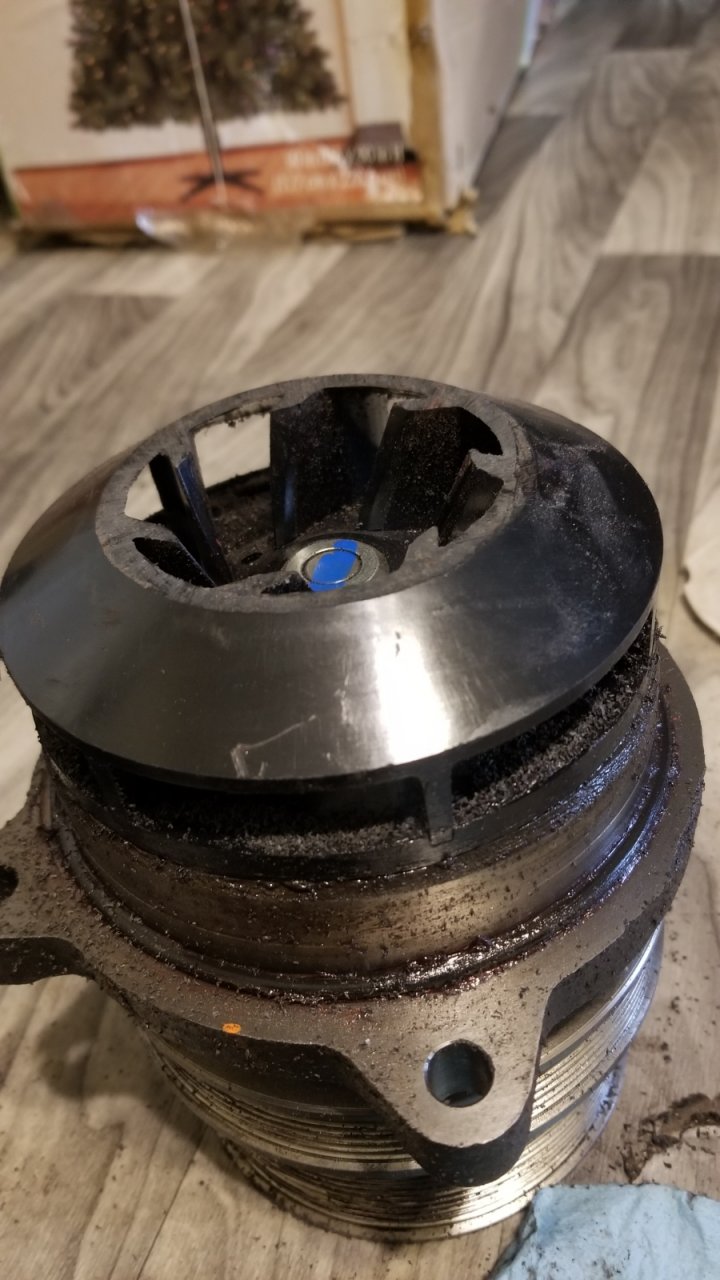

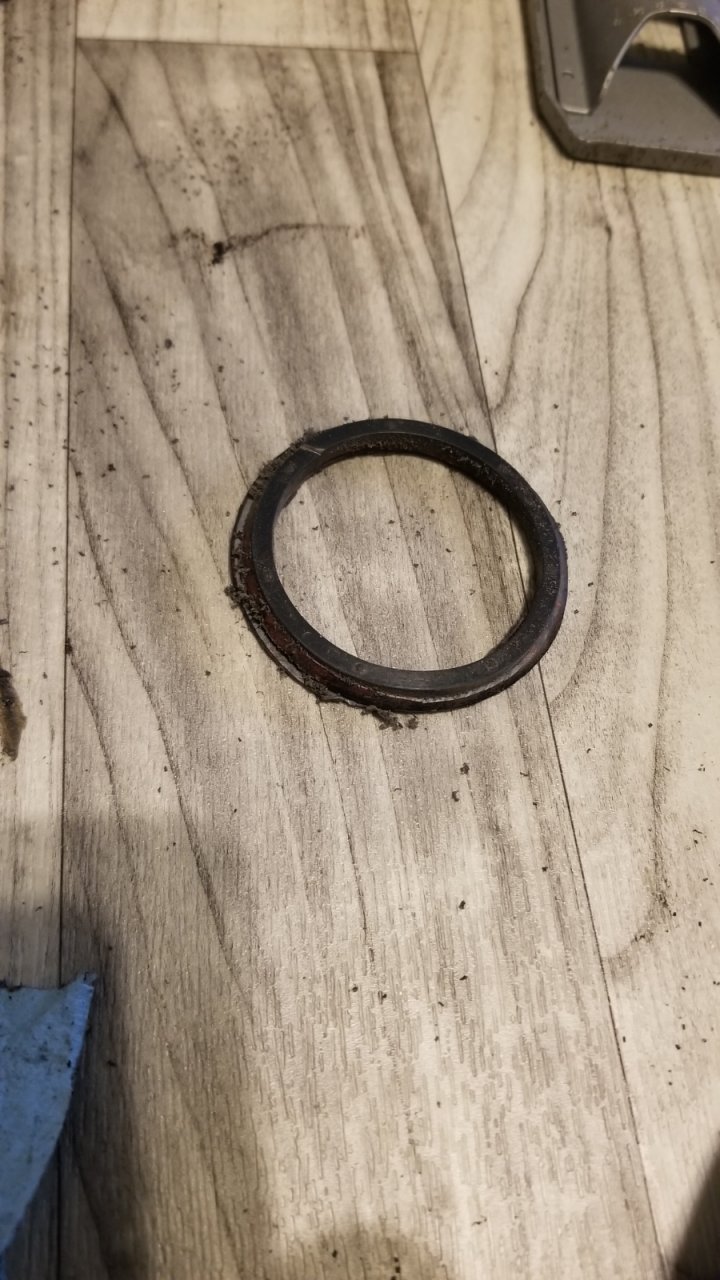

    Resized_20201211_124931(1).jpeg Resized_20201211_124926(1).jpeg 20201211_161119.jpg i just cut it. ‍♂️ now i just cut the conical part off. Cross fingers and sent prayers. Shes warning up now.

  7. Bias_racing

    Bias_racing Light Load Member

    91
    55
    Aug 4, 2019
    0
    Easier said than done. National back order. Found the only one. Already missed three days of running. Next week will suck as is.

    baha and spsauerland Thank this.
  8. spsauerland

    spsauerland Road Train Member

    4,296
    10,891
    May 31, 2010
    West Harrison, In
    0
    Cummins obsoleted a couple water pumps on the X's. I am overhauling an CM871 ISX @ the moment and asked for the cartridge. It superceded to the new complete unit. Put it on and water pipe to EGR supply did connect right due to step machined in W/P housing. Read TSB and it required new pipe, which was straight from India.

    pushbroom Thanks this.
  9. Bias_racing

    Bias_racing Light Load Member

    91
    55
    Aug 4, 2019
    0
    Right.
    Pretty much the same deal. Wp doesn't come separately from the housing now. I dont have the tools to do the housing because one of the bolts appears to be behind the cs pulley. I dont have the funds to purchase a new cs pulley quite honestly. Also dont have the help to remove the cooler and radiator if i have the tools. So, I cut it. Hopefully that does the trick. She ran just now. Small leak the #### oring poked out the bottom smh. So gotta pull it reseat the o ring if its in good shape or replace it with the old one and see how she does his time. Has a slight squeal to it. Not sure if the belts wet or something else. Guess we'll see in a few.‍♂️

    baha Thanks this.
  10. God prefers Diesels

    God prefers Diesels Road Train Member

    4,198
    22,264
    Jun 26, 2020
    South Texas
    0
    F'n Cummins...
