ISX Cummins fuel actuator gasket not sealing HELP

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Bigtruckdrivah, Nov 22, 2020.

  1. Bigtruckdrivah

    Bigtruckdrivah Light Load Member

    67
    37
    May 31, 2020
    0
    Had a real small diesel leak over the last few months, like Barely making the starter wet afte a few weeks. Narrowed it down to the 2 actuators on the right side. Ordered gaskets from Vander Haags for all 4 actuators, they come in a package with “interstate-Mcbee” on it instead of Cummins.
    Installed on all 4, had 2 leaking BAD! Like a fkn sprinkler when I try to start the truck. Pulled the leaking ones off and it looks like I had the new gasket off center some. Put old gasket back on retorqued and 1 sealed up but the other is still seeping slowly. Is there a truck to this? Should go grab some Cummins gaskets and try again?

    I don’t suspect anything from injectors, I do oil analysis every change at 15k and it looks great nothing unusual. And truck idles and runs great. Any advice????? I’m panicking! Gotta load booked for tomorrow ugh

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Goodysnap

    Goodysnap Road Train Member

    2,144
    4,765
    Jul 12, 2017
    0
    Are you certain they are leaking from the actuator mounting? Leaking out the electrical connectors is also extremely common. Dry it up and pinpoint the exact starting point of the leak.

  4. Dave_in_AZ

    Dave_in_AZ Road Train Member

    27,431
    104,971
    May 4, 2015
    0
    My experience with my ISX is use only Cummins parts.

  5. Bigtruckdrivah

    Bigtruckdrivah Light Load Member

    67
    37
    May 31, 2020
    0
    When I blow air on it while it’s running, I can see it coming from behind the actuator where the gasket meets the housing. I didn’t know the electrical connectors could leak though!

  6. Bigtruckdrivah

    Bigtruckdrivah Light Load Member

    67
    37
    May 31, 2020
    0
    I sure hope so. Tomorrow I’m heading there first thing to grab some. Just curious if anyone had a similar issue

    Dave_in_AZ Thanks this.
  7. Bigtruckdrivah

    Bigtruckdrivah Light Load Member

    67
    37
    May 31, 2020
    0
    This is the style I have. Should I be using the o rings instead of metal gaskets??


    Attached Files:

  8. Bigtruckdrivah

    Bigtruckdrivah Light Load Member

    67
    37
    May 31, 2020
    0

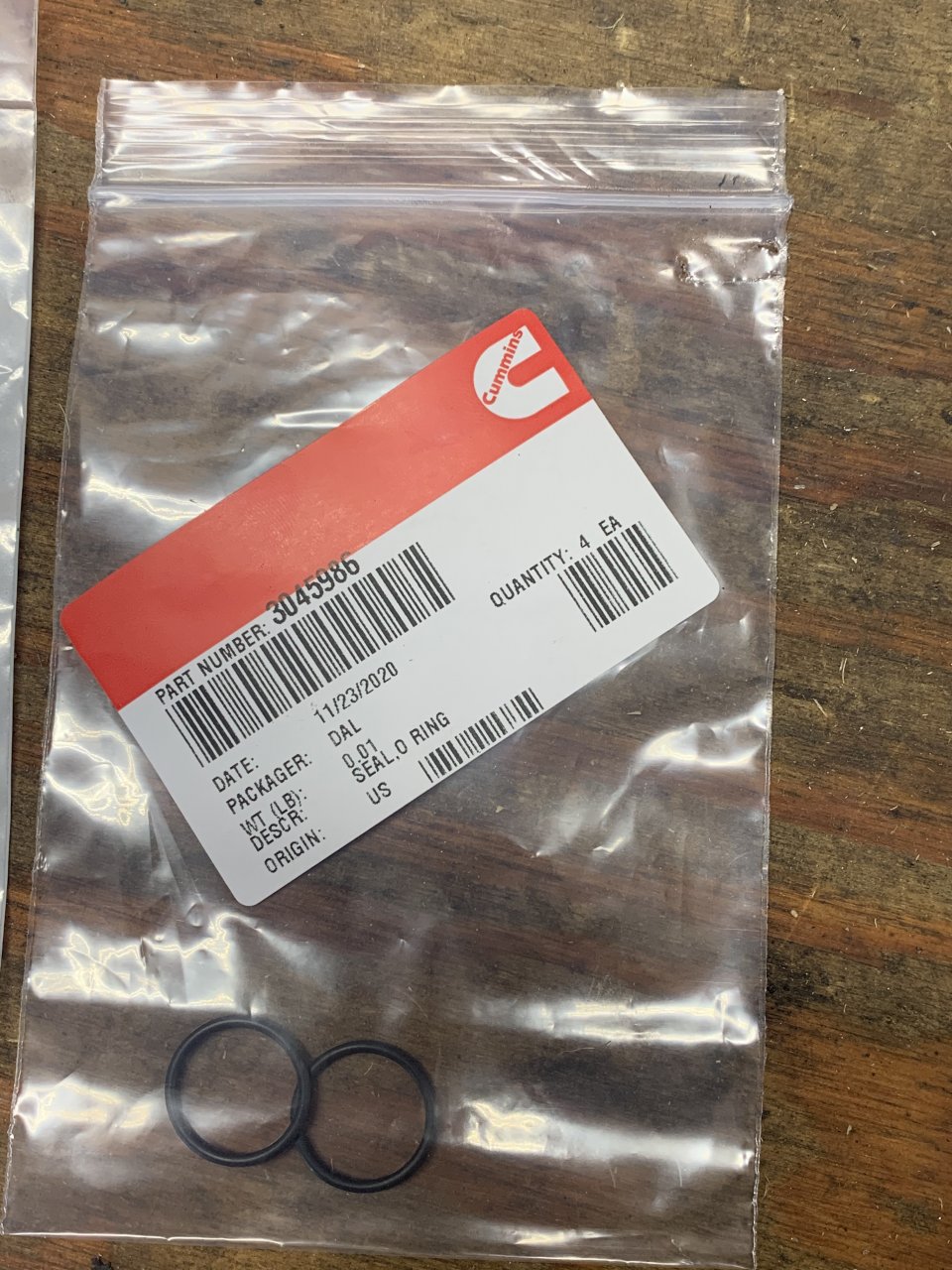

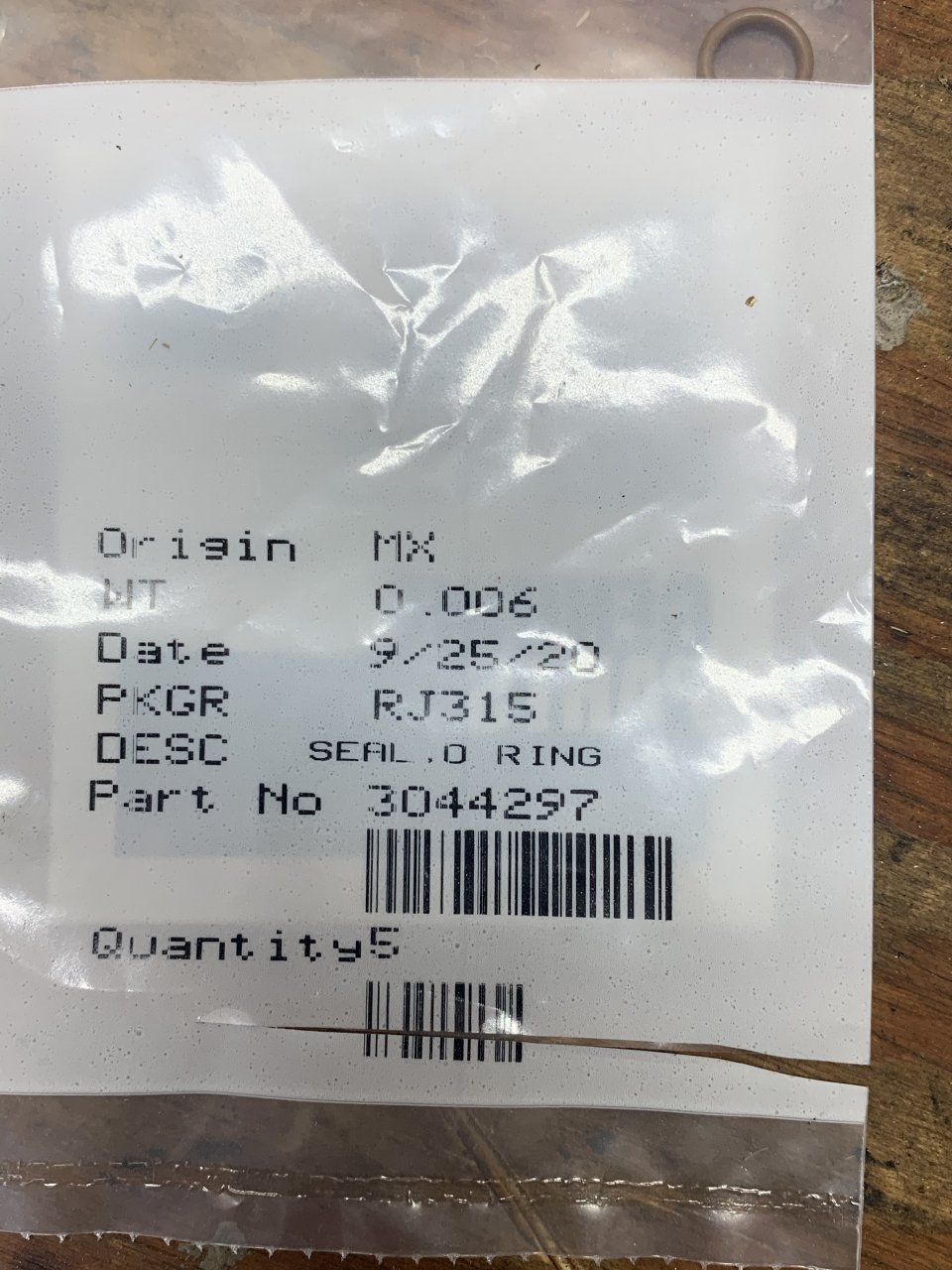

    Got it sealed up. If your actuators are flat with no recess, you need to use metal gaskets. If they have recesses like mine you need o rings. Part #’s below


    Attached Files:

    Dave_in_AZ Thanks this.
