Kenworth T800 lift axle/marker light

Discussion in 'Ask An Owner Operator' started by Bradford338, Dec 19, 2024.

  1. Bradford338

    Bradford338 Bobtail Member

    12
    1
    Nov 23, 2024
    0
    Hey guys I have a 2019 Kenworth T-800 tri axle, from factory the trailer lift axle switch is tied to the marker lights, I got the dash pulled apart and I can’t see any aftermarket wiring done to the switch it all looks pretty factory. How ya’ll reckon I go about figuring out which wire going to the marker switch is the signal wire for the lift axle..

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Ridgeline

    Ridgeline Road Train Member

    22,389
    116,347
    Dec 18, 2011
    Michigan
    0
  4. Bradford338

    Bradford338 Bobtail Member

    12
    1
    Nov 23, 2024
    0

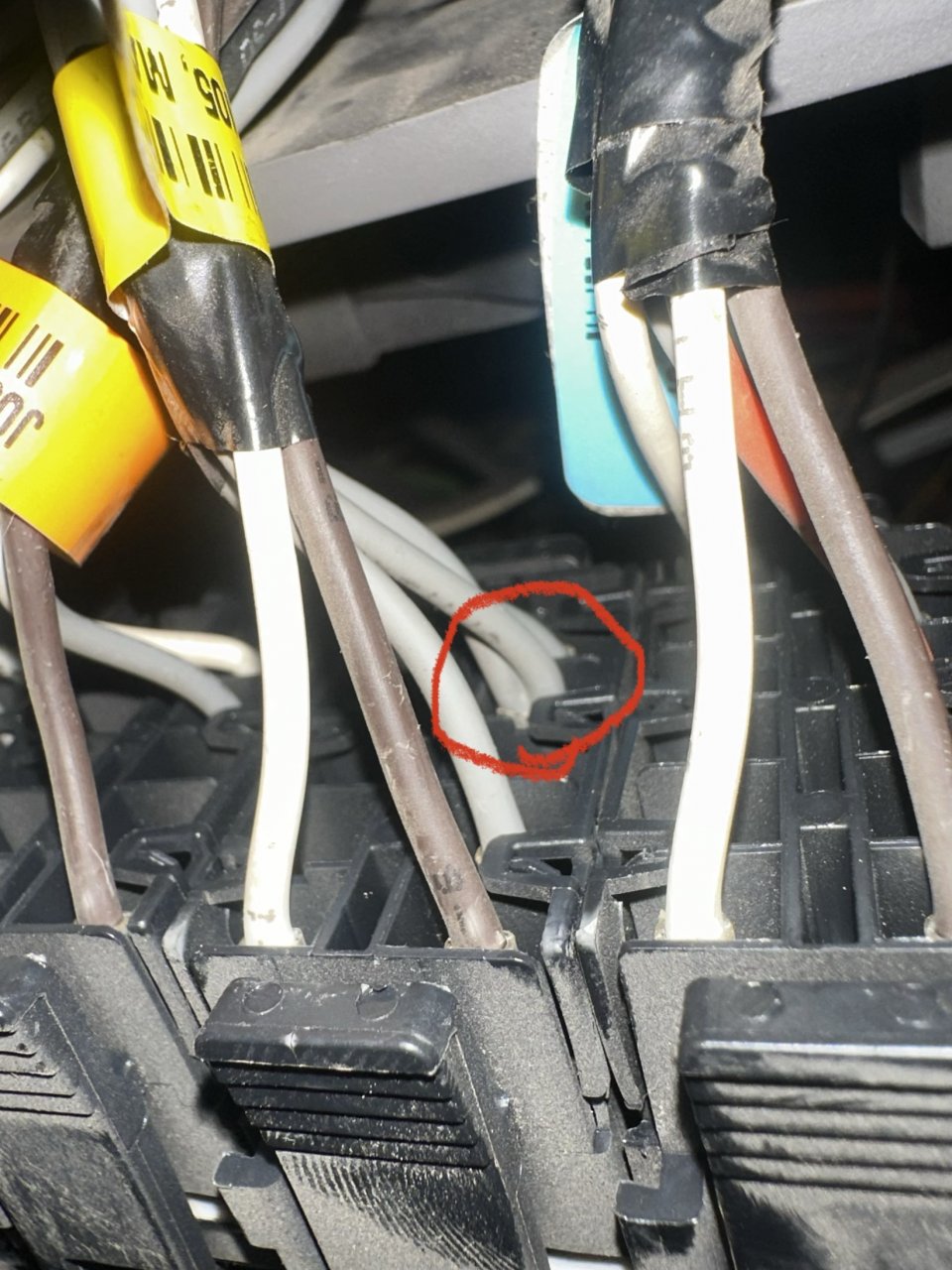

    RenderedImage.jpeg Hey thanks for link! I saved that to my phone that’s gonna be helpful! The truck was outfitted by G&F truck bodies I don’t think they are in business anymore so I can’t contact them, I pulled the dash open this morning and found that the marker light switch in question didn’t have any obvious signal wire’s, although I did notice the only difference between the marker switch that controls the trailer lift axle had from the rest of the switches was the one circled connection where 2 wires are butted into one pin connection. Maybe 1 of those 2 wires is the signal wire I need to isolate.. I bought a factory trailer lift axle switch and I wanna get it wired in.

  5. Ridgeline

    Ridgeline Road Train Member

    22,389
    116,347
    Dec 18, 2011
    Michigan
    0
    they are still in business.

  6. Bradford338

    Bradford338 Bobtail Member

    12
    1
    Nov 23, 2024
    0
    No they aren’t.
