Ok will take a pic of it hopefully u still around. If I disconnect all the lines from the chamber it would have to be that one you think?
Leaking air when I press the gas and when I release service brake
Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by stylez80Nine, Jul 20, 2024.
Page 2 of 3
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
Yes. To verify, you can pull the small air line off that runs from the quick release valve to the ABS valve. If you release the brakes, and air leaks out from the QR valve side, the QR valve is bad.
Very simple to check. Should be the air line goung to the top of the QR valve, usually on a 90* fittingxsetra Thanks this. -
Will check now thanks.
-

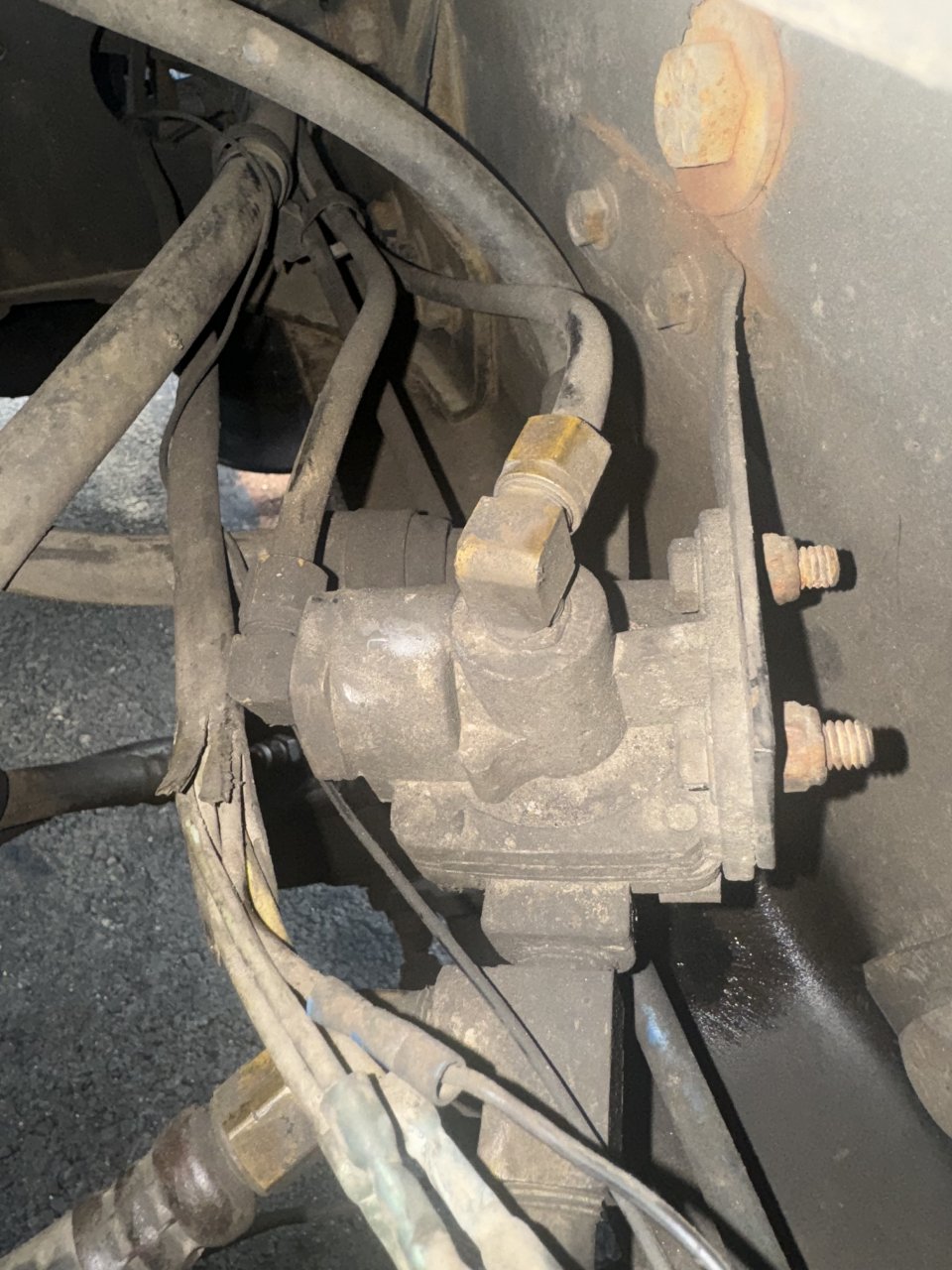

Is this the one you’d speaking off and to removes those two small line? Again thank you so much for the help.
Attached Files:
-
-
I also remove this lines of all the chambers to see if they wet the issue but it still does it.
-
Take a pic of what lines you've removed if you don't mind
-
Hey so I disconnected like you said and air is coming in on 1 (photo provided ) and coming of 2 does that mean it’s bad?
-
Air is coming in on 1 and leaving on 2
Attached Files:
-
-
Sorry for all the reply and when I cover 2 with my finger it stop leaking.
-
Air should not be coming out the top port
