low pressure air alarm not working properly, ADVICE APPRECIATED

Discussion in 'Trucks [ Eighteen Wheelers ]' started by TowHaul, Dec 17, 2017.

  1. TowHaul

    TowHaul Medium Load Member

    Joined:
    Mar 7, 2016
    Messages:
    416
    Thanks Received:
    79
    0
    They do and both replaced but only the primary sends a signal to dash to activate dash VERY QUIET buzzer. It will not activate the large buzzer i found only switching on the dump switch willnsend full 12v power to buzzer a and lownpressure light below dash

  2. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,472
    Location:
    Possum Booger, Alabama
    0
    You probably have the same dash cluster that I have in my Columbia. The low air warning is a very simple circuit. One single wire out of the cluster, RH connector, cavity B3. The wire, at least on my ‘07, is labled as circuit 18 (printed on the wire) and goes from cavity B3 on the ICU (instrument cluster), to one terminal on the primary air switch.

    Then from the other terminal on the primary air switch to a terminal on the secondary air switch, labled as circuit 18a.

    And finally, from the second terminal on the secondary air switch, to ground... labled GND.

  3. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,472
    Location:
    Possum Booger, Alabama
    0
    Take a picture of the instrument cluster and post it here. Then remove it and take a picture of the connectors on the back.

  4. TowHaul

    TowHaul Medium Load Member

    Joined:
    Mar 7, 2016
    Messages:
    416
    Thanks Received:
    79
    0
    Yes my wire is 18b only 10.5 volts are produced by it....thats the problem.



  5. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,472
    Location:
    Possum Booger, Alabama
    0
    Ignore the small backfeed voltage on the circuit. Mine has the same thing when it is operating normally.

  6. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,472
    Location:
    Possum Booger, Alabama
    0

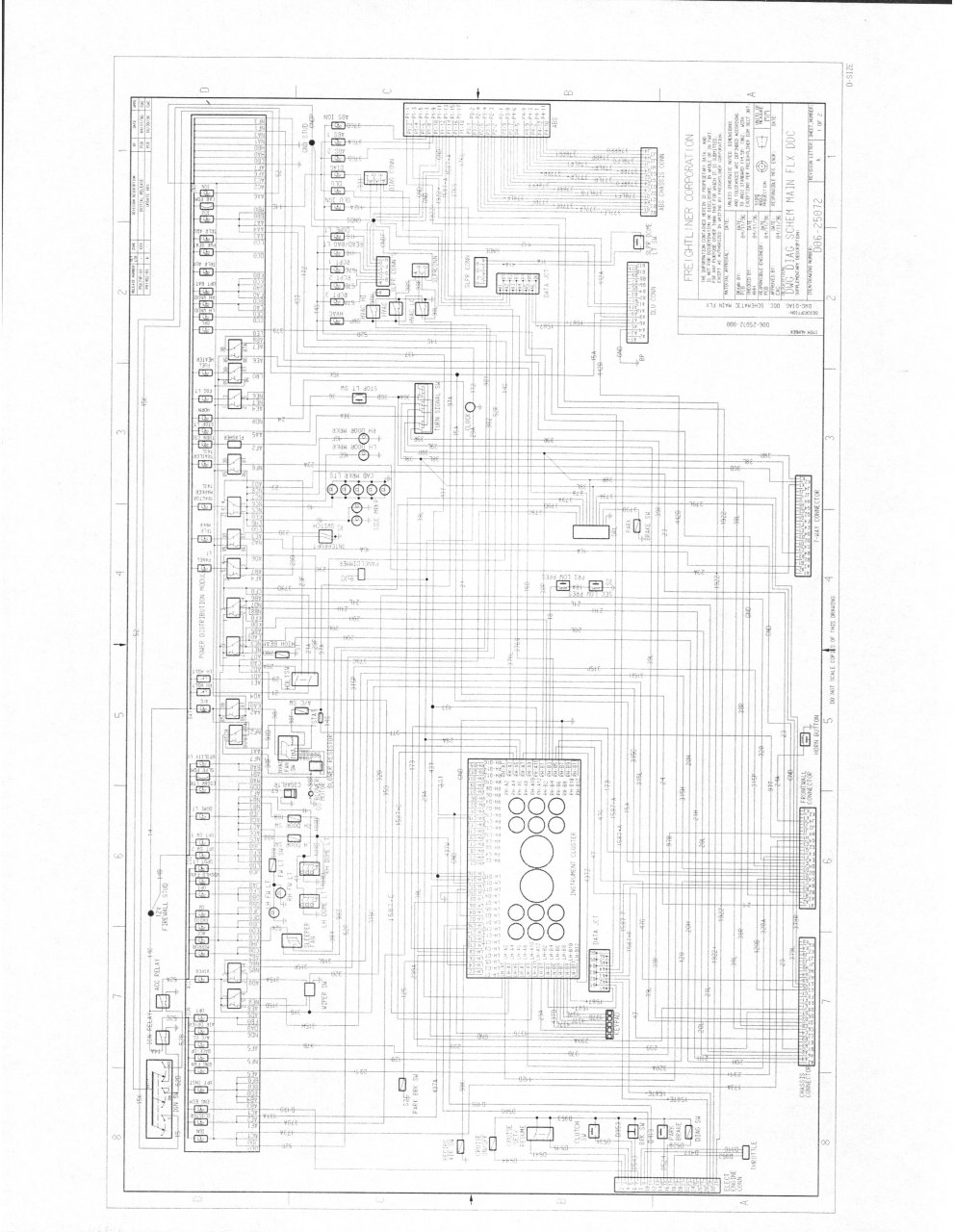

    Here's the schematic for my truck. Yours should be similar.


    TowHaul Thanks this.
  7. TowHaul

    TowHaul Medium Load Member

    Joined:
    Mar 7, 2016
    Messages:
    416
    Thanks Received:
    79
    0
    Yesterday intapped into that wire and ran to buzzer and lownpressure light under dash. Not enough volts to activate...so i bought a relay which also doesnt wprk

  8. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,472
    Location:
    Possum Booger, Alabama
    0
    Nevermind... the quality got degraded when I uploaded. I'll scan it again and upload it to my web server and you can download it there.

    TowHaul Thanks this.
  9. TowHaul

    TowHaul Medium Load Member

    Joined:
    Mar 7, 2016
    Messages:
    416
    Thanks Received:
    79
    0
    THANKS

  10. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,472
    Location:
    Possum Booger, Alabama
    0
    Let me make some coffee and I'll explain how to bypass all the factory wiring and rewire it to work correctly. Sometimes it's faster that way.
