Marker lights don't work, turn signals do?

Discussion in 'Trucks [ Eighteen Wheelers ]' started by bigNATURE, Jan 9, 2015.

Page 3 of 4
  1. Jan 9, 2015 #21
    bigNATURE

    bigNATURE Medium Load Member

    304
    86
    May 5, 2013
    Texas city, tx
    0
    10-4. That's exactly what i was thinking... I been doing a lot of wiggling back there, no luck just yet but I'm not giving up.

    bigNATURE, Jan 9, 2015
    bigNATURE, Jan 9, 2015
    #21
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jan 9, 2015 #22
    skateboardman

    skateboardman Road Train Member

    6,232
    5,706
    Jan 14, 2012
    flatbed heaven
    0
    have you unplugged cord from the tractor?

    skateboardman, Jan 9, 2015
    skateboardman, Jan 9, 2015
    #22
  4. Jan 10, 2015 #23
    peterbilt_2005

    peterbilt_2005 Medium Rare

    3,906
    29,189
    May 4, 2013
    Commie-fornia come visit we have C. A. R. B
    0

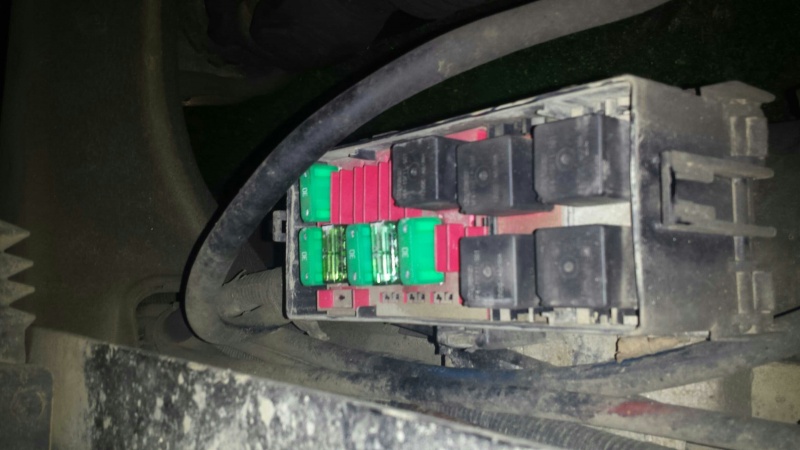

    I have a,387. Also. On your frame rail driverside just below cab. Between 5th wheel and cab. uploadfromtaptalk1420866398089.jpg uploadfromtaptalk1420866483183.jpg Is your fuse box for trailer. Top of first column is 3 30 amp fuses. As well as on on right side top. I went through 5 fuses to find a wire in trailer rail was grounding out on the trailer. If any are blown. Its a short in trailer wire.

    peterbilt_2005, Jan 10, 2015
    peterbilt_2005, Jan 10, 2015
    #23
    bigNATURE Thanks this.
  5. Jan 10, 2015 #24
    bigNATURE

    bigNATURE Medium Load Member

    304
    86
    May 5, 2013
    Texas city, tx
    0
    thank you for taking and sharing that picture! I will keep that in mind.

    i seemed to have fixed it tho. I did so many random things yesterday while troubleshooting, and one if not all of them worked.

    i replaced the bulb on my driver side cab just under my door, it actually went out went I was messing around down there taking each bulb out to test the circuit. That bulb may have been the culprit...,

    i also replaced the turn signal switch ($120) as suggested, and that didn't seem to fix it at first, but after setting all night, maybe it calibrated itself and played a part in fixing the circuit.

    i sanded down the electrical connection on the tractor side on trailer side pigtail hookups.

    it was still 7 degrees when I woke up this morning, not -8 like it had been, that may or may not have played a part.

    i prayed, lol, seriously, just on some meditation and listening to the most high. Yes sir.

    And I've run my lights off and on all day today, there's no voltage jumping, and all is brighter and stronger than before. I even left them on for over 3 hours earlier in the day, and just drove with them to get to where I am stopping for the night.

    Thanks to all that helped, I really appreciate it, maybe this will help someone else out there...

    bigNATURE, Jan 10, 2015
    bigNATURE, Jan 10, 2015
    #24
  7. Oct 31, 2015 #25
    Navimgn

    Navimgn Bobtail Member

    8
    0
    Oct 31, 2015
    0
    I'm going nuts with the similar problem, my clearance lights on trailer went out, everything else is working fine, I spent the whole day looking for that fuse box and didn't find it, I've been looking everywhere, I've tried to follow cable from plug, and still no box :'( . Does anybody had the same problem, any suggestions? Model is 387 2007.

    Navimgn, Oct 31, 2015
    Navimgn, Oct 31, 2015
    #25
  8. Apr 19, 2016 #26
    joealbergo

    joealbergo Bobtail Member

    19
    0
    Jul 29, 2009
    Chicago, IL
    0
    When you say you had found the turn signal switch to the be the problem? How were you able to establish that it was? Was it bad or broken or some how tested and you had the result? Looking for some help on my 2000 Freightliner Century Classic - Thank you.

    joealbergo, Apr 19, 2016
    joealbergo, Apr 19, 2016
    #26
  9. Feb 1, 2019 #28
    vgtrucker

    vgtrucker Bobtail Member

    1
    0
    Feb 1, 2019
    0
    i have a 2015 peterbilt model 579 with the two light on the side of the hood and the two turning signal also runing light it do thr turning signal but not the runing light, what can be the problem

    vgtrucker, Feb 1, 2019
    vgtrucker, Feb 1, 2019
    #28
  10. Feb 1, 2019 #28
    Phumac

    Phumac Light Load Member

    62
    32
    Jun 4, 2014
    0
    Had a simpler issue.mine was just a blown fuse

    Phumac, Feb 1, 2019
    Phumac, Feb 1, 2019
    #28
  11. Apr 7, 2021 #30
    Fernando A

    Fernando A Bobtail Member

    2
    0
    Apr 7, 2021
    0
    I have a 2016 KW T680 i don’t have Brake lights or any lights..
    Only thing working is signal lights on my Chassis

    Fernando A, Apr 7, 2021
    Fernando A, Apr 7, 2021
    #30
