MINI SPLIT SYSTEM INSTALL

Discussion in 'Ask An Owner Operator' started by harold6091, Jul 25, 2021.

  1. harold6091

    harold6091 Light Load Member

    102
    92
    Dec 25, 2018
    0
    Not issue related. Just my setup that i did this weekend to reduce IDLE time

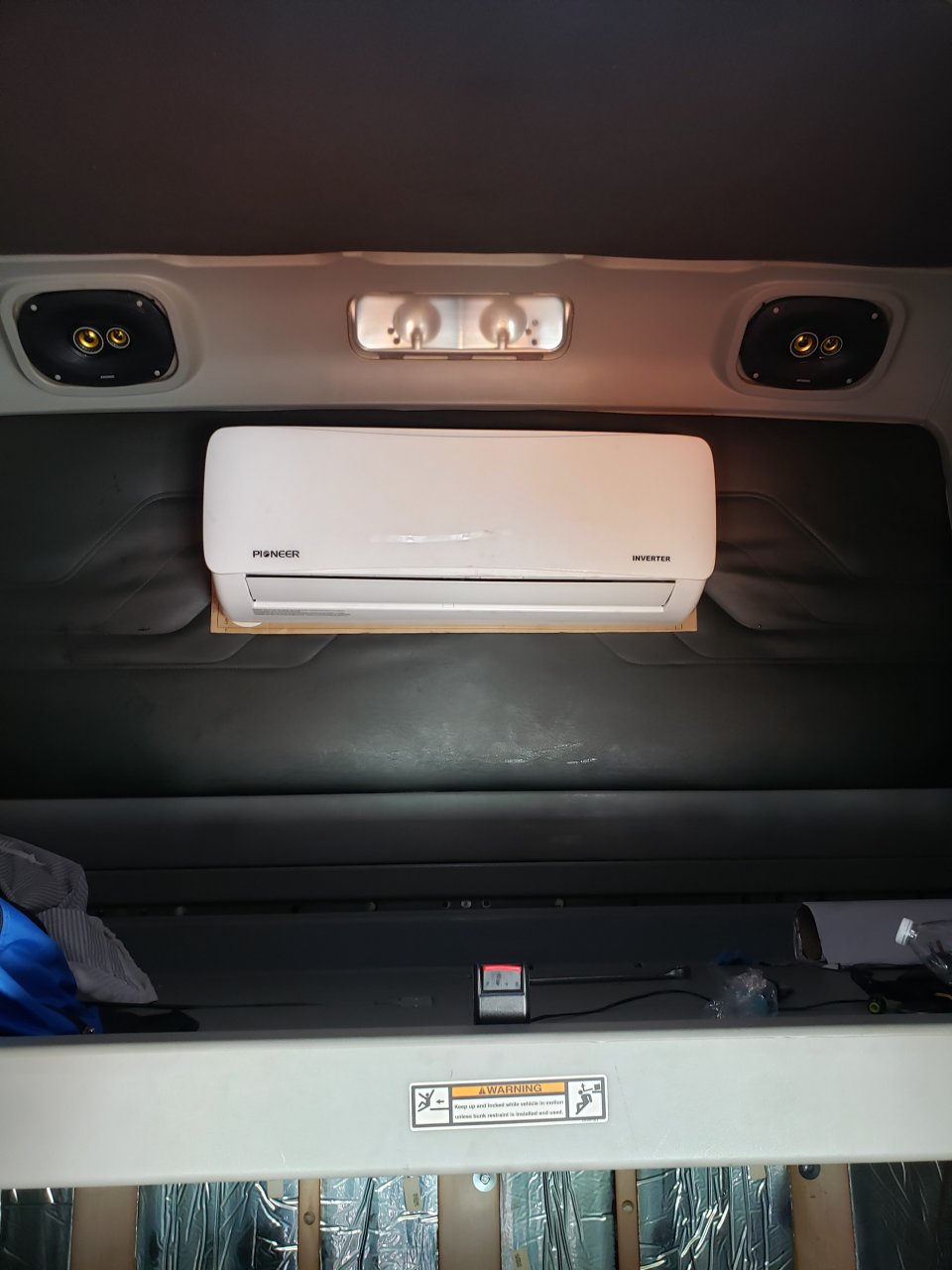

    So here is my setup. I still gotta do some details but it is fully up and running. For this I got

    Ryobi inverter generator 2300 $700
    12,000 btu Pioneer mini split with heat pump. $800

    unit consumes up to 1100 watts and because it is a soft start, it does not peak.

    Inside, it cools down to 62F. the unit itself basically has no noise. Generator no vibration to the cab. noise is minimal inside.

    This is a freightliner century 2005 and i have realized that a toilet has more insulation than this thing but it still pretty quiet.

    Let me know what you think and any ideas to make it better.

    thank you

    I dont understand the people that are saying this units will not last.
    First of all the system itself its very cheap
    my calculations are based on 10 hour idle per day

    10 hrs x $3.00 diesel = $30 x 7 days = 210 and this is conservative.

    at this rate , i will save $840 pero month. Enough to buy a #### system every single month.


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. skallagrime

    skallagrime Road Train Member

    1,617
    3,149
    Apr 10, 2012
    Indiana
    0
    Wish i didnt have a headache rack, could install one much more easily.

    But no way am i giving up a headache rack cause im a tarp monkey

  4. flood

    flood Road Train Member

    3,451
    2,518
    Dec 25, 2010
    0
    Close to the system I'm planning on doing in about a month....

    Not to rain on your parade (I'm going to do the same thing) but your saving numbers are off...
    My truck 2015 isx15
    Truck .7gl. Per hr × 10 = 7gl × $3 = $21 per day...
    My generator predator 3500
    generator with a 1,000 watt load .25gl pre hr = 2.5gl for 10hr 2.5gl × $3 = $7.50...
    $21 - $7.50 = $13.50 saving per day.
    More realistic savings, still good though...

    Bean Jr. and Rideandrepair Thank this.
  5. Rideandrepair

    Rideandrepair Road Train Member

    11,559
    32,610
    Aug 8, 2015
    0
    Thanks for the info. I was just looking at the 9000btu version. Units have what they call an inverter type electrical system, that adjusts the Freon flow, and keeps temp stable without starting and stopping, avoiding the big surge effect. I don’t really understand it, but sounds good. I’m surprised the 2300w generator runs a 12000 btu unit. That’s what I was wondering. Smallest generator possible adds up to more savings. More updates after it’s finished. Especially on how steady it runs, start ups, surges. Installation tips especially.

    Last edited: Jul 25, 2021
  6. flood

    flood Road Train Member

    3,451
    2,518
    Dec 25, 2010
    0
    only downside I see to the smaller generators is the run time...

    Most are rated run time is at 25% load
    Ryboi 2300 (start watts) = 1800 (running watts) it's rated at 8hr @ 50% load (900 watts) before refueling. 1,100 watts will need refueling after about 6hrs... my 3500 on the other hand will run 1,100 watts for 11 hrs.
    I have the remote start/stop kit (key flop) and ordered a remote fuel tank kit (15gl) +2,5 gl internal tank should run about 70hr between fill ups

    lilillill, Rideandrepair and krupa530 Thank this.
  7. abyliks

    abyliks Road Train Member

    1,415
    2,324
    May 2, 2010
    ludlow MA
    0

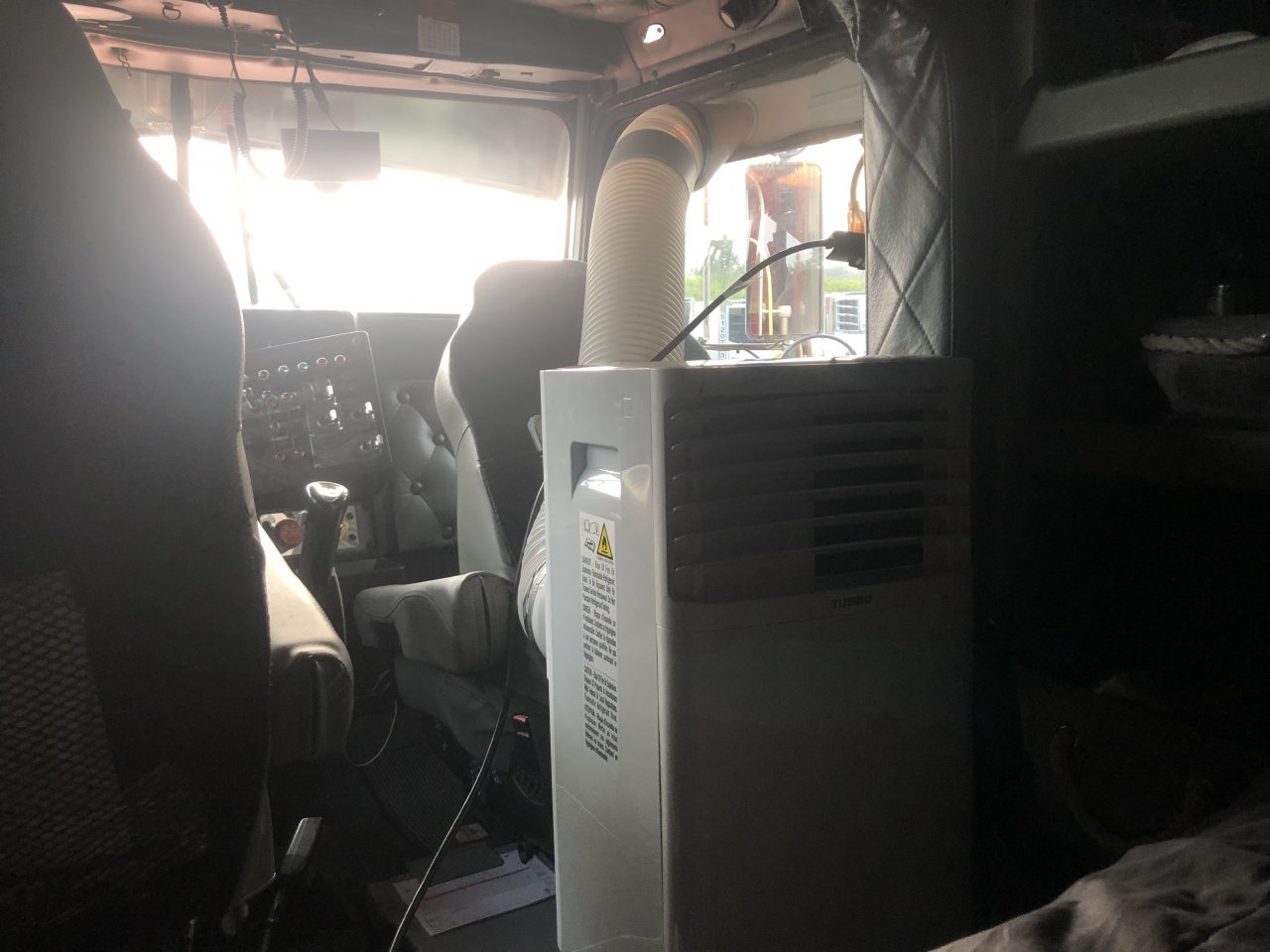

    I broke down and put a portable in and zipped the window piece to fit the passenger side, I just hate the noise/vibration more then the fuel consumption, harbor freight 2000 watt for $500 will run it for about 7 hours


    Attached Files:

    Rideandrepair Thanks this.
  8. Rideandrepair

    Rideandrepair Road Train Member

    11,559
    32,610
    Aug 8, 2015
    0
    I have a stand up single hose portable 8000btu, and ran it off a 2000w Chinese from Walmart, same as Harbor Freight model. It didn’t work very well. Generator ran it, once in a while it would stall out with the surge. Definitely want remote starter. I think actual fuel usage was still lower than a 3500, just tank capacity was less. I’ve seen YouTube tank modifications. Carrying the gas is a pita, and maybe dangerous. There may be some type of limit to the amount allowed for a gravity fed tank. An auxiliary tank with a fuel pump maybe? Rather just put a bigger tank on a 3500 watt, with remote starter.

  9. mtoo

    mtoo Road Train Member

    1,777
    3,725
    Jan 15, 2011
    on bended knee
    0
    Nothing wrong with thinking outside the box.

  10. Colt6920

    Colt6920 Light Load Member

    170
    243
    Apr 28, 2017
    0
    Also have to factor in saving truck/engine wear and tear.
    Just the motor: Inframe costs 10k. 1 million miles is stretching it. so 1c/ mile. 1 hr idle is about 30 miles driving, so an additional 30c per hour savings.

    And that's with extremely conservative numbers in favor of idling. And ignoring oil change costs as well as emissions equipment issues.

    Rideandrepair Thanks this.
  11. flood

    flood Road Train Member

    3,451
    2,518
    Dec 25, 2010
    0
    Not real sure where you got your numbers BUT an inflame isn't 10K but 20k-30k.

    1,000,000 is no stretch my volvo had 1,397,000 when I retired it and most of the 0/0 I know have gone well over a million.

    1hr idle is about 5 min of driving
    BTW when I retired my volvo it had over 35,000 hrs idle time.

    Oil changes are done by MILEAGE not engine hours. so idling or not has nothing to do with how often it's changed.

    And yes emission systems don't like idling

    Bean Jr. and Rideandrepair Thank this.
