Modern tech for eAPUs.

Discussion in 'Trucking Electronics, Gadgets and Software Forum' started by Tb0n3, Jun 24, 2025 at 10:44 PM.

  1. Tb0n3

    Tb0n3 Road Train Member

    4,524
    8,865
    Oct 5, 2012
    Earth
    0
    I'm in a company truck so this is all just academic, but there's so much tech out there to make a battery powered APU more energy dense and user friendly than it currently is. As it is now there's auto-start which is completely opaque, or just starting the truck when the A/C stops or the inverter starts beeping at you.

    We've got some amazing tech in battery storage. Enough power to drive cars with 1000hp, but we're stuck with heavy and inefficient lead acid. With LFP batteries and smart shunts you can have enough power to run the sleeper A/C for a 34 without running the batteries and less than half the weight, while being confident you'll have plenty to start up after.

    Of course the biggest issue for many is the temperature sensitivity. Only really a concern if you're away from the truck for long periods in very cold weather, but lead acid is not immune either.

    Do you like the idea of a battery system you can run a microwave off of without starting the truck? Long resets without having to waste fuel, or get rocked awake when it auto-starts? A man can dream.

    D.Tibbitt Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. D.Tibbitt

    D.Tibbitt Road Train Member

    21,397
    145,390
    Apr 26, 2013
    Gettin' down westbound
    0
    Ive parked next to a couple guys with the opti idle or whatever it is.. Seems kind of annoying to have the truck shake every time it starts then rev up rpms then shut down again..

    Me personally I enjoyed my apu when I had one, although I found it quite difficult to sleep in the summer with the A/c because the apu is so loud... and it would bog down every time. The a/c clutch would kick in..

    Ive enjoyed reading about a couple members on here that have the electric setup with batteries, I think it was @Siinman and I forget who else. They seemed to like it so far

    broke down plumber and Siinman Thank this.
  4. Siinman

    Siinman Road Train Member

    5,222
    13,200
    Mar 5, 2017
    Kansas City, MO.
    0
    Love my set up for what it is. I still need to change the EPU batteries at some point because they are still the original batteries. Once they die out I will put lithium in them or buy two more starting batteries like I have now that are lithium. This system works great unless out in the desert and over 100 with sun beating down. It cannot keep up in that kind of heat to my liking. I like to be around 68 degrees when I sleep or colder if I can.

    D.Tibbitt and Big Road Skateboard Thank this.
  5. Tb0n3

    Tb0n3 Road Train Member

    4,524
    8,865
    Oct 5, 2012
    Earth
    0
    In my experience some trucks are smoother than others, but the shutdown is always the worst shake.
    I've been mostly satisfied by the A/C in my International LT, but you just need to precool by blasting the A/C when the truck is running and if it's really hot maybe using the insulated sleeper curtains to minimize the conditioned space. My biggest issue is it'll make it to 10 hours, but not a second more it feels like.

    D.Tibbitt Thanks this.
  6. Brandt

    Brandt Road Train Member

    4,479
    6,113
    Sep 17, 2012
    0
    I drove freighter with their electric a/c it was ok. The problem was it could only go about 10 hours. Plus it only cooled the sleep and doing that in summer daylight it not big enough. The way it was wired the low voltage cutoff for the A/C could cut off before the computer monitoring the batteries would auto the engine to recharge them.

    The new Volvo truck system that seems to have electric fans by radiator and can cool the sleeper and front of cab using the same system as driving plus it 24 volts truck. Sounds like a better setup.

    gentleroger Thanks this.
  7. Arctic_fox

    Arctic_fox Experienced mx13 execrator

    4,023
    20,943
    Sep 16, 2016
    0
    I think you meant me. And its alright. But im reserveing judgment till i get the solar pannels on. Right now with it being 100+ out it mercs the battery dead in about 6 to 7 hours then i gotta idle 6 to 8 to charge it for another go and thats at 76 degrees. I mean i at best get 3 to 4 hours of charge if i watch a movie on my laptop or something in addition to cooling or 4 to 5 if i drop the temp to 72ish. So far i am actully idleing almost as much as before i got the system especially on my 34. I am sleeping better so there is that, but im likely going to either need to double the 400AH to 800AH or get a gas generator for extreme temps which is fine. But as is...im not impressed.

    broke down plumber Thanks this.
  8. broke down plumber

    broke down plumber Road Train Member

    3,006
    22,370
    Jan 25, 2024
    0
    @Arctic_fox just put a nice apu in , maybe he'll stop in post a picture or two. Oops oxbowed , nvrmind lol.

    Arctic_fox Thanks this.
  9. Arctic_fox

    Arctic_fox Experienced mx13 execrator

    4,023
    20,943
    Sep 16, 2016
    0

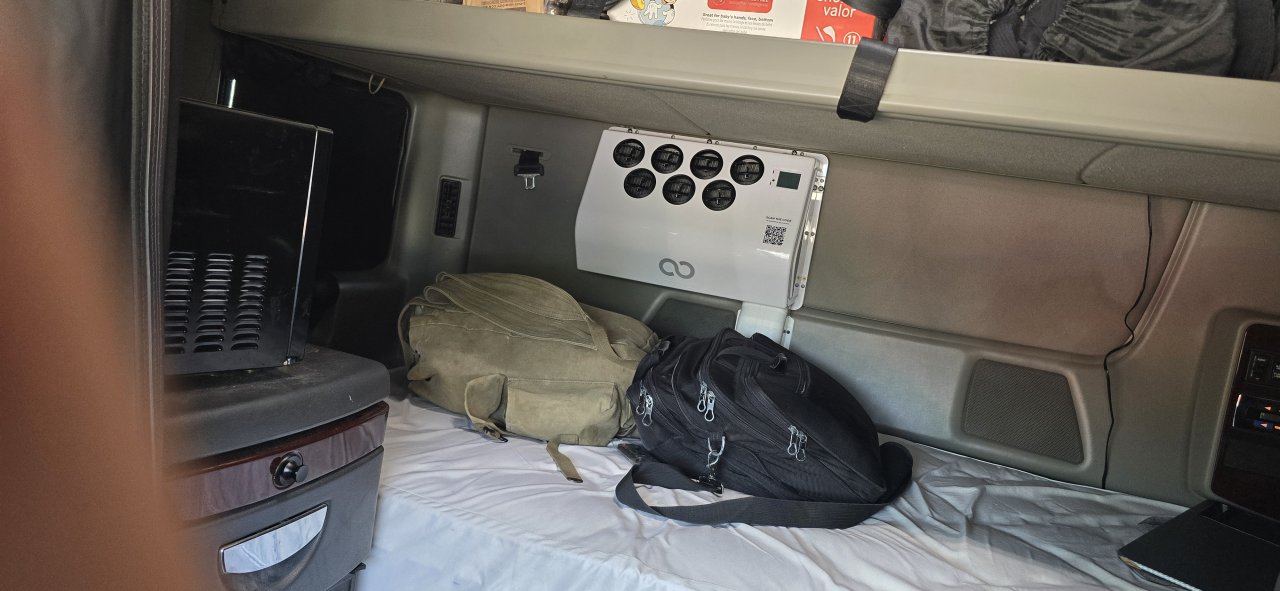

    Lol ask and ye shall recieve. Like i said though i only have half the system so until i have the whole thing i am reserveing final judgment. But just batterys....i am not impressed. The whole point of an APU is less idleing. Not as much or more. And if the solar means i only run need to run a genny in extreme heat or a couple of hours of idle that is acceptable. But im going from 100% to 0% in like i said 6 hours MAX ive been averageing around 4 and a half to 5 since 76 is too hot to sleep well even with a fan though i can relax in it and be alright. 72 is about the max i can tolerate for good sleep and 70ish is my ideal.

    20250611_143748.jpg 20250611_144010.jpg 20250611_145051.jpg

    broke down plumber Thanks this.
  10. broke down plumber

    broke down plumber Road Train Member

    3,006
    22,370
    Jan 25, 2024
    0
    I wonder if a couple small vertical wind turbines would help 150 watt each . Mount a pole with a lockslide put it up when stopped and lower n lock when moving , just a thought .

  11. Tb0n3

    Tb0n3 Road Train Member

    4,524
    8,865
    Oct 5, 2012
    Earth
    0
    If you've only got 30 amps of battery charging off your alternator that would explain long charge times. My LT with epu spec the alternator like 360 amps. They make bigger DC-DC converters. I've got a 50 for my boat. I guess if you're boosting to 24 it's 60 at 12V, but still anemic.
