Mystery gifts from oil pan.

Discussion in 'Mack Forum' started by BoxCarKidd, Sep 25, 2019.

  1. BoxCarKidd

    BoxCarKidd Road Train Member

    2,499
    2,860
    Aug 26, 2014
    0

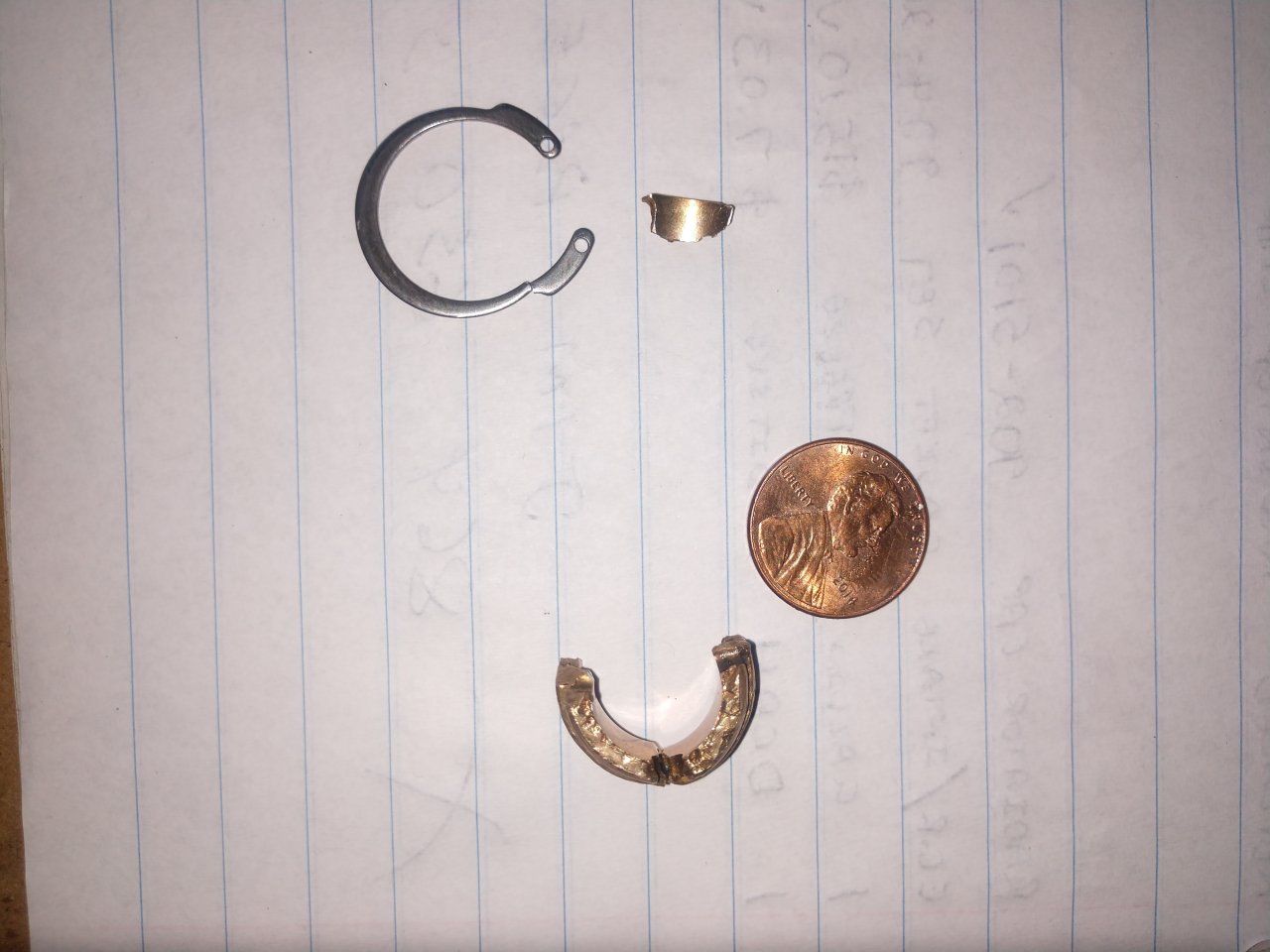

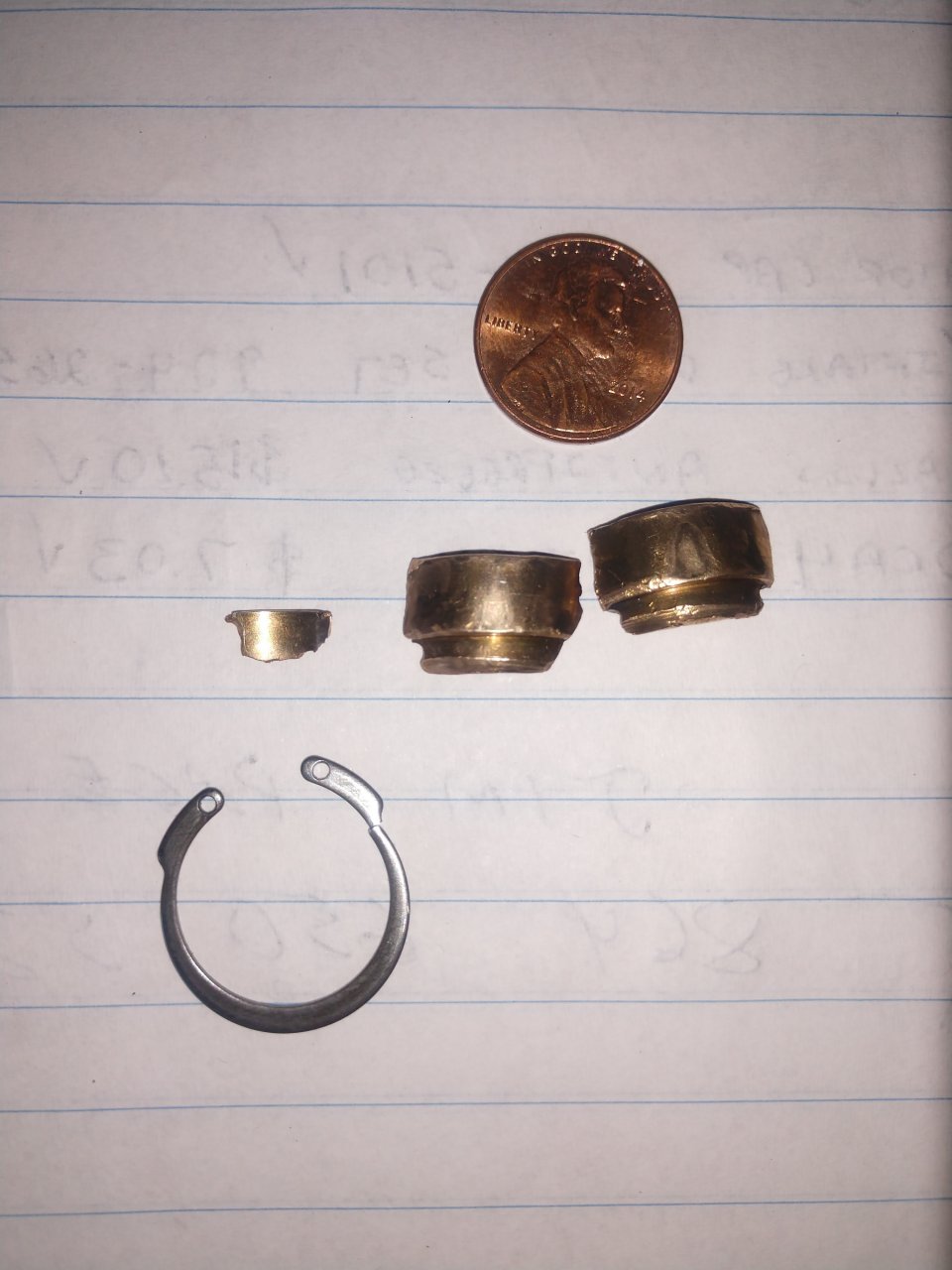

    Mack E7? 2004 CX613 ser 023140. We find no place for them in the crankcase or under the valve cover. Does any one know where these came from. IMG_20190925_111708312.jpg IMG_20190925_111743010.jpg

  2. buddyd157

    buddyd157 Road Train Member

    7,611
    14,730
    May 25, 2017
    New England area
    0
    the piece of paper, came from a pad, that came from a tree.

    the penny came from the U.S. Mint.

    the locking snap ring may be from a wrist pin..???

    can't say about the brass pieces..

    magoo68, Bakerman and BoxCarKidd Thank this.
  3. d281833

    d281833 Heavy Load Member

    829
    782
    May 15, 2012
    0
    Somebody's pocket

    Bakerman Thanks this.
  4. AModelCat

    AModelCat Road Train Member

    13,113
    46,507
    Jul 7, 2015
    Caught in a Mosh
    0
    Its an external snap ring so doubt its from a wrist pin. What about from a rocker shaft? Brass looks like a bushing, looks to be similar in diameter as the snap ring. Maybe a bushing from the rocker shaft?

  5. BoxCarKidd

    BoxCarKidd Road Train Member

    2,499
    2,860
    Aug 26, 2014
    0
    Way to small in both cases.
    Did just replace the fuel supply pump. Was leaking oil inthe crankcase. Bushing is to large for that shaft as well as the centrimax filter.
    Engine does not have jakes.

  6. BoxCarKidd

    BoxCarKidd Road Train Member

    2,499
    2,860
    Aug 26, 2014
    0
    Ha Ha

  7. BoxCarKidd

    BoxCarKidd Road Train Member

    2,499
    2,860
    Aug 26, 2014
    0
  8. rolls canardly

    rolls canardly Road Train Member

    1,050
    1,513
    Feb 7, 2009
    mt. pocono. pa.
    0
    U have a puzzle, my friend.
    Get out the Vernier calipers, and measure ID of the external Snap ring.
    Also draw the guesstimated diameter the radius of the brass pieces give you.
    Between the oil pan and top of your motor there is a lot of real estate,
    but narrow it down with Dimensions U come up with from measurements, and type of Matl.

    BoxCarKidd Thanks this.
  9. Snoopycda

    Snoopycda Light Load Member

    248
    447
    Jan 22, 2016
    Edmonton Ab.
    0
    Valve keepers and a snap ring from a rocker perhaps?
