N14 oil leak behind turbo help

Discussion in 'Trucks [ Eighteen Wheelers ]' started by HopeOverMope, Sep 3, 2018.

Page 5 of 6
  1. Sep 5, 2018 #41
    HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,211
    Feb 25, 2016
    I-20 LOUISIANA
    0

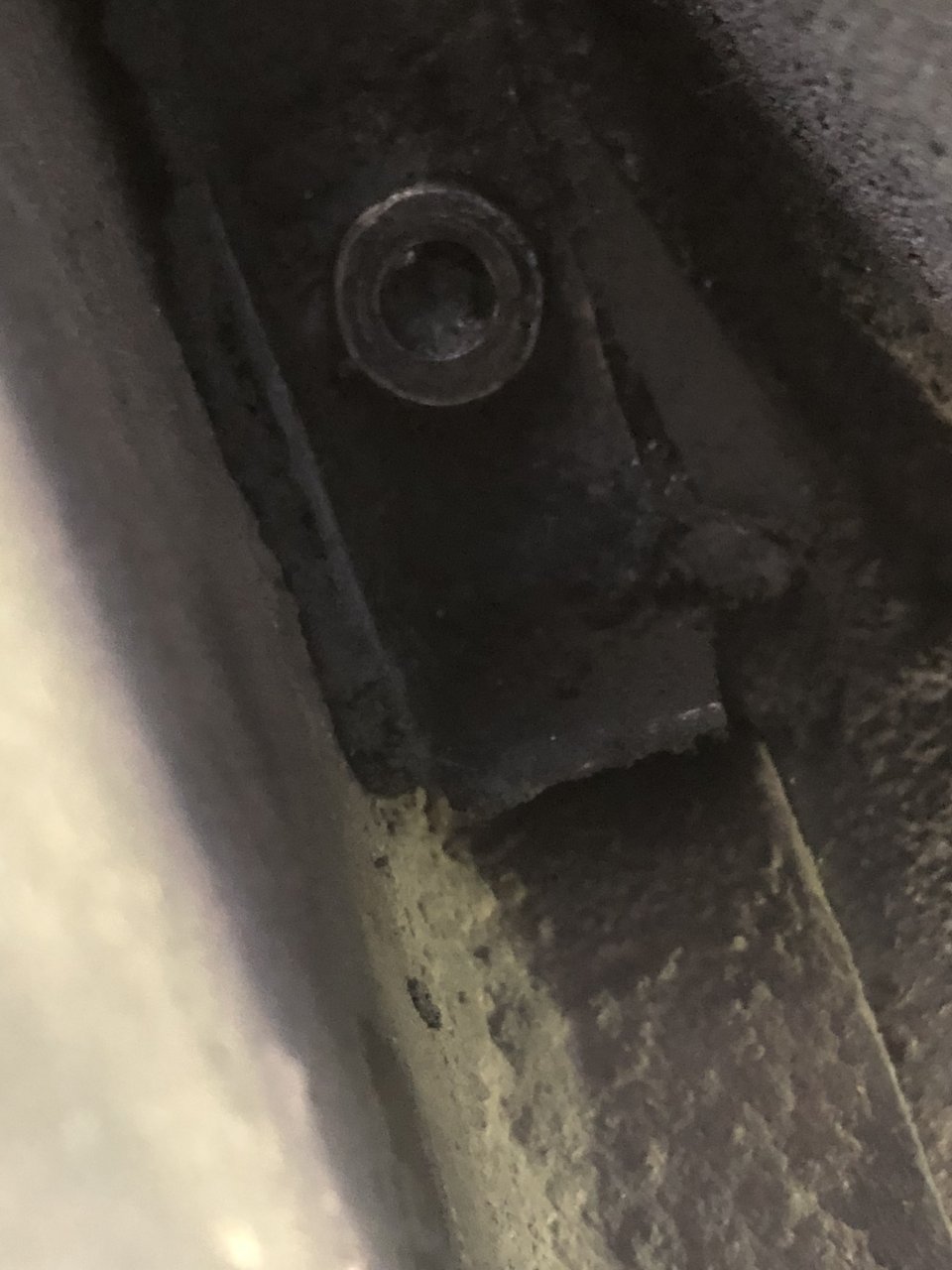

    7AC142F8-6769-47BB-801A-324D33FC2D6C.jpeg 87AE6E84-988F-4D20-A544-80041FBC68E4.jpeg Question: does anyone know what the deal is with the back of the oil pan? It looks like a different style bolt and I got the rest of the bolts of but it still seems held down with the back bolts, the ones toward the transmission

    Do they need to come off?

    Last edited: Sep 5, 2018
    HopeOverMope, Sep 5, 2018
    HopeOverMope, Sep 5, 2018
    #41
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Sep 5, 2018 #42
    Heavyd

    Heavyd Road Train Member

    7,804
    6,253
    Feb 4, 2009
    0
    They are torx or allen head, can't remember.

    Heavyd, Sep 5, 2018
    Heavyd, Sep 5, 2018
    #42
    HopeOverMope Thanks this.
  4. Sep 5, 2018 #43
    HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,211
    Feb 25, 2016
    I-20 LOUISIANA
    0
    Ok thanks. They look completely rounded on the inside?

    HopeOverMope, Sep 5, 2018
    HopeOverMope, Sep 5, 2018
    #43
  5. Sep 6, 2018 #44
    adayrider

    adayrider Road Train Member

    1,289
    1,732
    May 7, 2018
    0
    Mine were torx on inside, makes it much easier to get them started going back in. And 1/2 inch socket on outside to remove and torq down. Can't tell if yours are both or not.

    adayrider, Sep 6, 2018
    adayrider, Sep 6, 2018
    #44
    HopeOverMope Thanks this.
  7. Sep 6, 2018 #45
    HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,211
    Feb 25, 2016
    I-20 LOUISIANA
    0
    Nice. I see the torx now. Got three to break loose and got one that’s basically rounded out :(

    Any ideas? I’m going to go like at Home Depot or fastenall for easy out options

    Edit: my local shop (good guys) gave me a grinded down 1/2 socket that should be able to fit behind that bracket to pull the bolt. We’ll see!

    Last edited: Sep 6, 2018
    HopeOverMope, Sep 6, 2018
    HopeOverMope, Sep 6, 2018
    #45
  8. Sep 6, 2018 #46
    adayrider

    adayrider Road Train Member

    1,289
    1,732
    May 7, 2018
    0
    Try an allen wrench socket, sometimes an allen wrench will work in a rounded torq. My back bolts were both torq AND regular hex head that 1/2 inch socket fit on. Took them out with half inch socket then started them back in with torq bit socket by hand and extension then torqued then down with 1/2 in socket.
    Cummins might have replacement bolts like mine. Fastenall might as well.

    adayrider, Sep 6, 2018
    adayrider, Sep 6, 2018
    #46
    HopeOverMope Thanks this.
  9. Sep 6, 2018 #47
    HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,211
    Feb 25, 2016
    I-20 LOUISIANA
    0
    Yup the ground down 1/2 socket worked like a charm. Time to pull the pan now, got just two bolts holding it up.

    HopeOverMope, Sep 6, 2018
    HopeOverMope, Sep 6, 2018
    #47
  10. Sep 6, 2018 #48
    DougA

    DougA Road Train Member

    1,429
    8,892
    Dec 16, 2013
    Retired,In my shop in Md.
    0
    It's a shame when Cummins built the N-14,they cheaped out on the stamped steel pan,instead of staying with the aluminum pan. Had to pull my N-14 pan,strip it and paint it with good rust resistant paint also,as I had the rusty pan issue too. Got it fixed before it rusted through,only cost me a pan gasket set.

    DougA, Sep 6, 2018
    DougA, Sep 6, 2018
    #48
  11. Sep 6, 2018 #49
    HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,211
    Feb 25, 2016
    I-20 LOUISIANA
    0
    4B0E7E3D-D84B-43DE-A1F6-37B957CB92DD.jpeg 29B3F908-B4C7-47FE-9A02-4FFFFEBB2401.jpeg Got some progress here. Look-e what I fished out! Thanks to all who have been chiming in helping me out. Is there anything else I can do to assure I get it all out besides fishing out the pieces from the pan? I found the two big pieces and about 5 smaller bits. Got em out. Inspected the crank and it looks good.

    HopeOverMope, Sep 6, 2018
    HopeOverMope, Sep 6, 2018
    #49
    Heavyd Thanks this.
  12. Sep 6, 2018 #50
    adayrider

    adayrider Road Train Member

    1,289
    1,732
    May 7, 2018
    0
    Not sure where you run but if you run winter/salt roads, I would clean up bottom of the pan and give it a goood paiting. They are notorious for rusting out.

    adayrider, Sep 6, 2018
    adayrider, Sep 6, 2018
    #50
    Heavyd, DougA and HopeOverMope Thank this.
