Need help with 2013 Volvo d11

Discussion in 'Volvo Forum' started by Jermainej3113, Apr 29, 2018.

  1. Jermainej3113

    Jermainej3113 Bobtail Member

    6
    0
    Feb 23, 2018
    0
    Have a leak trying to find where this black line goes or comes from just found out it’s leaking thx in advance

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Socal Xpress

    Socal Xpress Road Train Member

    1,855
    1,958
    Dec 6, 2014
    Los Angeles, Ca
    0
    Wich line? More then likely its one of the fitting that is leaking. Get some soapy water and track it down.

  4. Jacoooooooo

    Jacoooooooo Heavy Load Member

    747
    1,054
    Oct 20, 2013
    0
    It’s a quick connector. If you can get the rubber oring (when they age, they get stone hard and start leaking air), you can pop the line and replace just that. If you don’t have orings, just get the new L shapped fitting at Volvo.
    Doesn’f natter where is it going, those quick connectors all start leaking at some point.

  5. Jermainej3113

    Jermainej3113 Bobtail Member

    6
    0
    Feb 23, 2018
    0
    It’s the black line just trying to see if anybody knows where it goes

  6. Jermainej3113

    Jermainej3113 Bobtail Member

    6
    0
    Feb 23, 2018
    0
    Yes I will reconnect any idea what the black line is connected to

  7. Jacoooooooo

    Jacoooooooo Heavy Load Member

    747
    1,054
    Oct 20, 2013
    0

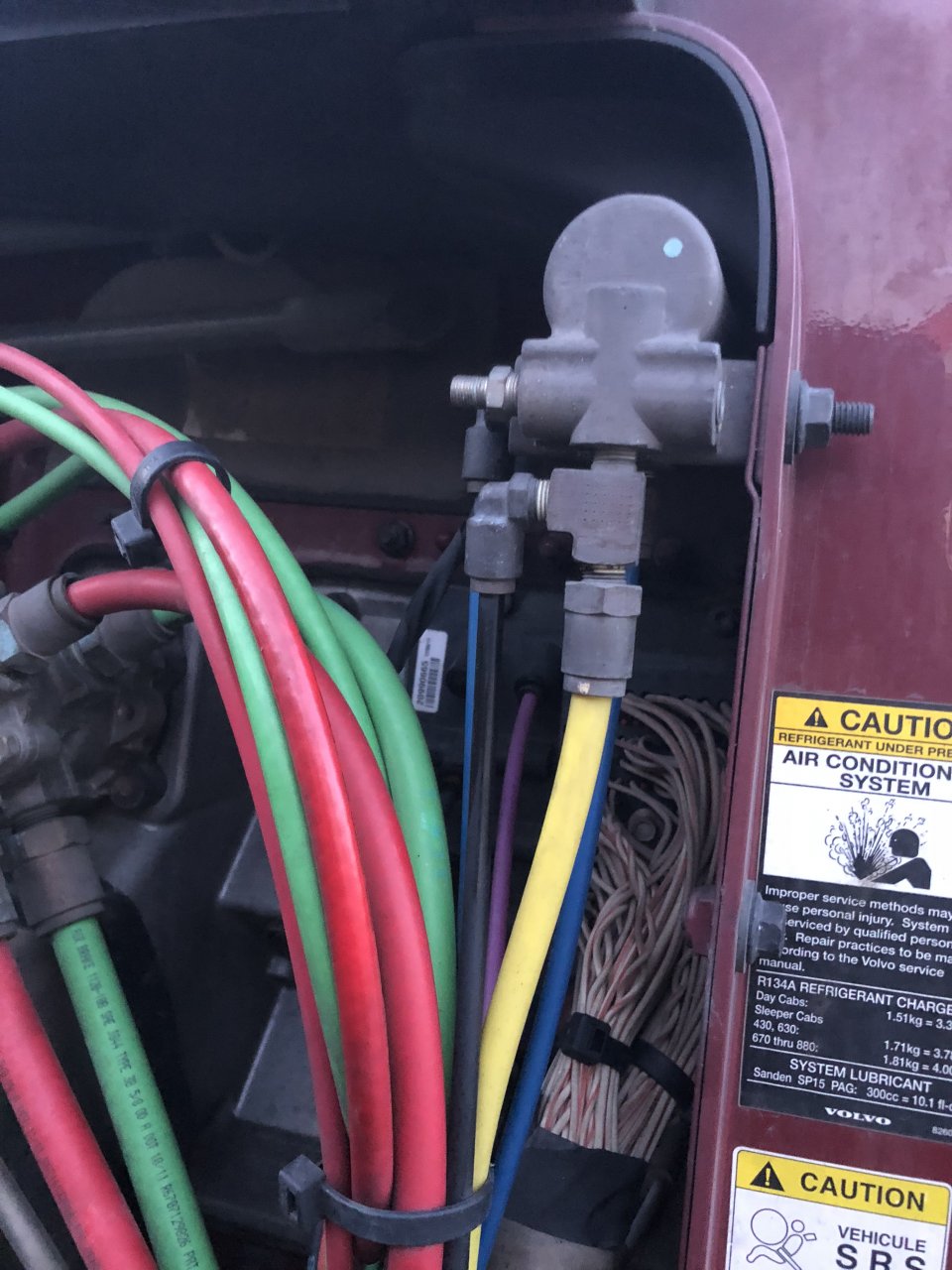

    In the picture it’s an air governor.
    If you’re asking what’s on the other end... well, just trace it down and post a pic.

  8. Jermainej3113

    Jermainej3113 Bobtail Member

    6
    0
    Feb 23, 2018
    0
    Ok thx

  9. Jacoooooooo

    Jacoooooooo Heavy Load Member

    747
    1,054
    Oct 20, 2013
    0
    Hey, I looked at mine, and that hose goes just one feet down to an engine fan activator.

  10. Snailexpress

    Snailexpress Road Train Member

    2,675
    6,068
    Apr 28, 2014
    Rocky
    0
    Black is for fan clutch yellow is governor supply from wet tank
