Needing help identifying this component.

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by W900.92, Dec 1, 2021.

  1. W900.92

    W900.92 Bobtail Member

    13
    5
    Mar 13, 2021
    0

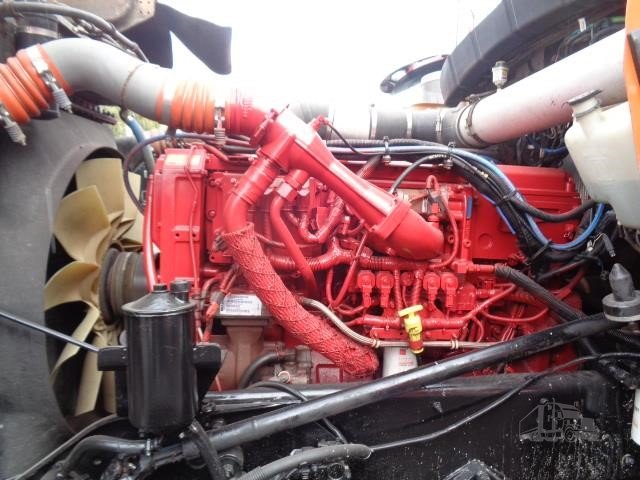

    Hello guys I have a few questions about a truck I am looking to purchase soon (HOPEFULLY). The truck is a 2004 KW900 with a Cummins ISX Recon crate engine which was manufactured (04/10/10). with 872,781 miles on it already, and the truck has overall 1.6 million miles on it. 500HP, 13 Speed, 3:70 on rears Pre- emission no E.G.R. All in all, the truck looks good, but I am not trying to have a shiny P.O.S spending more time in the shop VS on the HWY. Question 1.) What is this valve handle thing circled in photo (1)? Question 2.) with this kind of milage on the recon engine, what would be the next major service you would recommend? Also how long do these RECON engines last? What are their major defaults? Do you see any defects from the pictures that raised your eyebrow? Question 3.) Should I run away from a Cummins ISX in general?

    thank you for reading/ helping


    Attached Files:

    Last edited: Dec 1, 2021
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. okiedokie

    okiedokie Road Train Member

    6,039
    20,522
    Jun 13, 2011
    PNWET
    0
    It's the heater hose values. You'll want to turn them on for Winter.
    Can't help you on #2.
    I've had good experience with ISX.

    Pamela1990, HoneyBadger67 and W900.92 Thank this.
  4. Sharky88

    Sharky88 Medium Load Member

    641
    694
    Sep 25, 2013
    0
    1. Those are valves for your heater core.
    2.send out zn oil sample and see what you find. At that. Image I would do rod and mail bearings most likely
    3. Hate to break your bubble but it will depend on how well maintained the previous owner took care of it. The motor is only one part. With that kind of milage you will be going to the shop. Think transmission, rear ends, air lines, fuel lines, electrical etc. Just from normal use things break

    Pamela1990 and W900.92 Thank this.
  5. 062

    062 Road Train Member

    4,891
    10,199
    Oct 20, 2013
    0
    I hate to tell you,but that engine is not e-log exempt and I see the egr cooler behind the turbo. That’s a ISX cm871

  6. Cattleman84

    Cattleman84 Road Train Member

    7,393
    42,437
    Nov 1, 2017
    The Sticks, Idaho
    0
    Heater valves

    As to the rest, I cant say.

    W900.92 Thanks this.
  7. ZVar

    ZVar Road Train Member

    9,471
    19,427
    Sep 10, 2010
    Flint, MI
    0
    How is the truck pre e-log when the truck is a 2004 and the engine is a 2010?

    Rideandrepair, W900.92 and AModelCat Thank this.
  8. Ridgeline

    Ridgeline Road Train Member

    18,033
    77,125
    Dec 18, 2011
    Michigan
    0
    Dyno the thing.

    W900.92 Thanks this.
  9. AModelCat

    AModelCat Road Train Member

    23,281
    112,388
    Jul 7, 2015
    Canuckistan
    0
    Definitely not elog exempt.

    W900.92 and ZVar Thank this.
  10. W900.92

    W900.92 Bobtail Member

    13
    5
    Mar 13, 2021
    0

    Thanks. The dealer told me the EGR was deleted.

    Bean Jr. Thanks this.
  11. W900.92

    W900.92 Bobtail Member

    13
    5
    Mar 13, 2021
    0

    My apologies. I meant pre emissions no EGR

    Bean Jr. Thanks this.
