New Western Star 49X - SWR Too High

Discussion in 'CB Radio Forum' started by NYSuperTrucker, May 10, 2025.

  1. NYSuperTrucker

    NYSuperTrucker Light Load Member

    276
    122
    Dec 22, 2010
    Twin Cities MN
    0
    Just curious if anyone else that mounts an antenna on the back of the cab of the new Western Star 49X daycab is having high SWR issues. At first I thought my coax might be kinked or old, so I replaced the coax and then I quickly realized that I'm pretty sure the whole cab, bars, etc are aluminum. I have been running a Wilson 2000 with the Wilson gumdrop mount for years when we were running Freightliner Coronado daycabs. The bar on the back of the Coronado cabs where the hose connection springs mount must be metal. Because the same setup on the new Western Star 49X's...the SWR are too high for my liking. Plus I noticed my receive wasn't where it normally should be as well.

    Just curious if anyone else has experienced this...and what you did to remedy it. If in fact the majority of the cab is aluminum including the grab bars, hose spring bar, etc...I'll have to figure out some sort of a grounding path as well. I slipseat, so the least amount of work, the better...but I'll do what I have to do to get my SWRs where they need to be.

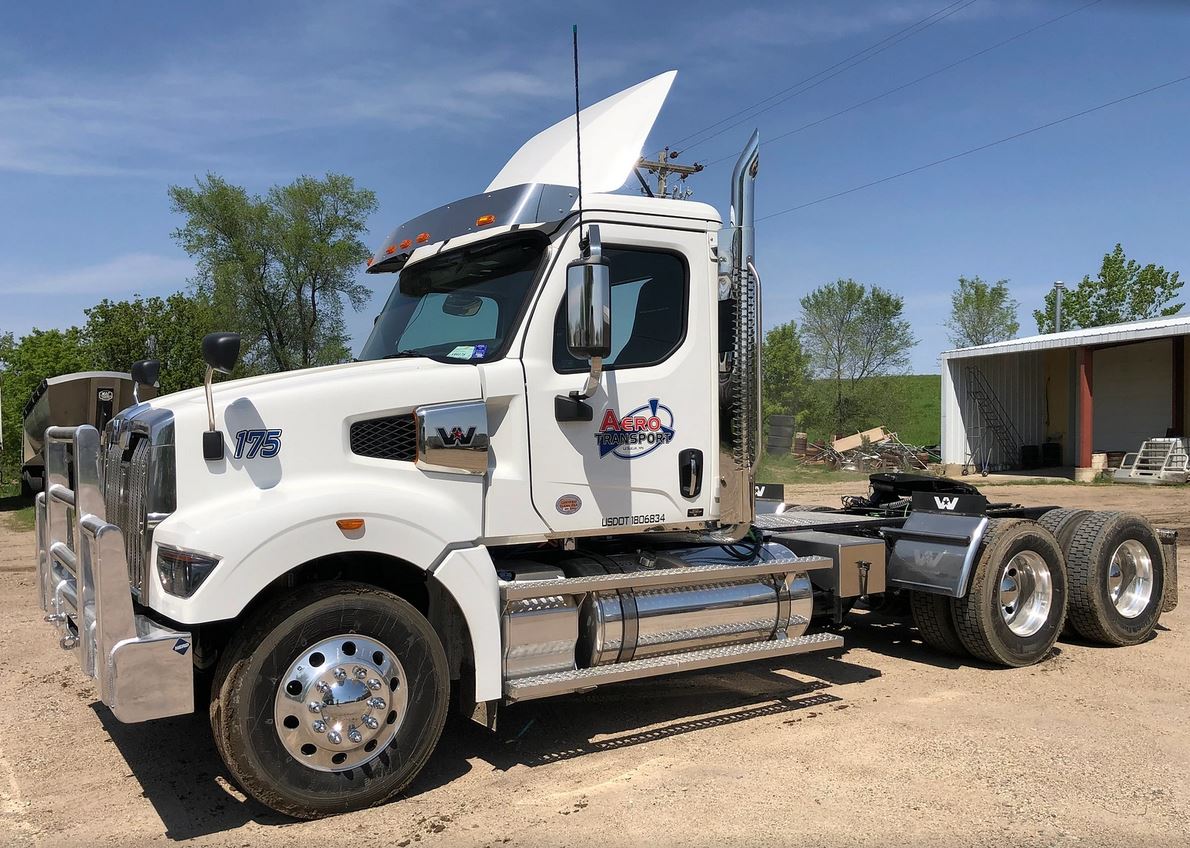

    For those curious of what style Western Star I'm running...please see the attached photo.


    Attached Files:

    • 49X.JPG
      File size:
      210.1 KB
      Views:
      28
    Walk Among Us Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Night Stalker10

    Night Stalker10 Road Train Member

    1,673
    1,248
    Jun 26, 2017
    0
    With a truck like your Western Star, about the easiest antenna system is the (NGP) no ground plane antenna. Some guys who tried this antenna claim that their radio basically worked okay. So I would say okay is better than a bad antenna system due to no RF ground.

  4. Ridgeline

    Ridgeline Road Train Member

    22,233
    114,351
    Dec 18, 2011
    Michigan
    0
    What is too high?

    My WS, when we have to replace the antenna (which is when we get a new one), there is always a ground problem between the body and the mount.

  5. NYSuperTrucker

    NYSuperTrucker Light Load Member

    276
    122
    Dec 22, 2010
    Twin Cities MN
    0
    Too high for me was up above 2.0. When I ran the Coronado and mounted it on the back of the cab, I had it dialed in right around 1.2-1.5
