Neway Suspension problems.

Discussion in 'Trucks [ Eighteen Wheelers ]' started by n4ane, Jul 5, 2022.

  1. n4ane

    n4ane Light Load Member

    118
    53
    Aug 28, 2020
    0

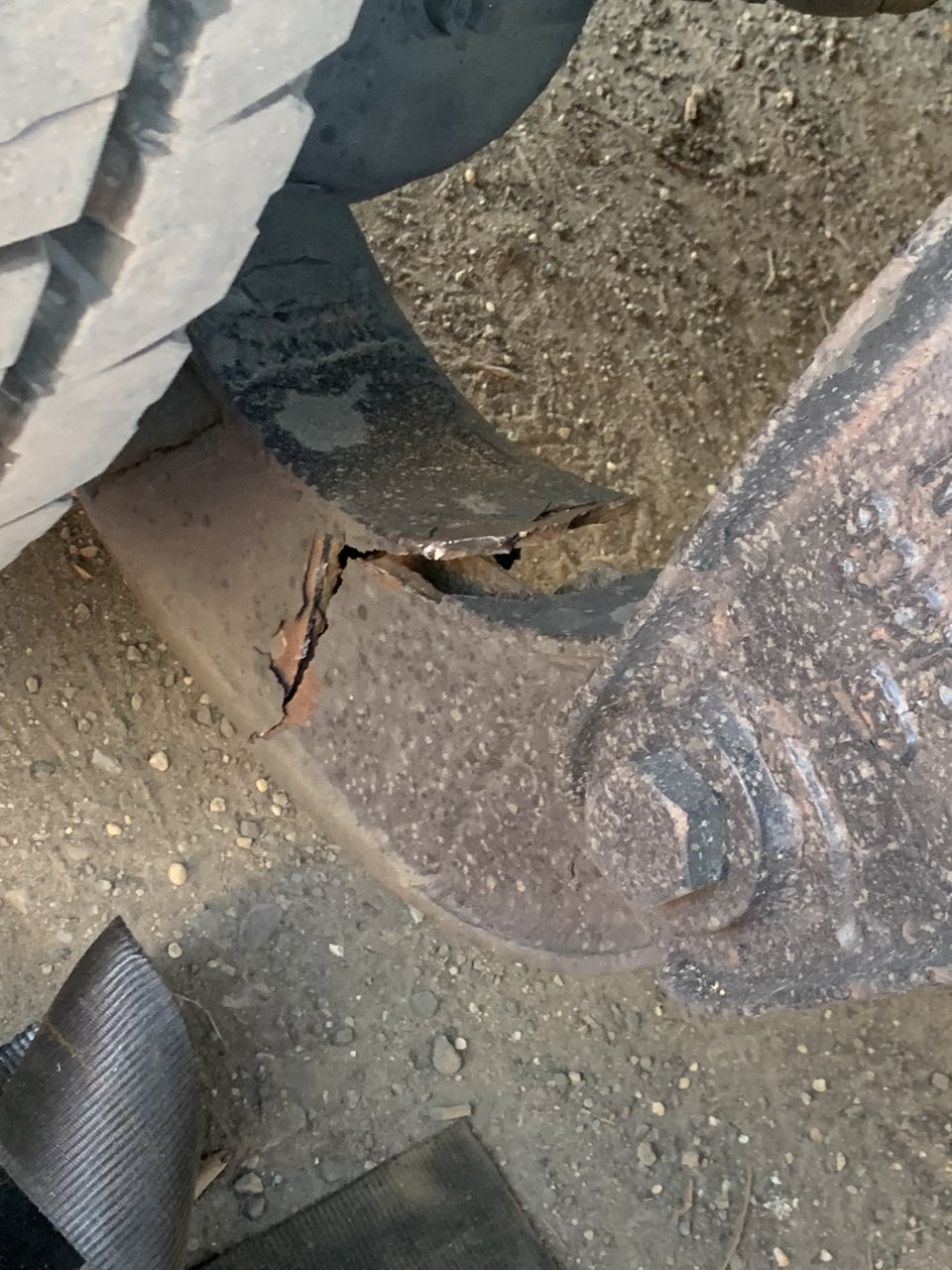

    So I had this happen the other night and now I am trying to scrounge around and ask to find parts. My two biggest questions is what originally happened so I can prevent it. Also does anyone know where I might find a replacement. Vannder Haggs seams to be my best route so far just waiting on pictures to see if it correct and maybe how rusted it is.


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. PSM379

    PSM379 Medium Load Member

    635
    2,413
    Apr 19, 2019
    0
    79A46C57-A3F5-45C4-80DE-8D82F235AE9A.jpeg 0C3EA444-A75E-4E02-A693-7DF2CE943B88.jpeg ABD2EDEC-86F5-48C0-B354-9463AEB777DD.jpeg A8CD4311-DDA2-4BDD-9DDB-438A58489D03.jpeg 0688223B-783B-4F50-8C31-6F8B969411C5.jpeg 56F063D2-1B7E-4D0E-BD53-305193E0DF65.jpeg 872C30F2-6A03-44D8-8420-35B1B856460E.jpeg BCBE207C-C900-4210-9D2C-9C9E9E6B108E.jpeg

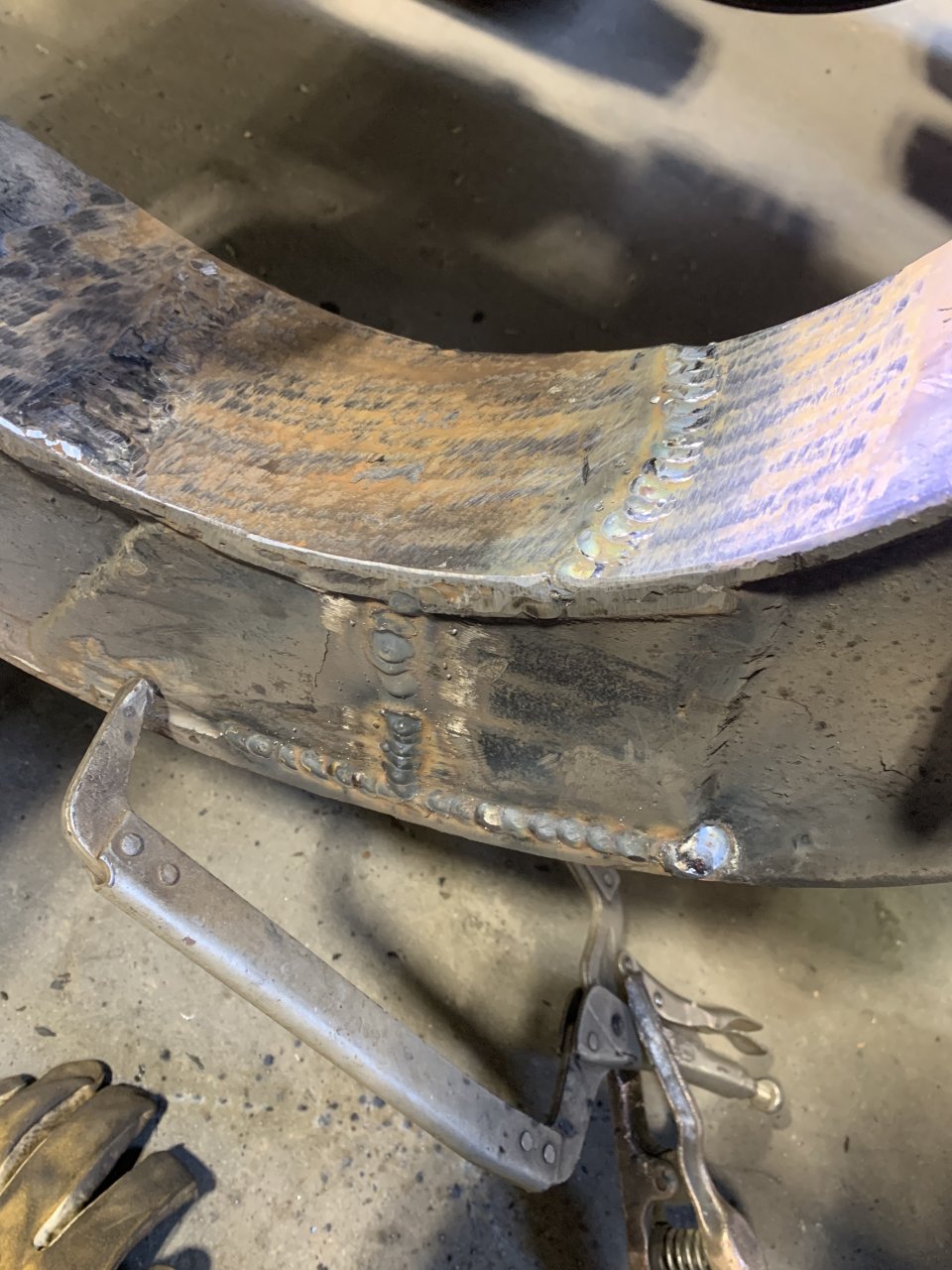

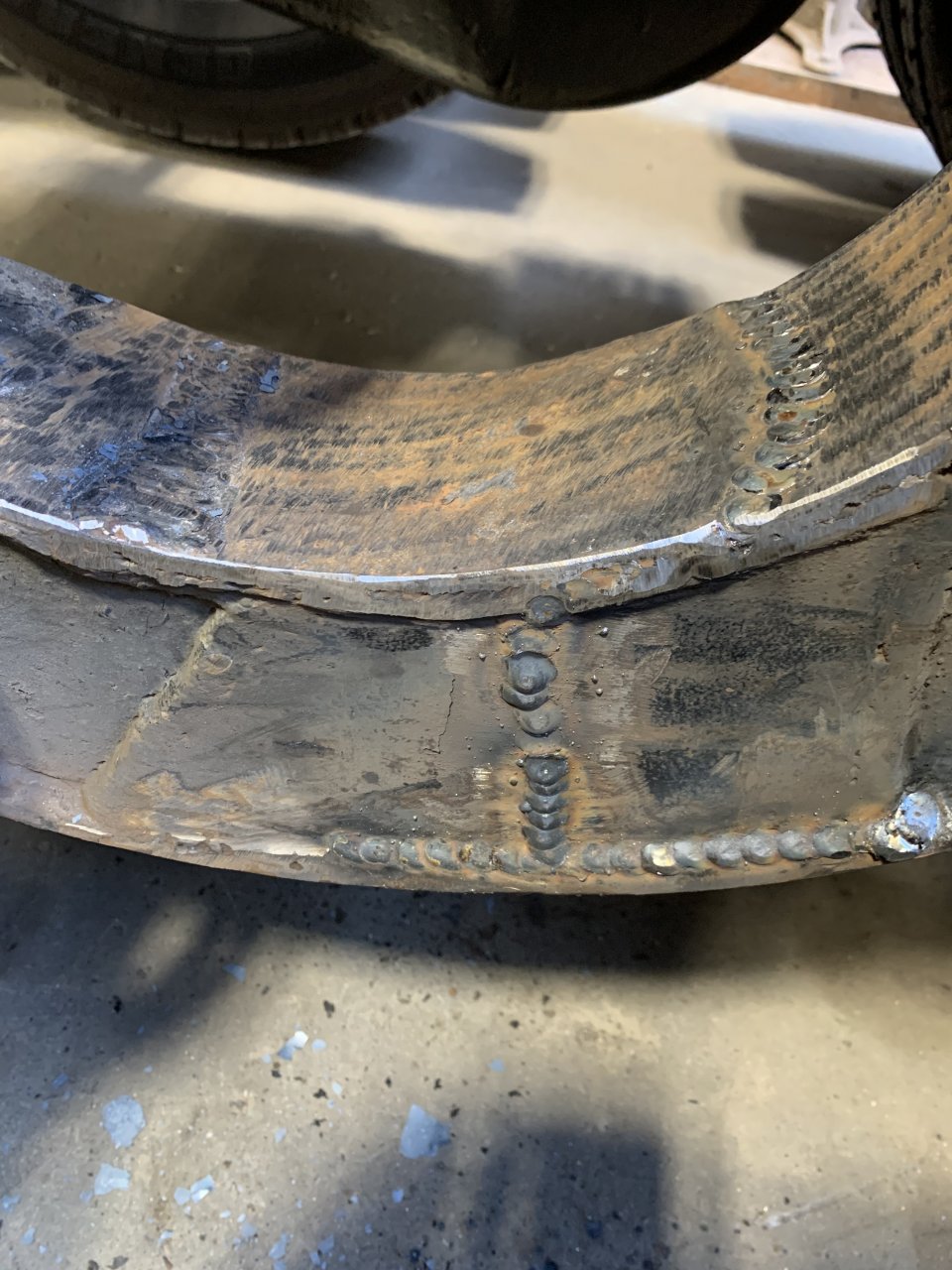

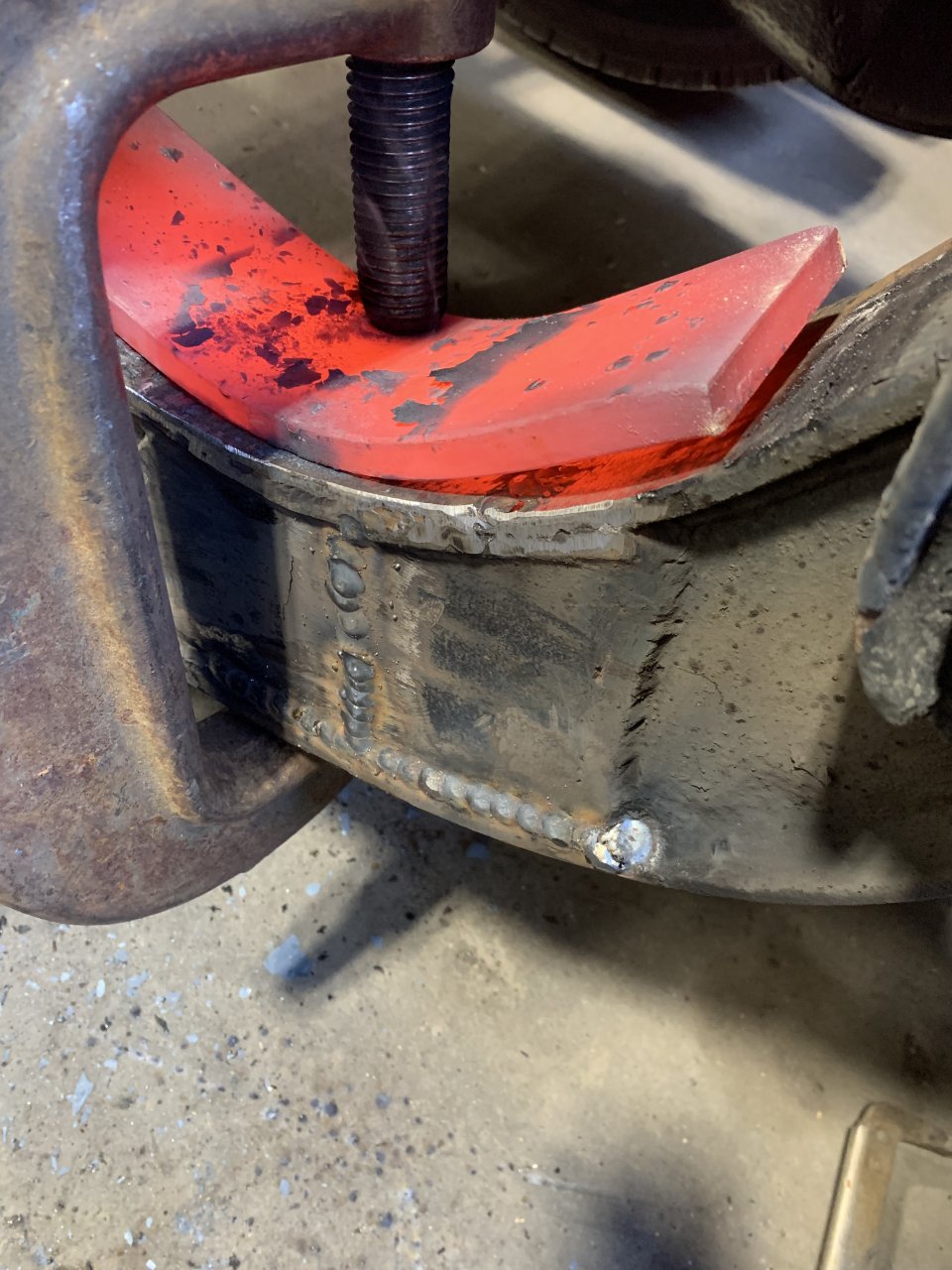

    the beams and tubes are hallow. Rust gets in there and rots em away, this beam was patched previously, and broke on me a couple months ago thankfully I was close to some good friends that knew a amazing welder. There is a complete ARD-238 under a 1985 western star at redwines salvage in Garsyburg,NC Kenny would Probly part it out or make a deal on the complete cut off. If I was anywhere close to doing my suspension swap I’d give you the parts for free.

    n4ane Thanks this.
  4. AModelCat

    AModelCat Road Train Member

    25,136
    127,722
    Jul 7, 2015
    Canuckistan
    0

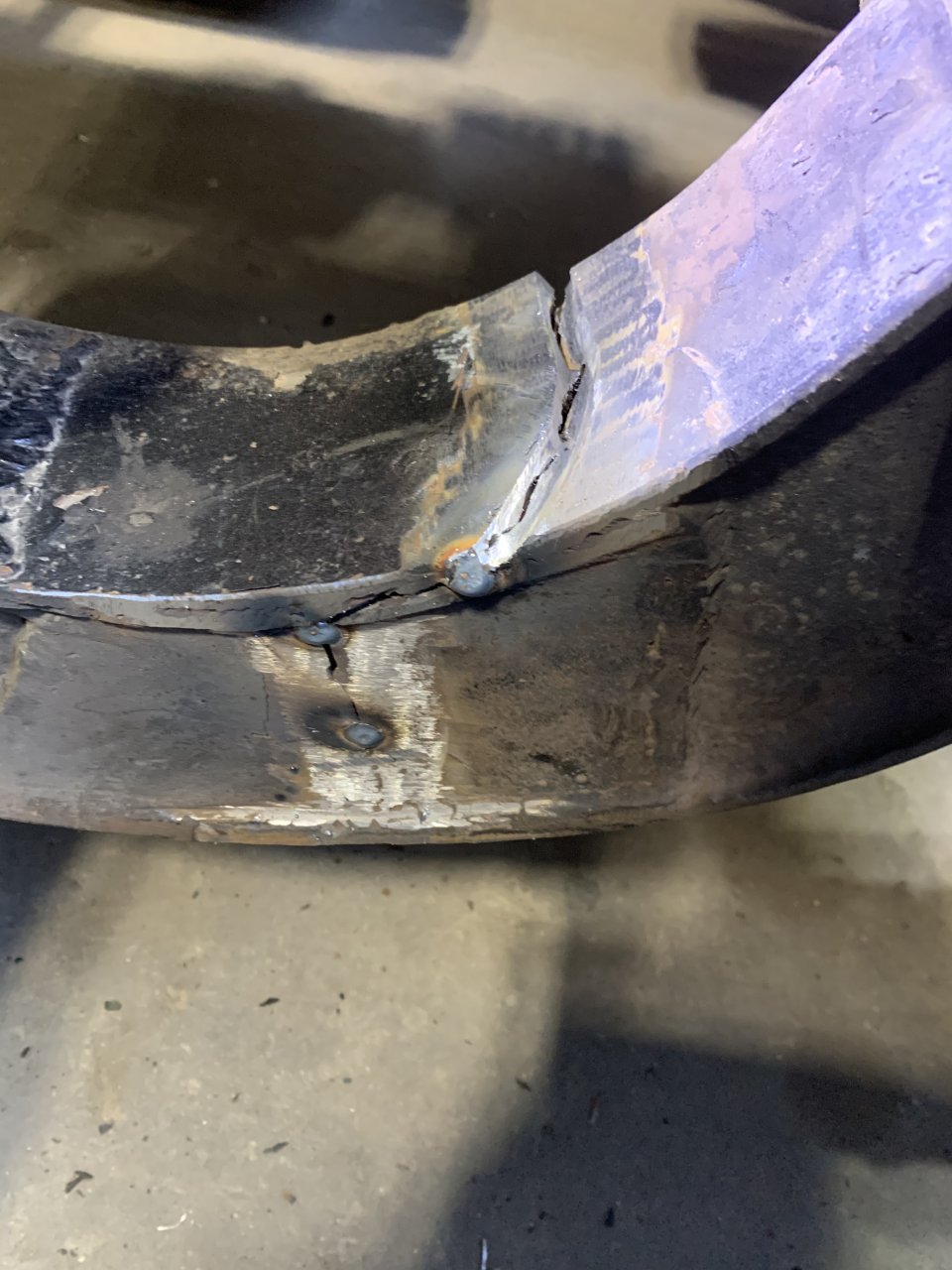

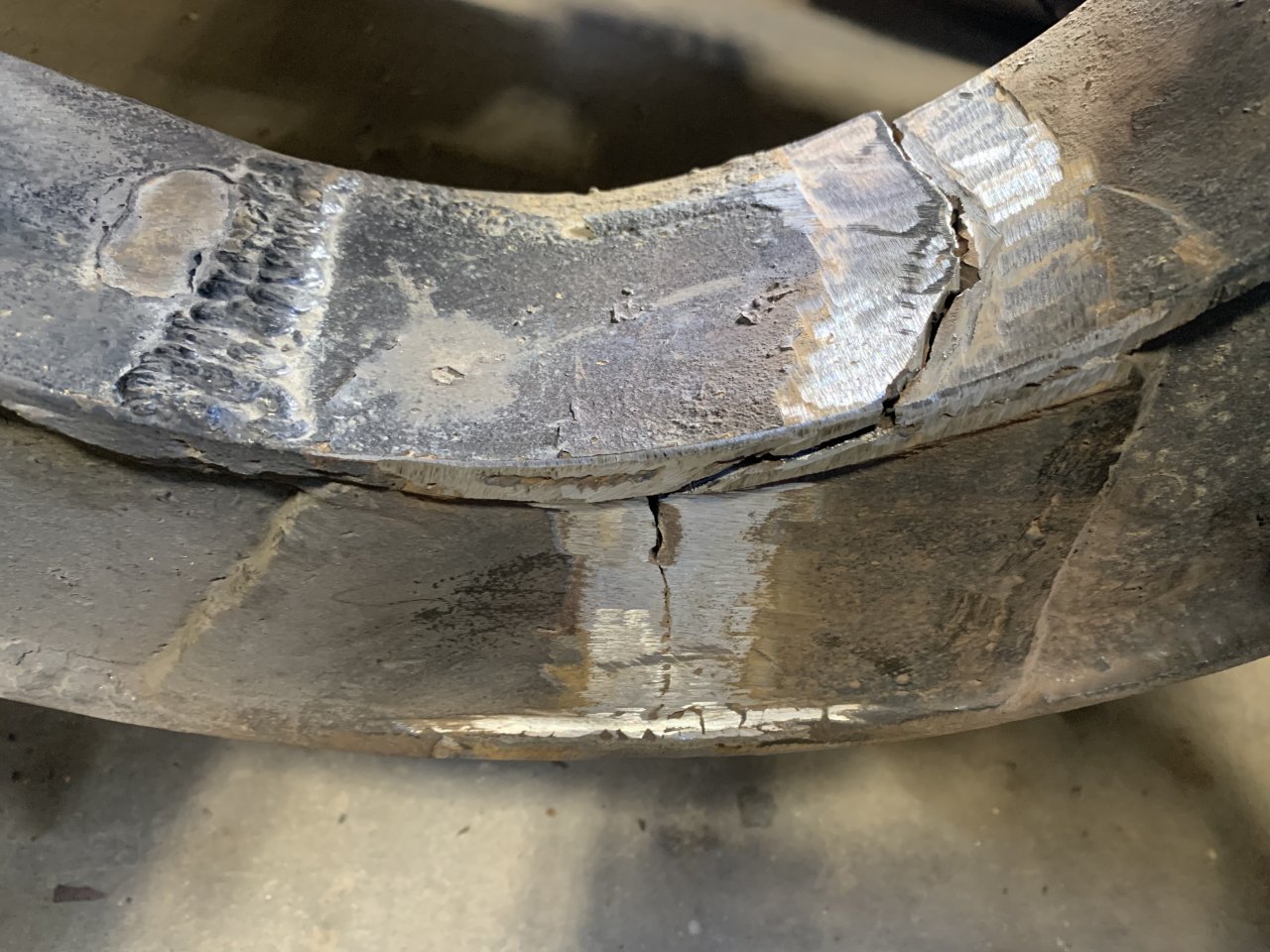

    Cracked right along the weld for the shock mount by the looks of it. Wonder if it was fatigue from over the years or maybe a bad weld someone gob'd up and accelerated the cracking?

    n4ane Thanks this.
  5. PSM379

    PSM379 Medium Load Member

    635
    2,413
    Apr 19, 2019
    0
    On my current suspension it is repaired in that exact spot as well.

  6. PSM379

    PSM379 Medium Load Member

    635
    2,413
    Apr 19, 2019
    0
    after looking harder it doesn’t look all that rusty. Could of started cracking at the shock mount and kept getting worse, you are most likely correct

  7. n4ane

    n4ane Light Load Member

    118
    53
    Aug 28, 2020
    0
    Is it
    Redwine Salvage Sales Inc?

  8. PSM379

    PSM379 Medium Load Member

    635
    2,413
    Apr 19, 2019
    0
    Yes ask for Kenny. It is on a 1985 western star.

    n4ane Thanks this.
  9. PSM379

    PSM379 Medium Load Member

    635
    2,413
    Apr 19, 2019
    0
  10. n4ane

    n4ane Light Load Member

    118
    53
    Aug 28, 2020
    0
    Ok thanks I believe that who I talked with earlier

  11. n4ane

    n4ane Light Load Member

    118
    53
    Aug 28, 2020
    0
    Thats a good possibility. It definitely starting ripping at that weld
