Noisy throwout bearing, no grease fitting?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Matt1924, Aug 2, 2020.

  1. Matt1924

    Matt1924 Light Load Member

    180
    475
    Aug 6, 2018
    Georgia
    0
    Hey everyone, any ideas on how I'm supposed to grease this thing? Lots of rattling when idling in neutral or lower rpms under a load. Can't find a grease fitting anywhere. Any help would be appreciated. Thank you
    FB55733E-9710-4119-AA0E-7A222B34D699.jpeg 3AA855C7-3598-4FDB-AE21-19E08001554A.jpeg

    Dave_in_AZ Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Goodysnap

    Goodysnap Road Train Member

    1,874
    3,907
    Jul 12, 2017
    0
    It is supposed to have a remote gease line. There should be a rubber grommet it the inspection cover. Combination of brass fittings to attach the line. 1/8" pipe port on the bearing will be on the top or side of the of the bearing.

    Doable without tearing apart , but not fun.

    Biggest question, is the fitting broke off?

  4. Matt1924

    Matt1924 Light Load Member

    180
    475
    Aug 6, 2018
    Georgia
    0

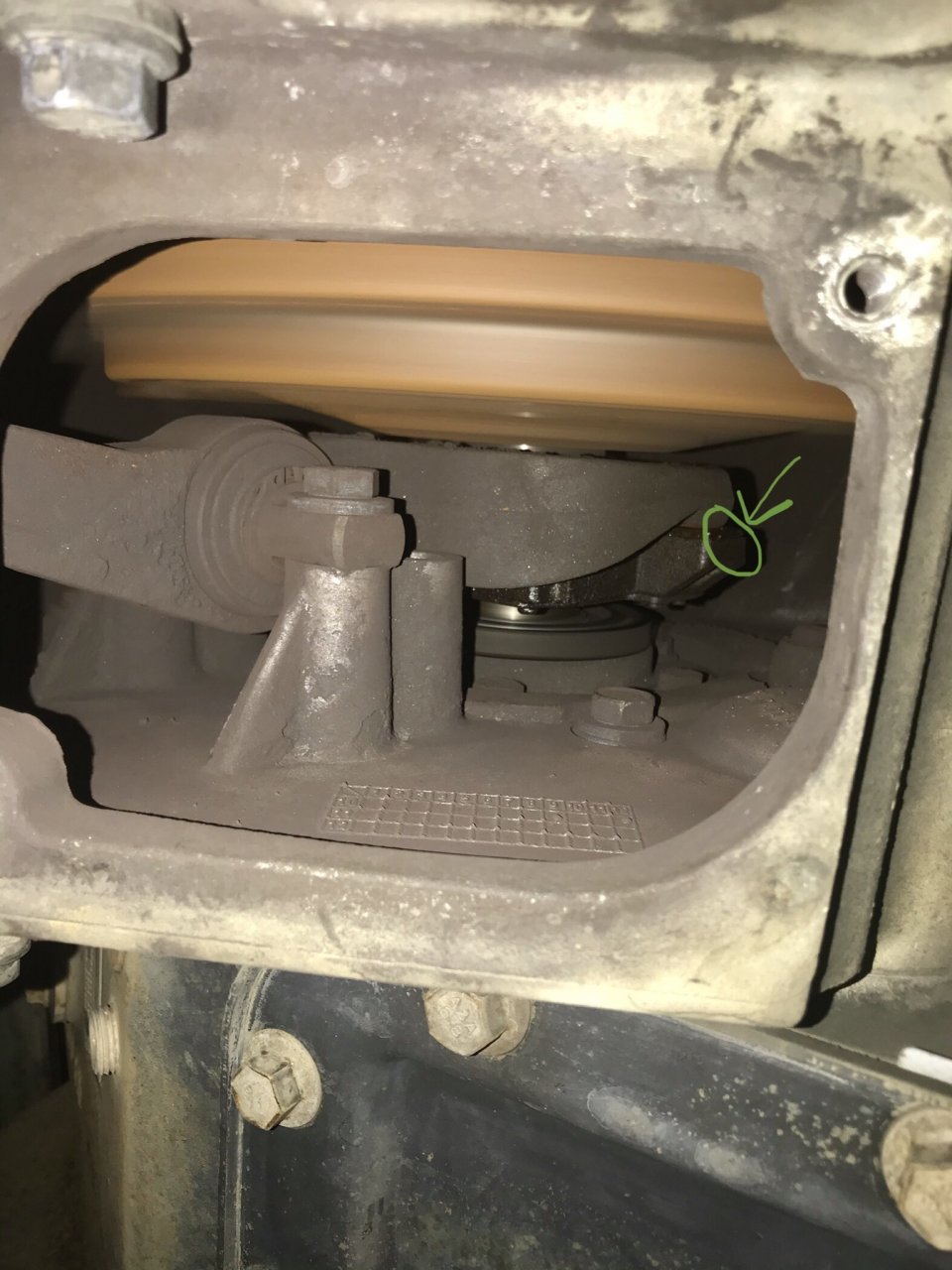

    Not sure about the inspection cover, my truck came with it missing. However, I did miraculously come across a video on Youtube on replacing the clutch brake and it had the same style fork as mine and the line was dangling from the top right portion. Here's a photo on where it should be, I'm going out in a few minutes to see if the fitting is there or missing. Thanks!


    Rideandrepair and Dave_in_AZ Thank this.
  5. Goodysnap

    Goodysnap Road Train Member

    1,874
    3,907
    Jul 12, 2017
    0
    Nope not where your circle is.

    Its gonna be above that on the top side. Gonna need an inspection camera or a mirror to see it. The remote line usually mounts on a bracket LF framerail.

    If you can get a fitting in it you might be able to just put a whip hose on it.

    Rideandrepair, Matt1924 and Dave_in_AZ Thank this.
  6. Claytonbigsby

    Claytonbigsby Bobtail Member

    29
    84
    Mar 31, 2019
    0
    Sometimes there’s still an additional grease fitting installed on the very top of the throwout bearing even though you have a remote line, you have to reach way up there and feel around for it.
    Right above and inward of your circle is usually where the 1/8” pipe threads in, sometimes there’s a 2” nipple to extend it out past that cast nub (where your circle is) with a 90° elbow to exit the inspection cover, other times the hose will exit out the driver side of the housing

    Rideandrepair and Matt1924 Thank this.
  7. Heavyd

    Heavyd Road Train Member

    7,016
    5,064
    Feb 4, 2009
    0
    Grease fittings are in the bellhousing, passenger side about 4 o'clock.

    Rideandrepair, Matt1924 and magoo68 Thank this.
  8. Matt1924

    Matt1924 Light Load Member

    180
    475
    Aug 6, 2018
    Georgia
    0
    Thank you all for the responses. The fitting ended up being in the top, and I did have to use an inspection mirror with flashlight to find it up there. Was able to fish my grease fitting up to it and line it a bit. On the side of the bell housing is just a rubber grommet.
    Anyhow, greasing it up didn't seem to make much of a difference, it may be worn and need replacing. With 570k on it now, been thinking of replacing the clutch while in there anyway so I think I'll wait another month or two and get all that knocked out in one go.

    Rideandrepair and Goodysnap Thank this.
  9. AModelCat

    AModelCat Road Train Member

    17,423
    74,571
    Jul 7, 2015
    Canuckistan
    0
    I'd add a remote line to the new one to make life easier.

    Rideandrepair Thanks this.
  10. Cattleman84

    Cattleman84 Road Train Member

    4,686
    20,983
    Nov 1, 2017
    The Sticks, Idaho
    0
    Yes remote lines make things way easier... I grew up having to reach my arm way up inthere to grease the #### things... The first time I saw one with a remote line I had a face in palm moment... "Why the hell didnt I think of that years ago!"

    Rideandrepair and lester Thank this.
  11. AModelCat

    AModelCat Road Train Member

    17,423
    74,571
    Jul 7, 2015
    Canuckistan
    0
    Every truck I've ever seen came with it from factory believe it or not.

    Rideandrepair Thanks this.
