Oil leak drives tires

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Xenergiserx, Aug 16, 2021.

  1. Xenergiserx

    Xenergiserx Light Load Member

    107
    60
    Feb 2, 2021
    0

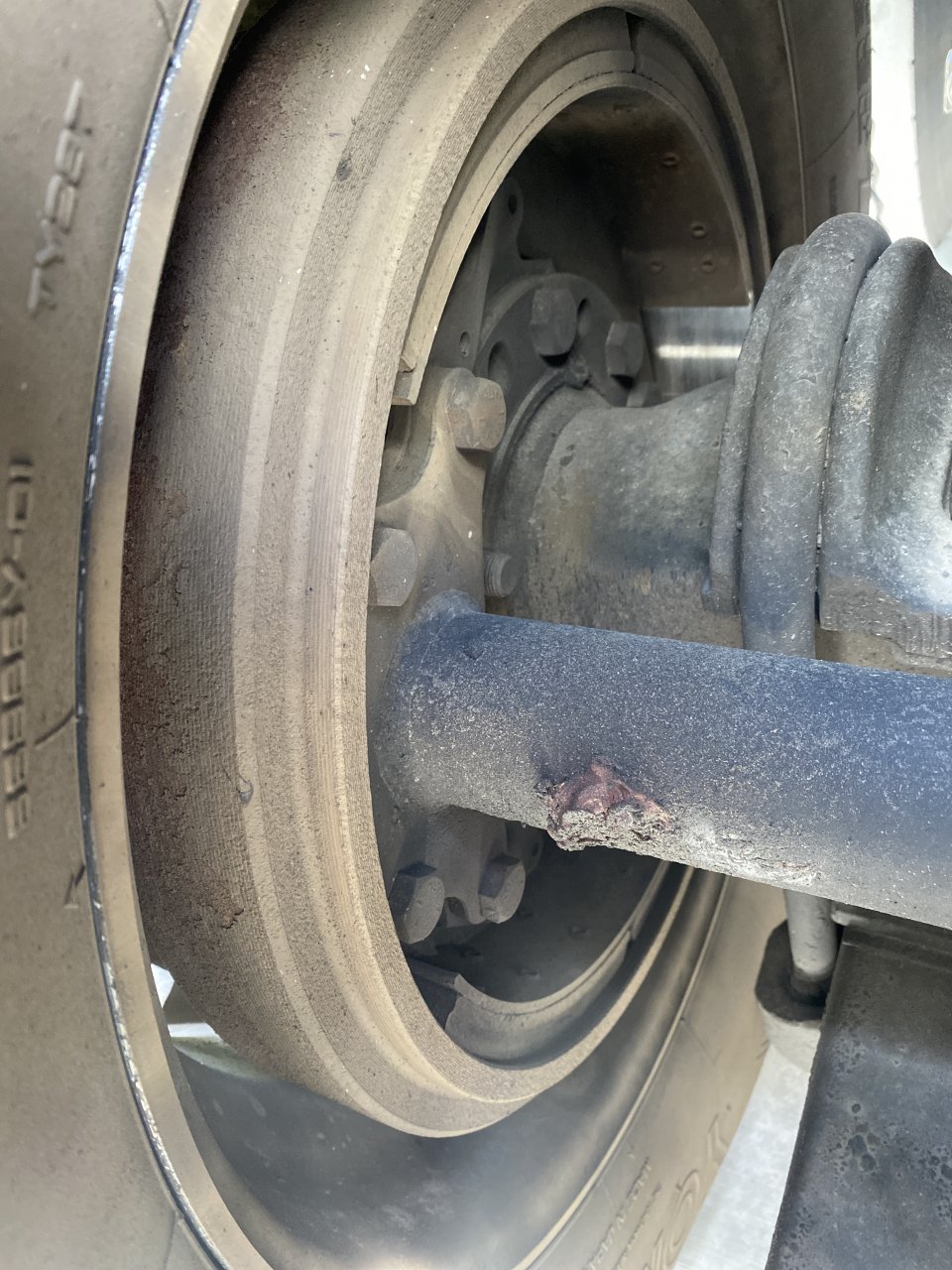

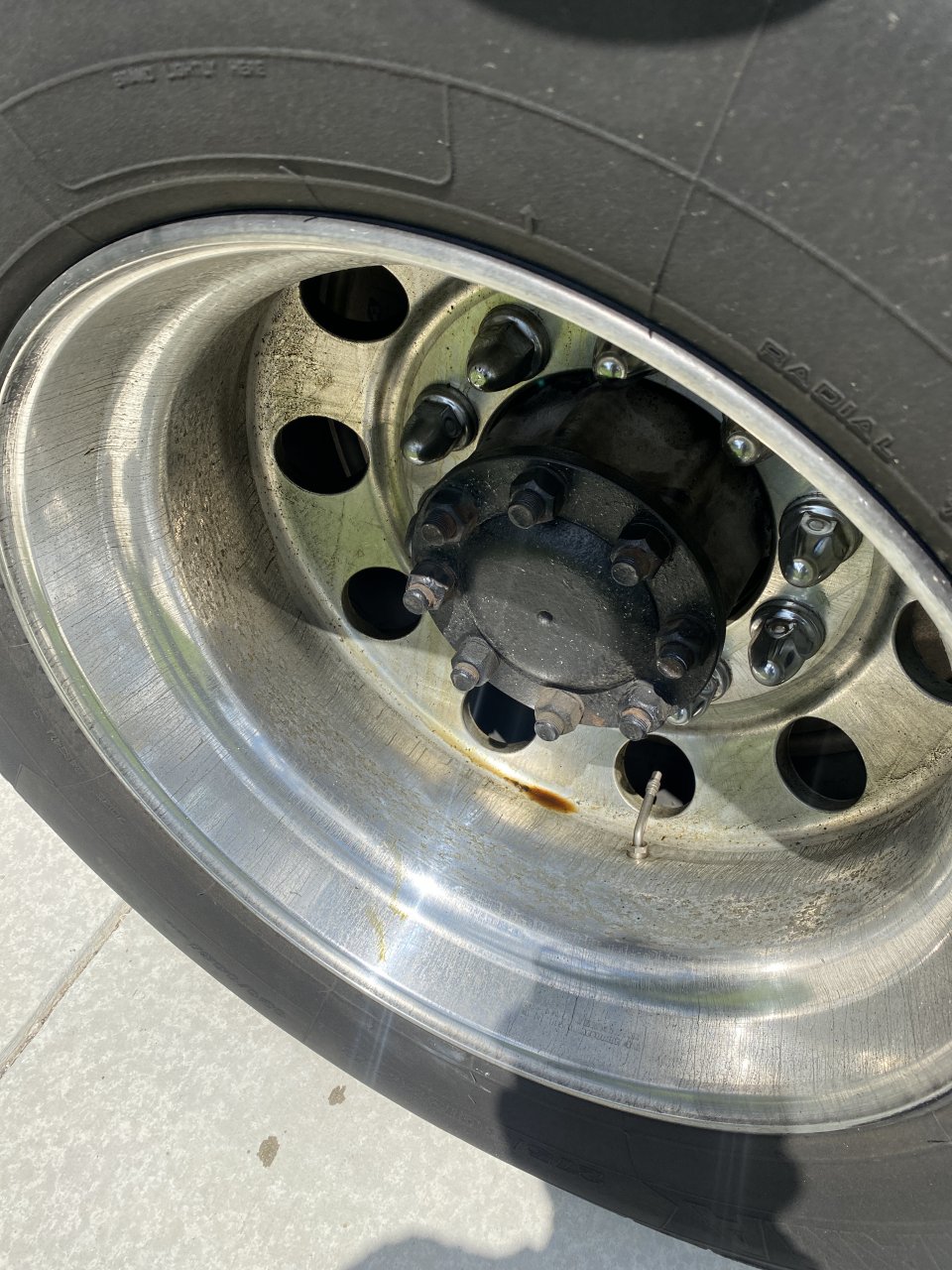

    So I did one of the late night pretrips. And I missed oil on the drive tires. It’s very weird because the center of the tire has no oil, not even the back of the tire no oil on the break drums. I pass my hands on the center hub thing to check for oil nada. But the outside of the wheel is full of oil. I don’t know if somebody dumped it there or I have something broken. What should I look for? what can it be? I figured I should find some oil on the seal. Thanks in advance


    Attached Files:

    Last edited: Aug 16, 2021
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 062

    062 Road Train Member

    6,168
    33,309
    Oct 20, 2013
    0

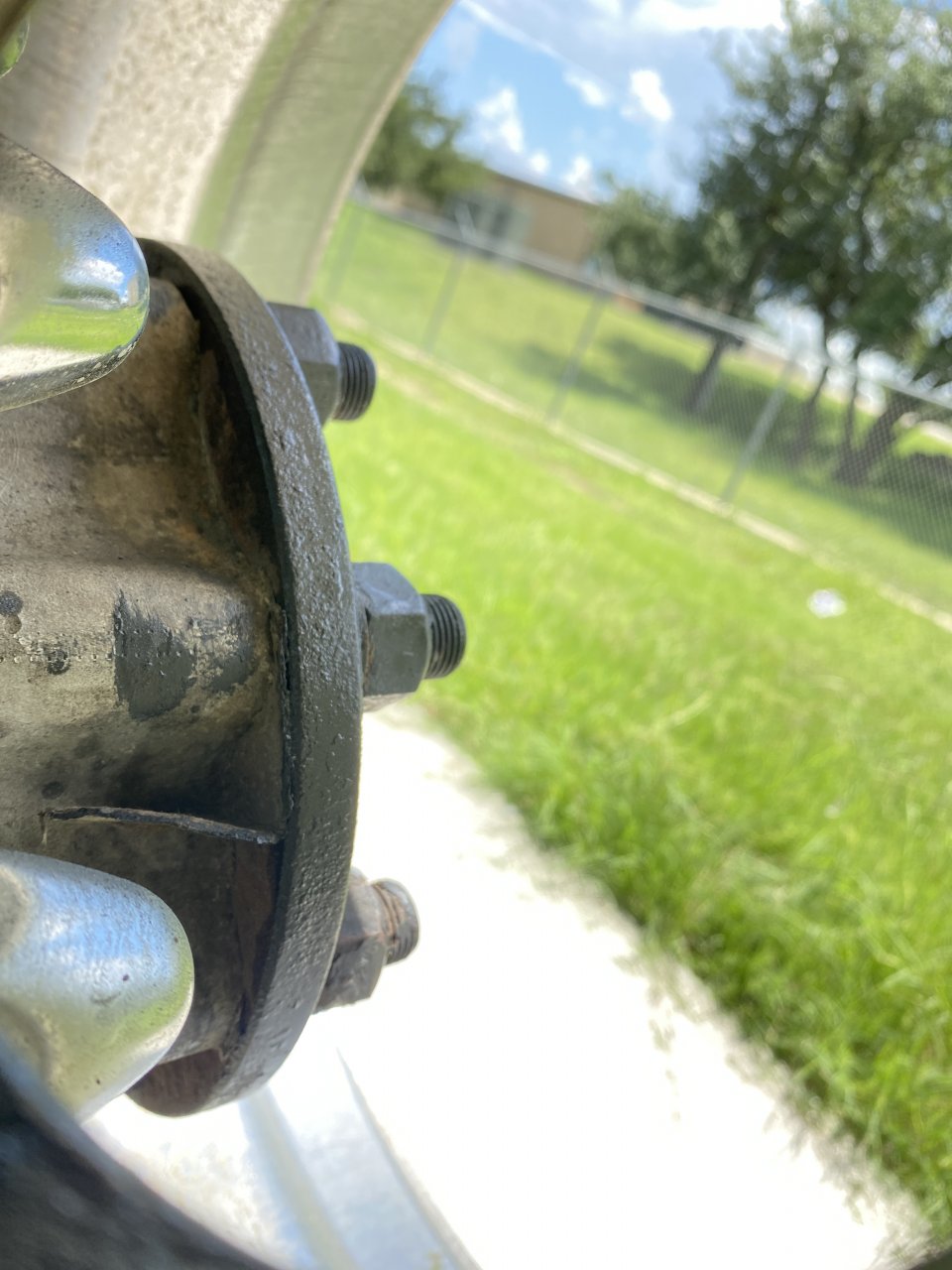

    From what I see it could be the axle flange leaking. I’d clean it up and see if you have more leakage or if someone did dump something.

    Xenergiserx Thanks this.
  4. Roberts450

    Roberts450 Road Train Member

    2,237
    3,635
    Feb 6, 2016
    0

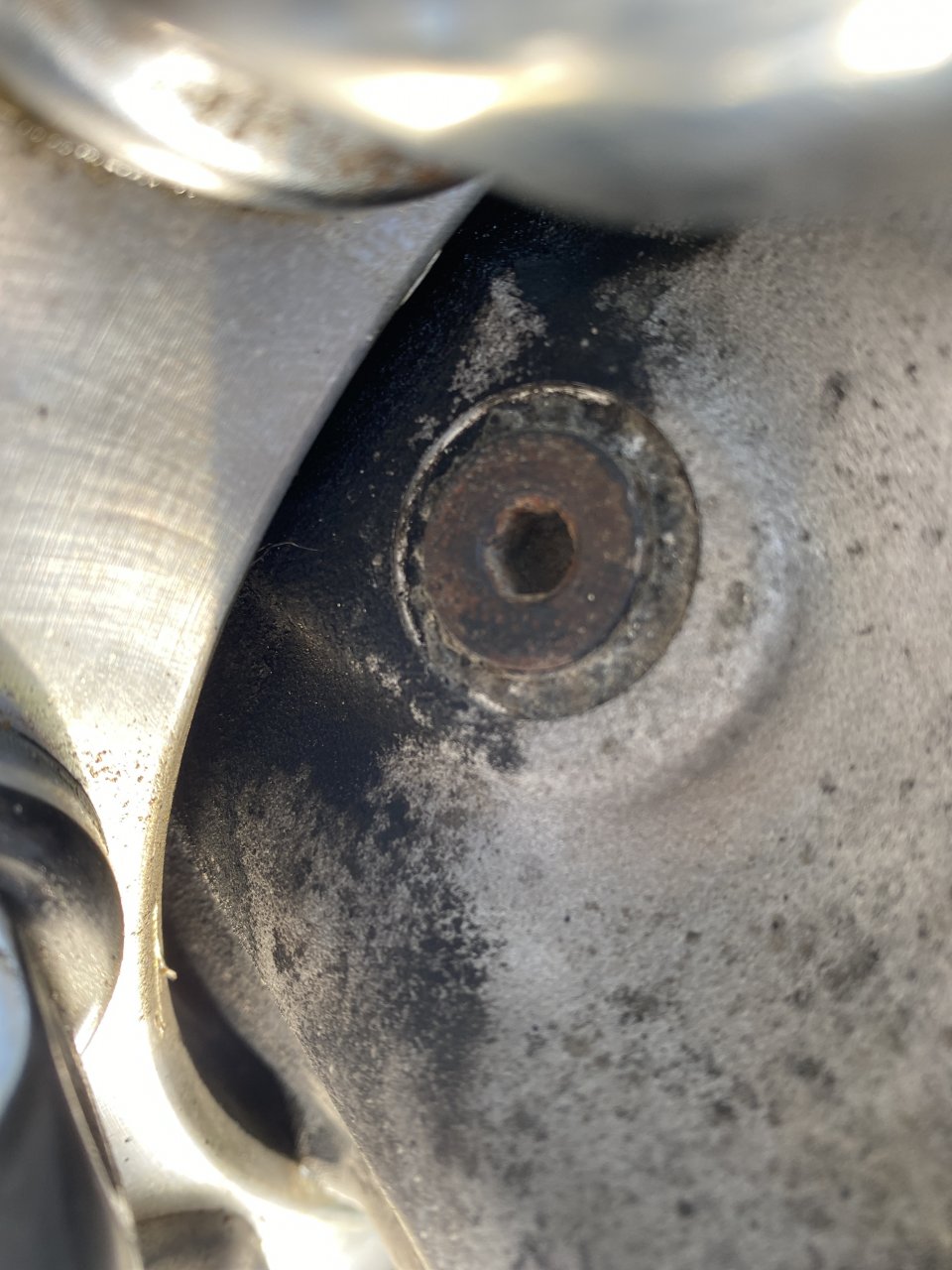

    There is a drain plug on the hub too that can leak into that area as well if its not the axle flange thats leaking.

    Magoo1968 Thanks this.
  5. Xenergiserx

    Xenergiserx Light Load Member

    107
    60
    Feb 2, 2021
    0
    I saw that it’s dry as a bone. Just worry because I don’t want to cause damage to it. I cleaned the whole thing let’s see what happens you know if is supposed to leak while driving or parked?


    Attached Files:

  6. Xenergiserx

    Xenergiserx Light Load Member

    107
    60
    Feb 2, 2021
    0
    I cleaned it up. To find where it’s leaking. Do you know if it leaks while parked or only while is driving?

  7. Roberts450

    Roberts450 Road Train Member

    2,237
    3,635
    Feb 6, 2016
    0
    They shouldn’t leak at all. Another thing to check to make sure the vent isnt plugged on the top of the diff. As the diff warm/cools it needs to be able to breathe to allow the oil to expand/contract with the heat to keep from over pressuring seals and causing leaks.

    Luwi67 Thanks this.
  8. 062

    062 Road Train Member

    6,168
    33,309
    Oct 20, 2013
    0
    If it’s the flange or plug either will leak going down the road. The plug leaking should be easy to see. The flange not so much.

    Xenergiserx Thanks this.
  9. Mototom

    Mototom Road Train Member

    1,388
    2,703
    May 7, 2019
    0
    Hub cover bolts are loose.
    You won’t be able to take em off with your fingers but they’re loose enough to leak

    Xenergiserx Thanks this.
  10. Ridgeline

    Ridgeline Road Train Member

    22,233
    114,351
    Dec 18, 2011
    Michigan
    0
    The flange gasket is leaking, try first making sure the bolts are tight and if they are, you may have to pull the axle and replace the gasket.

    Xenergiserx and BoxCarKidd Thank this.
  11. clausland

    clausland Road Train Member

    1,933
    11,067
    Dec 5, 2014
    North Woods
    0
    Perm #2 around the stud collars too...

    Xenergiserx Thanks this.
