paccar push lock air line connections leaking

Discussion in 'Ask An Owner Operator' started by scoobertdoo, Oct 30, 2022.

  1. lilillill

    lilillill Sarcasm... it's not just for breakfast

    5,642
    13,472
    Nov 7, 2007
    Possum Booger, Alabama
    0

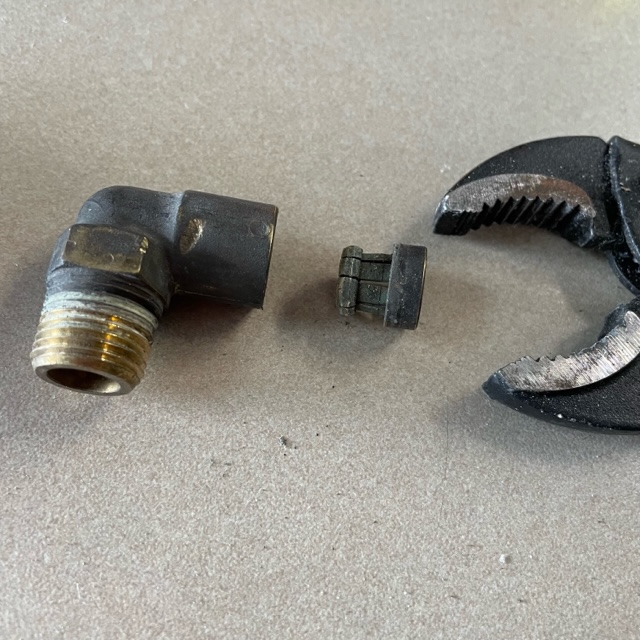

    Pull out with pliers...

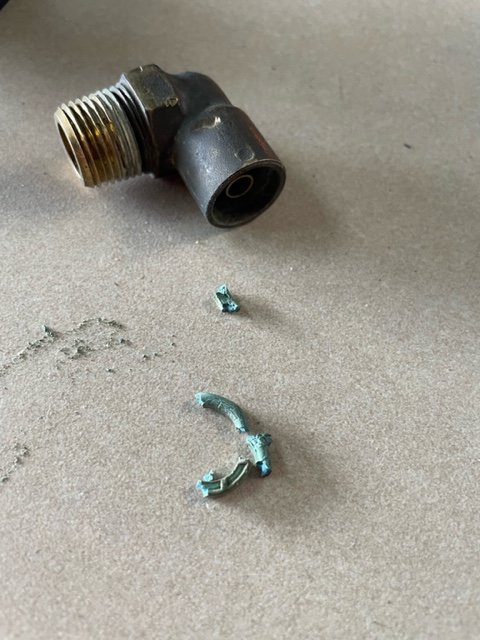

    Retainer removed...

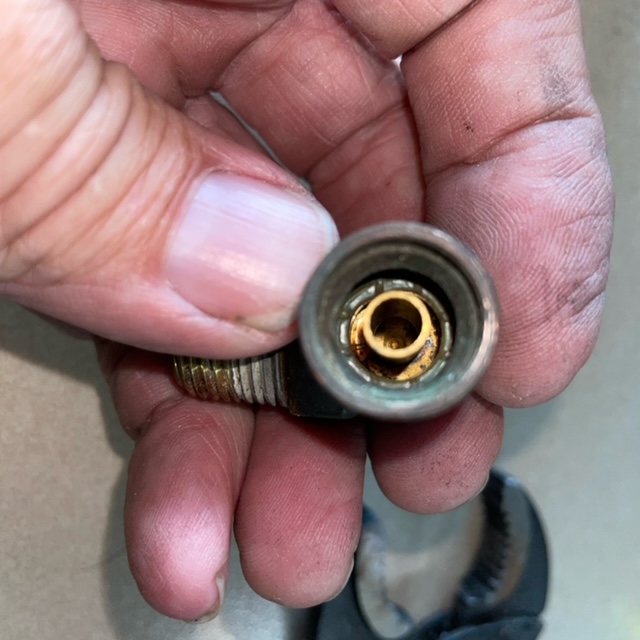

    What it looks like inside...


    The usual condition of the o-rings...


    Green o-rings are usually a little softer and seal better but don't last as long. If you still have a bit of a leak, try a little thicker o-ring.

    Last edited: Oct 31, 2022
    rollin coal and scoobertdoo Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. krupa530

    krupa530 Light Load Member

    296
    1,139
    Dec 3, 2014
    Orem, UT
    0
    As these leaks occur just replace with compression fittings. Rarely have problems with compression

    RJM1953 Thanks this.
