    Hi everybody, I have Pete 387, 2007, I've tried to find that fuse box for trailer which should be on a left hand frame, behind the cab, but still have no luck at all, there is just no box at all, I've been following cable all the way to the engine until it was covered and mixed with others wires so I can't follow it. Maybe anybody have knowledge where Peterbilt could possibly hide it. I had temp, jump wire fix, but wanna find those little ########.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Mudguppy

    Mudguppy Degenerate Immoralist

    1,657
    4,057
    Apr 28, 2014
    Wooley Swamp
    0
    The trailer fuses aren't with the rest of them in the panel under the dash near your clutch pedal?

  4. Navimgn

    Navimgn Bobtail Member

    8
    0
    Oct 31, 2015
    0
    There is no fuses at all :(

  5. Mudguppy

    Mudguppy Degenerate Immoralist

    1,657
    4,057
    Apr 28, 2014
    Wooley Swamp
    0
    ???
    I used to run a 2008 388 and it had the main fuse panel under the dash back sort of behind the clutch pedal, and a secondary fuse/relay panel on the firewall inside the engine compartment roughly above the steering column. Lemme see if I can do some digging.

    Straight Stacks Thanks this.
  6. Mudguppy

    Mudguppy Degenerate Immoralist

    1,657
    4,057
    Apr 28, 2014
    Wooley Swamp
    0
    Hrmmm.....I couple of places I looked say there is a fuse panel in the 387 behind the glove box. Have you removed it and checked in there? Also heard mention of one possibly on the firewall in the engine compartment on passenger side near washer fill tube.
    Personally never heard of Petes having them there, but I know Freightliners and Internationals do.

    Good luck.

  7. Navimgn

    Navimgn Bobtail Member

    8
    0
    Oct 31, 2015
    0
    Yes sir, I found those in gloves compartment, above and above the washer tank, and in the right sleeper box, but problem is that they don't contain that fuse which I need. I've called Pete last night and they told me that it most likely moved from the frame inside left handle sleeper box. But still no luck yet.

  8. JackZ

    JackZ Bobtail Member

    24
    6
    Jul 7, 2011
    Winston-Salem, NC
    0
    I'm not sure what year they changed, but I'm pretty sure it was around 2007 or so that the "Trailer Load Center" electrical box on the frame rail was eliminated and the trailer power was then fed from the "Sleeper Load Center" which should be under the bunk. So your trailer power probably comes from there but it may only have built-in circuit breakers and no fuses (just like the "Cab Load Center").

    Navimgn Thanks this.
  9. Navimgn

    Navimgn Bobtail Member

    8
    0
    Oct 31, 2015
    0
    Thank you! I have a lot of fuses there,I'll check them one more time.

  10. RSQ20

    RSQ20 Medium Load Member

    save yourself time and frustration, get a tone generator and sound it out..

    ..... Philip

  11. Navimgn

    Navimgn Bobtail Member

    8
    0
    Oct 31, 2015
    0

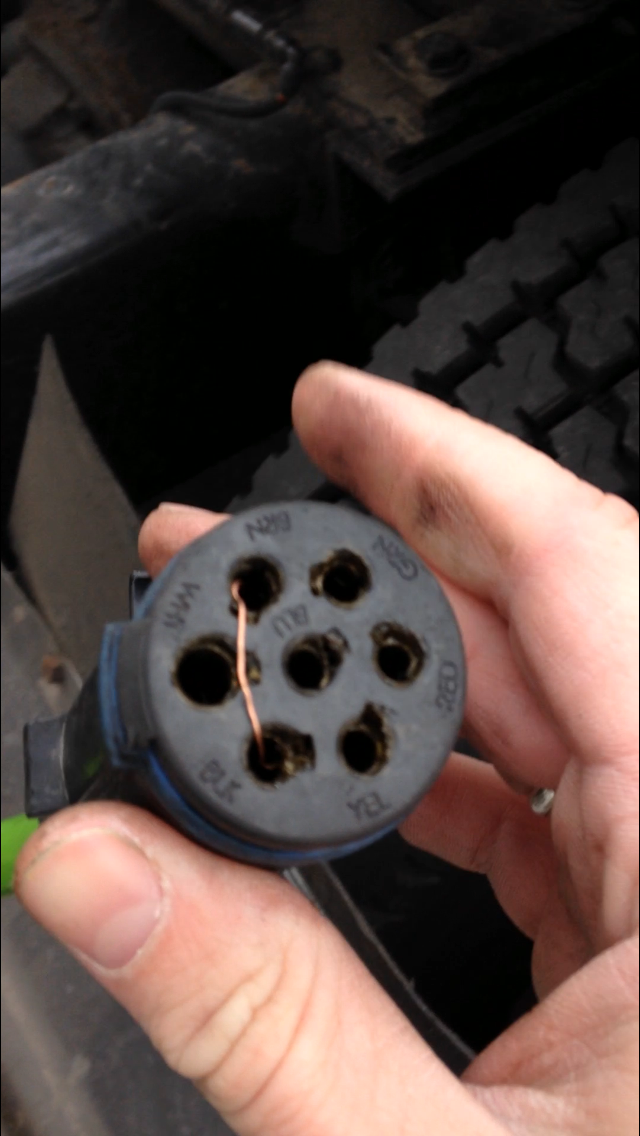

    Actually I found those fuses and relays, they not on the frame anymore they in chassis load center, but problem still exist, I checked power in my cable, so both black and brown holes in the connector from truck to trailer have power, which basically means I suppose to have my lights on, but I only have them on if I connecting them together with a temporary wire.


    Attached Files:
