Portable CB setup for slip seating Cascadia Evolution?

Discussion in 'CB Radio Forum' started by BlackThought, Dec 12, 2016.

Page 1 of 2
  1. Dec 12, 2016 #1
    BlackThought

    BlackThought Medium Load Member

    562
    462
    Jul 22, 2014
    Memphis,TN
    0
    Apparently they made a truck with no #### CB option. Why I don't know. But I'm slip seating and don't/won't leave anything on the truck when I get off my shift. Is there anything I can do that won't break the bank? I have a Cobra29 and Wilson2k. Need a way to mount and remove antenna easily. Ideas

    BlackThought, Dec 12, 2016
    BlackThought, Dec 12, 2016
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 12, 2016 #2
    QuietStorm

    QuietStorm Heavy Load Member

    899
    1,416
    Dec 11, 2016
    0
    Get one of the screw in mirror mounts and a 12v power supply.

    QuietStorm, Dec 12, 2016
    QuietStorm, Dec 12, 2016
    #2
    BlackThought Thanks this.
  4. Dec 12, 2016 #3
    rabbiporkchop

    rabbiporkchop Road Train Member

    9,676
    6,525
    Feb 9, 2012
    Wapwallopen, Pa
    0

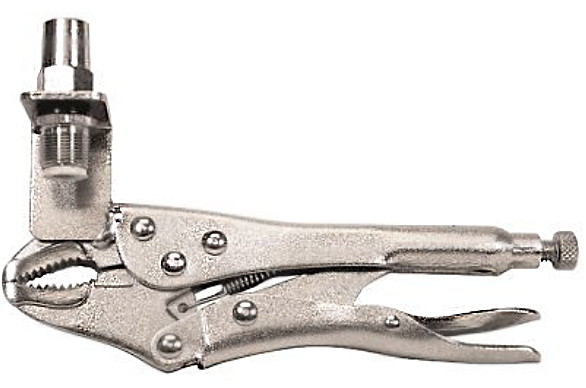

    valor_139_grande.png CbAntennaMountJaws-Qrcs3.gif Here's a couple antenna mounting options

    rabbiporkchop, Dec 12, 2016
    rabbiporkchop, Dec 12, 2016
    #3
    handlebar and BlackThought Thank this.
  5. Dec 12, 2016 #4
    rabbiporkchop

    rabbiporkchop Road Train Member

    9,676
    6,525
    Feb 9, 2012
    Wapwallopen, Pa
    0
    [​IMG] [​IMG]
    There's a couple radio mounting options.

    rabbiporkchop, Dec 12, 2016
    rabbiporkchop, Dec 12, 2016
    #4
    handlebar, BlackThought and BTShepp Thank this.
  7. Dec 12, 2016 #5
    #1don

    #1don Medium Load Member

    469
    538
    Mar 26, 2013
    somewhere down south
    0
    Get you... I think they call it a freight hauler rig. dad had one when he drove for ABF. had a cb , stereo , and speakers. had room on inside for a change of clothes. and antenna rig like posted above

    #1don, Dec 12, 2016
    #1don, Dec 12, 2016
    #5
    BlackThought Thanks this.
  8. Dec 12, 2016 #6
    #1don

    #1don Medium Load Member

    469
    538
    Mar 26, 2013
    somewhere down south
    0
    Sorry didn't see the above pics till after posted

    #1don, Dec 12, 2016
    #1don, Dec 12, 2016
    #6
  9. Dec 13, 2016 #7
    BigJim63

    BigJim63 Light Load Member

    57
    56
    May 1, 2014
    Evansville In.
    0

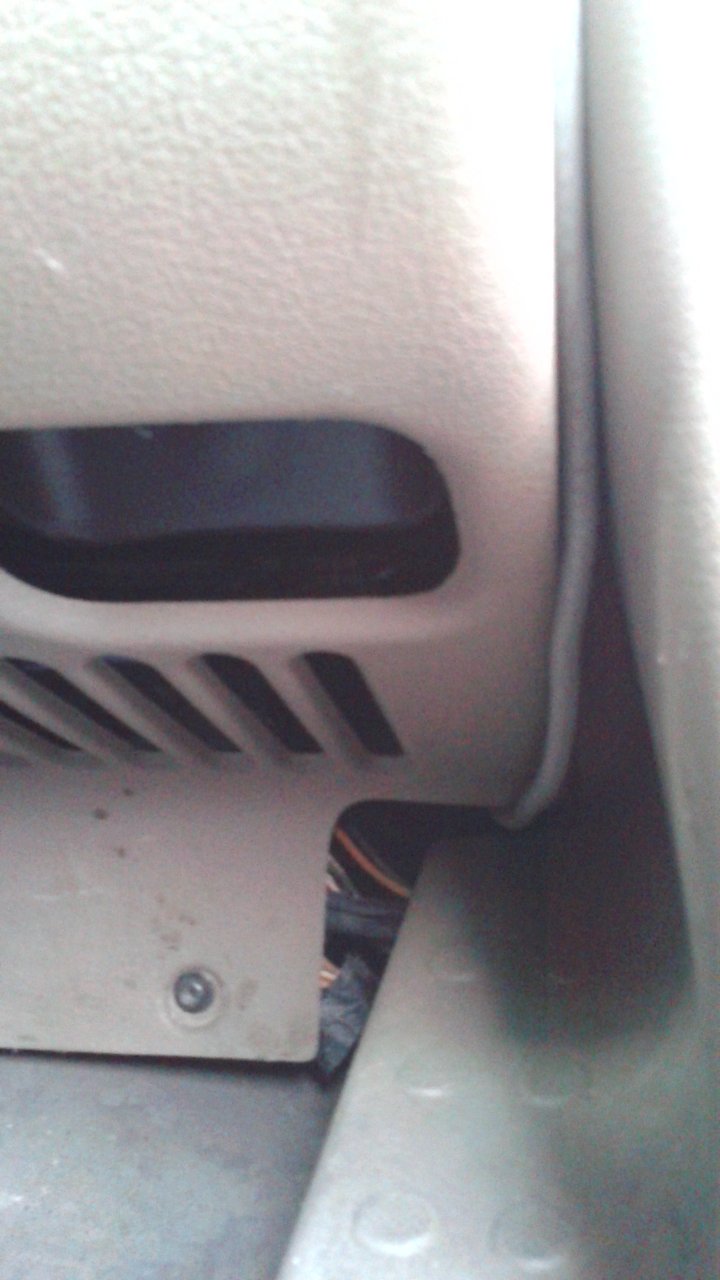

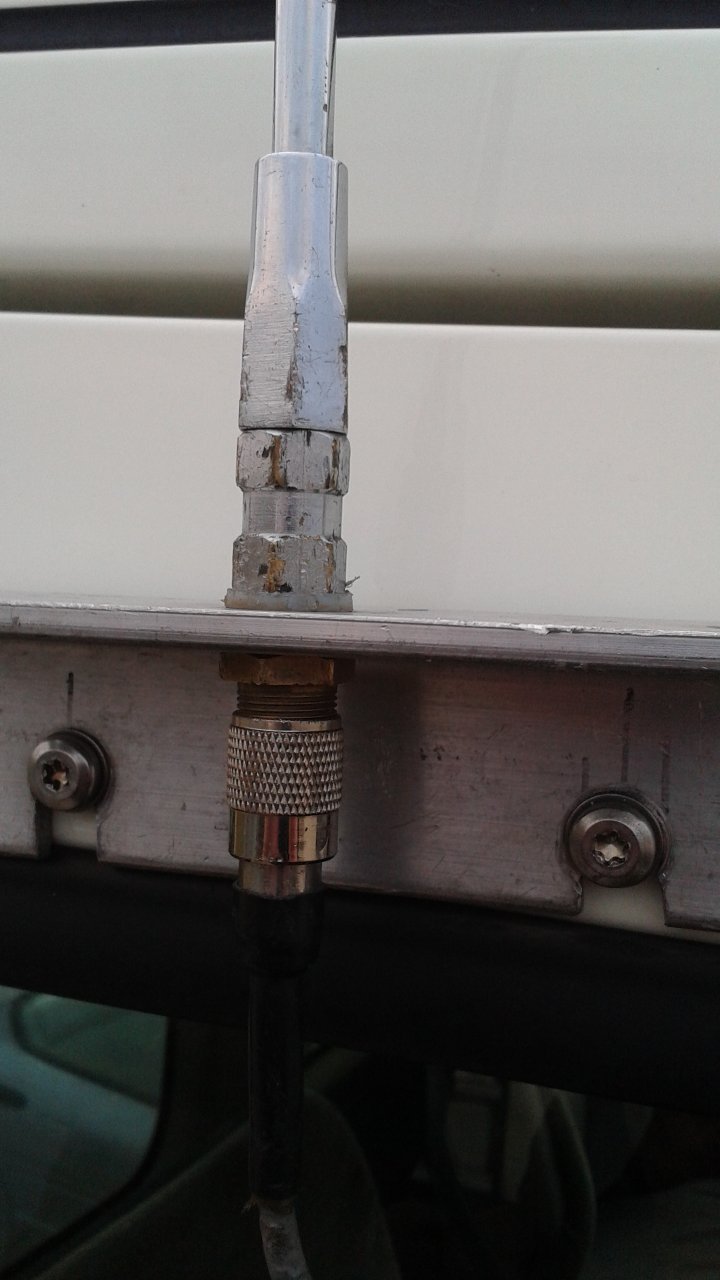

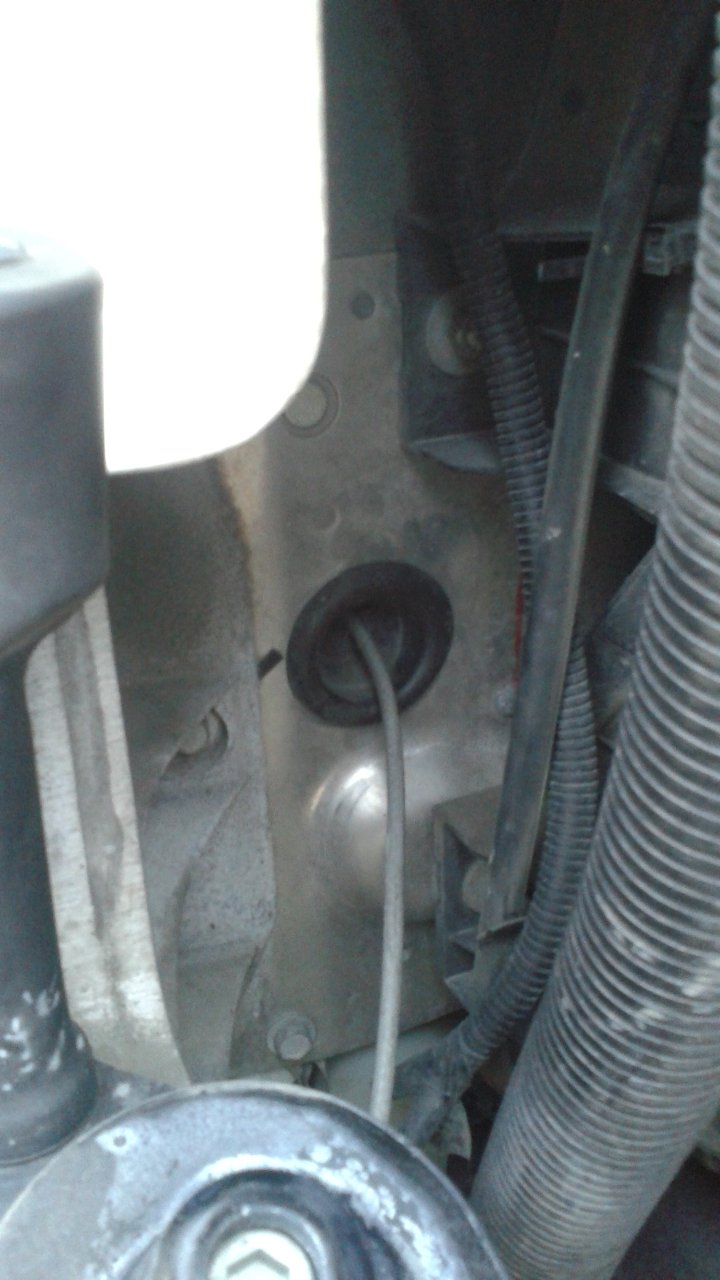

    I have been slip seating for 5 years in a Cascadia and this is my setup. Radio and external speaker are mounted on a piece of plywood. The antenna is mounted on the top of the passenger door with the coax ran into the firewall grommet to the dash where radio is secured with bungee straps. I have found that these trucks have inconsistent ground planes and bonding the door hinges takes care of this. Here are some pics to help explain what I'm talking about.

    BigJim63, Dec 13, 2016
    BigJim63, Dec 13, 2016
    #7
    BlackThought Thanks this.
  10. Dec 13, 2016 #8
    BigJim63

    BigJim63 Light Load Member

    57
    56
    May 1, 2014
    Evansville In.
    0


    Attached Files:

    BigJim63, Dec 13, 2016
    BigJim63, Dec 13, 2016
    #8
    BlackThought Thanks this.
  11. Dec 14, 2016 #9
    BlackThought

    BlackThought Medium Load Member

    562
    462
    Jul 22, 2014
    Memphis,TN
    0
    For anyone in a 2017 Casc Evolution the cb plug is behind the eyeglass holder. And the antenna is utter crap. I'll still be making a setup of some sort. I didn't realize how much an antenna affected the sound quality of peoples voices. This makes my ears vomit.

    BlackThought, Dec 14, 2016
    BlackThought, Dec 14, 2016
    #9
  12. Dec 19, 2016 #10
    BlackThought

    BlackThought Medium Load Member

    562
    462
    Jul 22, 2014
    Memphis,TN
    0

    Can I mount the vice grips on the hand bar beside the utility lights? I'm trying to avoid paying 30-50 bucks for something that will only work for the cascadia.

    BlackThought, Dec 19, 2016
    BlackThought, Dec 19, 2016
    #10
