Post flatbed load photos here V2.0

Discussion in 'Flatbed Trucking Forum' started by leftlanetruckin, Feb 18, 2014.

  1. booley

    booley Medium Load Member

    640
    2,244
    Feb 16, 2008
    0
    Just plank to Somerset Mass AC1A36A2-53CB-46C3-9673-7C5CCAE3015A.jpeg

  2. D.Tibbitt

    D.Tibbitt Road Train Member

    6,485
    28,860
    Apr 26, 2013
    0
    Picked up this beast of a track frame at port of baltimore today. Supposedly goes to a 6015 cat. Dang thing weighs 46k , i was finishing up and the driver thats taking the other one showed up . headed to the windy state of wyoming.

    What do u guys think of the securement? I never hauled this before but just threw chains on until it looked good. All 4 corners directly secured to the chain holes on frame and then 6 chains over top, going to other side.

    SAR, FerrissWheel, PoleCrusher and 5 others Thank this.
  3. kylefitzy

    kylefitzy Road Train Member

    1,470
    4,304
    Aug 12, 2007
    Kansas city,Mo
    0
    If those
    if those are 3/8 chains and 5400 pound binders like they look you have enough securement for a 86,400 pound piece. You’re more then fine. Good job driver.

    Personally I would have just went with the for corner chains and a few straps.

  4. mtoo

    mtoo Road Train Member

    1,697
    3,400
    Jan 15, 2011
    on bended knee
    0
    I hauled a few of those tracks, the only thing different that I did was to take a 6x6 timber wedge it under the front and back. Then take a chain and pull the timbers into the track.

    Probably not necessary but I had the timbers and it made me feel better. By the way, it road like a dream.

  5. D.Tibbitt

    D.Tibbitt Road Train Member

    6,485
    28,860
    Apr 26, 2013
    0
    Yes 3/8 chains , not sure wat wll rating on the binders, guess i should look. Im used to running 5/16 chains n binders , just upgraded and spent a couple grand and bought all new equipment . I always been known to put overkill on everything lol oh well, where would u put straps on it , just over top of the track?

  6. D.Tibbitt

    D.Tibbitt Road Train Member

    6,485
    28,860
    Apr 26, 2013
    0
    I was thinking of doing that as well, couldnt find anything laying around and i dont carry dunnage no more so thats as good as she get lol thanks u for the input

  7. kylefitzy

    kylefitzy Road Train Member

    1,470
    4,304
    Aug 12, 2007
    Kansas city,Mo
    0
    Those looks like the “cheap” 5/16-3/8 binders with a wll of 5400lbs that are standard issue at my company. I have rounded up 6 or so 3/8-1/2 binders that have a wll of 9200lbs. That way I get my full rating on a 3/8” g70 chain. But I also pull trailers with higher rated securement points then the flatbed you're pulling.

    As far as the straps I would have put them where you put your 6 chains in the middle. With the rubber under them also. Chains are heavy, straps are light!

  8. D.Tibbitt

    D.Tibbitt Road Train Member

    6,485
    28,860
    Apr 26, 2013
    0
    10.4 i seen some of them big loads u pull and have to tarp :eek: i dont wanna pull that stuff just give me my wimpy flatbed and ill be good LOL thank u for the advice brother i keep it in mind next time

  9. Rontonio

    Rontonio Road Train Member

    4,598
    29,518
    Aug 9, 2009
    0

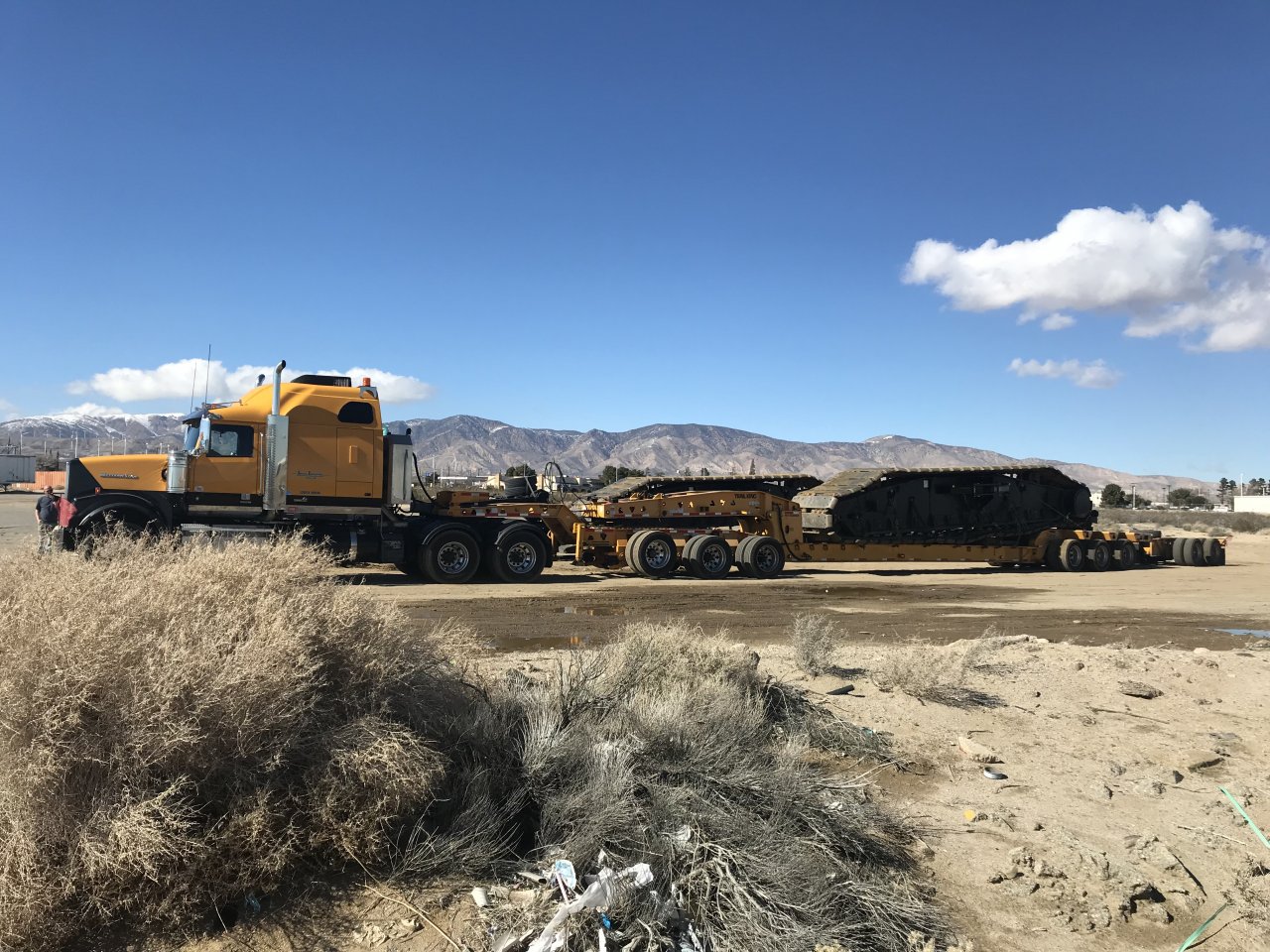

    Here is a slightly larger one 12 1/2” chains on it

    FerrissWheel, PoleCrusher, cke and 9 others Thank this.
  10. booley

    booley Medium Load Member

    640
    2,244
    Feb 16, 2008
    0

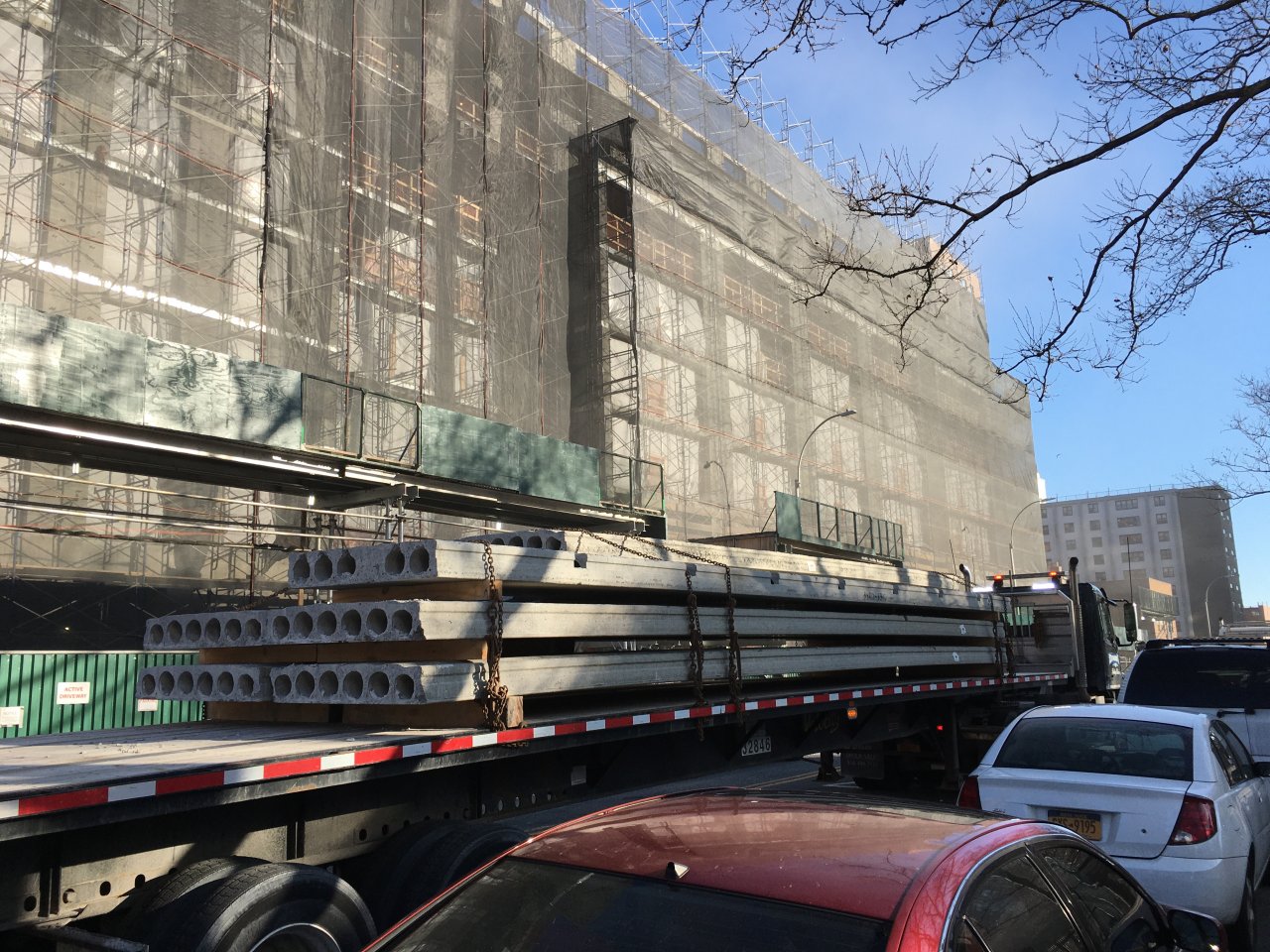

    Everyone’s favorite destination...Brooklyn 1D9179D3-4203-4C69-8594-3EE415B02F66.jpeg
