Post flatbed load photos here V2.0

Discussion in 'Flatbed Trucking Forum' started by leftlanetruckin, Feb 18, 2014.

  1. Winnyf1

    Winnyf1 Road Train Member

    4,449
    9,645
    Jan 14, 2015
    Evansville, IN
    0

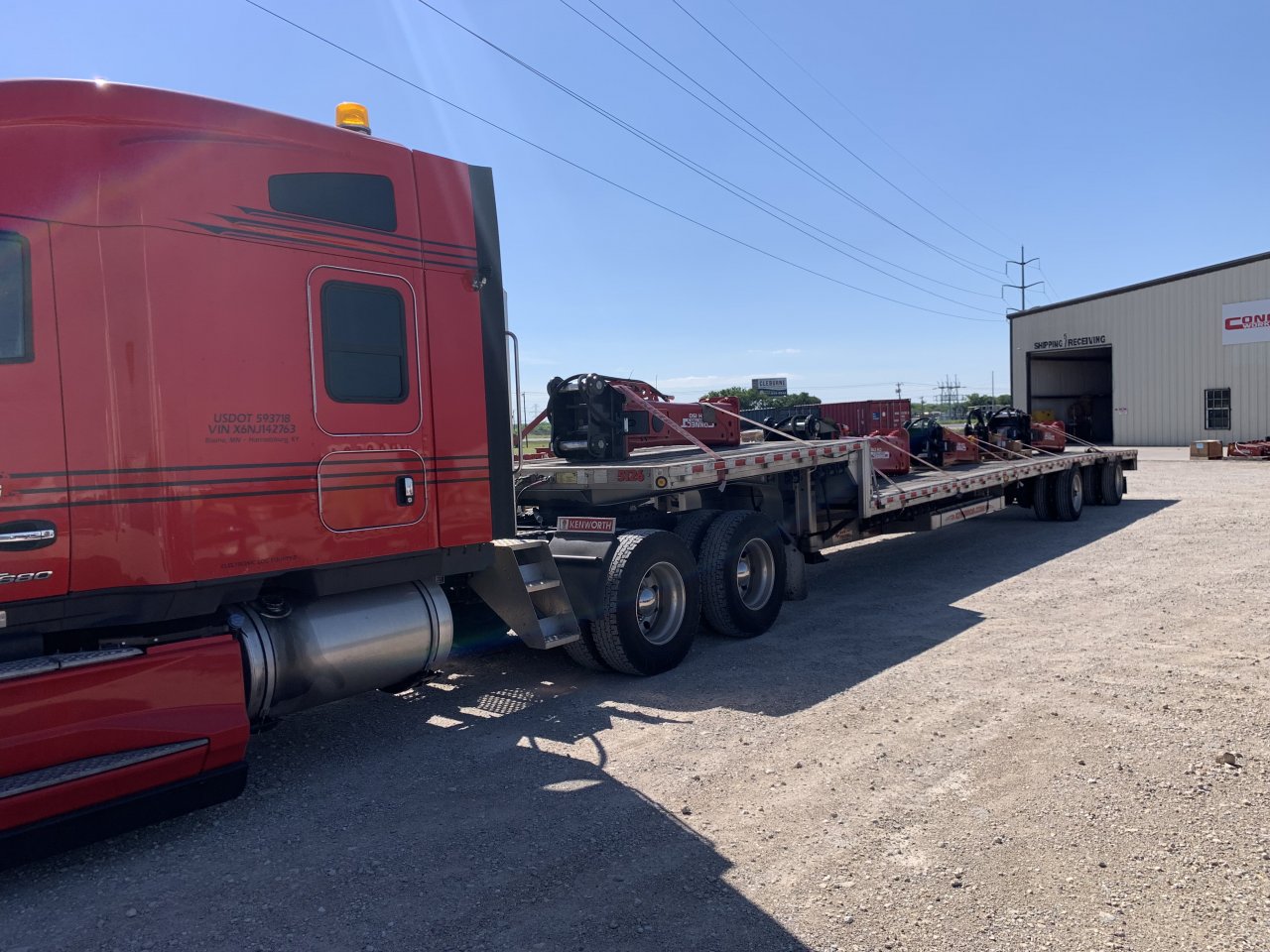

    A nice easy weekend load from TX to NC…

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. booley

    booley Road Train Member

    1,422
    9,546
    Feb 16, 2008
    0
    Brush Ave? I walked down the street to see what I was in for, I think (?) I know where you’re talking about…
    Supposed to go back on Tuesday, you want me to poke someone in the nose?

  4. Nostalgic

    Nostalgic Road Train Member

    1,813
    20,002
    Mar 6, 2017
    PA
    0

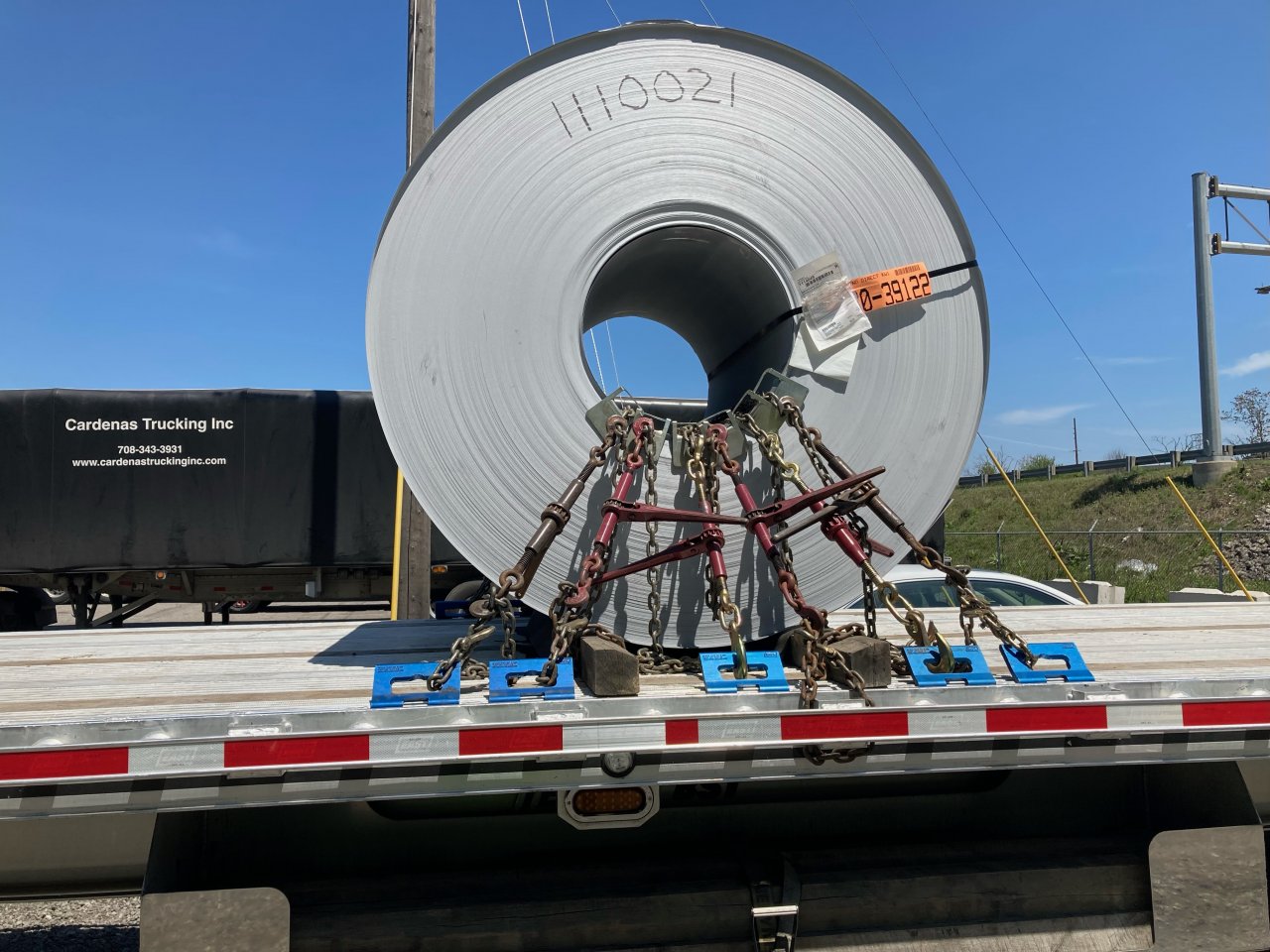

    Ran out of coil racks, chains and binders on this one.

    Sanford and Sons moving with some of the last bits for a new dredge setup. (Only started securement when I snapped the pic)

    First full size coil and first time trying the whole "threading" the coil/chain guards on chain. I suppose they have their place, but I don't care for them.

    Skidded is many much easier.

  5. Kshaw0960

    Kshaw0960 Road Train Member

    1,581
    5,023
    Jun 17, 2018
    0
    I do 2 chains threaded into the edge protector. Just using 1 protector per chain makes a cluster f.

    I also don’t like them that much but it’s the best option really.

  6. Winnyf1

    Winnyf1 Road Train Member

    4,449
    9,645
    Jan 14, 2015
    Evansville, IN
    0
    Good job and thanks for reminding me just how happy I am that I don’t have to haul coils…

  7. CAXPT

    CAXPT Road Train Member

    3,122
    14,071
    Feb 10, 2008
    Michigan
    0
    Yeah, I hear you, but unless you have coil cuffs, or rubber-backed steel corner protectors, they'll do the job nicely in a pinch. I know they are a pain, having used them enough times until I did get the above mentioned securement devices, but if that's all you have, you have to use what you've got. :)
    :banghead:
    Nice job on the securements.

  8. Nostalgic

    Nostalgic Road Train Member

    1,813
    20,002
    Mar 6, 2017
    PA
    0
    I have the bigger metal protectors (non rubber backed), but they were always smaller coils where it was 2-3 chains spaced out more. I thought the smaller ones would work better, but never thought of threading 2 chains through one.

    I try to plan ahead with ideas, usually to a fault. Bought 2 new binders last August just for this occasion - and to compare to see if spending 3x as much on the durabilt was actually worth it to connect directly to the J-plates. I actually used them on my reels also, and they work well hooking directly to my stake pockets (I know that'll divide some here lol).

    Mytee - $30

    And the Durabilt for $100+


  9. Winnyf1

    Winnyf1 Road Train Member

    4,449
    9,645
    Jan 14, 2015
    Evansville, IN
    0
    Cool, for me it’s all about what the ratings are on your trailer, I don’t use stake pockets because on my Reitneour they aren’t as strong as the rails for example. I’ve seen those binders, interesting….

  10. Kshaw0960

    Kshaw0960 Road Train Member

    1,581
    5,023
    Jun 17, 2018
    0
    All my binders are USA made by Columbus McKinnon. They will last a lifetime and are pretty pricey. I probably have $2k in binders. Anyway I buy the 3/8-1/2” ones with over 9k WLL and because they also work for 1/2” I can hook the clevis directly on a lot of machines, or J plates. I would strongly recommend against hooking it to a stake pocket. Your trusting like a 2” weld max.

  11. Nostalgic

    Nostalgic Road Train Member

    1,813
    20,002
    Mar 6, 2017
    PA
    0
    Rated the same as spools or combination of spools and pockets @ 6600#. The broad area of a slip hook is less concentrated load than a chain link, which kind of dispels the fear of "ripping through".
