Question on Wilson 5000

Discussion in 'CB Radio Forum' started by EZ Money, Feb 10, 2017.

  1. Feb 10, 2017 #1
    EZ Money

    EZ Money Road Train Member

    3,251
    2,478
    Oct 27, 2010
    The East Side Gang,Charlotte,NC.
    0

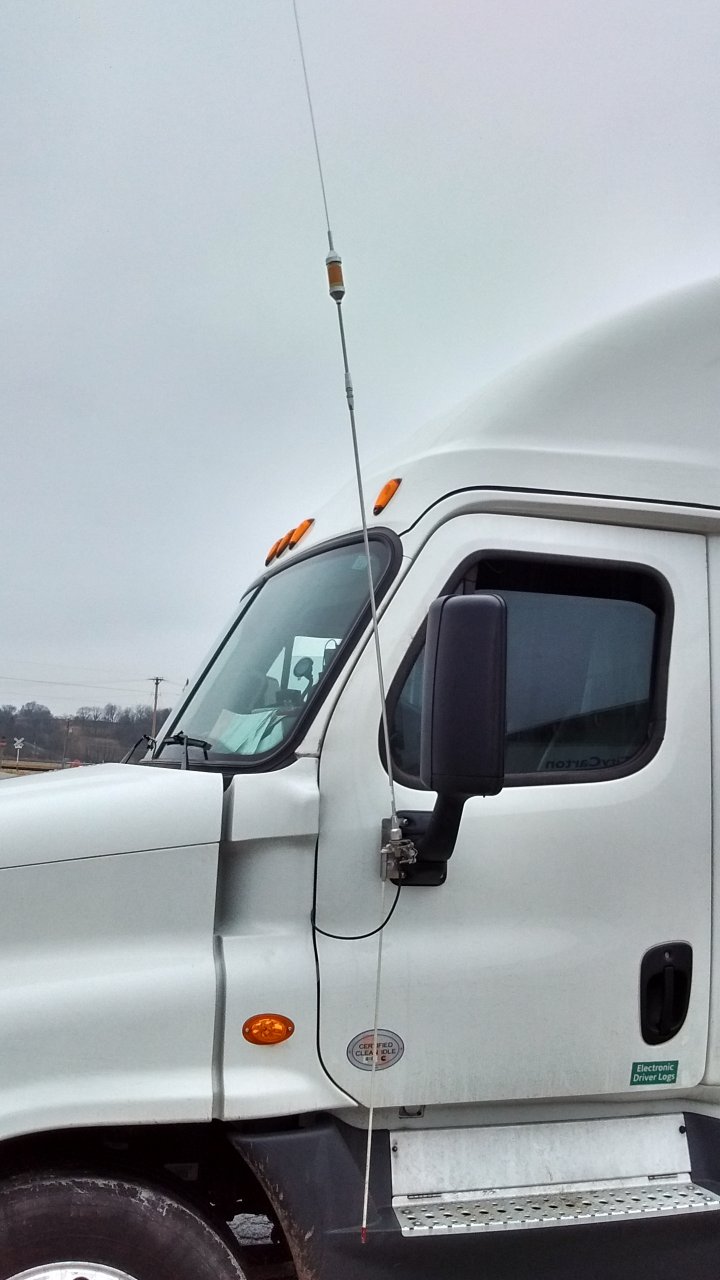

    Running it on a Cascadia using the perch mount and yes,SWR is high due to reflection.
    This is the 10 inch shaft antenna. I ordered a 22 inch shaft for it.
    In theory would I need to shorten the whip by 12 inches then get SWR set or could it be tuned without cutting a foot off the whip?
    Just wondering if anyone has been able to get decent SWR using the longer shaft.

    Getting ready to put my Galaxy 98VHP in the truck but before I run the power for it I have to get the antenna up to par.
    I also have 9ft of Times Microwave coax to install instead of the 18 ft. no name brand stuff that is on the truck now.

    EZ Money, Feb 10, 2017
    EZ Money, Feb 10, 2017
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Feb 10, 2017 #2
    Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    8,691
    24,762
    Jan 20, 2010
    Hesperia, Ca.
    0
    I went for a 5 inch shaft to a 18" on my Wilson 2k. They more or less shorten the whip 10 to 12 inches if I recall correctly. He just kept snipping away till they the SWR's right.

    Diesel Dave, Feb 10, 2017
    Diesel Dave, Feb 10, 2017
    #2
    EZ Money Thanks this.
  4. Feb 11, 2017 #3
    rabbiporkchop

    rabbiporkchop Road Train Member

    9,677
    6,525
    Feb 9, 2012
    Wapwallopen, Pa
    0
    You could add a 4 foot shaft and might only subtract 6 inches from the whip.

    rabbiporkchop, Feb 11, 2017
    rabbiporkchop, Feb 11, 2017
    #3
    EZ Money and jessejamesdallas Thank this.
  5. Feb 11, 2017 #4
    jessejamesdallas

    jessejamesdallas Road Train Member

    1,416
    855
    Oct 3, 2008
    Republic of Texas
    0
    Yep. Don't just go and start snipping off the stinger trying to match the height of the antenna with the shorter shaft...You'll end up trying to figure out how to stick all those little pieces of stinger back on!

    jessejamesdallas, Feb 11, 2017
    jessejamesdallas, Feb 11, 2017
    #4
    EZ Money and rabbiporkchop Thank this.
  7. Feb 11, 2017 #5
    volvo244t

    volvo244t Road Train Member

    1,779
    1,780
    Jun 24, 2010
    Bettendorf, IA
    0
    I extended a cheap oil coil antenna by 44" and probably didn't even take 10" off the whip before it was right again.


    Add the 22" shaft under the existing 10" shaft, like I did with my 44", don't replace it. 32" of shaft will work good.

    Last edited: Feb 11, 2017
    volvo244t, Feb 11, 2017
    volvo244t, Feb 11, 2017
    #5
    EZ Money, Diesel Dave, jessejamesdallas and 1 other person Thank this.
