Removing the fan clutch hub on 2005

Discussion in 'Volvo Forum' started by poniikyanion, Oct 23, 2020.

  1. poniikyanion

    poniikyanion Light Load Member

    65
    11
    Nov 23, 2009
    Newark, NJ
    0
    The fan hub bearings are gone on my 2005 with a Kysor fan clutch hub. There are 4 (15mm?) nuts holding the hub on the bracket onto the front cover. There is not enough space to fit a socket or wrench onto the nuts. It seems the only way would be using open end wrench and risk stripping the nuts. Any advice please. Thank you.

    It is a D12

    Last edited: Oct 23, 2020
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. nasriza

    nasriza Road Train Member

    2,040
    1,615
    Feb 1, 2013
    Chicago, IL
    0
    use a good wrench like snap on and do not force them might have to heat them up if necessary removed at least 100 of them never had an issue, better access if you take off accessory drive pulley held on with 6 12 mill screws.

    poniikyanion and BoxCarKidd Thank this.
  4. poniikyanion

    poniikyanion Light Load Member

    65
    11
    Nov 23, 2009
    Newark, NJ
    0

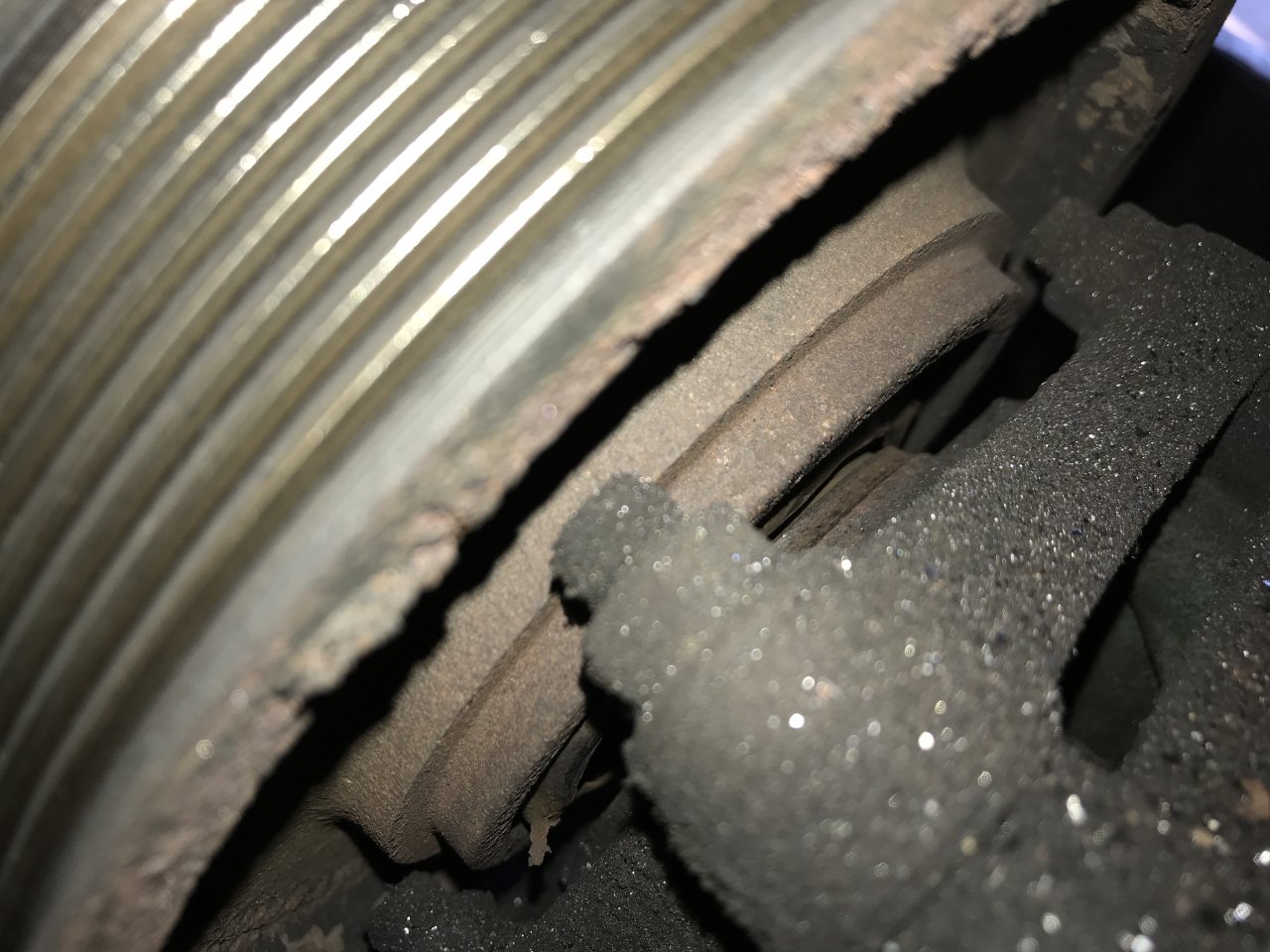

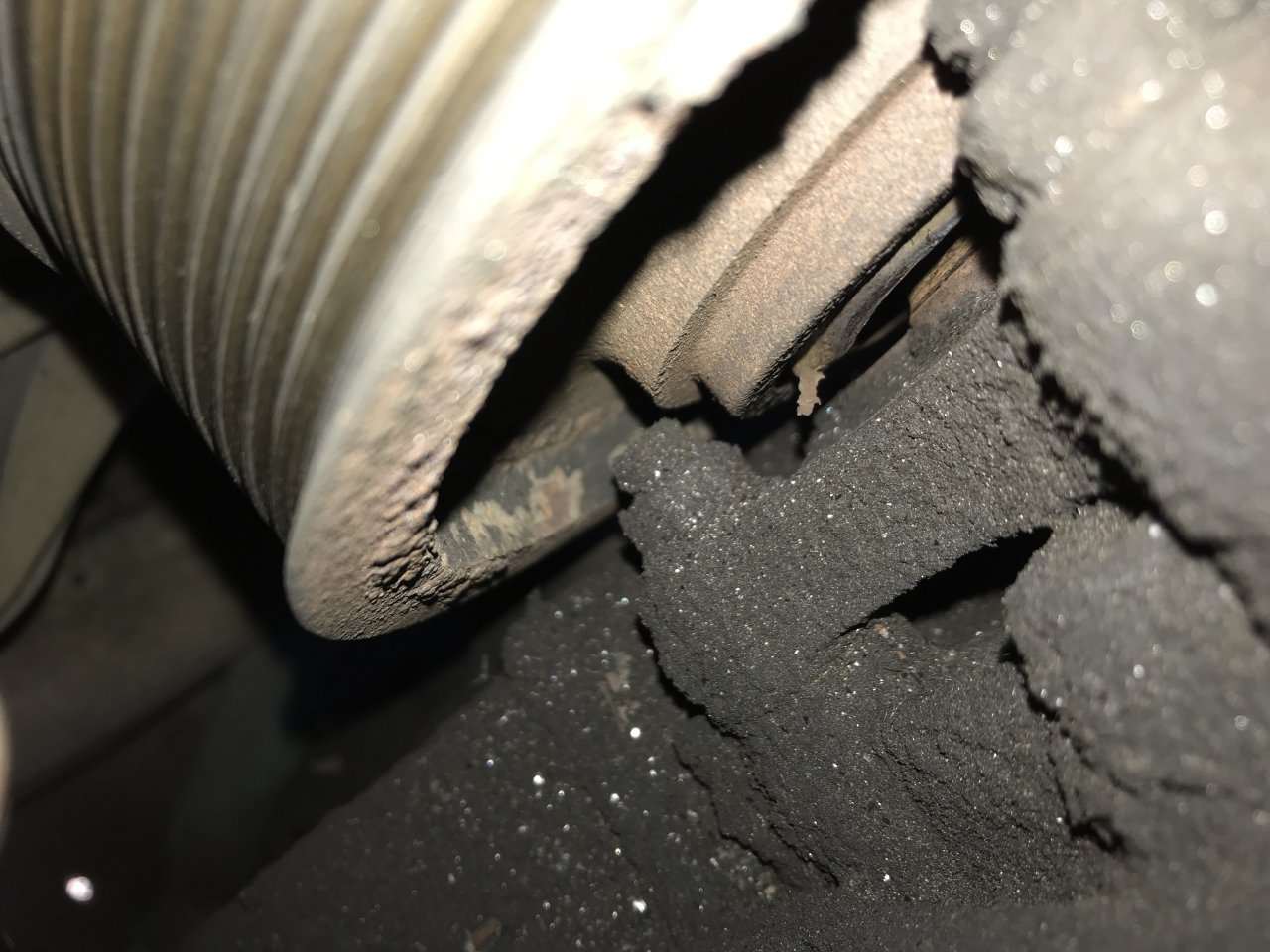

    88353A79-2CB1-431E-B409-1BEBB017DFE9.jpeg AA9F5D4D-689A-414B-9ADA-BDAB3D022143.jpeg
    My problem is I can’t get any wrench onto the bolts with the studs sticking out. The hub is blocking when I try to put a wrench over the studs.

  5. AModelCat

    AModelCat Road Train Member

    18,554
    80,977
    Jul 7, 2015
    Canuckistan
    0
    Why won't the open end fit over? Looks like there's enough room.

    poniikyanion Thanks this.
  6. poniikyanion

    poniikyanion Light Load Member

    65
    11
    Nov 23, 2009
    Newark, NJ
    0
    Yes there is enough room for open end wrenches but. All the nuts are very tight and I worry about rounding off the nuts using open end wrenches. But it seems like the only way now.

  7. poniikyanion

    poniikyanion Light Load Member

    65
    11
    Nov 23, 2009
    Newark, NJ
    0
    Is this the right tool for this job?
    14–15 mm 12-Point Metric Flank Drive® High-Performance Standard Handle 0° Offset Box Wrench
    Snap-on Store

  8. nasriza

    nasriza Road Train Member

    2,040
    1,615
    Feb 1, 2013
    Chicago, IL
    0
    No it is not closed end not open ended need to look at oex+ flank drive wrenches 15 mil.

    poniikyanion Thanks this.
  9. poniikyanion

    poniikyanion Light Load Member

    65
    11
    Nov 23, 2009
    Newark, NJ
    0
  10. nasriza

    nasriza Road Train Member

    2,040
    1,615
    Feb 1, 2013
    Chicago, IL
    0
    Yes this would be the one there is no way if you strip it with this wrench you are definately not made to work on trucks or on cars for that matter.

  11. poniikyanion

    poniikyanion Light Load Member

    65
    11
    Nov 23, 2009
    Newark, NJ
    0
    I just don’t want to end up like that guy having to use an extraction kit to get the nuts off. Don’t think I can handle removing the pulley while the spindle still stuck on the engine. It would be such a pita.

    Trying to get the fan clutch to line up with the hub to remove, any ideas??
