Ride height for 06 freightliner classic xl

Discussion in 'Ask An Owner Operator' started by aceman18, Dec 3, 2023.

  1. aceman18

    aceman18 Bobtail Member

    22
    22
    Jul 1, 2023
    0
    Getting vibration unde cab. Change leveler early this summer already. Noticed vibration last few months. Wanna start there.

    77fib77 Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Hammer166

    Hammer166 Crusty Information Officer

    6,898
    23,655
    Aug 18, 2007
    ~8600+' and loving it!
    0
    If you can't find that actual measurement, try 2" showing on the bell. Most trucks I've driven it seems that's where the bags run, with some a touch higher, say an inch. At least that gives you a ball park to see where you're at.

    Rideandrepair Thanks this.
  4. zinita17601

    zinita17601 Road Train Member

    1,263
    1,497
    Aug 19, 2010
    lancaster pa
    0
    Did you check the u joints and the transmission yokes first?

    Rideandrepair Thanks this.
  5. 062

    062 Road Train Member

    5,822
    31,421
    Oct 20, 2013
    0
    Google will give you the answer.

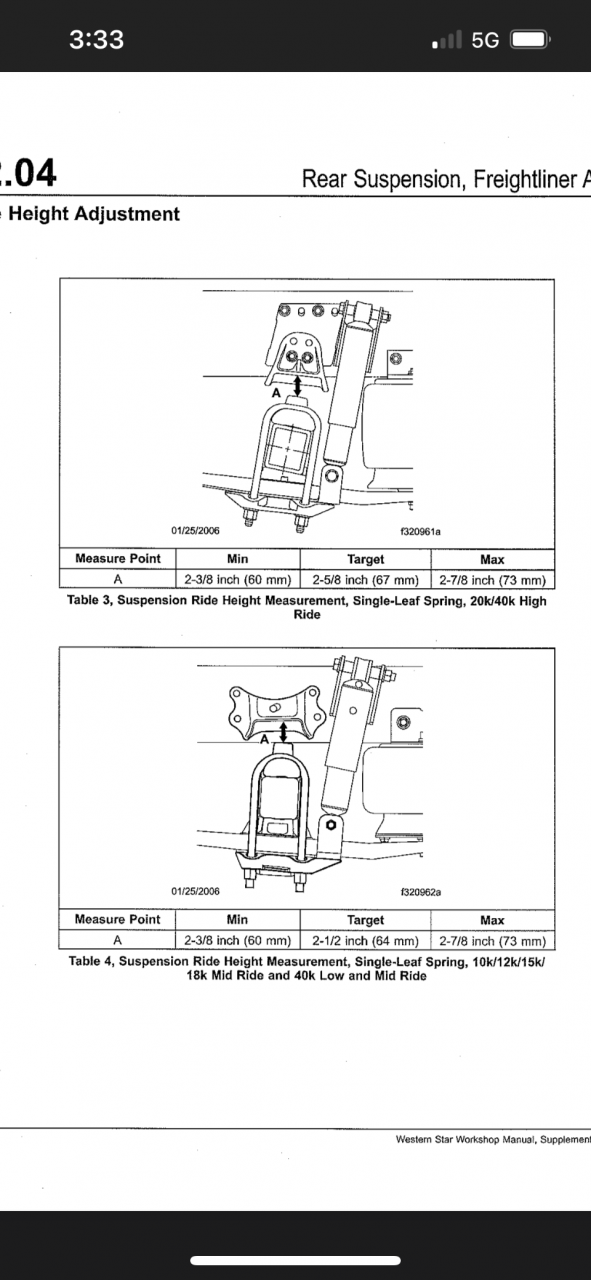

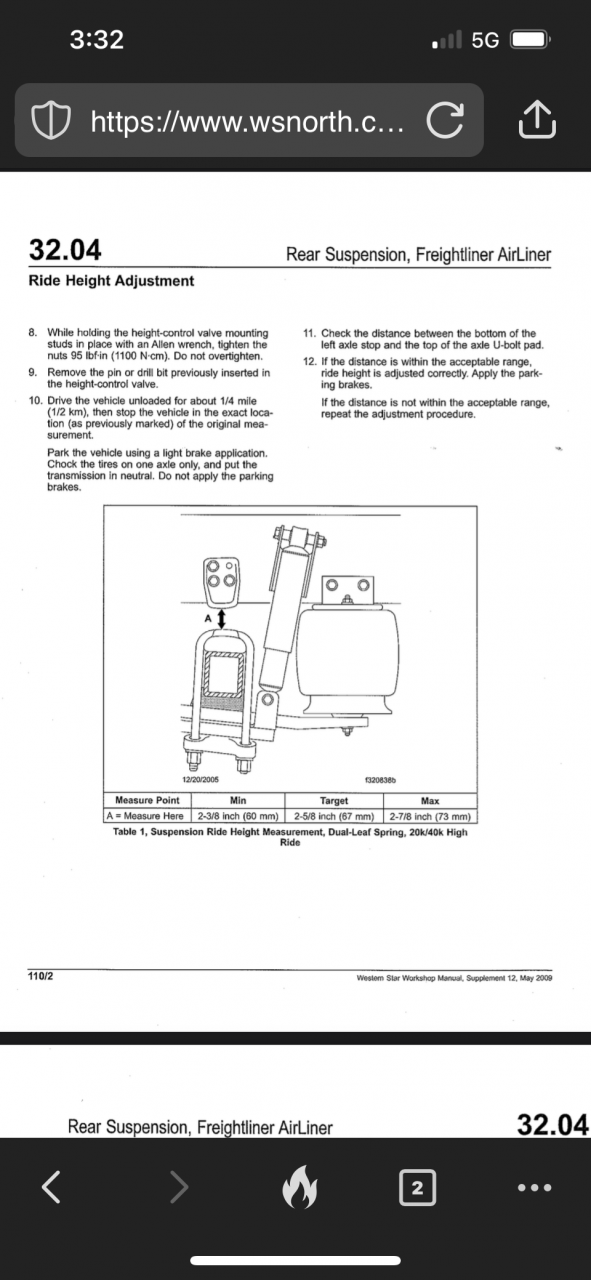

    C5999956-E13A-420A-A304-2FF54A02A02C.png 3F85E180-0E98-478B-9CAE-617233D0ABA2.png B52202DC-DD39-4D24-B96F-532F7F4D0A93.png

    Dennixx and Rideandrepair Thank this.
  6. aceman18

    aceman18 Bobtail Member

    22
    22
    Jul 1, 2023
    0
    I'll give that a try. Thanks driver!

    Rideandrepair Thanks this.
  7. aceman18

    aceman18 Bobtail Member

    22
    22
    Jul 1, 2023
    0
    Yup. When I greased the truck about a month and a half ago.

    Rideandrepair Thanks this.
  8. aceman18

    aceman18 Bobtail Member

    22
    22
    Jul 1, 2023
    0
    Rideandrepair Thanks this.
  9. 77fib77

    77fib77 Road Train Member

    8,448
    47,642
    Jul 7, 2010
    St Louis
    0
    Carrier bearing?

    Rideandrepair Thanks this.
  10. aceman18

    aceman18 Bobtail Member

    22
    22
    Jul 1, 2023
    0
    Nope. Brand new back in July.

    Rideandrepair and 77fib77 Thank this.
  11. 77fib77

    77fib77 Road Train Member

    8,448
    47,642
    Jul 7, 2010
    St Louis
    0
    So, tractor leveling valve, carrier bearing. Are transmission bolts all in there? Peeps have cited that before.


    I had an issue with engagement of 9th and 10th gear. After it was hot with a ten speed.
    But I hauled liquids smooth bore after 220k of that on top of the first 200k of not, well I had drive line issues. Reman trans cleaned it up. But I was also told some times it could be just the clutch wearing weird from the surge. But this is speculation, except for it got cleaned up. Oh the top box was fine.
    Anyway take it to a good drive line shop would be and end game check. I dont know of a good one.

    Rideandrepair Thanks this.
