Shift knob help!

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Patriotleasing, Mar 14, 2021.

  1. Patriotleasing

    Patriotleasing Bobtail Member

    22
    3
    Jan 1, 2017
    0
    Eaton Fuller 10spd. OEM shift knob A6909. I like the "old school" look so bought an A4491 (flat round chrome 2 position knob). Connected the air lines to the same ports of the original knob, red line on port S and black line on port P but the ranges are opposite now. In other words, DIR is high range and OD is low range. Tried switching the lines but that didn't work, it just pissed air steadily. Is the line combo different or is the new knob not compatible with a 10spd.?? Any help will be appreciated. TIA.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Happily Retired

    Happily Retired Road Train Member

    9,262
    18,135
    Apr 16, 2014
    high plains colorado
    0
  4. 062

    062 Road Train Member

    4,917
    10,355
    Oct 20, 2013
    0

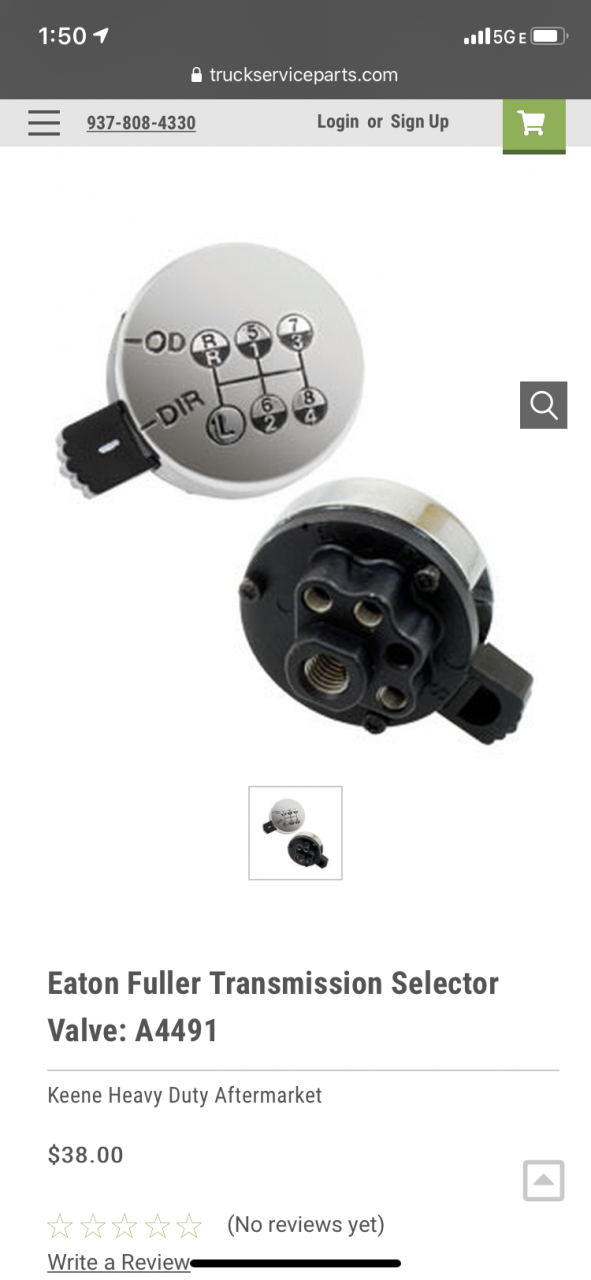

    D2A09F7A-7925-4092-9664-DF018B414F36.png Like this one? @SmallPackage may know.
    The pic shows 3 ports have you tried different line combinations using all 3 or is the one the exhaust?

  5. SmallPackage

    SmallPackage Road Train Member

    2,711
    7,548
    Dec 20, 2019
    Marion Texas
    0

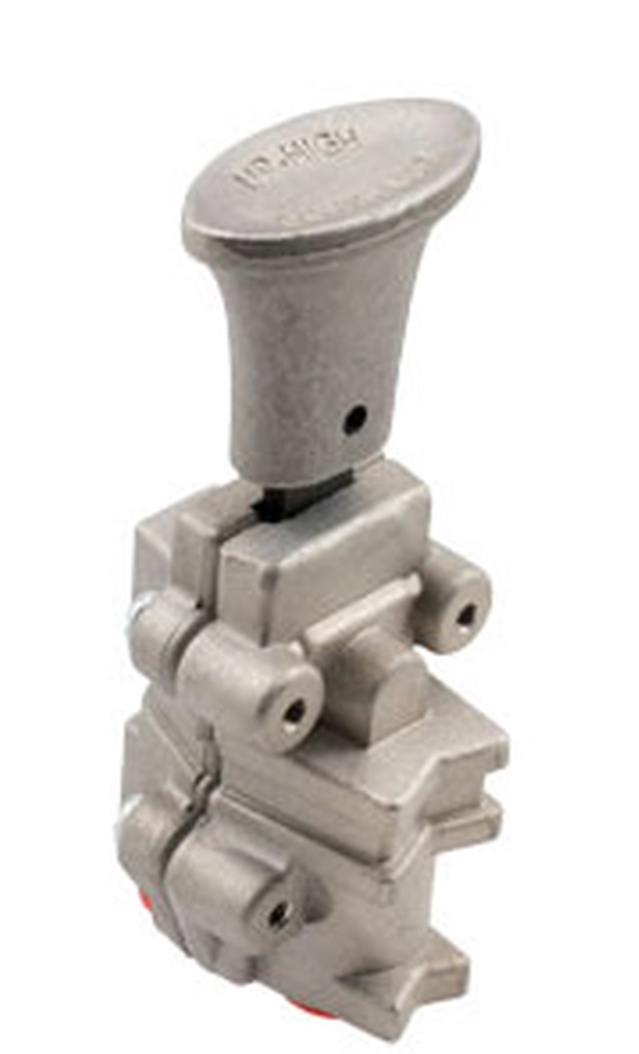

    That is for a 13 speed. You still need the push/pull selector valve like this to work with it. As far as I know that knob will not work with a 10 speed. The old 10’s had the old push/ pull selector valve like this and a standard ball on top. Most were customized with a metal flake glitterball.

  6. SmallPackage

    SmallPackage Road Train Member

    2,711
    7,548
    Dec 20, 2019
    Marion Texas
    0
    Whats left of the original operation label on the door of my ‘72 White for that two position knob.

    The three position knob ( says low-dir-od) does not need the extra range selector valve as the low position on that knob takes its place.

    Roger McG Thanks this.
