Sleeper A/C hacks. With no idle becoming real.

I spent a grand for the box from American truck boxes. I had specific dimensions. Another $325 for the drawer slide from Fast farm.



I paid $500 for a custom box to fit behind the side skirt. Fill venting and cutouts to do most minor maintenance. $200 for frame hanger (rated for 400lb)



Most trucks have 2ft of frame rail space.. apu's require 2ft of frame room to mount also.

Also catwalk mount is always a option



This is my box

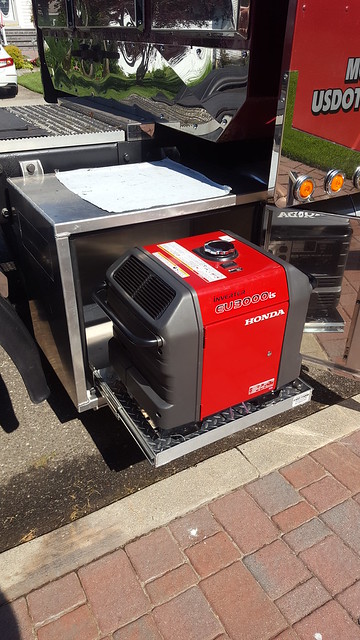

Sorry I'm late with the pictures, I'm having trouble finding them. Here is the box and generator. I will get more to show the venting and ducting.

20200722_161336 by moonlightluwi, on Flickr

20200722_161238 by moonlightluwi, on Flickr

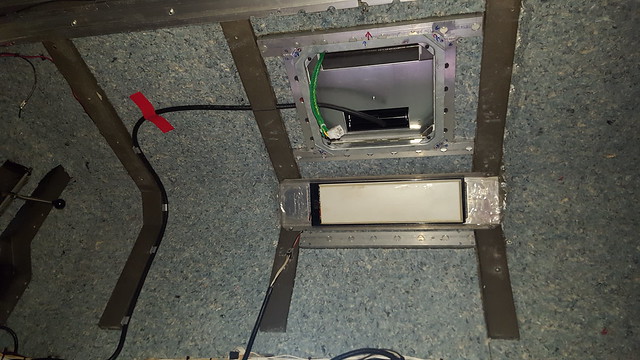

Here is the inner structure mock-up and finished.

20200710_115826 by moonlightluwi, on Flickr

20200711_154147 by moonlightluwi, on Flickr

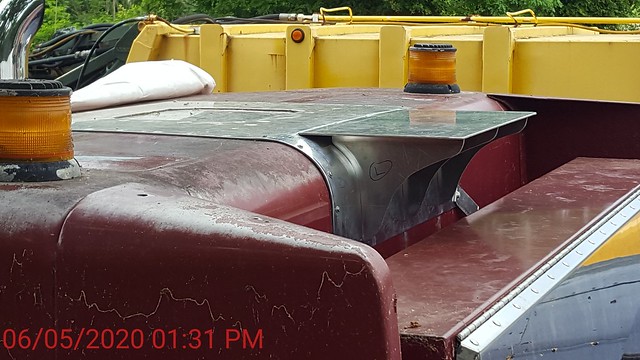

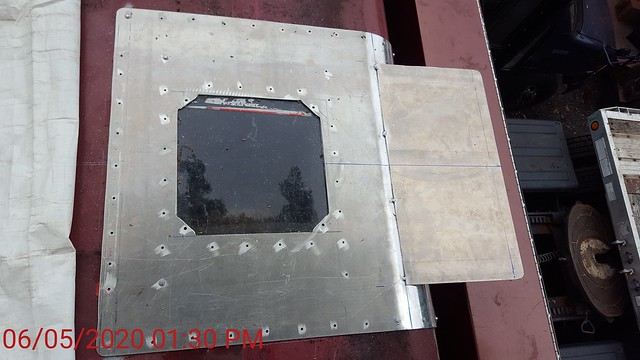

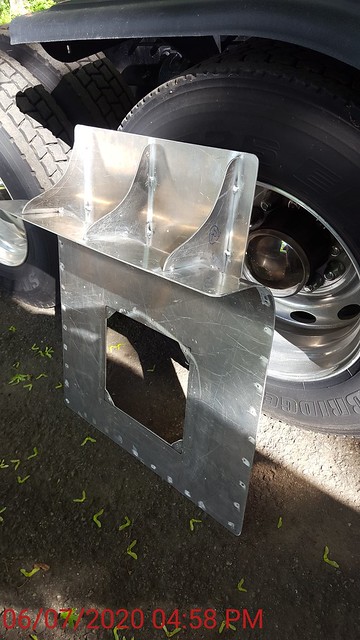

Roof support plate mock-up. Since the A/C unit was low profile (wider and longer) I had to add a tail piece to support the overhang.

20200605_133003 by moonlightluwi, on Flickr

20200605_133154 by moonlightluwi, on Flickr

20200607_165809 by moonlightluwi, on Flickr
