SPN-3482 7 Aftertreatment 1 Fuel Enable Actuator

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by charlesjazper, Jun 29, 2018.

  1. Jun 29, 2018 #1
    charlesjazper

    charlesjazper Bobtail Member

    8
    0
    Jun 28, 2018
    Laredo
    0
    Hi!

    We got a second semi truck from a dealership last April and we already put tons of money on repairs.

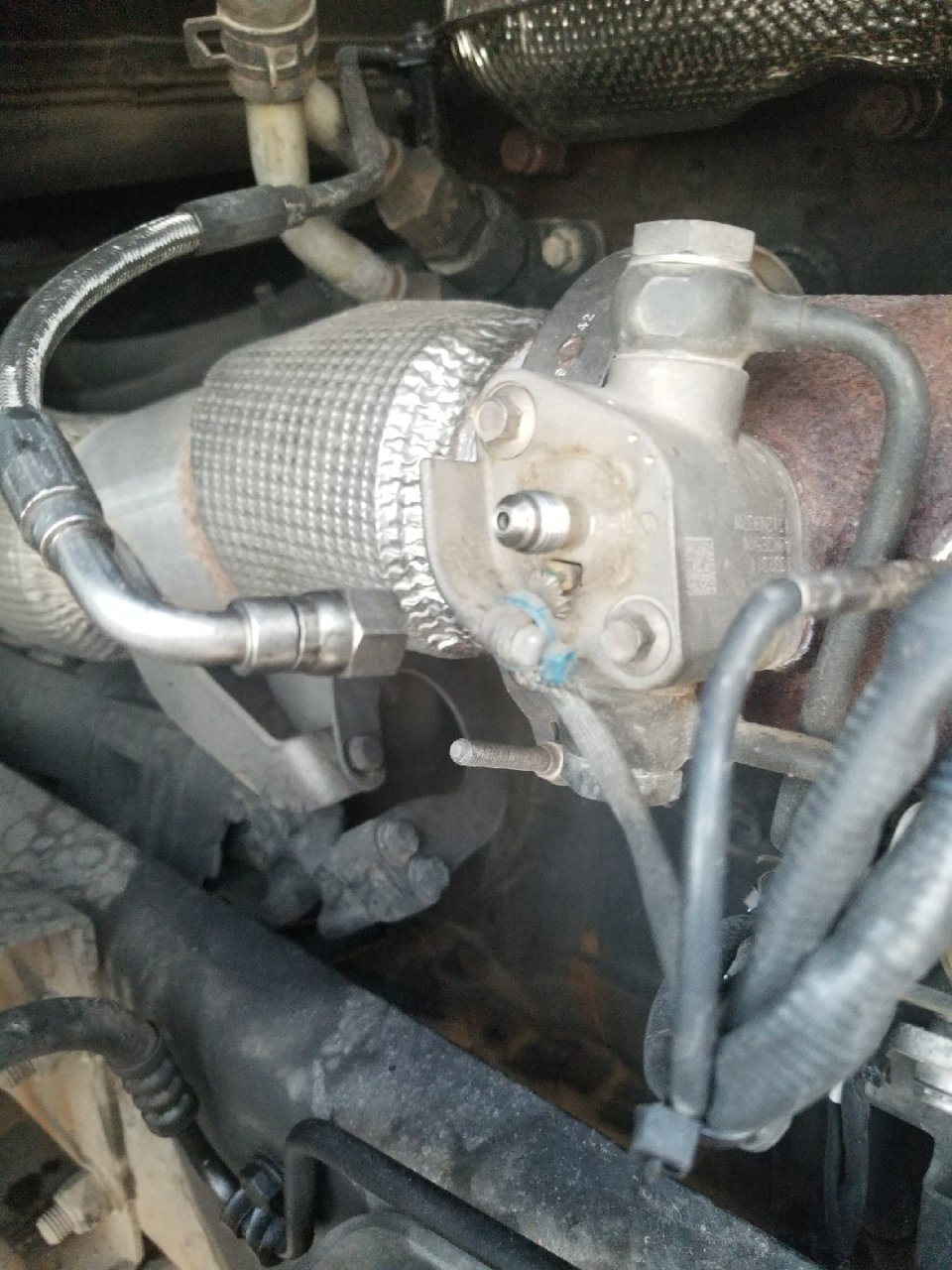

    And now this fault code is showing up on our ELD. My driver kinda know about what's wrong with it but not really sure. He said it's about a hose connected to the def.

    Anyone experienced the same ? Please give some advise. Thanks.
    part0 2.jpg

    charlesjazper, Jun 29, 2018
    charlesjazper, Jun 29, 2018
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jun 29, 2018 #2
    FlyingA

    FlyingA Bobtail Member

    46
    23
    Jun 3, 2018
    Sacramento, Ca
    0
    What engine and year? Also what codes are active?

    FlyingA, Jun 29, 2018
    FlyingA, Jun 29, 2018
    #2
    Oldironfan Thanks this.
  4. Jun 29, 2018 #4
    charlesjazper

    charlesjazper Bobtail Member

    8
    0
    Jun 28, 2018
    Laredo
    0
    2014 paccar kenworth Sir

    Active code is SPN 3482 FMI 7

    charlesjazper, Jun 29, 2018
    charlesjazper, Jun 29, 2018
    #4
  5. Jun 29, 2018 #4
    FlyingA

    FlyingA Bobtail Member

    46
    23
    Jun 3, 2018
    Sacramento, Ca
    0
    If I am looking at this correctly, can be caused by after treatment fuel shut off valve,supply line leaking to shut-off manifold, plugged fuel filter or a bad fuel gear pump. Not sure as off work and don’t have full access to all needed info.

    FlyingA, Jun 29, 2018
    FlyingA, Jun 29, 2018
    #4
    charlesjazper Thanks this.
  7. Jun 30, 2018 #5
    spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0
    Did you disconnect the fuel line from the HC doser?

    spsauerland, Jun 30, 2018
    spsauerland, Jun 30, 2018
    #5
    charlesjazper Thanks this.
  8. Jun 30, 2018 #6
    Justrucking2

    Justrucking2 Road Train Member

    3,211
    4,292
    Sep 12, 2017
    Plymouth MI
    0
    I would remove the Doser, the unit that that line connects to and inspect the injector. They do get dirty and eventually clog and or leak fuel. I would remove and inspect, if any faults found, it is best to replace. Cleaning rarely works.

    Justrucking2, Jun 30, 2018
    Justrucking2, Jun 30, 2018
    #6
    charlesjazper Thanks this.
  9. Jul 2, 2018 #7
    charlesjazper

    charlesjazper Bobtail Member

    8
    0
    Jun 28, 2018
    Laredo
    0
    My driver saw the problem and you're right. It's the doser.

    charlesjazper, Jul 2, 2018
    charlesjazper, Jul 2, 2018
    #7
  10. Mar 15, 2019 #8
    Mike kirrane

    Mike kirrane Bobtail Member

    1
    0
    Nov 11, 2017
    0
    I just replaced the filter in my water separator and now I have a code 3482 7 could this be an air lock or something is there a way to turn it off without insite

    Mike kirrane, Mar 15, 2019
    Mike kirrane, Mar 15, 2019
    #8
