Stinger for big cam cummins. Need help asap!!!!

Discussion in 'Trucks [ Eighteen Wheelers ]' started by cjreckart, Jul 29, 2012.

  1. bender

    bender Road Train Member

    2,105
    1,356
    Jul 20, 2010
    Don't Kid Yourself
    0
    That works too, but that method isn't easily adjustable like a clamp to the return hose. You could also install a manual shutoff valve in the line, then it's fully adjustable. Some drivers would squeeze dents in the hard (steel) return line coming off the rear cylinder head and make it look like an accident happened.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. gravelhauler

    gravelhauler Medium Load Member

    630
    412
    Oct 20, 2011
    Lake Charles, La
    0
    If I'm not mistaken it's a fine thread 3/8 bolt you'll need. It'll screw right into the existing threads.

  4. bender

    bender Road Train Member

    2,105
    1,356
    Jul 20, 2010
    Don't Kid Yourself
    0
    Actually the governor housing end plug is 1/8" pipe thread. 3/8-24 is close but no cigar.

  5. stranger

    stranger Road Train Member

    3,640
    4,959
    Oct 10, 2006
    NC
    0

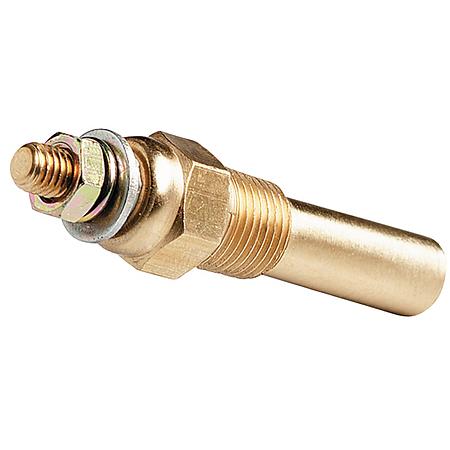

    I have also used a temperature sending unit in the plug hole.


    Attached Files:

  6. bender

    bender Road Train Member

    2,105
    1,356
    Jul 20, 2010
    Don't Kid Yourself
    0
    Some drivers would break the top end off of a pencil, remove the plug and shove the eraser end in first, install the plug, prime the gear pump and go. Then they would remove it after the trip was over, but sometimes they were tired and forgot, so they got fired for tampering with the equipment!
