Strapping railroad rails

Discussion in 'Flatbed Trucking Forum' started by W Bench Farms, Oct 28, 2021.

  1. W Bench Farms

    W Bench Farms Light Load Member

    Joined:
    Oct 16, 2017
    Messages:
    210
    Thanks Received:
    351
    0

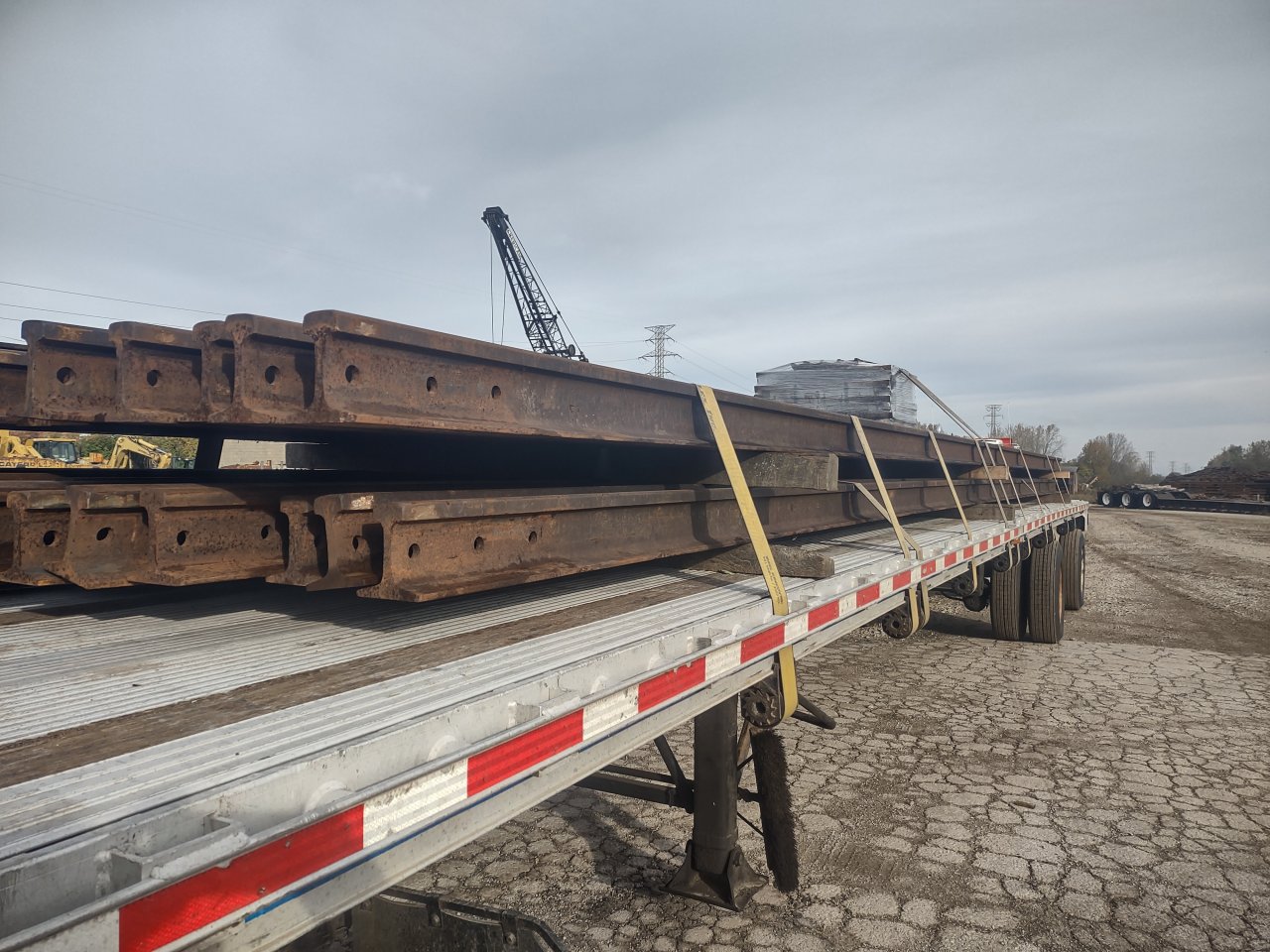

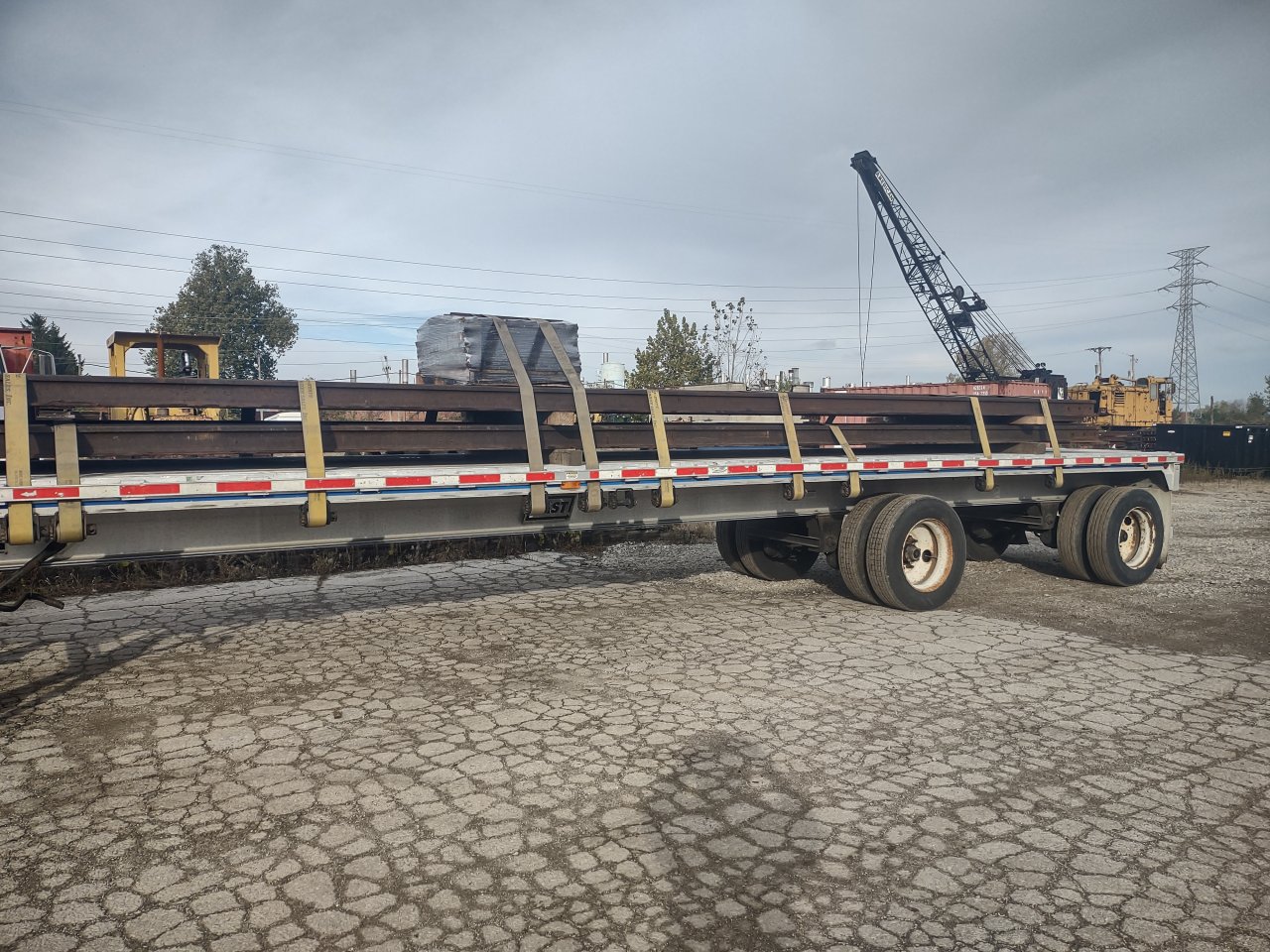

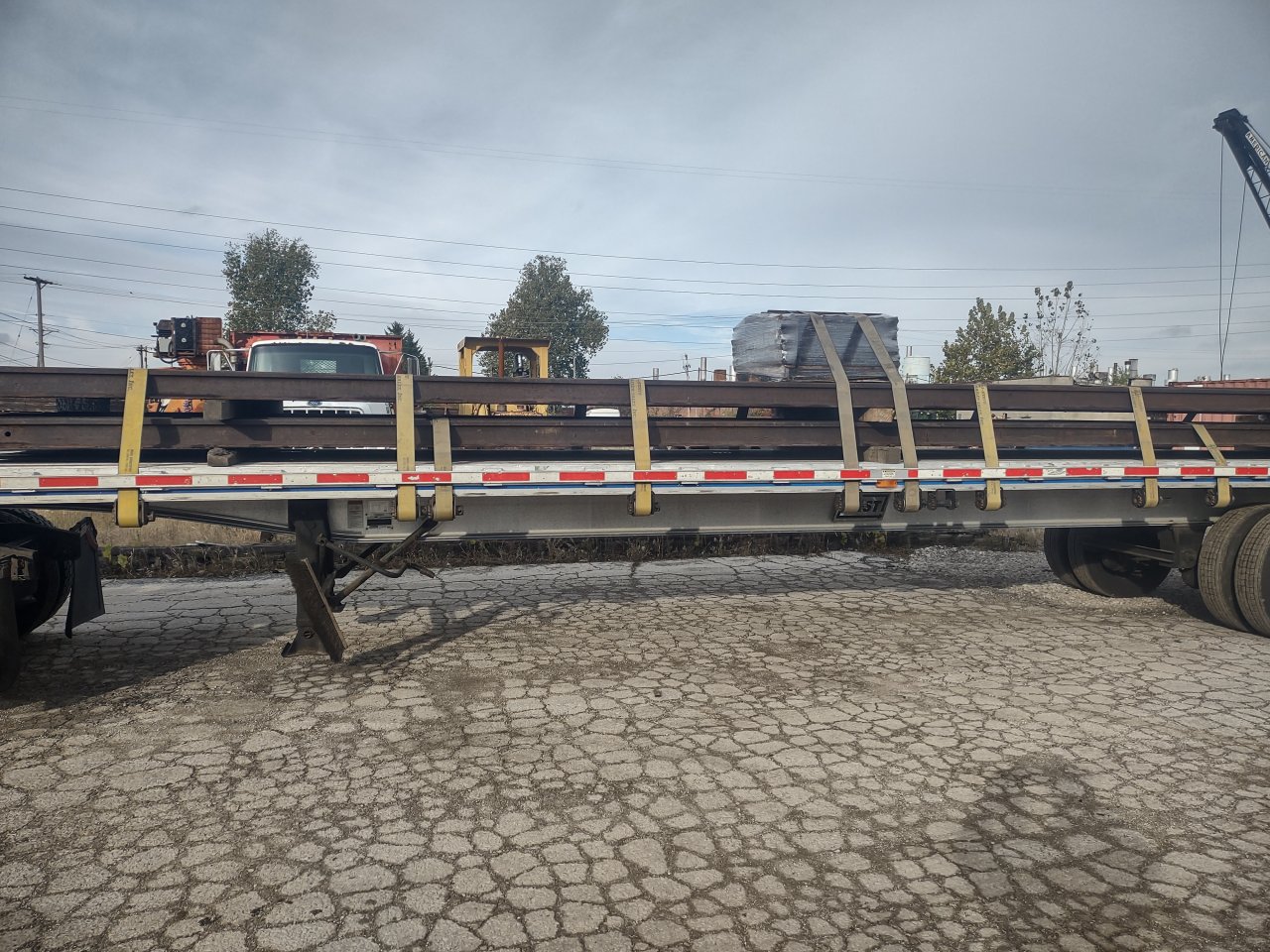

    Have a load of railroad rails today. 15 on the bottom, 15 on top, with a skid of plates on top. When I'm hauling beams, I usually use a combination of straps and chains. This load I'm thinking 2 straps on the bottom stack, 8 straps on the top stack, and 2 straps on the skid. I usually overkill the tie downs. It's only takes an extra minute or 2, and saves picking it up off the road. Would you throw some chains as well? IMG_20211028_095631343_HDR.jpg IMG_20211028_095640166_HDR.jpg IMG_20211028_095643100_HDR.jpg

  2. beastr123

    beastr123 Road Train Member

    Joined:
    Jan 2, 2014
    Messages:
    2,862
    Thanks Received:
    23,492
    Location:
    Moose Jaw SK CAN
    0
    I followed a guy that I watched load rails and he did something I never thought of. He loaded the first layer forward tight against a 4X4 on 5 2X6s that was strapped down and had cleats on his nailing boards, then his second layer was set back 12 inches and had a 4X4 setting on the first layer and chained down. there was a 2X6 directly under the top 4X4. It was a mini bulkhead on each layer and then the bottom got 3 straps and the top got 5.
    I did the same as he did and threw 2 3/8 chains as a feel-good measure.
    I don't know if that was enough to stop a forward slide but it made me feel ok.
    rail load.png

    Last edited: Oct 28, 2021
    Pamela1990, Skwhirl, stwik and 13 others Thank this.
  3. cke

    cke Road Train Member

    Joined:
    Aug 4, 2013
    Messages:
    5,967
    Thanks Received:
    73,391
    Location:
    Colfax Wi
    0
    I’d run a chain around the front of each layer pulling back, also.

    CAXPT, Kyle G., clausland and 2 others Thank this.
  4. kylefitzy

    kylefitzy Road Train Member

    Joined:
    Aug 12, 2007
    Messages:
    4,653
    Thanks Received:
    19,270
    Location:
    Kansas city,Mo
    0
    It doesn’t matter how many you throw over the top, the rails in the middle won’t have anything stopping them from coming forward.

  5. W Bench Farms

    W Bench Farms Light Load Member

    Joined:
    Oct 16, 2017
    Messages:
    210
    Thanks Received:
    351
    0
    A chain choker around the. Front of each stack would help to hold everything together. What else can be done to keep the center of the load from sliding? This would go for any steel beams, etc

    Pulled in behind another truck with the same load to deliver this morning. 2 straps over the bottom stack and 4 on the top. That scares me!

    cke Thanks this.
  6. Ruthless

    Ruthless Road Train Member

    Joined:
    Aug 28, 2010
    Messages:
    8,949
    Thanks Received:
    88,147
    Location:
    The City.
    0


    do what @beastr123 said.

    stwik, Kyle G., cke and 1 other person Thank this.
  7. Kyle G.

    Kyle G. Road Train Member

    Joined:
    Jan 23, 2016
    Messages:
    3,853
    Thanks Received:
    20,226
    Location:
    Eastern Iowa
    0
    Would there be enough room to put the skid in front and use it as a bulkhead?

    cke and God prefers Diesels Thank this.
  8. abyliks

    abyliks Road Train Member

    Joined:
    May 2, 2010
    Messages:
    3,892
    Thanks Received:
    9,102
    Location:
    ludlow MA
    0
    Build a bulkhead and put a choker around the front, all that is doing is holding them in between the rub rails

    cke Thanks this.
