Suspension problem - Leaning airbags on drive axle. Please advise where is the problem

Discussion in 'Volvo Forum' started by CellNet, Jun 6, 2019.

  1. CellNet

    CellNet Light Load Member

    178
    74
    Jun 19, 2011
    Chicago IL Naples FL
    0

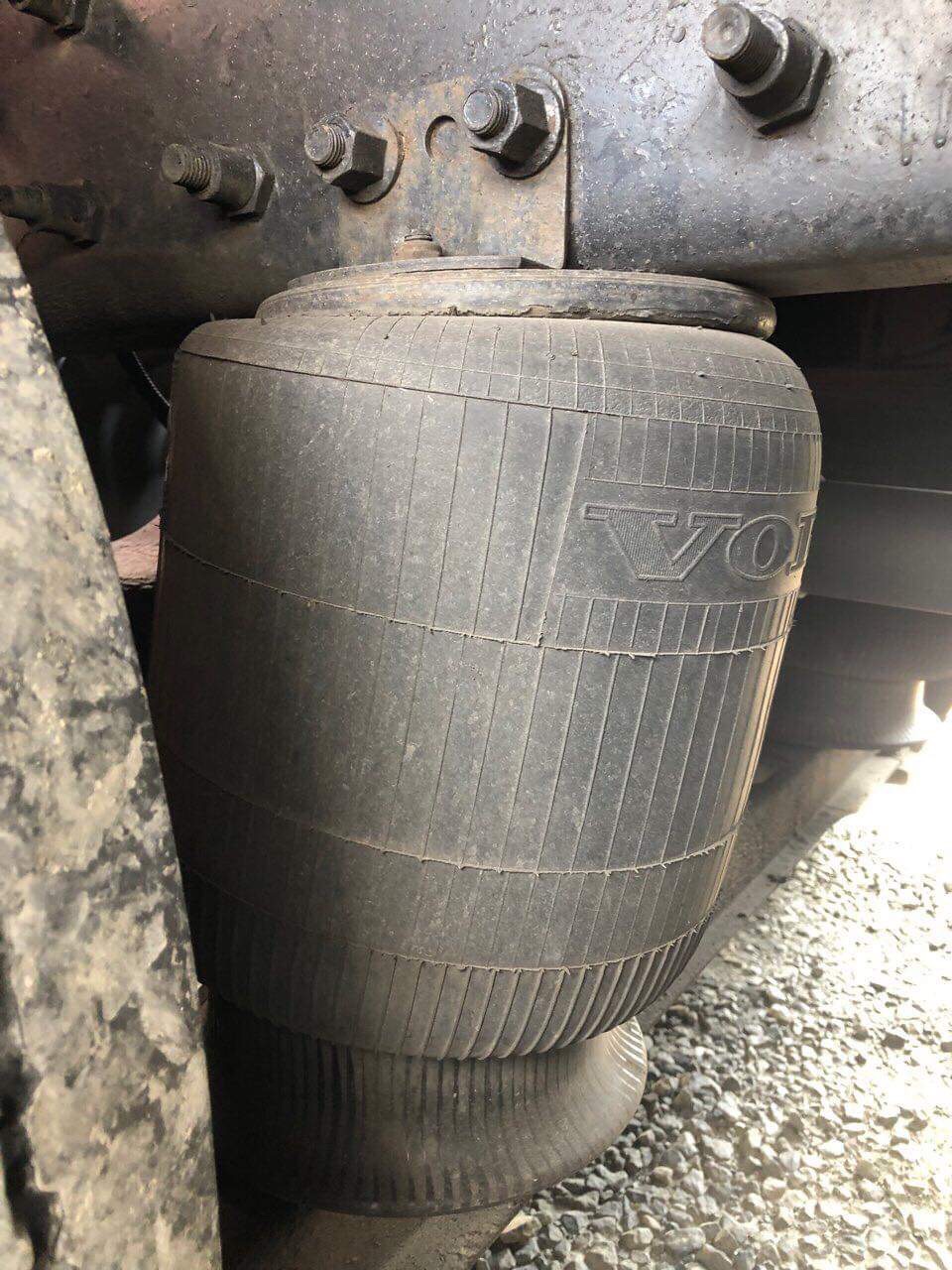

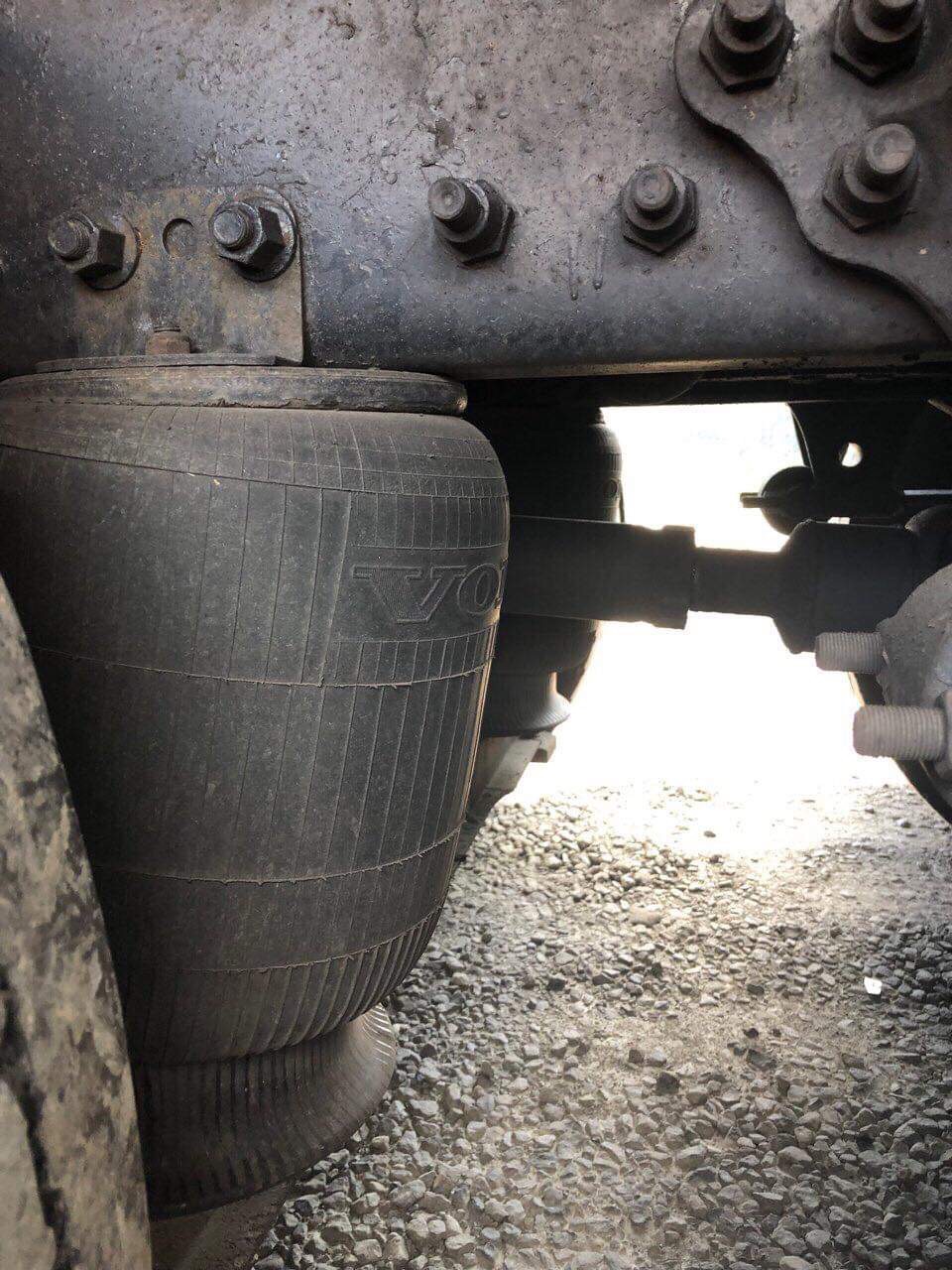

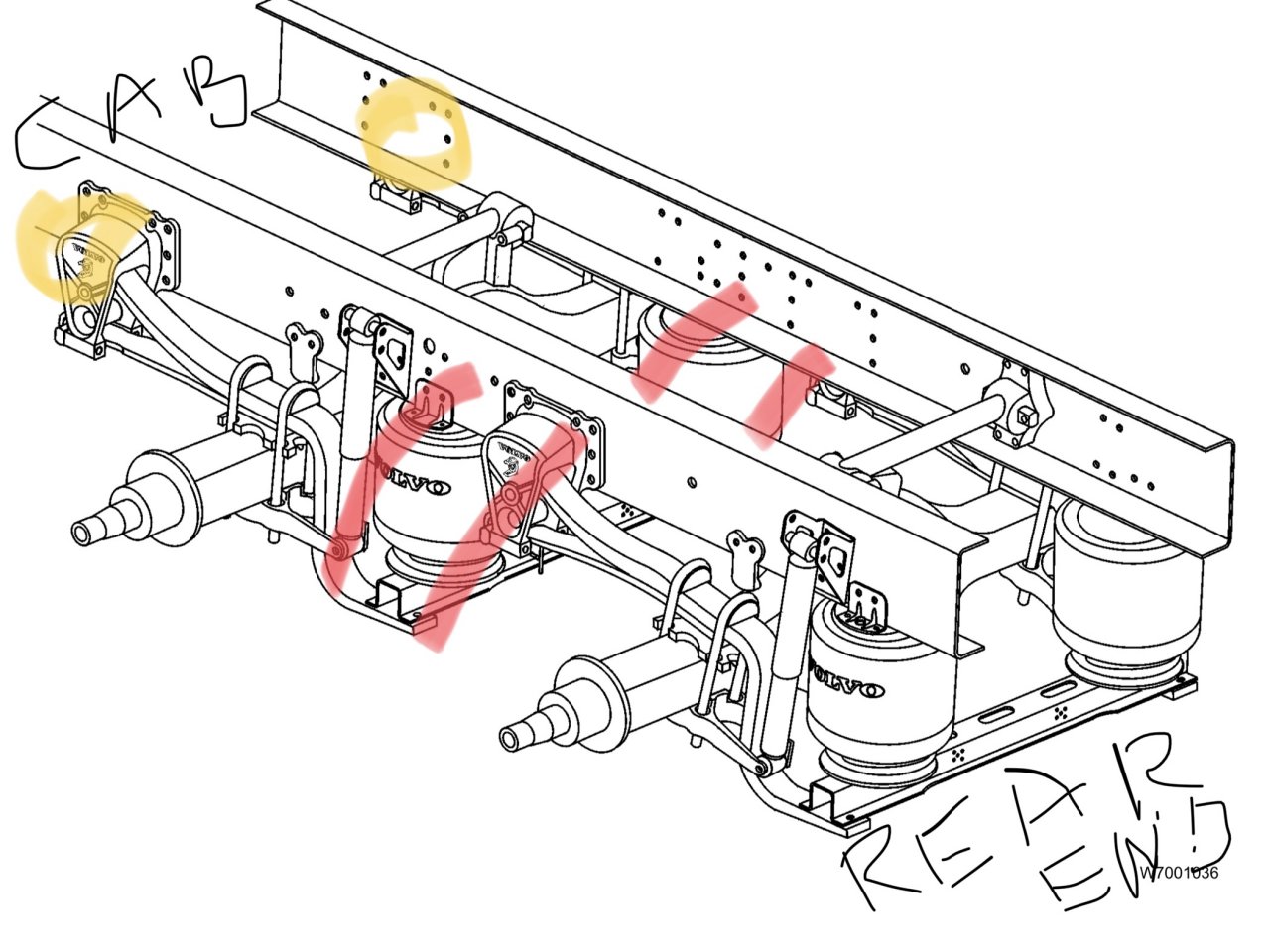

    hello, I just notice that both suspension air bags /in red on the picture/ on front drive axle are under angle. Almost 45 degree angle backwards. Something is pushing them backwards, what can be the problem? Do you have any idea where to look for the problem?

    The only thing I notice that is different are the top leaf spring /in yellow on the picture/ are sticking out in the front more than needs to be. I compare them with rear axle where everything is perfect.

    Volvo Vn64t 1999


    Attached Files:

    Last edited: Jun 6, 2019
  2. CellNet

    CellNet Light Load Member

    178
    74
    Jun 19, 2011
    Chicago IL Naples FL
    0
    I am not sure if the plates and Ubolts are positioned correct. I have not touched anything there but seems to be replaced leaf spring before.

  3. Socal Xpress

    Socal Xpress Road Train Member

    1,346
    1,258
    Dec 6, 2014
    Los Angeles, Ca
    0
    Honestly without pictures it will be a shot in the dark as far as giving you a legit diagnosis. Take it to a reputable shop and have a professional give you an accurate assessment.

    Good luck

    KB3MMX, CellNet and daf105paccar Thank this.
  4. daf105paccar

    daf105paccar Road Train Member

    4,894
    4,258
    Apr 15, 2012
    0
    What @Socal Xpress said is correct.
    We need actual pictures off said truck.

    KB3MMX, CellNet and Socal Xpress Thank this.
  5. CellNet

    CellNet Light Load Member

    178
    74
    Jun 19, 2011
    Chicago IL Naples FL
    0

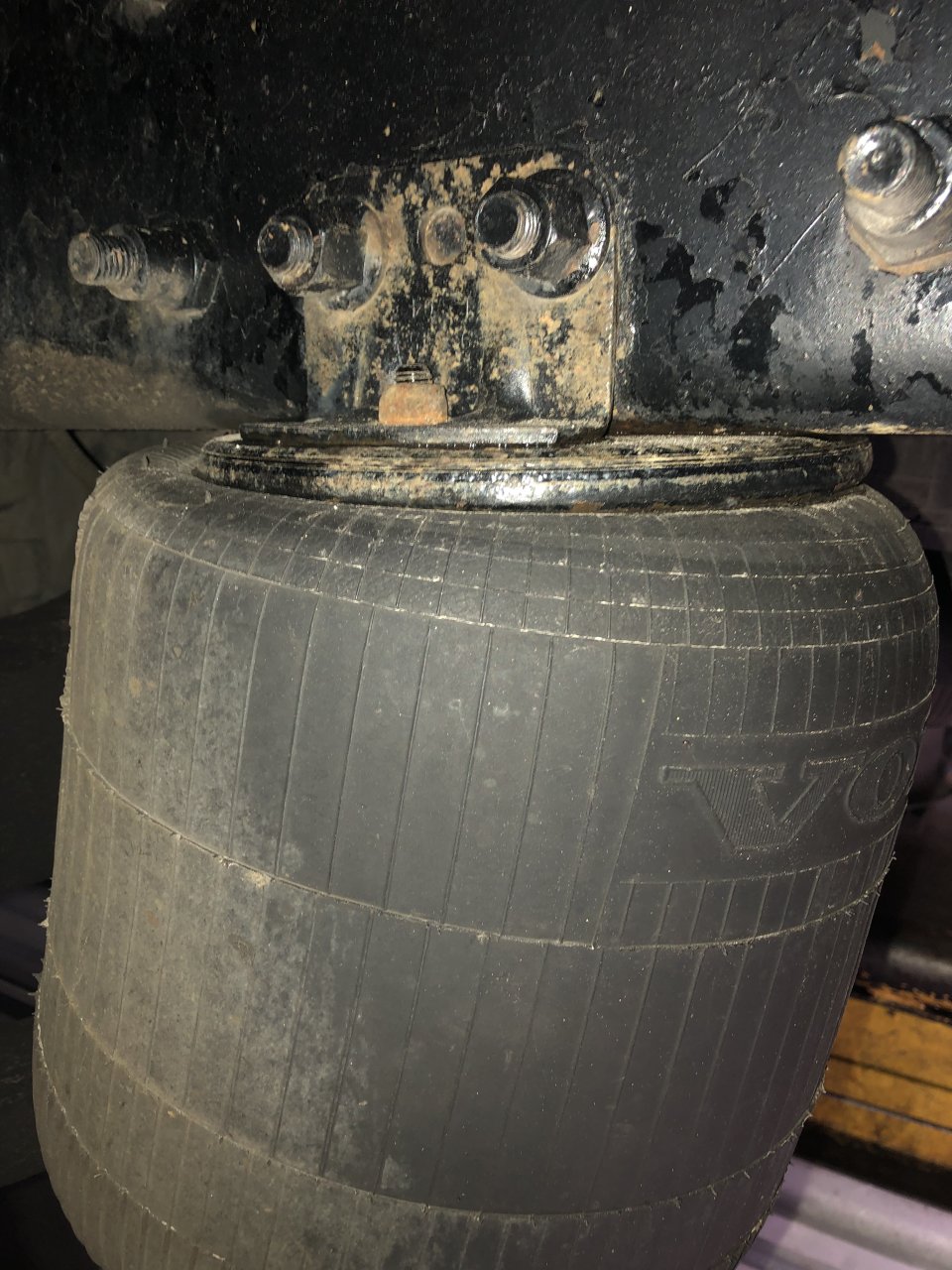

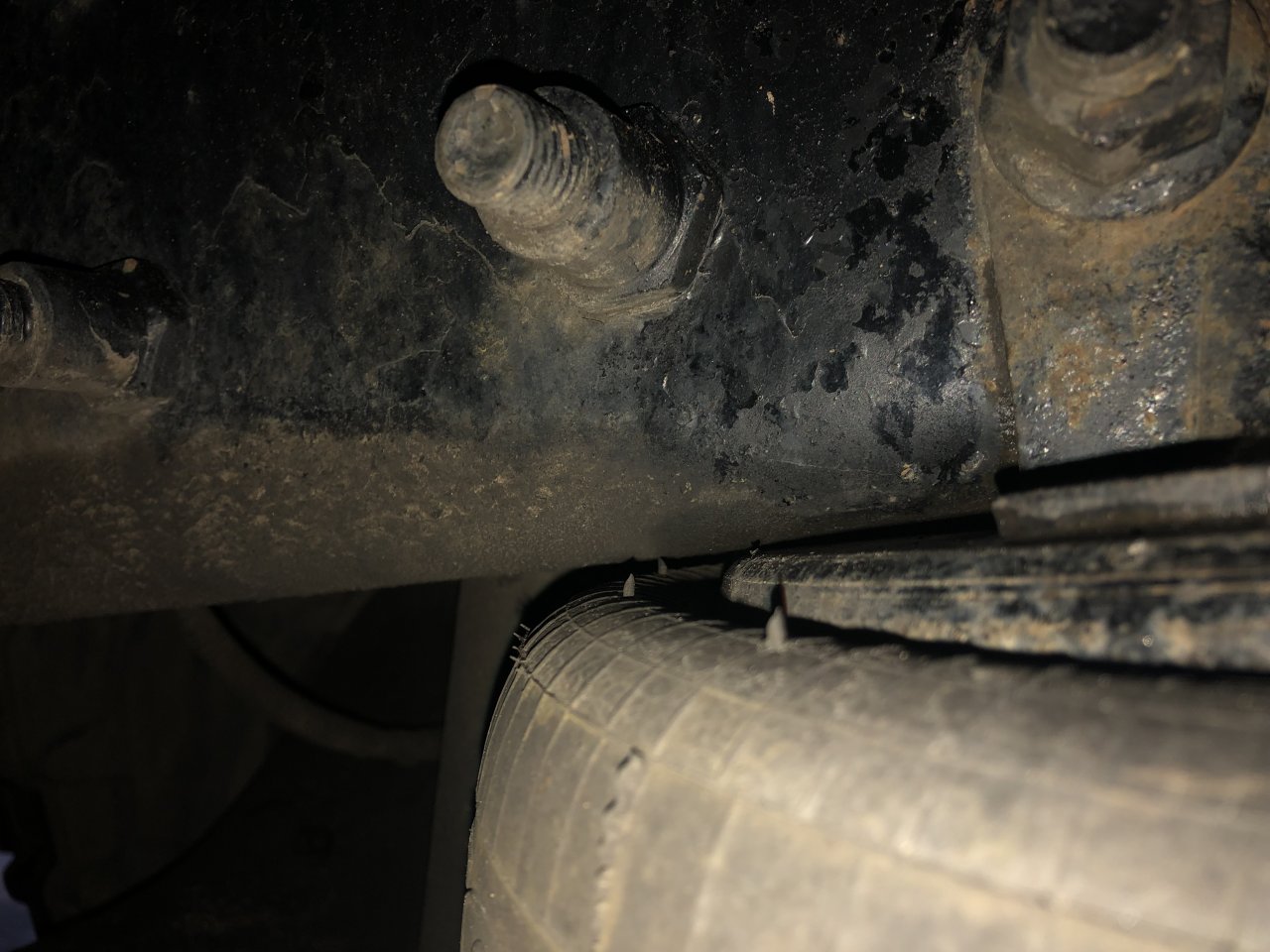

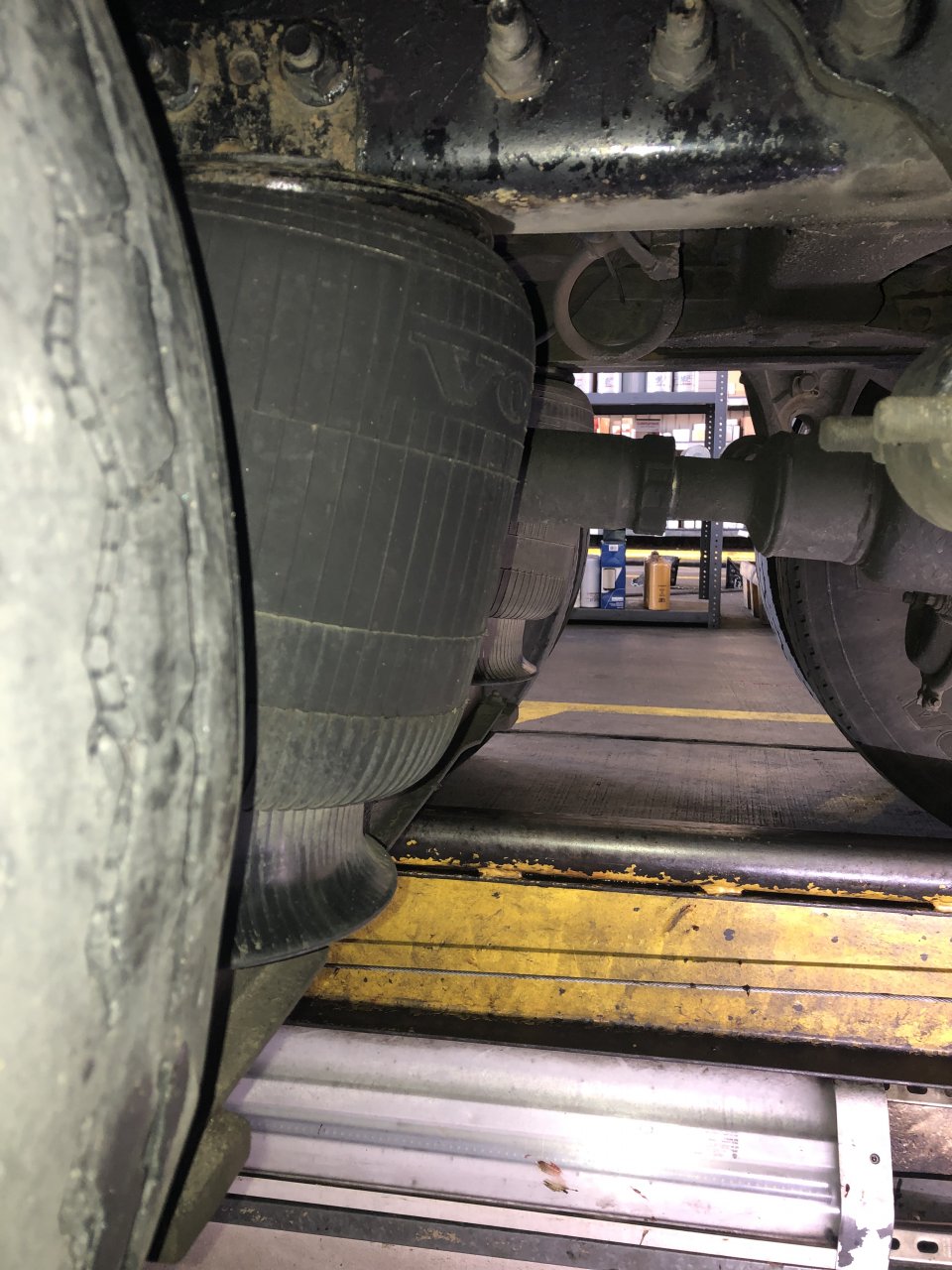

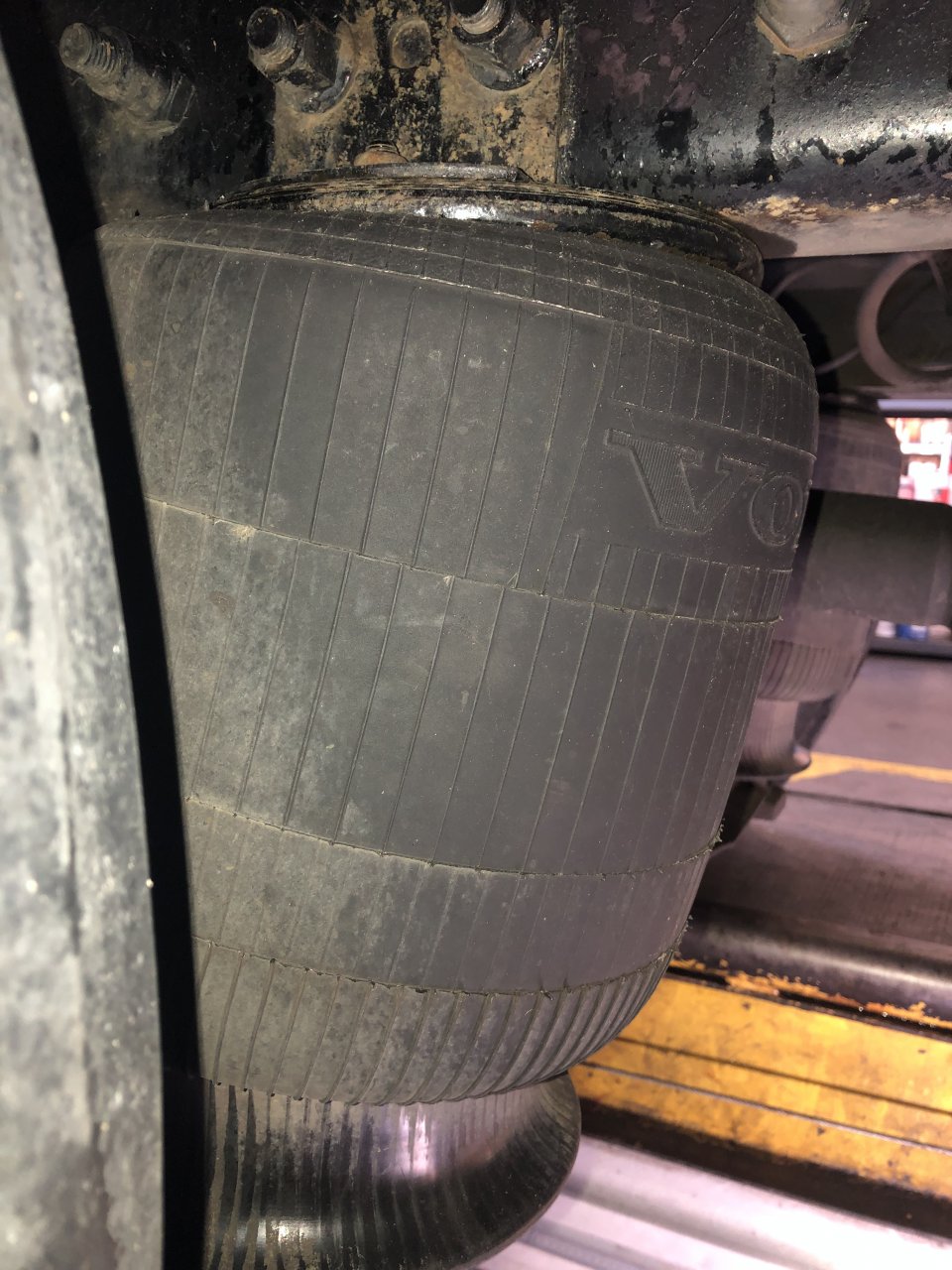

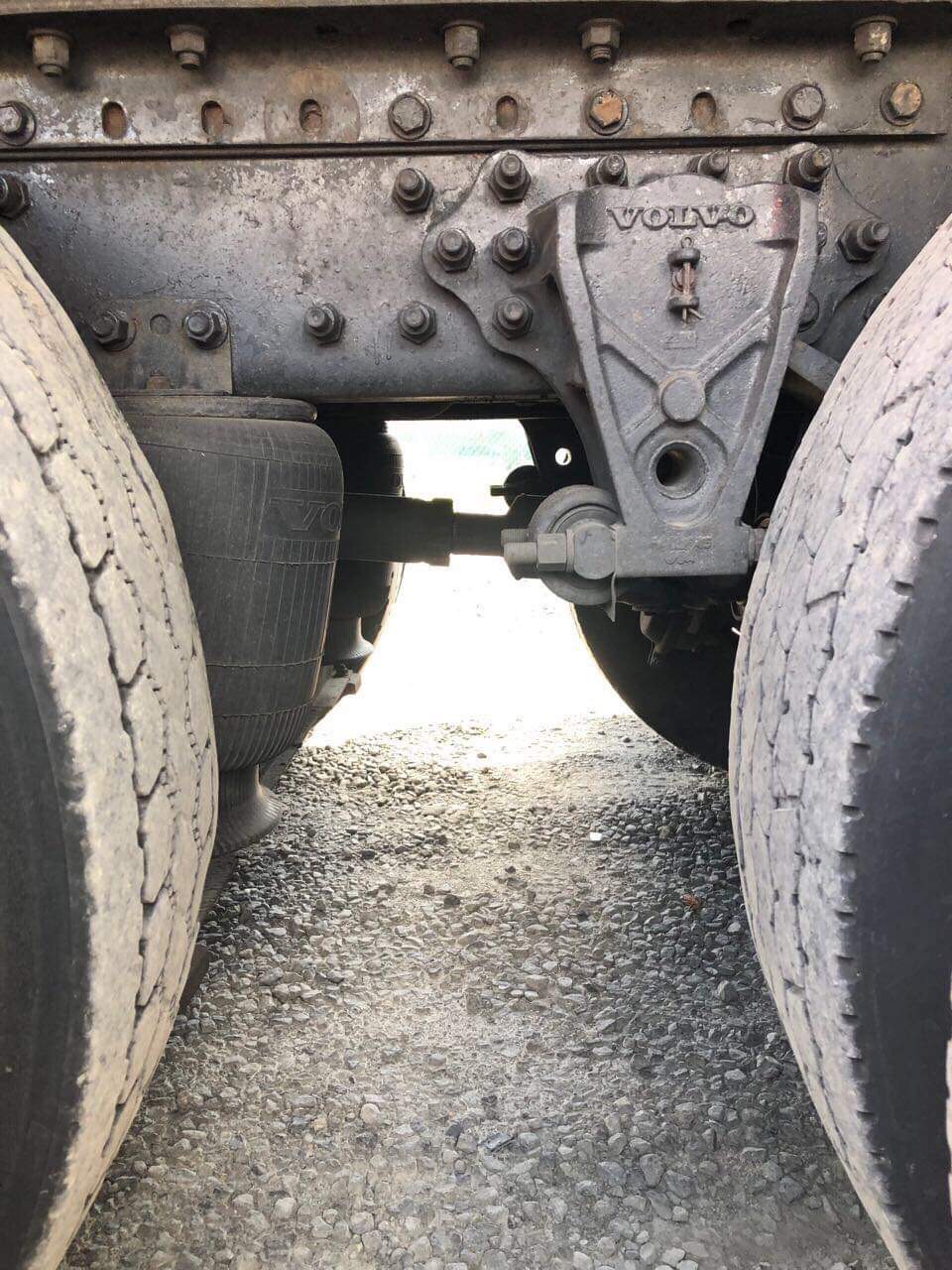

    I understand, here go the pictures:


    Attached Files:

    daf105paccar Thanks this.
  6. daf105paccar

    daf105paccar Road Train Member

    4,894
    4,258
    Apr 15, 2012
    0

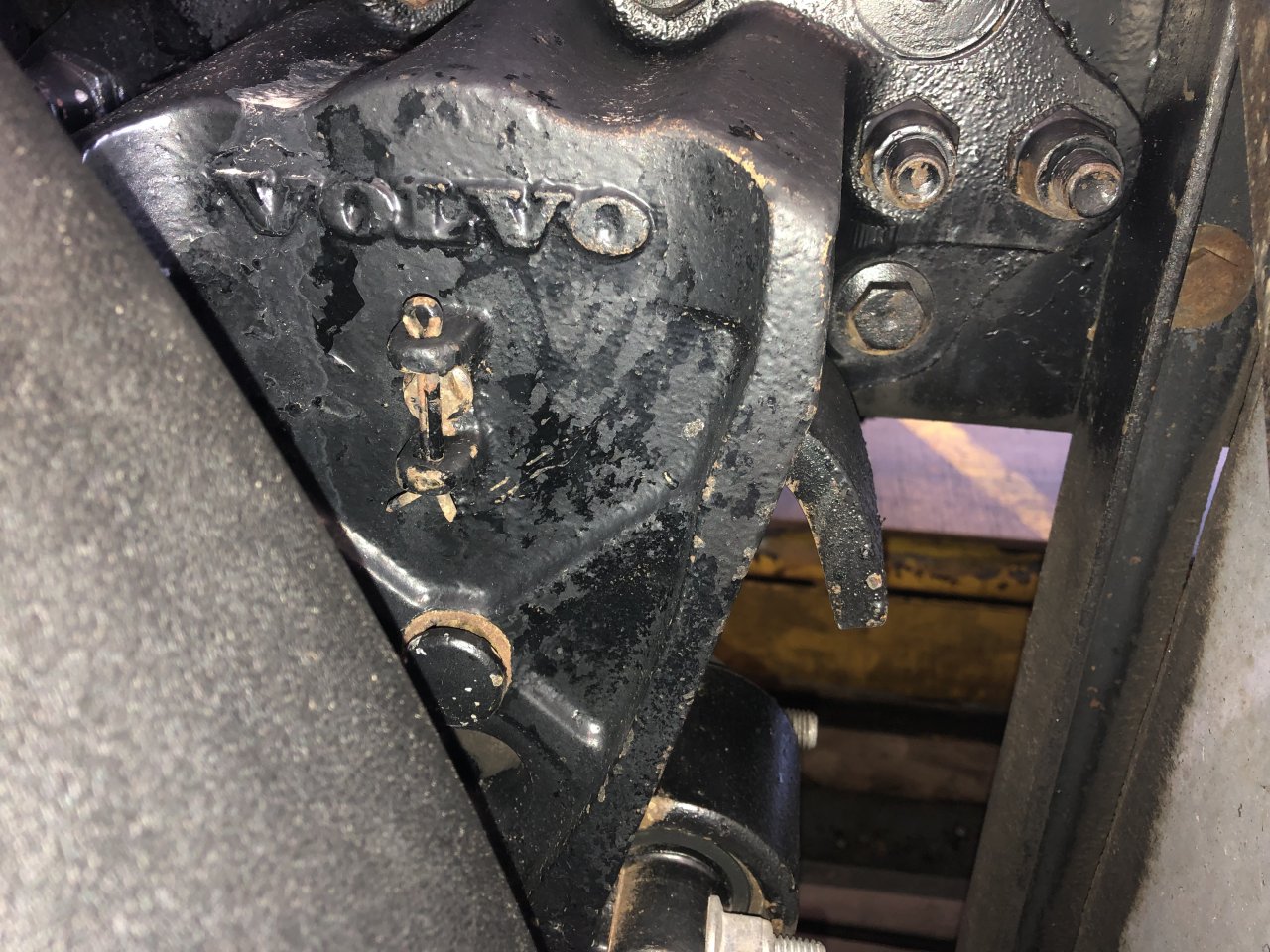

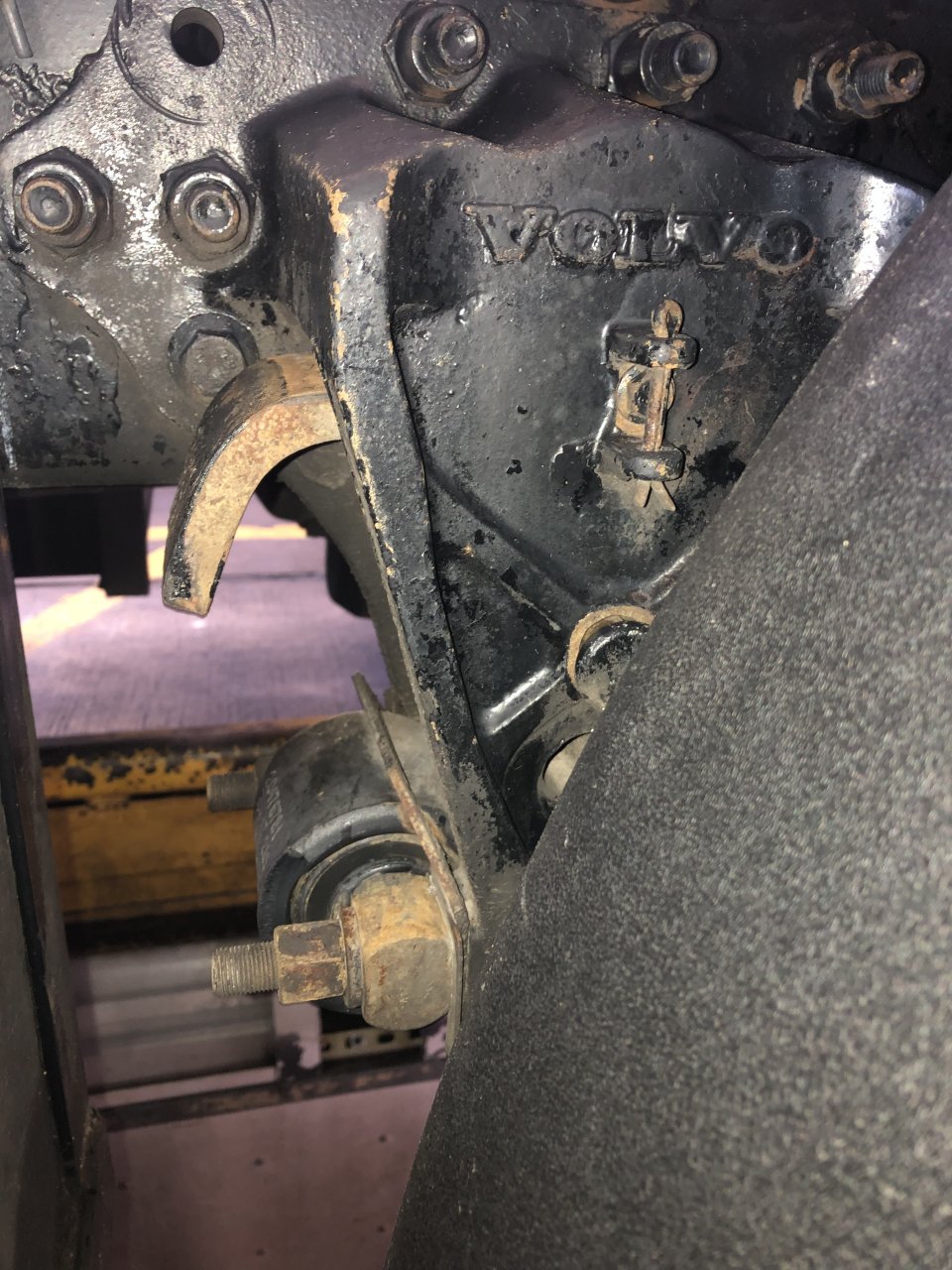

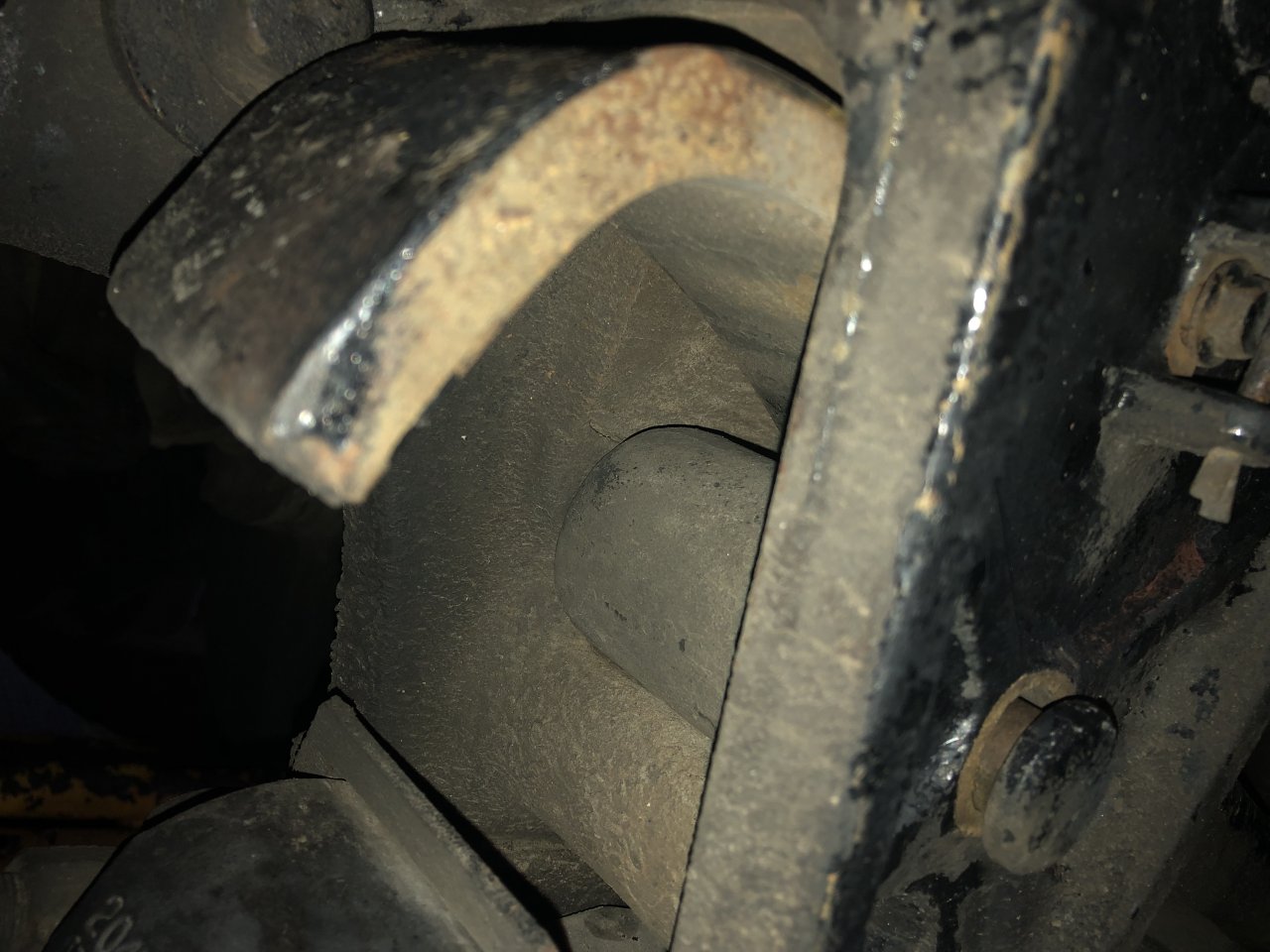

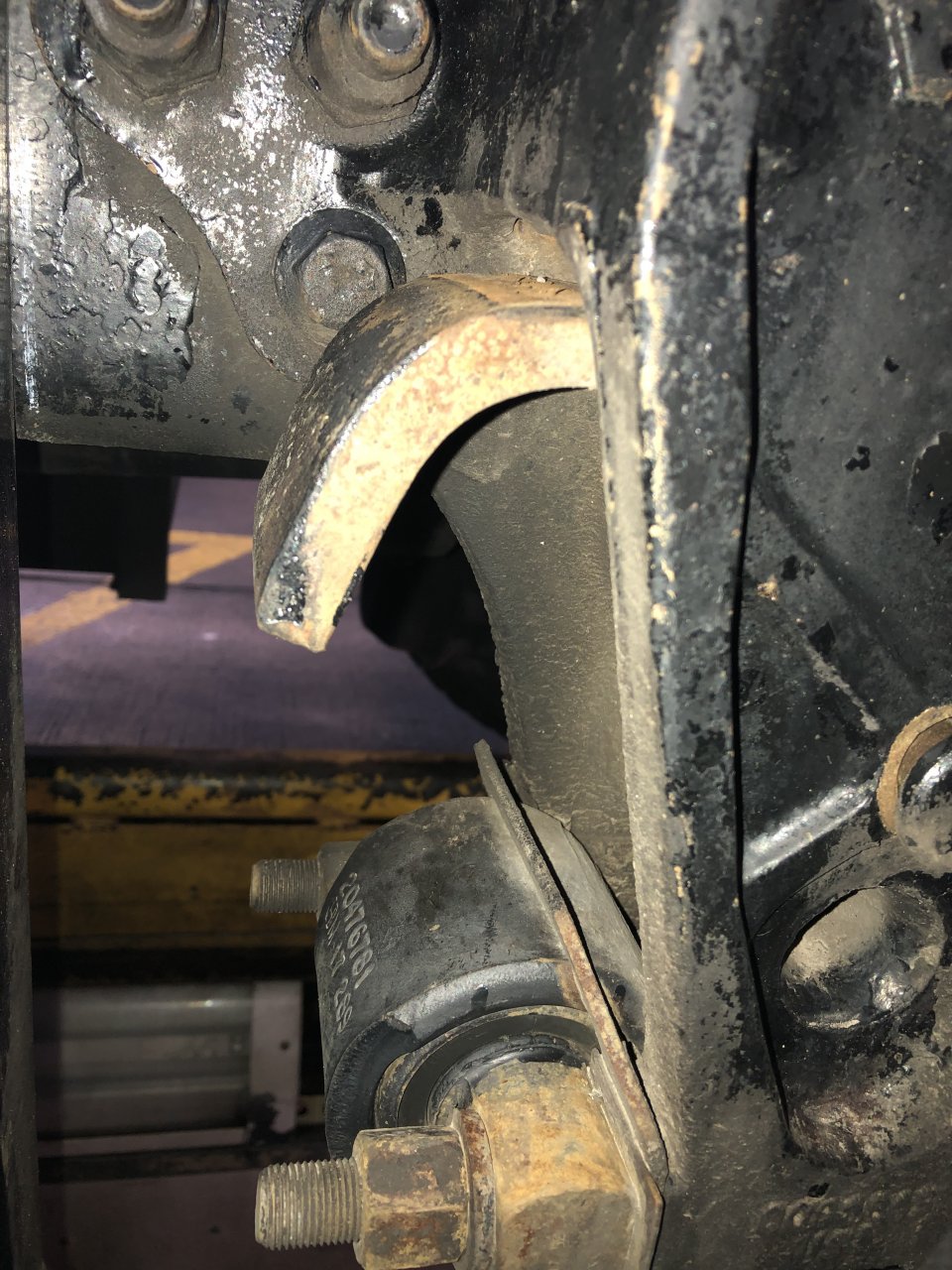

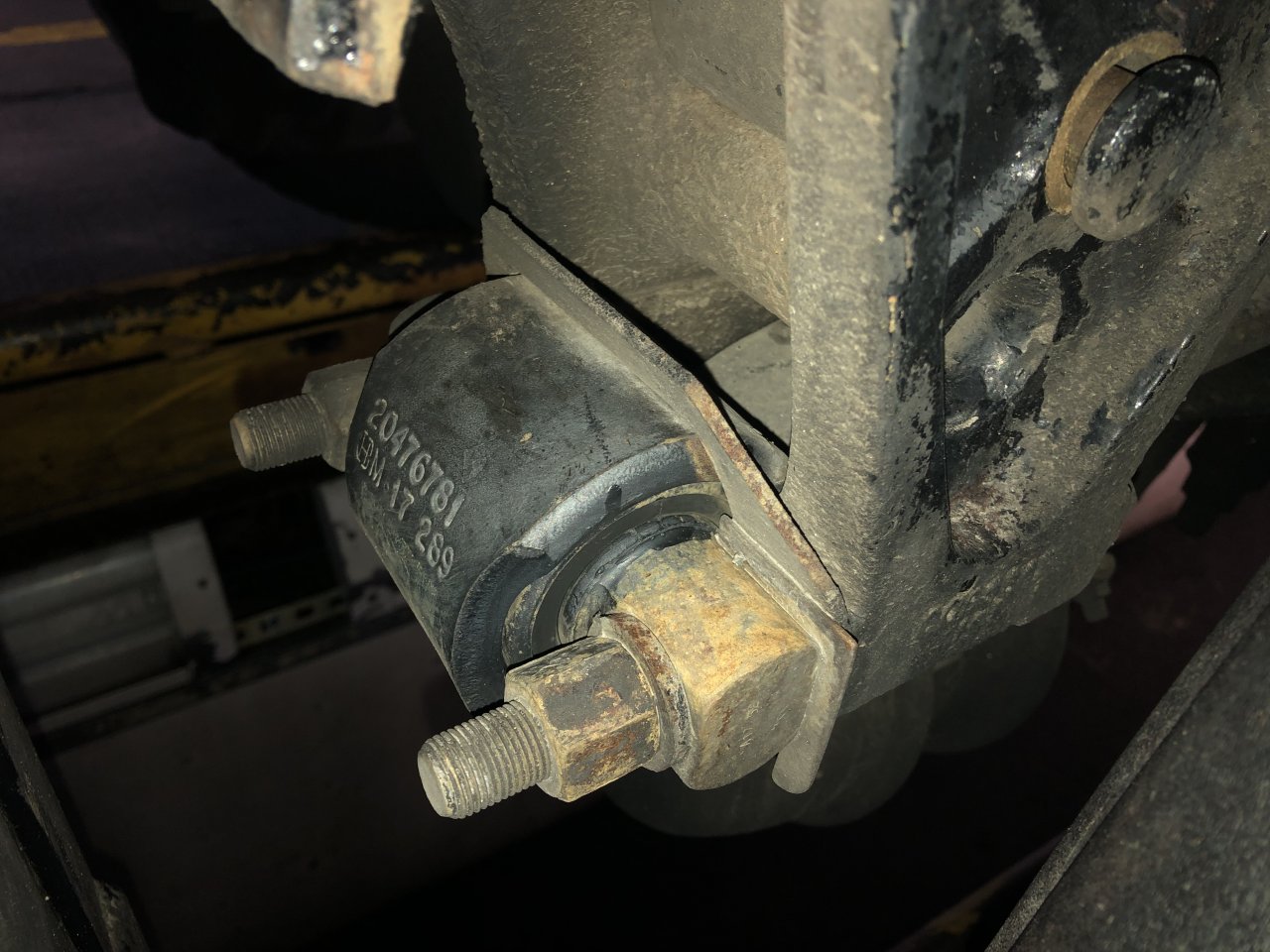

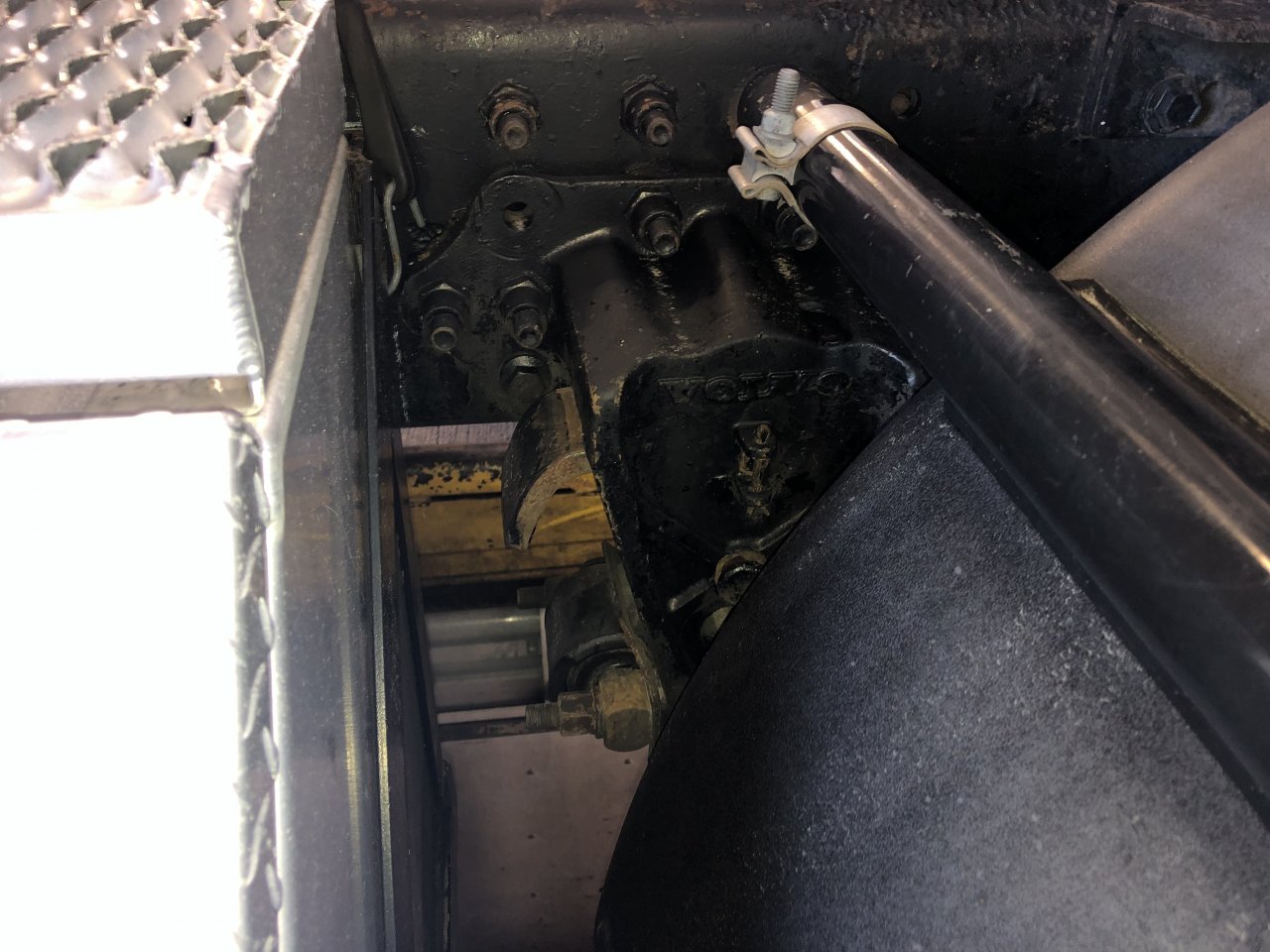

    We need extra pictures from the front off the axle.
    Where the sprong connects to the chassis.
    And pictures off the spring itself.

    CellNet Thanks this.
  7. CellNet

    CellNet Light Load Member

    178
    74
    Jun 19, 2011
    Chicago IL Naples FL
    0

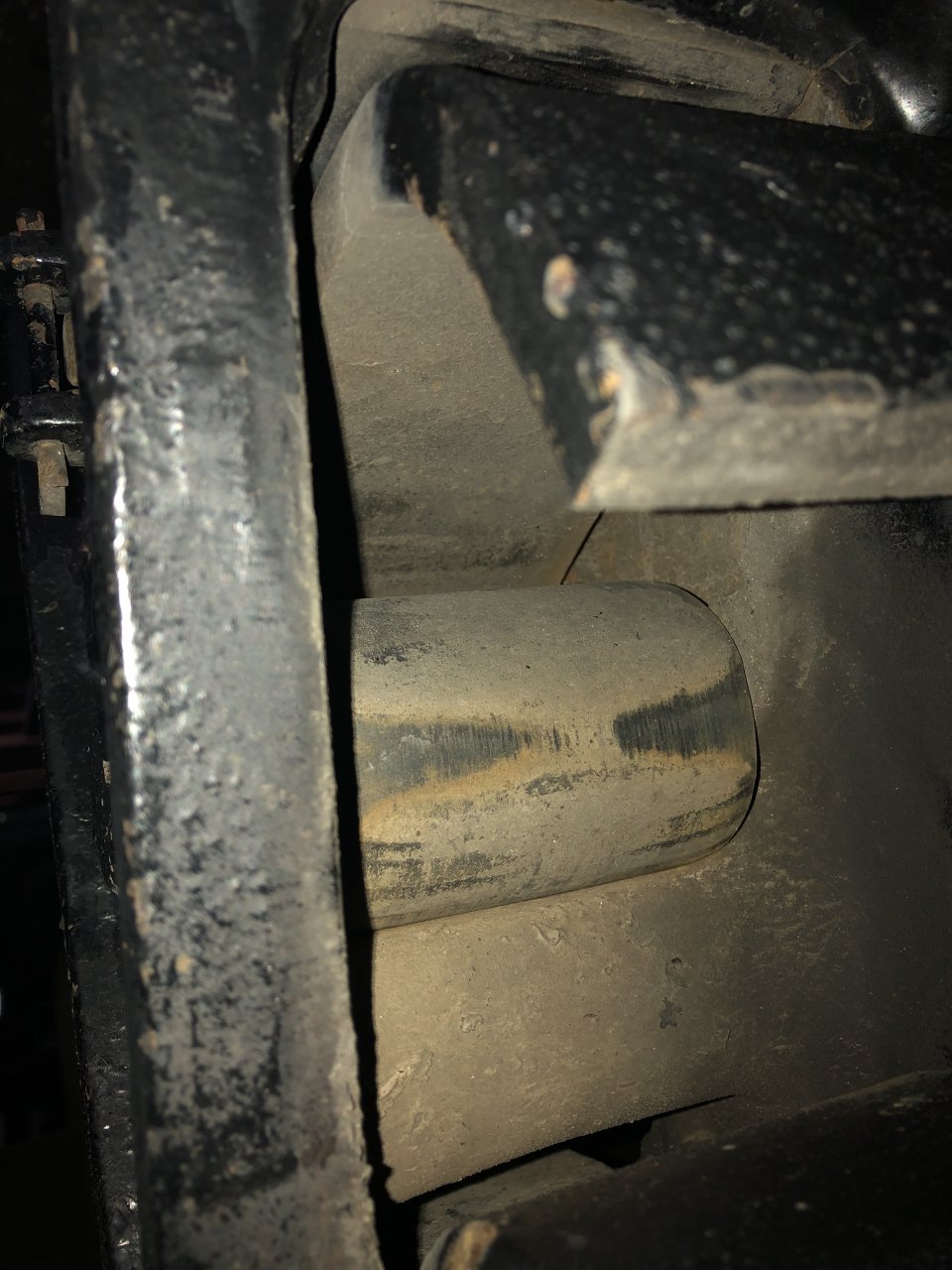

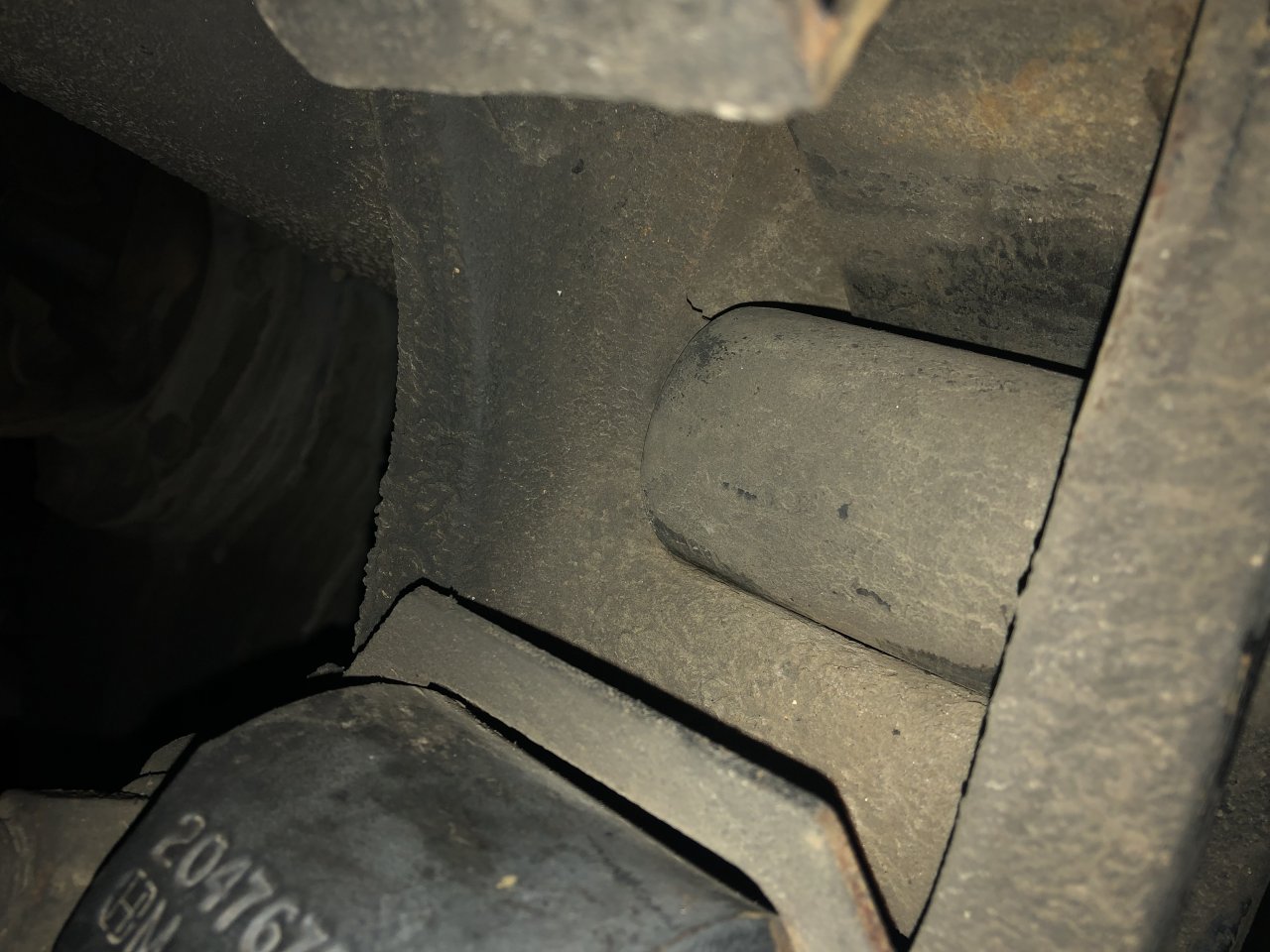

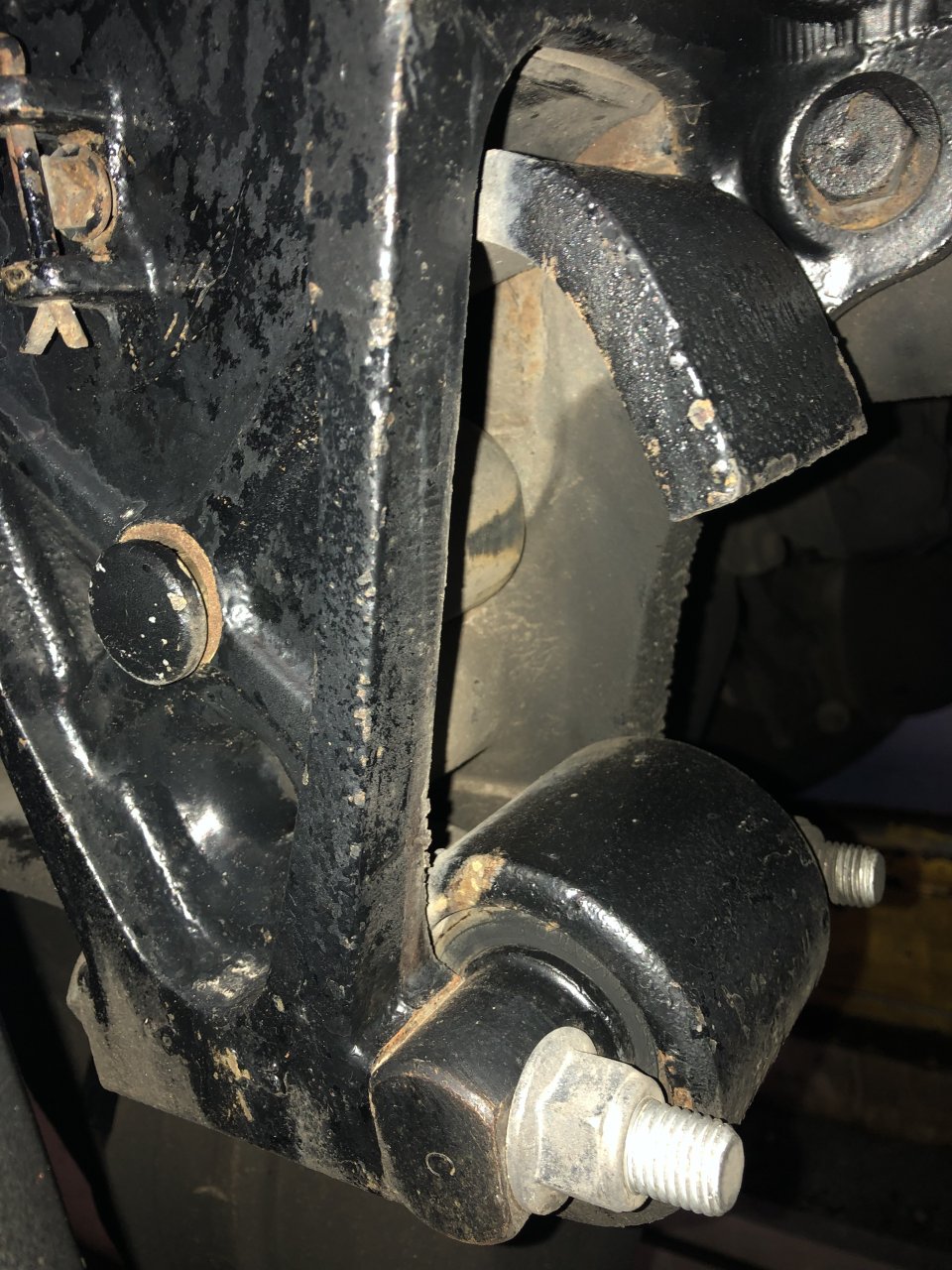

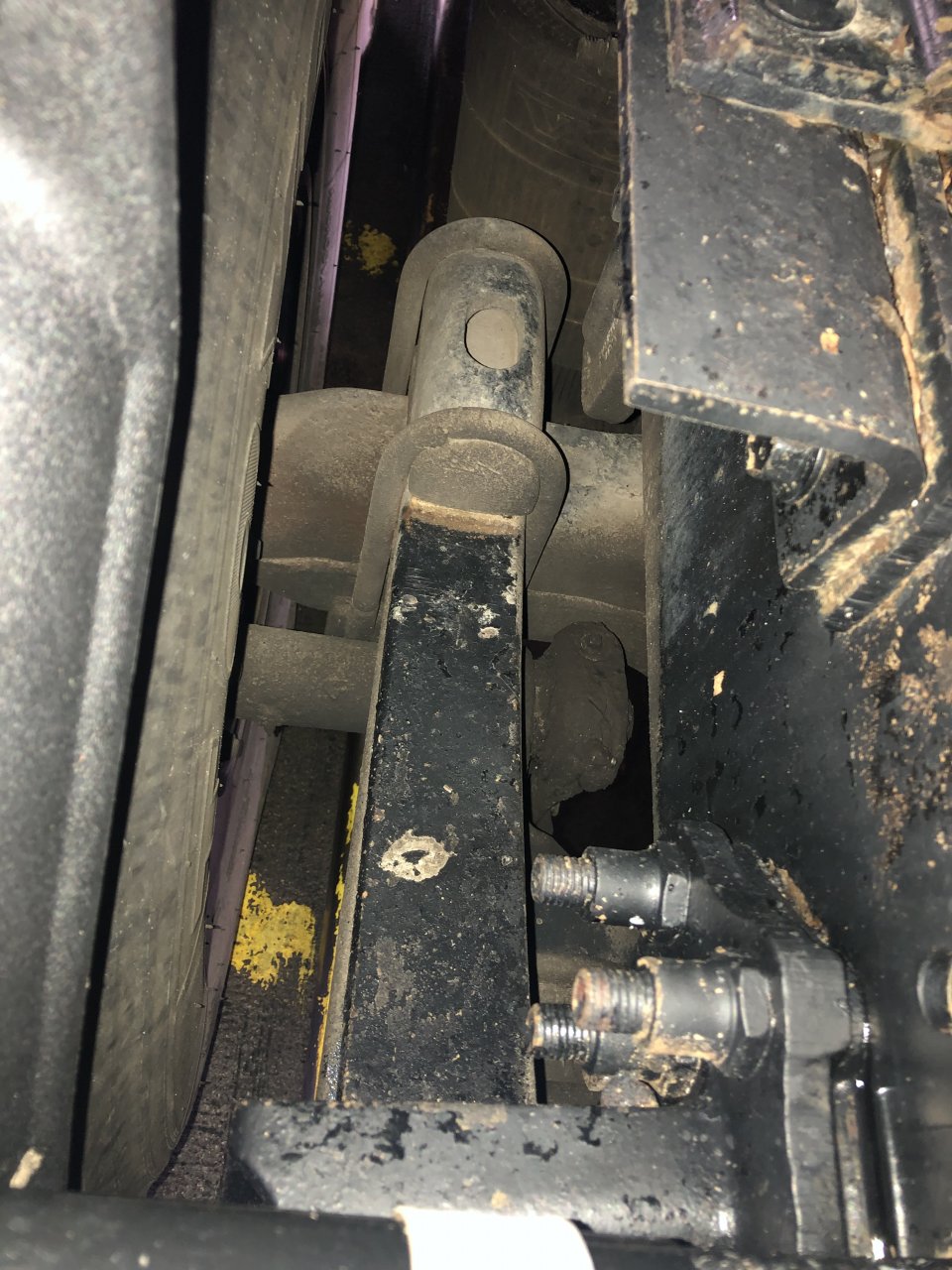

    Here are:


    Attached Files:

  8. CellNet

    CellNet Light Load Member

    178
    74
    Jun 19, 2011
    Chicago IL Naples FL
    0
    Some more:


    Attached Files:

  9. ibcalm19

    ibcalm19 Medium Load Member

    525
    584
    Nov 30, 2015
    Pennsylvania
    0
    Replace your leaf springs both sides that should correct your problems.

    KB3MMX and CellNet Thank this.
  10. CellNet

    CellNet Light Load Member

    178
    74
    Jun 19, 2011
    Chicago IL Naples FL
    0
    There are two leaf springs on each side - one short and one Z shaped? Which one you think is bad? What makes you think the leaf springs are the problem?

    I have checked with volvo dealer and they have them in stock on reasonable price, but I would like to be sure that is the real problem no only trowing money on keep on replacing parts!
