Suspension problem - Leaning airbags on drive axle. Please advise where is the problem

Discussion in 'Volvo Forum' started by CellNet, Jun 6, 2019.

  1. ibcalm19

    ibcalm19 Medium Load Member

    552
    622
    Nov 30, 2015
    Pennsylvania
    0
    The spring are together 2 on each side you don't replace one I can see the spring has shifted. Look at the other side does the spring look the same. If you also notice the bolt on the bracket has play in where the leaf springs sit on.

    CellNet Thanks this.
  2. Rideandrepair

    Rideandrepair Road Train Member

    4,527
    4,945
    Aug 8, 2015
    0
    Aside from a broken u- bolt. Which isn’t the case. The centering pin on the spring or maybe the spacer/ block is probably rusted out or sheared off.Causing it to shift. If so you’ll need to replace damaged parts, Springs and or blocks, unless you can get an experienced welder to weld a new centering pin. “ (tit) “ on the spring(s) , it can be done. Welding and grinding it to fit. Might as well replace bushings while your at it, they look worn to Me. New U bolts also, old ones can’t be reused as they’re designed to stretch when torqued. If re used they won’t stay tight.

    KB3MMX and CellNet Thank this.
  3. RustyBolt

    RustyBolt Road Train Member

    2,006
    3,115
    Feb 21, 2015
    Bement, IL
    0
    Then do as @Socal Xpress suggested and take it to a shop. A reputable shop.

    CellNet, KB3MMX and Rideandrepair Thank this.
  4. Newto Trucking

    Newto Trucking Light Load Member

    297
    162
    Dec 26, 2013
    NE Illinois
    0

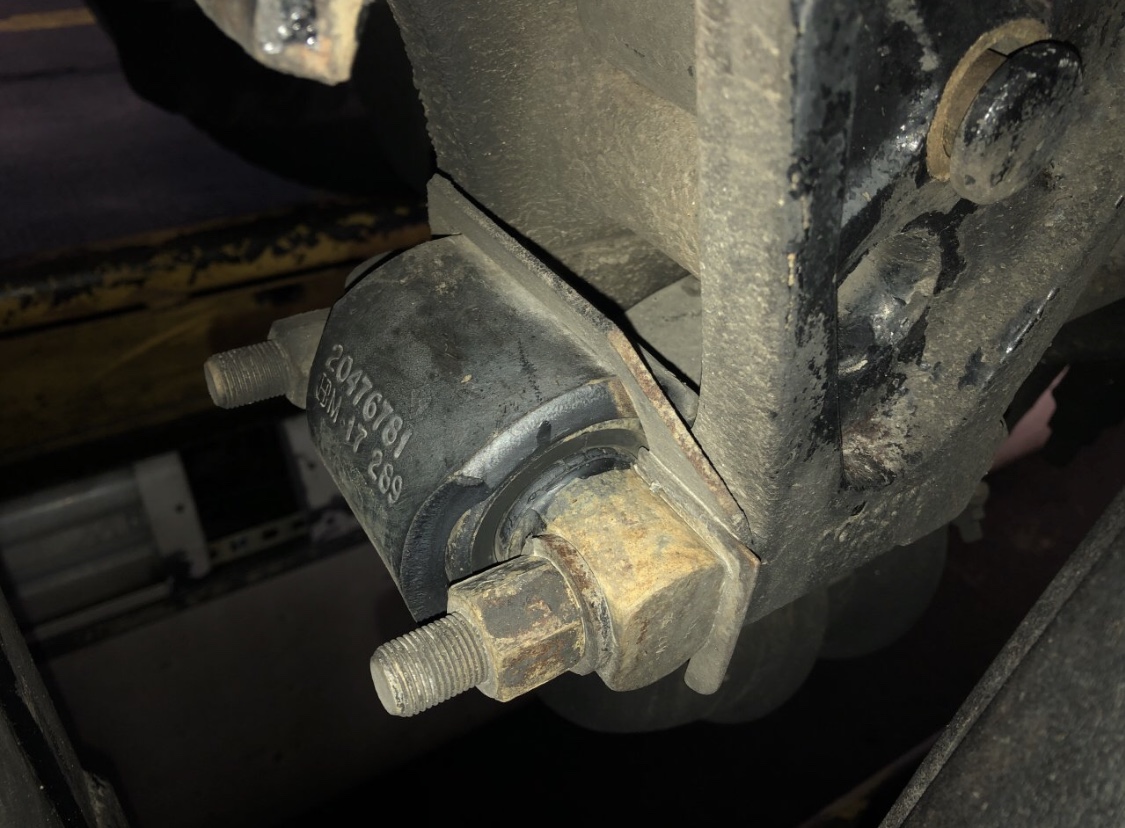

    D758EB9C-EE39-43C9-B00D-A0E0E3DEB318.jpeg All 4 zsprings and a leaf springs on top should match as far as part numbers, and those part numbers are stamped on front side of both. This picture has zspring part number 20476781

    Rideandrepair and CellNet Thank this.
  5. Newto Trucking

    Newto Trucking Light Load Member

    297
    162
    Dec 26, 2013
    NE Illinois
    0

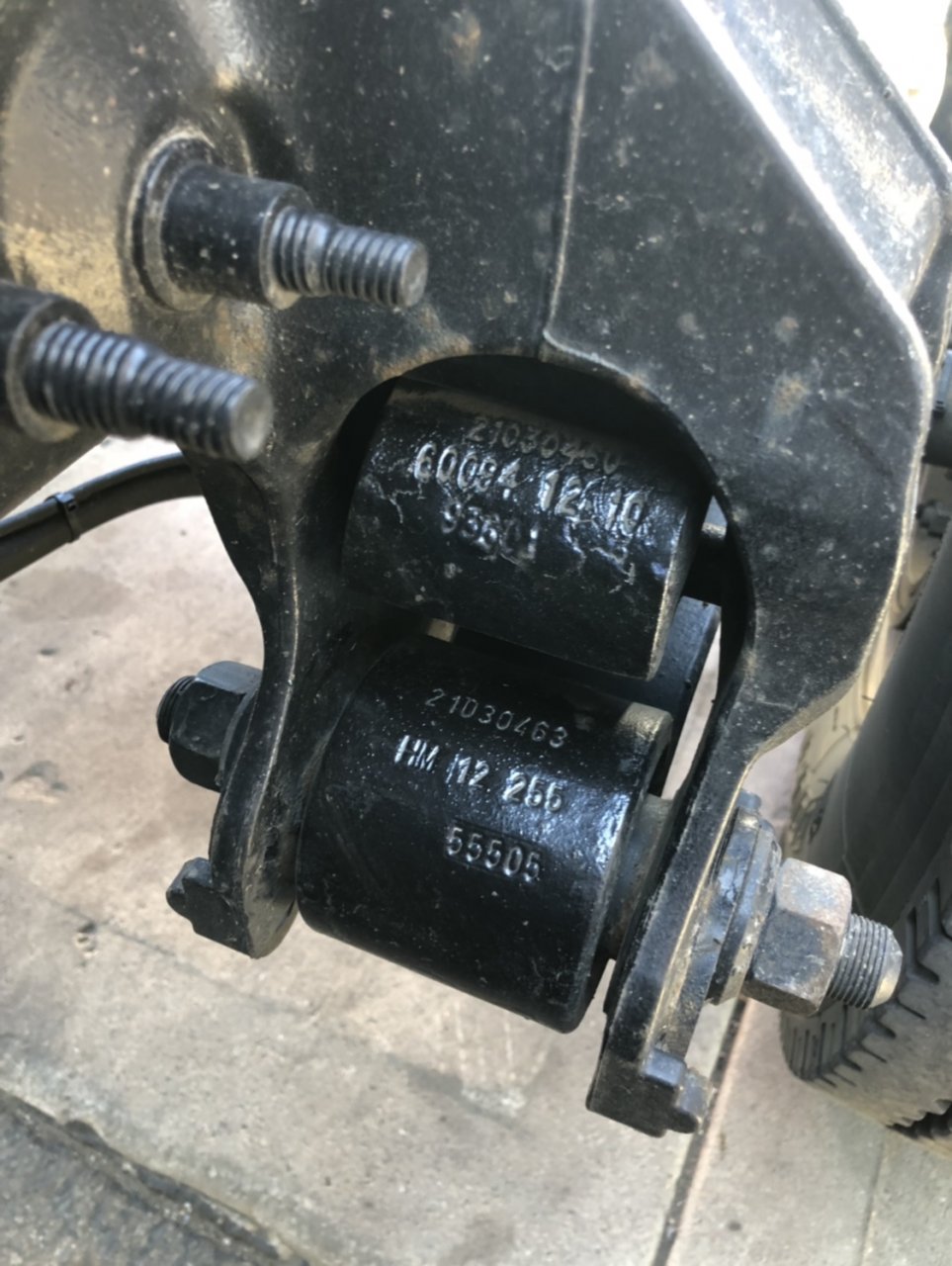

    F3F31E0E-10F9-47A2-9E0F-70D427901BDA.jpeg Previous post I made a mistake it’s a leaf spring part number cause it’s on the bottom but here’s how it looks on a 2013 truck, the numbers on a top are the part number.

    Last edited: Jun 7, 2019
  6. Newto Trucking

    Newto Trucking Light Load Member

    297
    162
    Dec 26, 2013
    NE Illinois
    0

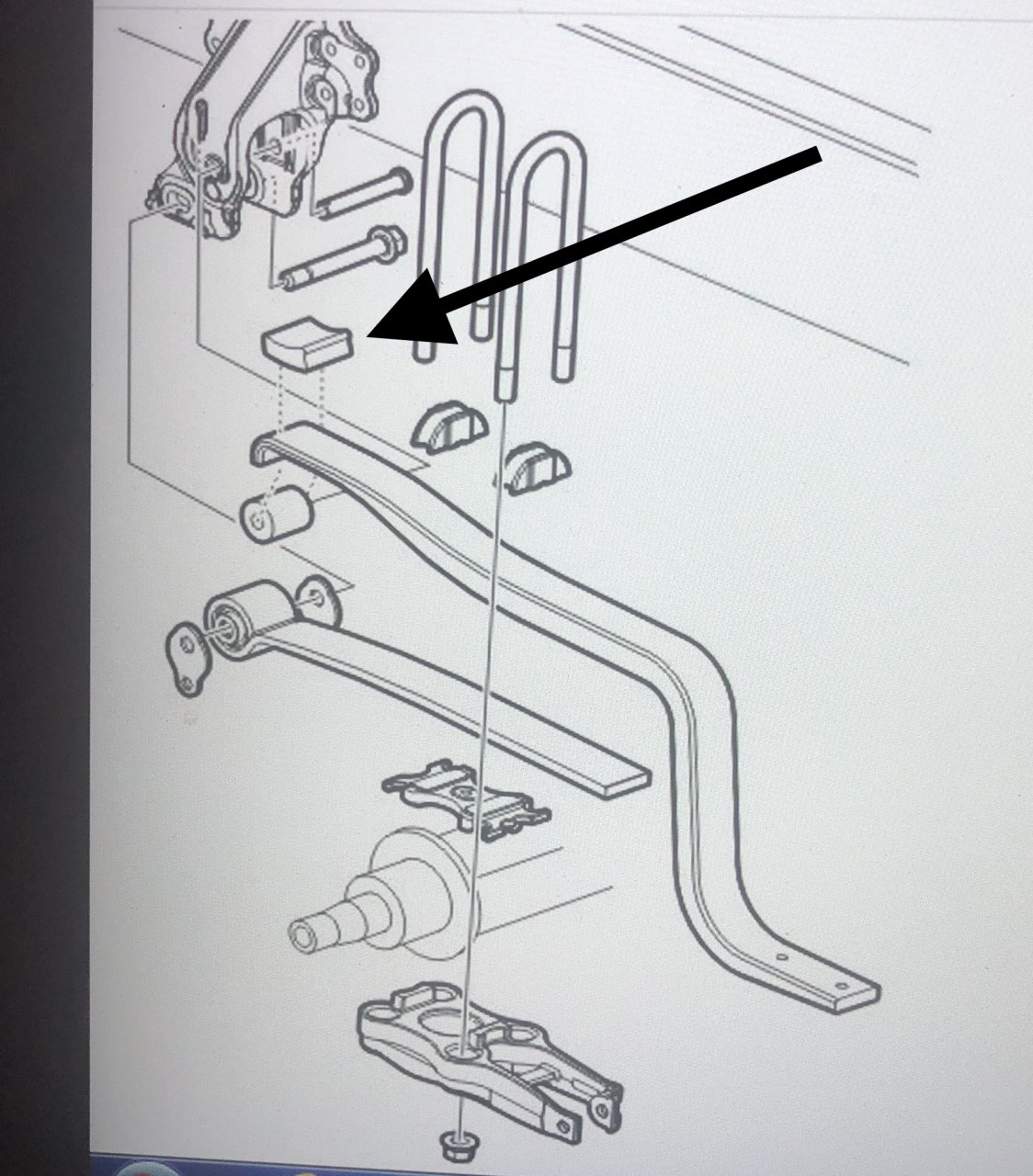

    Here you can see all the parts. Do you have this plastic square in place??? It’s minimum thickness 15mm and maximum 27mm.

    CellNet, KB3MMX and Rideandrepair Thank this.
  7. Rideandrepair

    Rideandrepair Road Train Member

    4,527
    4,945
    Aug 8, 2015
    0
    There was a OP on here a couple months ago, had a Volvo with the wrong blocks on his springs. The torsion bar would hit the frame at times. They all figured out it was a problem on certain year Volvo, Somehow his Truck had wrong size blocks, Might want to dig in and check part numbers or compare suspensions on other Volvo’s side by side. Has to be a cause, bad parts or something. His looked like axle was twisting, about same as yours

    CellNet and KB3MMX Thank this.
  8. Rideandrepair

    Rideandrepair Road Train Member

    4,527
    4,945
    Aug 8, 2015
    0
    I’m thinking the centering pins have to be gone.They line up with holes in spring between U Bolts

    CellNet, KB3MMX and Newto Trucking Thank this.
  9. KB3MMX

    KB3MMX Road Train Member

    2,705
    2,050
    Dec 29, 2014
    Shippensburg, PA
    0
    Best advice !!!

    Rideandrepair Thanks this.
  10. CellNet

    CellNet Light Load Member

    183
    75
    Jun 19, 2011
    Chicago IL Naples FL
    0
    thank you, yes I have replaced those plastics.

    Rideandrepair Thanks this.
