Suspension wont build air when under the load

Discussion in 'Kenworth Forum' started by Mokhtar, Dec 7, 2023.

  1. Mokhtar

    Mokhtar Bobtail Member

    2
    0
    Mar 20, 2013
    Missouri
    0
    I have a 2017 Kenworth T680. If the trailer is empty its no problem but when I am loaded the air won't build. It takes long time used to be two minutes driving before it will build, now it longer even 10-20 minutes. I don't hear any air leaks, but it burns a lot of fuel.

    Also the fan won't shut off, but again only when I'm loaded. If I'm hauling empty trailer its fine.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 062

    062 Road Train Member

    5,822
    31,421
    Oct 20, 2013
    0
    Might be the pressure protection valve stuck partially closed.
    I don’t know which one it has. You can google pressure protection valve and get a idea of what you’re looking for.
    @Goodysnap

  4. Big Road Skateboard

    Big Road Skateboard Road Train Member

    4,276
    20,314
    May 2, 2021
    0
    Sounds like you're not building air pressure. That's why your fan stays on too. I'd bet you have a major leak somewhere under a load.

    Big air leaks make little noise

    JB7 Thanks this.
  5. PaulMinternational

    PaulMinternational Heavy Load Member

    959
    2,661
    Aug 23, 2022
    0
    You have an air leak someplace, a valve stuck, a bad air assisted fan clutch would be my most likely guess by your description.

    Unplug the wires for it, this should make it not ask for air. If its leaking that will make your bags work normal until you plug it back in.

  6. 201

    201 Road Train Member

    11,082
    22,471
    Apr 16, 2014
    high plains colorado
    0
    Gremlins in the machine,,,:eek:, okay, you got at least 3 things going on here. I don't think they are related. Could be an air leak, but you'd hear something. Ride height valves do go south, fan running while loaded sounds like a plugged radiator, and they all use a lot of fuel. If you aren't building air, could the brakes be dragging?

  7. JB7

    JB7 Medium Load Member

    497
    597
    Dec 13, 2022
    0

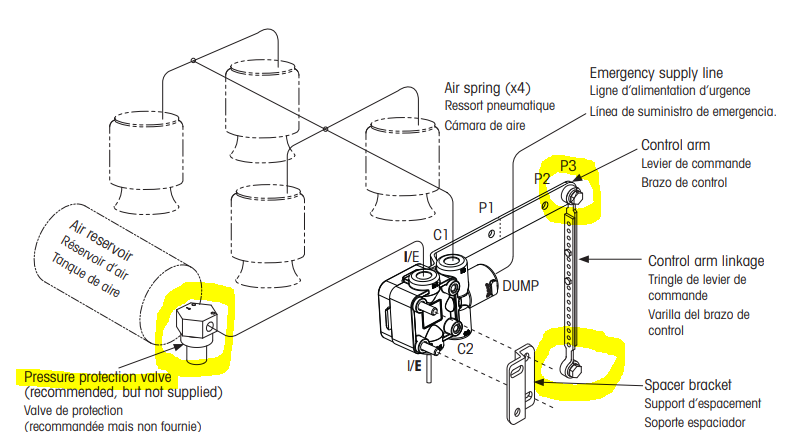

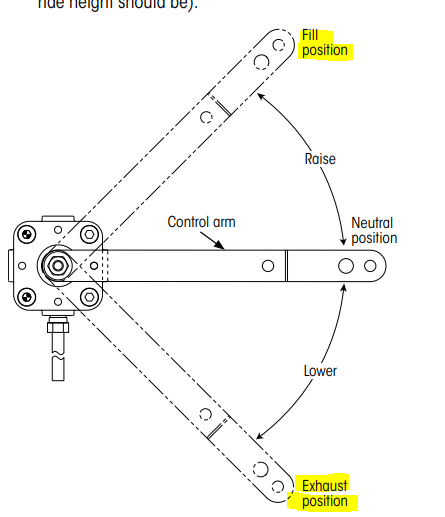

    Agree. After ruling out/ repairing any air leaks I would check the leveling valve. Check that the linkage connections are not worn. Can also disconnect the linkage and operate the valve by hand. And the Pressure Protection Valve like 062 said.


    blairandgretchen Thanks this.
