Thoughts on jost no tilt 5th wheel

Discussion in 'Tanker, Bulk and Dump Trucking Forum' started by tinys trucking, Apr 17, 2014.

  1. tinys trucking

    tinys trucking Bobtail Member

    35
    7
    Feb 20, 2014
    0
    Anybody use their system. My current 5th wheel from jost is too low to do the traditional pin method. I'm just going to weld blocks to the slider to block it up for now to get back to work and order the slider down the road in a month or so. Fleetpride has the best price so far at 588 for the slider. pt number NA8P from jost.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. baha

    baha Road Train Member

    3,994
    2,627
    Jul 25, 2013
    ga
    0
    Tire hits cross/members or what?

  4. tinys trucking

    tinys trucking Bobtail Member

    35
    7
    Feb 20, 2014
    0
    No the welding shop that I was using has tried to pin it up front with a small 7/8" dia pin in front only and lasted about a month before breaking. Went back to them last week and they cut and welded 2 one inch thread nuts into the front lip of the 5th wheel and welded tabs to the front of the slider to bolt it solid. 5th wheel is cast and their welds didn't hold and ripped nuts out with in 4 loads. They are now replacing my top plate on there dime and putting solid blocks under it on all 4 corners to support it to get me going. I'm done with these guys after this. I went to them because they also run a small fleet of tractors pulling dump trailers. With the air slide there isn't enough room to fit the 1 1/2" pin under there.

    25(2)+2 Thanks this.
  5. baha

    baha Road Train Member

    3,994
    2,627
    Jul 25, 2013
    ga
    0
    OK. Live an earn better job next we hope?

  6. Foxcover

    Foxcover Medium Load Member

    413
    215
    Nov 22, 2011
    Dallas, TX
    0
    Here's mine, the slider works even if I have the bar through in the no tilt setting.
    I also had them add a holder up front for the bar for when I'm not using the end dump.


    Attached Files:

    tinys trucking Thanks this.
  7. tinys trucking

    tinys trucking Bobtail Member

    35
    7
    Feb 20, 2014
    0

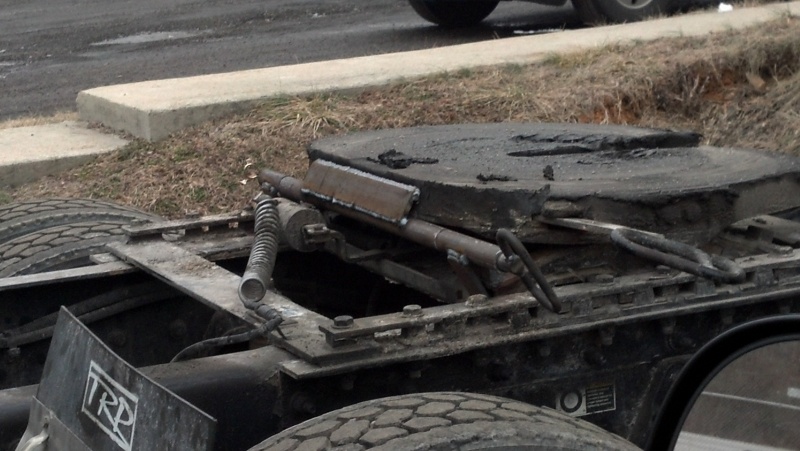

    Here is the first set they tried. IMG_20140212_160231_338.jpg

    You can see not much room under with this low profile fifth wheel. I did find out this is the shortest that jost offers.

  8. Foxcover

    Foxcover Medium Load Member

    413
    215
    Nov 22, 2011
    Dallas, TX
    0
    It needs to be under the back side of the fifth wheel to have any chance of standing up to the pressure, mine is also the low profile version and I haven't had any issues with it from new.

    tinys trucking Thanks this.
  9. snowwy

    snowwy Road Train Member

    18,819
    11,265
    Jul 6, 2009
    0
    yep, i've always seen em lock on the back side. never seen em on the front side.

  10. tinys trucking

    tinys trucking Bobtail Member

    35
    7
    Feb 20, 2014
    0
    Well I can say this much the front side doesn't work for long!!!!!! Its blocked under all 4 corners now until I order the factory no tilt slider.

  11. KF7WTV

    KF7WTV Medium Load Member

    410
    234
    Aug 8, 2012
    RENO, NV
    0
    Forgive this skateboarder's ignorance. Why wouldn't you want the 5th wheel to tilt?
