Tire bulge, would you trust this? Should it be replaced?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by skellr, Oct 13, 2021.

Page 1 of 3
  1. skellr

    skellr Road Train Member

    Joined:
    Jul 17, 2011
    Messages:
    8,737
    Thanks Received:
    12,187
    Location:
    The Village, Portmeirion
    0
    What would cause this?

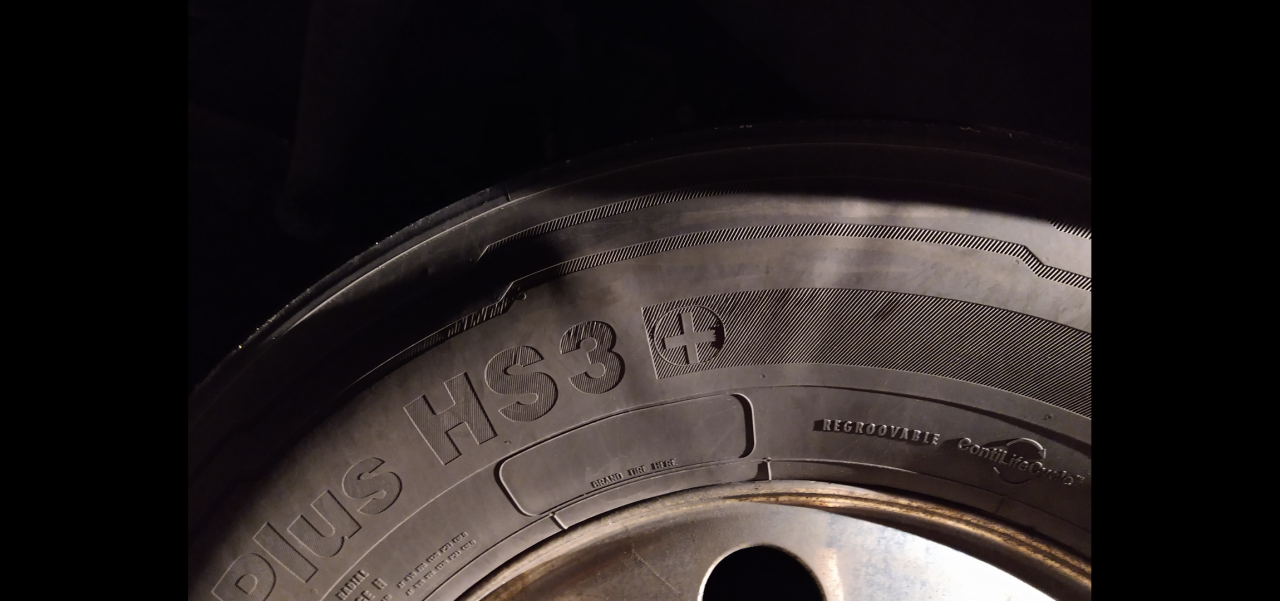

    Screenshot_20211013-200620.png It has smoothed out and you can hardly notice that it's there.
    I slip-seat so I'm not sure if its a defect or someone plowed intoa curb .

    skellr, Oct 13, 2021
    #1
    truckdriver31 Thanks this.
  2. truckdriver31

    truckdriver31 Road Train Member

    Joined:
    Sep 18, 2013
    Messages:
    6,998
    Thanks Received:
    8,358
    0
    i seen this before on my tires. never had a issue. it wasnt a v shaped, just a line

    truckdriver31, Oct 13, 2021
    #2
    skellr Thanks this.
  3. 201

    201 Road Train Member

    Joined:
    Apr 16, 2014
    Messages:
    12,505
    Thanks Received:
    25,589
    Location:
    high plains colorado
    0
    Somebody hit a curb or something to break a sidewall belt. She's gonna blow!!!

    201, Oct 14, 2021
    #3
    Vampire, little cat 500, Dino soar and 3 others Thank this.
  4. buddyd157

    buddyd157 Road Train Member

    Joined:
    May 25, 2017
    Messages:
    13,582
    Thanks Received:
    34,895
    Location:
    under a shade tree
    0
    someone curbed that tire. i can see scratch marks.

    broken belt inside, get it replaced NOW.

    buddyd157, Oct 14, 2021
    #4
    Vampire, Dino soar, skellr and 2 others Thank this.
  5. 201

    201 Road Train Member

    Joined:
    Apr 16, 2014
    Messages:
    12,505
    Thanks Received:
    25,589
    Location:
    high plains colorado
    0
    Hope it's not a steer tire,,

    201, Oct 14, 2021
    #5
    skellr, jamespmack, truckdriver31 and 1 other person Thank this.
  6. pavrom

    pavrom Road Train Member

    Joined:
    Apr 29, 2012
    Messages:
    3,188
    Thanks Received:
    7,314
    Location:
    NE illinois
    0
    Not necessary ...have one of my tires like this for over 100k ...not v though

    pavrom, Oct 14, 2021
    #6
    jsnell, skellr and truckdriver31 Thank this.
  7. jamespmack

    jamespmack Road Train Member

    Joined:
    Mar 25, 2014
    Messages:
    20,019
    Thanks Received:
    216,135
    Location:
    OH
    0
    If it goes in its a belt overlap and normal. If it bulges out, its a broken belt and will fail. When, no one knows, but it will fail.

    jamespmack, Oct 14, 2021
    #7
    Vampire, Patriot_Bearing_Supply, Dino soar and 1 other person Thank this.
  8. jamespmack

    jamespmack Road Train Member

    Joined:
    Mar 25, 2014
    Messages:
    20,019
    Thanks Received:
    216,135
    Location:
    OH
    0
    Edit, if its soft like its full of air, you could have a air leak from inner liner to casing. Still will fail.

    jamespmack, Oct 14, 2021
    #8
    Vampire, Patriot_Bearing_Supply and skellr Thank this.
  9. Shackdaddy

    Shackdaddy Medium Load Member

    Joined:
    Aug 5, 2021
    Messages:
    331
    Thanks Received:
    4,872
    0
    No way I’d drive with that. Could blow any time. I would think DOT would pull it out of service and give the driver a ticket.

    Shackdaddy, Oct 14, 2021
    #9
    Vampire and skellr Thank this.
  10. skellr

    skellr Road Train Member

    Joined:
    Jul 17, 2011
    Messages:
    8,737
    Thanks Received:
    12,187
    Location:
    The Village, Portmeirion
    0
    It is.

    skellr, Oct 14, 2021
    #10
