Tire Max Load and GAWR...

Discussion in 'Questions To Truckers From The General Public' started by Whoisbigman, Nov 28, 2023.

Page 1 of 2
  1. Whoisbigman

    Whoisbigman Bobtail Member

    Joined:
    Nov 28, 2023
    Messages:
    5
    Thanks Received:
    1
    0
    Looking for help. If this is the wrong place, please redirect me. I drive a big red fire truck. 8 new tires placed on rear today made me look around at fronts. Tires say Max load 11,400 each... 22,800 total. Door sticker says GAWR front is 24,000 lbs? Are these tires adequate?

    Whoisbigman, Nov 28, 2023
    #1
    NightWind Thanks this.
  2. Grumppy

    Grumppy Trucker Forum STAFF Staff Member

    Joined:
    Dec 11, 2010
    Messages:
    3,170
    Thanks Received:
    11,027
    Location:
    West Monroe, La
    0
    And I am not familiar with GAWR....
    GVWR is Gross Vehicle Weight Rating.
    Can you clarify that?

    Grumppy, Nov 28, 2023
    #2
  3. Grumppy

    Grumppy Trucker Forum STAFF Staff Member

    Joined:
    Dec 11, 2010
    Messages:
    3,170
    Thanks Received:
    11,027
    Location:
    West Monroe, La
    0
    I'll go ahead and comment on your question pending a confirmation on GAWR.

    The big factor here is what weight you actually have on the steer axles. If the max actual weight on the steers is less than 22,800, then your safe... its adequate.
    Just because its RATED for that much weight, doesn't mean you need to outfit for that much weight.

    Example: two carriers have the same spec'd trucks. One is carrying steel, the other is carrying styro-foam.
    Though both trucks are RATED for the same weight, doesn't mean they require the same equipment/tires etc.

    You need to outfit your truck including personnel & take it to the scales & weigh it. That will tell you what weight you have & what equipment/tires you need.
    Reference the steer axle weight.

    Last edited: Nov 28, 2023
    Grumppy, Nov 28, 2023
    #3
  4. Whoisbigman

    Whoisbigman Bobtail Member

    Joined:
    Nov 28, 2023
    Messages:
    5
    Thanks Received:
    1
    0

    Whoisbigman, Nov 28, 2023
    #4
  5. PaulMinternational

    PaulMinternational Road Train Member

    Joined:
    Aug 23, 2022
    Messages:
    1,108
    Thanks Received:
    5,790
    0
    Thats maximum axle weight.
    How much weight is actually on the axel is what is going to determine if the tires are safe.
    Might want to visit your local scale

    PaulMinternational, Nov 28, 2023
    #5
  6. Grumppy

    Grumppy Trucker Forum STAFF Staff Member

    Joined:
    Dec 11, 2010
    Messages:
    3,170
    Thanks Received:
    11,027
    Location:
    West Monroe, La
    0
    I gotta say, thats a new one on me...

    I'm now guessing Gross Axle Weight Rating.... I just never seen that I guess.

    However, my post in #3 stands..

    Good luck...

    Grumppy, Nov 28, 2023
    #6
  7. Ex-Trucker Alex

    Ex-Trucker Alex Road Train Member

    Joined:
    Jan 7, 2023
    Messages:
    1,498
    Thanks Received:
    2,589
    0
    So......with FOUR tires on each axle, that's 11,400x4=45,600, right??? How much weight could a firetruck actually be loading onto an axle??

    Generally, unless you have an overweight permit, the most weight you're allowed on a TANDEM (that's BOTH axles, all EIGHT tires) is 34,000 lbs, anyway....

    Ex-Trucker Alex, Nov 28, 2023
    #7
  8. Ban1

    Ban1 Bobtail Member

    Joined:
    Nov 22, 2023
    Messages:
    40
    Thanks Received:
    182
    0
    The only actual way to know is to load the truck to max weight. Then scale it. I personally would worry about it. Even if you are at 24,000. That’s only 600 pounds per tire over that’s not much in the grand scheme of things.

    Ban1, Nov 28, 2023
    #8
  9. NightWind

    NightWind Road Train Member

    Joined:
    Nov 11, 2006
    Messages:
    2,714
    Thanks Received:
    19,164
    Location:
    Sunny South, AL
    0
    "Gross axle weight rating" or "GAWR" means the value specified by the manufacturer as the load-carrying capacity of a single axle system, as measured at the tire-ground interfaces. "Gross vehicle weight rating" or "GVWR" means the value specified by the manufacturer as the loaded weight of a single vehicle.

    The load index on a tire gives a numerical value for the maximum weight the tire can handle when it is inflated to its recommended pressure. Higher numbers correlate to the tire's ability to bear heavier loads. Indices start at 1, which can carry 102 pounds, and they go up to 150, which can hold up 7,385 pounds.

    NightWind, Nov 29, 2023
    #9
  10. Whoisbigman

    Whoisbigman Bobtail Member

    Joined:
    Nov 28, 2023
    Messages:
    5
    Thanks Received:
    1
    0

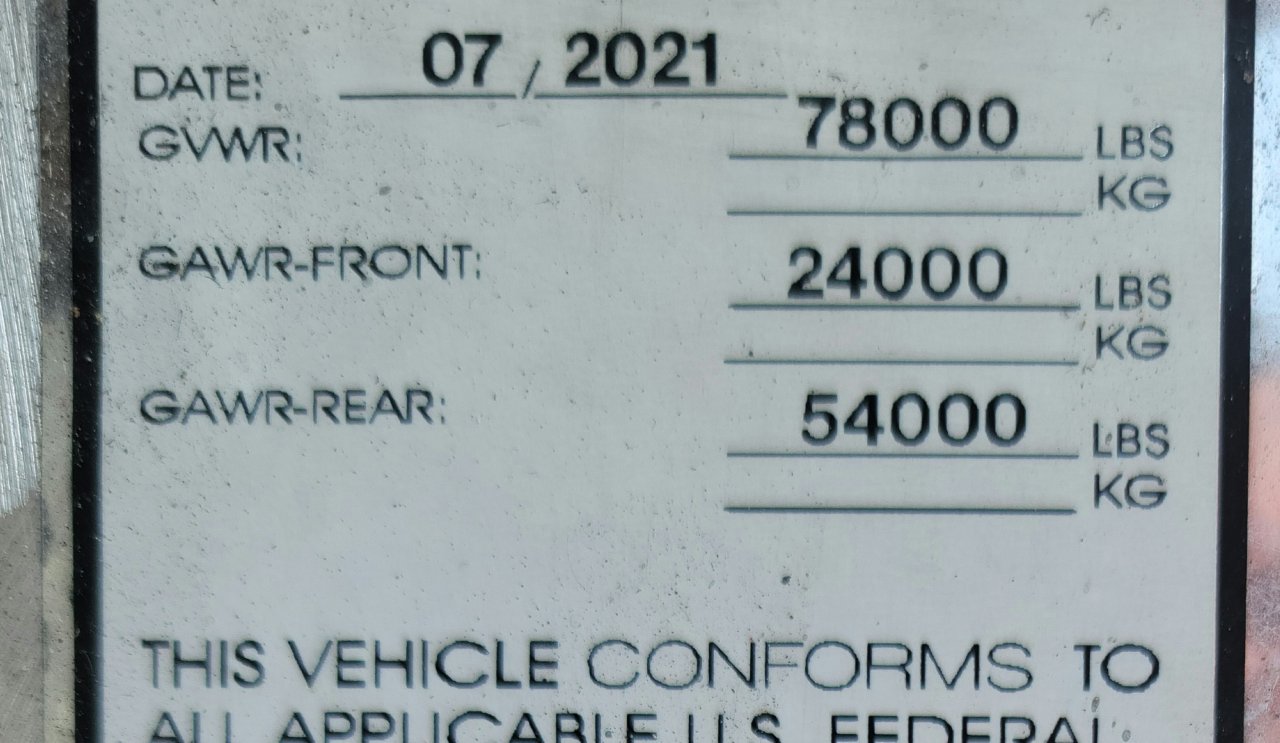

    This is the front... 2 tires, 11,400 each totalling 22,800 capacity of tires. GAWR is 24,000

    Whoisbigman, Nov 29, 2023
    #10
