Tractors With Lightest Curb Weight

2000 W900, C12, 10spd, super singles, 40k rears, dead axle, 13,780#
2004 T800, C13, 10spd, super singles 40k rears, 14,840#
2006 W900L, C15, 13spd, all alum duals (24.5) full locking 46k rears, loaded with all the shiny options and bells and whistles 17,860#

These are all actual scale weights with around 1/4 tank of fuel.



This sounds like the place for a "one stack Mack with a window in the back"!



I don't know of many that are going to touch the 2000 W9 we have at 13,700k. I know Marathon has some lighter trucks but they have TINY engines (like C10) and IMO your verging on medium duty stuff.



a Mack Vision with eaton trans. and rears pto will be at 14,000 T450 and pete 375 and 385 can be speced fairly light but the lightest daycab with factory ordered 40k rears would be GMC 8500 IH 4900



This was an OTR Rig now something I lived in. 88 T-600A with a single 120 gal tank 40K rears with a Fleet 315 Cummins Single Screw and then a Tag axle set up. Where she was so freaking light was that Aluminum Frame she had under it. Fully loaded with me in it hauling a Van I could scale with a 53 Ft Van right at 50K lbs. Had to take a max weight load to Philly one time on a 40 ft trailer boss had. I Scaled out 56K on that trip. Weight on the KW was 12,500

Second lightest one I drove was a 98 C120 Freightliner that was a Midroof that did scale 49500 in a 53 ft Reefer with full tanks. Freightliner was 14500

See it can be done in the OTR side if you know how to do it.

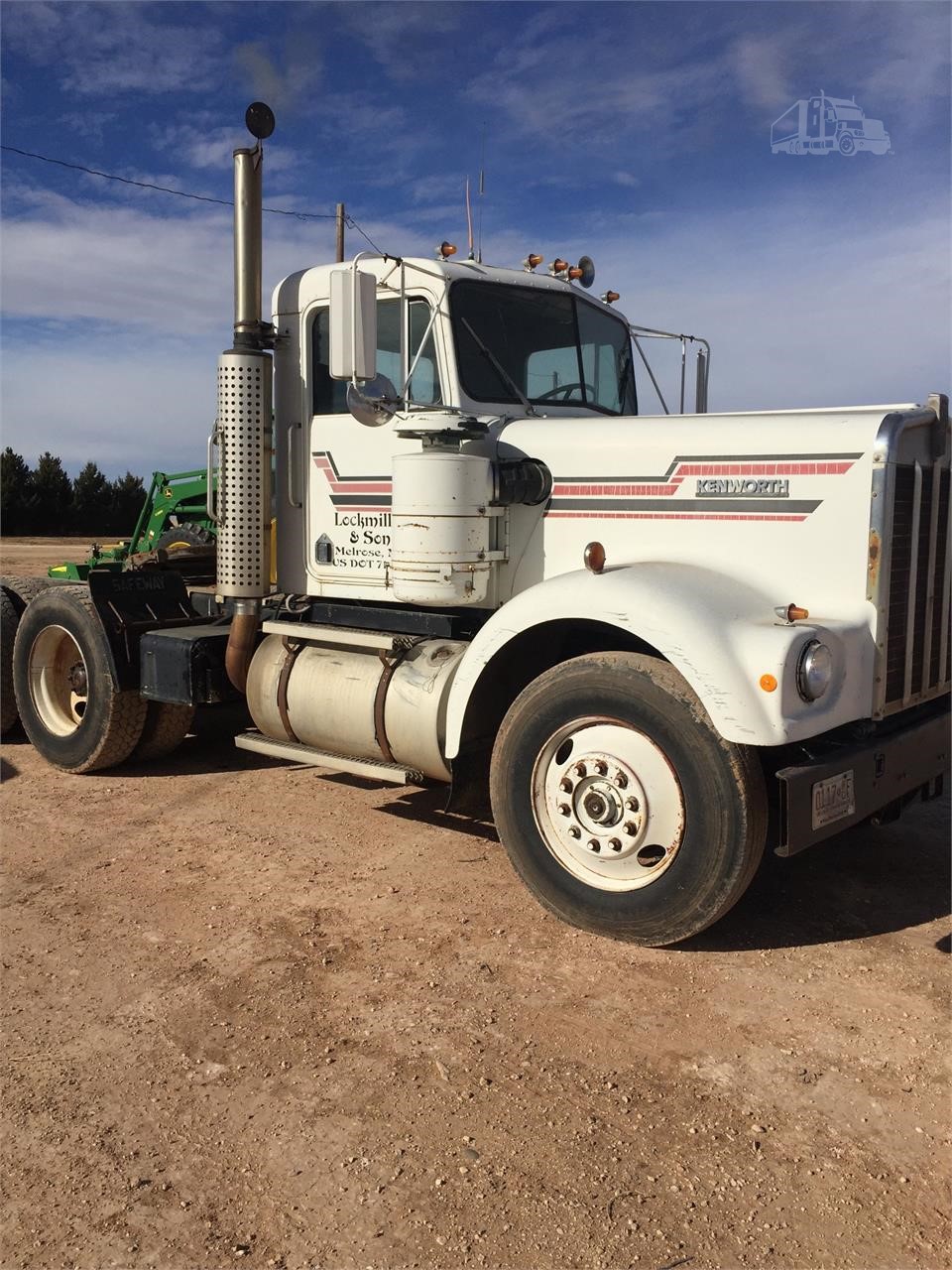

I just ran across this posting right after buying the truck pictured. I was surprised to see it scale out at 15,900 LBS. Granted, that's not a true curb weight; the truck has fuel and all the fluids. That said I can probably knock off a couple of hundred pounds with a power washer!



Been a long time, my dad had a C70 Chevy 427 bigblock, tag axle. 12k. They used them to load out at steel mills. Then hook a road tractor to them and go. Look funny hooked to 5-9s doubles. Later in life it pulled a hopper bottom. It was slow, but 90k was no problem.



98 Kenworth W900B
3406E With a Brakesaver
18918B
Double Framed
214" Wheelbase
20K Steer
20K Drop (smaller 255/70r22.5 wheels and tires)
46K Chalmers Rears

24,600
