Trailer brake lights stuck on.

Discussion in 'Freightliner Forum' started by Diesel13230, Nov 30, 2023.

Page 1 of 3
  1. Nov 30, 2023 #1
    Diesel13230

    Diesel13230 Bobtail Member

    15
    15
    Nov 30, 2023
    0
    I have a 2019 122SD and the trailer lights are stuck on. I know that it is not the trailer. I’ve used multiple different trailers and I get power at the trailer plug with no trailer attached. The “Johnny arm” functions and when I engage it I hear the relay clicking. Does anyone know where I should go from here. What do I all need to check?

    Diesel13230, Nov 30, 2023
    Diesel13230, Nov 30, 2023
    #1
    Big Road Skateboard Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 30, 2023 #2
    IH Truck Guy

    IH Truck Guy Road Train Member

    3,648
    40,193
    Mar 2, 2008
    Purgatory
    0
    Did you try a new pigtail?

    IH Truck Guy, Nov 30, 2023
    IH Truck Guy, Nov 30, 2023
    #2
    Rideandrepair and Big Road Skateboard Thank this.
  4. Nov 30, 2023 #3
    Diesel13230

    Diesel13230 Bobtail Member

    15
    15
    Nov 30, 2023
    0
    A pigtail where? At the trailer connector?

    Diesel13230, Nov 30, 2023
    Diesel13230, Nov 30, 2023
    #3
    Rideandrepair Thanks this.
  5. Nov 30, 2023 #4
    JB7

    JB7 Medium Load Member

    545
    650
    Dec 13, 2022
    0

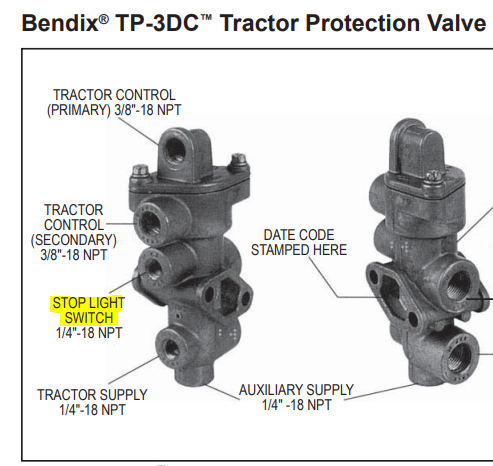

    Tractor protection valve should be at the back of the cab, follow from the gladhands to the other end of the air lines.
    What about the tractor brake lights, they are ok?.
    Your problem is most likely the switch is stuck.

    JB7, Nov 30, 2023
    JB7, Nov 30, 2023
    #4
    Rideandrepair and Diesel13230 Thank this.
  7. Nov 30, 2023 #5
    Diesel13230

    Diesel13230 Bobtail Member

    15
    15
    Nov 30, 2023
    0
    yeah truck lights are operating fine. I found the valve but in your picture there is just 1 switch. Is there a second one for trailer or does truck and trailer run off same switch?

    Diesel13230, Nov 30, 2023
    Diesel13230, Nov 30, 2023
    #5
    Rideandrepair Thanks this.
  8. Nov 30, 2023 #6
    Diesel13230

    Diesel13230 Bobtail Member

    15
    15
    Nov 30, 2023
    0

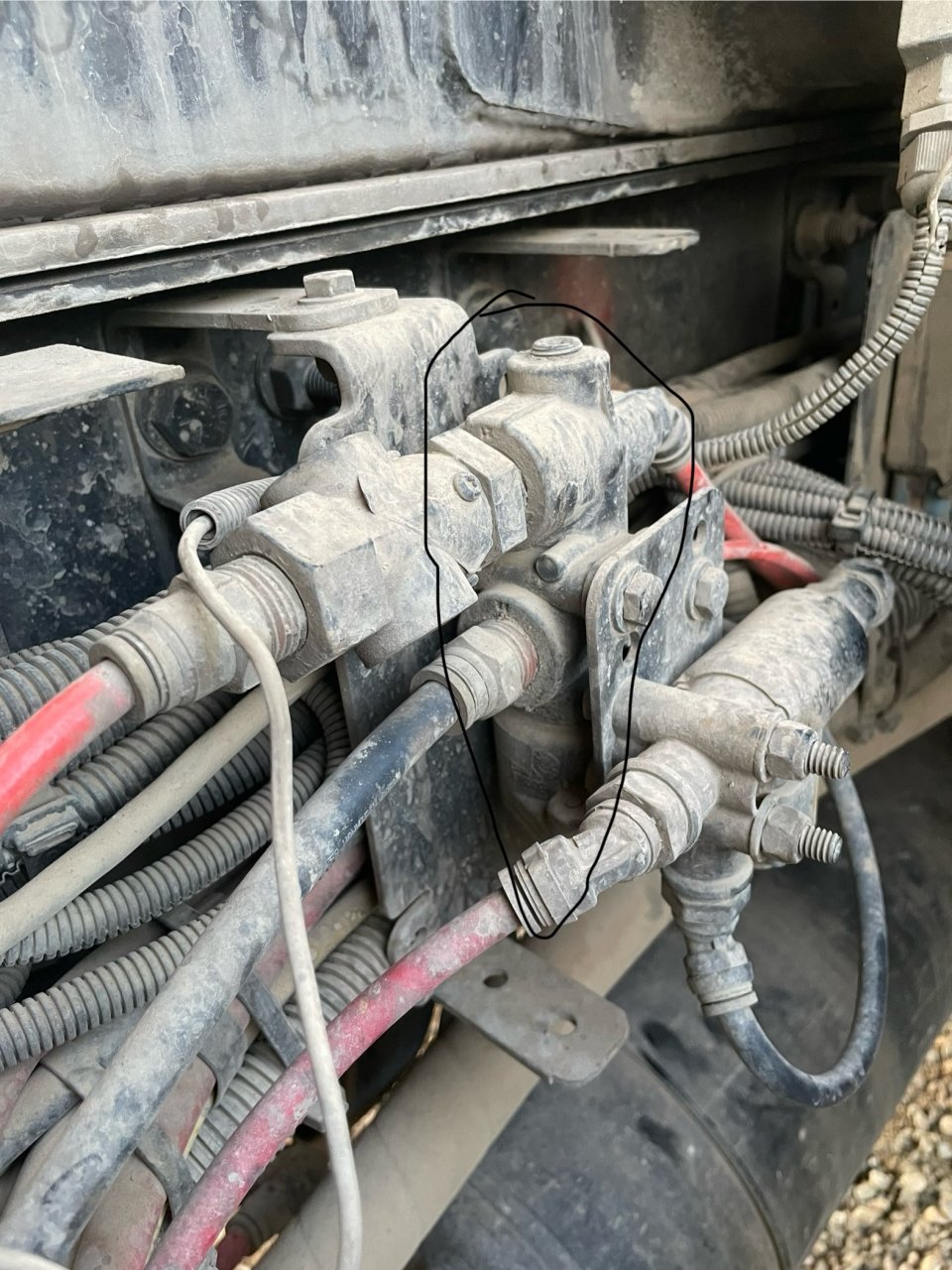

    Pretty sure this is the same valve you sent a picture of just has lots more stuff around it.


    Attached Files:

    Diesel13230, Nov 30, 2023
    Diesel13230, Nov 30, 2023
    #6
    Rideandrepair Thanks this.
  9. Nov 30, 2023 #7
    JB7

    JB7 Medium Load Member

    545
    650
    Dec 13, 2022
    0
    "follow from the gladhands to the other end of the air lines." They end up at the TPV which should be what is in your pic. The switch there is for the trailer brakes. You could even disconnect it and see if the trailer lights go out or test at the trailer plug. There is a thumbs up/Thank icon if the response was helpful.

    JB7, Nov 30, 2023
    JB7, Nov 30, 2023
    #7
    Rideandrepair and Diesel13230 Thank this.
  10. Nov 30, 2023 #8
    Diesel13230

    Diesel13230 Bobtail Member

    15
    15
    Nov 30, 2023
    0
    ok I will do this tomorrow and let you know what I find, thanks!

    Diesel13230, Nov 30, 2023
    Diesel13230, Nov 30, 2023
    #8
    Rideandrepair Thanks this.
  11. Nov 30, 2023 #9
    IH Truck Guy

    IH Truck Guy Road Train Member

    3,648
    40,193
    Mar 2, 2008
    Purgatory
    0
    Try a whole new 7way line.
    You might have a stray wire making contact with the brake lite circuit.

    IH Truck Guy, Nov 30, 2023
    IH Truck Guy, Nov 30, 2023
    #9
    Rideandrepair, Big Road Skateboard, JB7 and 1 other person Thank this.
  12. Nov 30, 2023 #10
    Diesel13230

    Diesel13230 Bobtail Member

    15
    15
    Nov 30, 2023
    0
    ok I could disconnect it at the trailer PD box and test continuity. Thanks for the advice I’ll see what I find tmrw.

    Diesel13230, Nov 30, 2023
    Diesel13230, Nov 30, 2023
    #10
    Rideandrepair and IH Truck Guy Thank this.
