Trailer supply line problem

Discussion in 'Flatbed Trucking Forum' started by 9200 IH, Feb 15, 2016.

  1. 9200 IH

    9200 IH Bobtail Member

    35
    5
    Jul 26, 2014
    0
    Hi all. I am hear every day but don't post much. I pull a flat bed and deliver to small lumber yards with tight turns and my road has a tight turn around on it. Every winter at least a couple times I make a turn tight enough to kink ussually my red line and cause it to leak. I carry new ferrels and it only takes a couple minutes to fix. It is not a big deal but it gets to be a pain. I put new lines on every couple years. I use the coiled lines. My gap between the back of cab and front of the trailer is not long enough that I would need a pogo stick. I have thought about the non-coiled lines but I would have to use a pogo stick to keep them off the deck plate.
    What am I doing wrong? What are you using? Is there a swivel the would rotate horizontally that would work.
    Every time I fix it I loose about 1.5" and that doesn't help.

    Thanks Mike

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. IH Truck Guy

    IH Truck Guy Road Train Member

    4,267
    48,739
    Mar 2, 2008
    Purgatory
    0
    Do you have the spring that goes over the line from the glad hand?

    9200 IH Thanks this.
  4. johndeere4020

    johndeere4020 Road Train Member

    8,522
    119,292
    Jan 1, 2010
    Ohio
    0
    I went to rubber and I'll never go back.

    9200 IH, MJ1657, TripleSix and 3 others Thank this.
  5. 062

    062 Road Train Member

    6,186
    33,357
    Oct 20, 2013
    0
    Do you have a slide bar?
    They make a retractable deal that bolts to back of the truck,don't remember the name of it.

    9200 IH Thanks this.
  6. IH Truck Guy

    IH Truck Guy Road Train Member

    4,267
    48,739
    Mar 2, 2008
    Purgatory
    0
    Kinda like these.

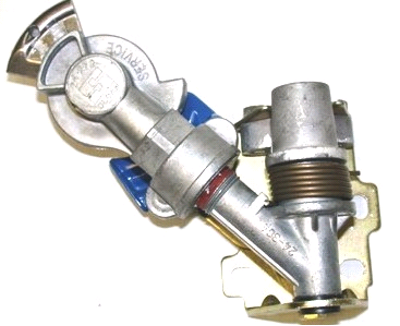

    OR a swivel like this.

    9200 IH and lester Thank this.
  7. AModelCat

    AModelCat Road Train Member

    29,069
    157,180
    Jul 7, 2015
    Canuckistan
    0
    Plastic+cold weather+kinks is not a good combo. Rubber airline would likely be better suited.

    9200 IH and cnsper Thank this.
  8. GOV'T_Trucker

    GOV'T_Trucker Heavy Load Member

    782
    667
    May 28, 2011
    0
    I have rubber lines on my truck now way better then the plastic lines... Plastic ones get brittle in the cold weather... If you want rubber lines and are worried about them touching the deck plate just run them through the center of the electrical line. I have a pogo stick on my truck and the lines are a little long so this is why I did and I don't have a problem with the deck plate....

    If I were you I would go with rubber lines and do what I mentioned.. Worst case you get a pogo stick as well which woulds great.... Or like someone mentioned if you have a slide bar on the back of the cap get the springs that attach to that and run the lines from there... Either way I'd suggest rubber lines....

    9200 IH Thanks this.
  9. 9200 IH

    9200 IH Bobtail Member

    35
    5
    Jul 26, 2014
    0
    Thanks for all the info. I do have a slide bar on the back of the truck. I am thinking about going with rubber lines. I have never checked into them before. Can you have them made up with the proper rated hose or do you have to buy pre made sets? It was -8 one day this week, every turn I made I thought about my air lines. It is time for a change.
    Thanks Mike

  10. GOV'T_Trucker

    GOV'T_Trucker Heavy Load Member

    782
    667
    May 28, 2011
    0
    I'm sure you can probably have them made to length but I am not sure... My work buys them pre-made and I find them to be a bit long but that is why I feed my through my electrical line since it's coiled. You gotta have them longer which is why a slide bar or pogo stick is good, since they do not extend longer like the coiled crappy airlines... I still rather have the rubber lines even though you gotta deal with the length of them. You can probably find a company around to make them to length..

    9200 IH Thanks this.
  11. TripleSix

    TripleSix God of Roads

    18,406
    128,645
    Apr 10, 2009
    Copied in Hell
    0
    I prefer them long, but my truck isnt married to one trailer.
