Troubleshooting mylack of distance, receivng and transmitting.

Discussion in 'CB Radio Forum' started by Pmracing, May 7, 2012.

  1. Pmracing

    Pmracing Road Train Member

    6,354
    3,178
    Jan 28, 2011
    Arlington Heights, IL
    0
    I have been reading here a while, enough to know that my answer will probably be that I need a better antenna. Talking with other drivers on the road, I am barely getting a mile of range.


    I have a Cobra 25 ltd. One year old.

    The coax in my cascadia is bad so, when I was only a month into trucking I was sold this antenna setup:

    Coax run straight from the radio, along the dash and out the passenger door, about 9 or 10 feet long (I did not measure it). The coax is Tramflex RG-8/x Foam 95% Shield stranded center.

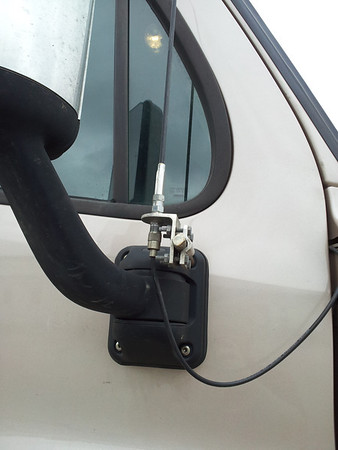

    The antenna mount is a single stud perch.

    [​IMG]


    The antenna has no markings on it. It is 4' and I think fiberglass.

    I installed the perch myself and the guy at the CB shop came out and tested the antenna on it with his meter. He kind of gave a "mppfff. Well it should be good enough for your purpose." response to what he saw on the meter. I did not know enough then to ask further questions about that.

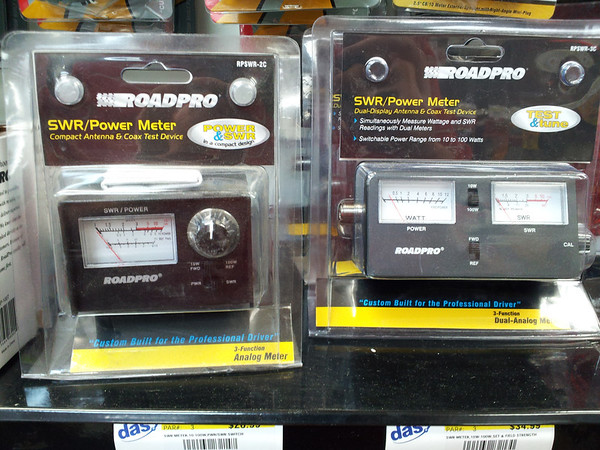

    I was wondering if either of these roadpro meters (free to me with pilot points) will do an adequate job for my limited use testing of my setup? So I can see what it is doing before I start modifying it, and after.

    [​IMG]

    Thanks for your input, in advance.


    Mikeeee

    cuzzin it Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. philjo

    philjo Light Load Member

    138
    26
    Dec 22, 2008
    Indiana
    0
    Well im defiently no expert. But for starters id chuck your coax and get a new 18ft. then i would probably just get the cheaper swr meter. You have only a 4watt radio so i wouldnt think you would need the other. Check your reading with new coax then determine if ya need a antenna. On the swr, you want less than 2 and a 1.1 is ideal. Good luck!

  4. WA4GCH

    WA4GCH Road Train Member

    3,324
    577
    Aug 12, 2009
    Seminole Florida
    0
    18 foot is useless ... nothing WRONG with even cheap meters I use them all the time ....

    The antenna is the key ..... if it is no right nothing works ....

    here is a good meter ..... and a cheap one .... both work


    Attached Files:

    Pmracing and cuzzin it Thank this.
  5. dancnoone

    dancnoone "Village Idiot"

    9,922
    3,713
    May 6, 2007
    Mississippi
    0
    Rule of thumb. If its 3 feet between your radio and antenna. You need 3 feet of coax.

    Truck driver rule--- 18 feet. I guess so you can use the extra to hang yourself. I dunno.

    Have you ground checked. Might be part of your problem

    MNdriver and Pmracing Thank this.
  6. Daniel.trawick

    Daniel.trawick Road Train Member

    1,359
    481
    Nov 28, 2011
    Fort collins,co
    0
    Doesn't the 29ltd come with a swr built in it? I know my did and didn't need to buy another one to check the swr.

  7. dancnoone

    dancnoone "Village Idiot"

    9,922
    3,713
    May 6, 2007
    Mississippi
    0
    It's a 25 ;)

  8. Daniel.trawick

    Daniel.trawick Road Train Member

    1,359
    481
    Nov 28, 2011
    Fort collins,co
    0
    Ok miss read it. Tired and reading lol long day getting loaded at shipper.

  9. dancnoone

    dancnoone "Village Idiot"

    9,922
    3,713
    May 6, 2007
    Mississippi
    0
    Am I seeing correct? That's a Francis antenna ?

    If so. Trying going to a good metal type.

    Francis is an excellent antenna. And usually gives great results on any SWR meter. But it does have its Own issues.

    Pmracing Thanks this.
  10. philjo

    philjo Light Load Member

    138
    26
    Dec 22, 2008
    Indiana
    0
    He already stated his coax is bad, so my advice is not to replace whats not broke. If your swr is still high then try a better antenna.

  11. Pmracing

    Pmracing Road Train Member

    6,354
    3,178
    Jan 28, 2011
    Arlington Heights, IL
    0
    Maybe that was confusing the way I typed it. The preinstalled coax is not just bad it's broke. So I ran a new wire along the dash and out the door.

    Is Tramflex RG-8/x a decent coax?

    I was wondering about the ground as well. Perhaps it has some thread lock on the threads from the original bolt.

    How do I test for a good ground?

    Mikeeeee

    cuzzin it Thanks this.
