Truck or Trailer Shake at 0-30 then again at 60mph?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Brandon0928, Nov 14, 2022.

  1. lilillill

    lilillill Sarcasm... it's not just for breakfast

    5,642
    13,471
    Nov 7, 2007
    Possum Booger, Alabama
    0
    Is that a spring ride trailer? If it only happens when you pull that specific trailer, it's the trailer. A spring ride trailer will transfer every little bump directly to your truck after magnifying it ten times. They will absolutely beat the #### out of your truck.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. AModelCat

    AModelCat Road Train Member

    29,233
    159,487
    Jul 7, 2015
    Canuckistan
    0
    Drive bobtail and seeing if it does it would be an excellent way to determine if its a truck or trailer issue.

  4. Brandon0928

    Brandon0928 Light Load Member

    184
    105
    May 14, 2022
    0
    Trailer is air ride. Shocks on the trailer are shot. Going to hook up to another loaded trailer now to see whether truck or trailer

    lilillill Thanks this.
  5. Brandon0928

    Brandon0928 Light Load Member

    184
    105
    May 14, 2022
    0
    Did have them balanced 2 days ago and still same thing unfortunately

    Kyle G. Thanks this.
  6. Brandon0928

    Brandon0928 Light Load Member

    184
    105
    May 14, 2022
    0
    It doesn’t really do it much when empty. I’ve checked it bob tailing and didn’t really notice it. I thought I did maybe for a few seconds but could’ve been just the road Convincing me that was it. Hooking up to another loaded trailer now and will update post

  7. Brandon0928

    Brandon0928 Light Load Member

    184
    105
    May 14, 2022
    0
    Update: Hooked up to another trailer and loaded it and didn’t feel the shake. I’m surprised. Been driving 10 years and never had a trailer literally shake the entire truck and cab. So now it’s time to see why the trailer is causing such a bad shake on the truck. I know shocks are bad but I’ve had bad shocks on other trailers and never anything like this

    lilillill Thanks this.
  8. Brandon0928

    Brandon0928 Light Load Member

    184
    105
    May 14, 2022
    0
    Another update - Pictures attached : Unfortunately when I unhooked from the trailer I was using to test if it was the truck or trailer, I hooked back up to my trailer and went to get it washed out so I could take it to the shop. I got washed out. When I started my truck to leave the washout I pressed the clutch pedal and it was extremely stiff. Pulled up and stopped. Went to press it again and it was just as stiff. When I got onto the highway it sounded like a bunch of rocks hitting underneath the cab. I was getting that same sound since this “shake” started as I did today. It didn’t happen all the time but when it did it was usually when I was getting up to speed. 1-45mph . Did happen a few times above that speed. I opened the clutch plate and looked around and don’t see anything to unusual. Some fine metal shaving but not much. Was a heavy coat of red dust. I’m assuming my clutch might be screwed. Yay

  9. lilillill

    lilillill Sarcasm... it's not just for breakfast

    5,642
    13,471
    Nov 7, 2007
    Possum Booger, Alabama
    0
    Pictures didn't attach.

  10. Brandon0928

    Brandon0928 Light Load Member

    184
    105
    May 14, 2022
    0

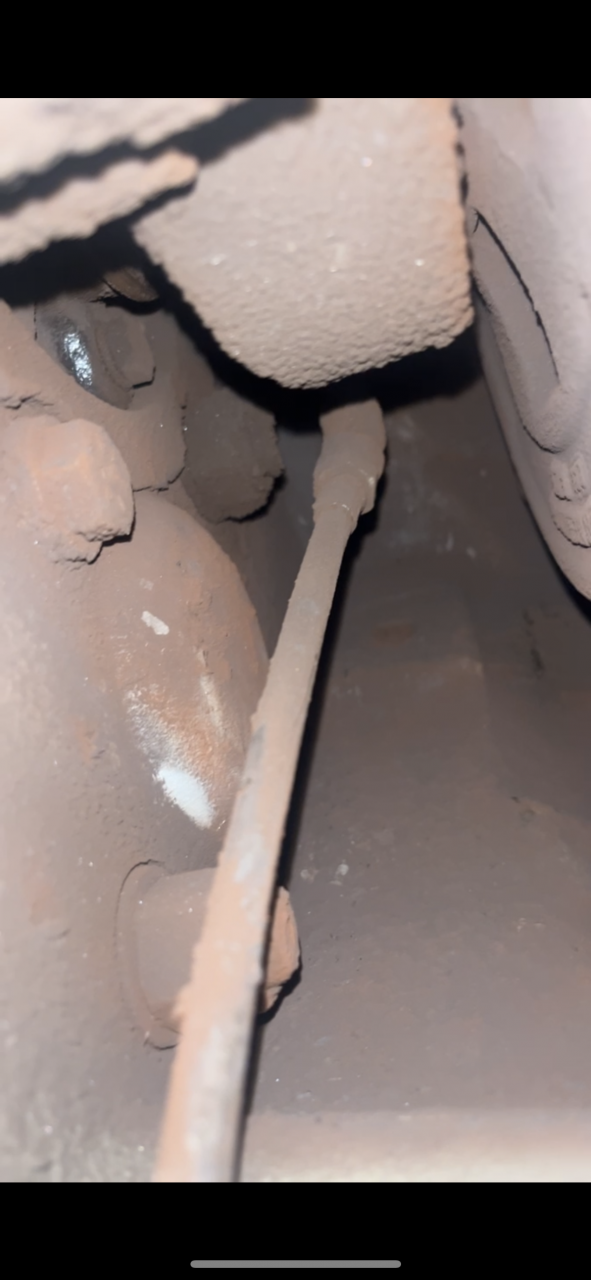

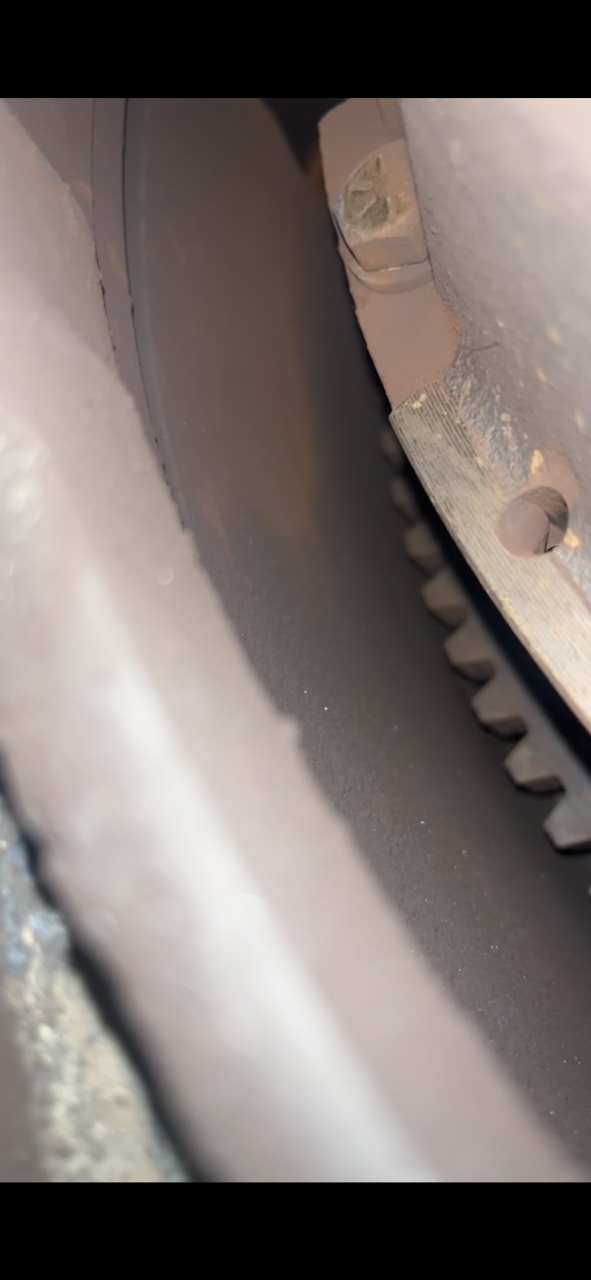

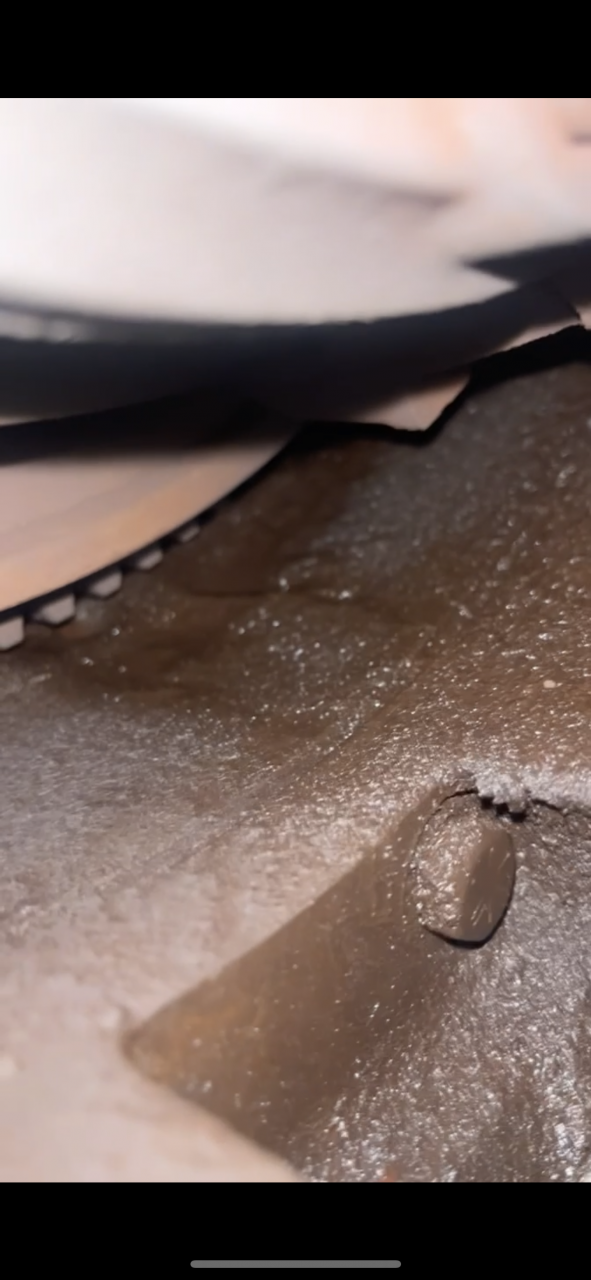

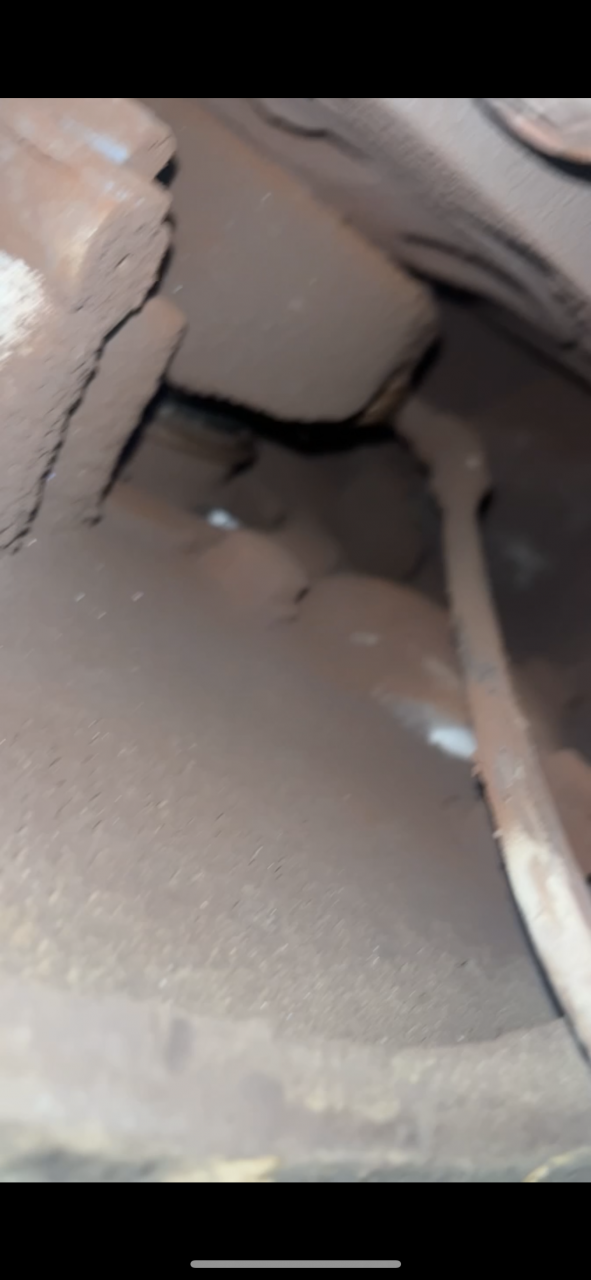

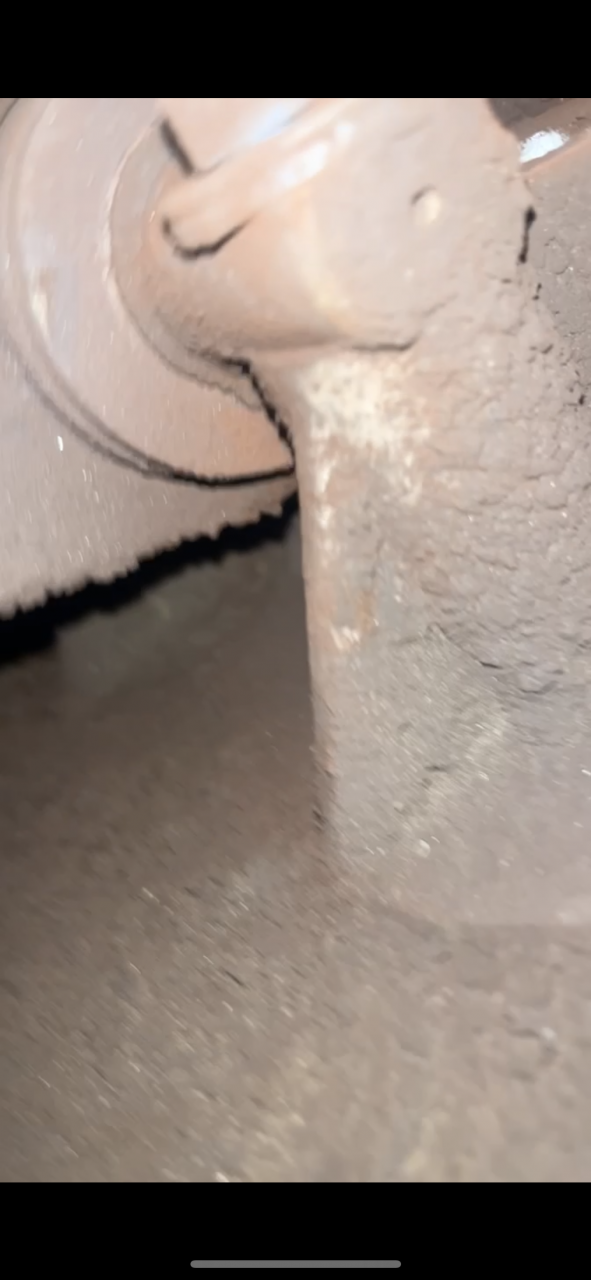

    Here are the photos


    Attached Files:

  11. lilillill

    lilillill Sarcasm... it's not just for breakfast

    5,642
    13,471
    Nov 7, 2007
    Possum Booger, Alabama
    0
    Throwout bearing pivots been greased regularly? Even if you have someone changing your oil and greasing it, I'd throw a grease gun on 'em yourself to double check.

    Oil change monkeys swore that my spring shackles were taking grease, even though I could hear them squeaking. Of course, they were NOT taking grease.

    If it sounds like a coffee can full of rocks though, it might have shed some clutch disc springs.
