Turn signal and 4 ways working on my trailer but not my running lights or break lights

Discussion in 'Ask An Owner Operator' started by Matt579, Feb 27, 2024.

  1. Matt579

    Matt579 Bobtail Member

    5
    2
    Feb 15, 2024
    0
    I already reconnected a few times and made sure the connection was clean and all that anyone have any suggestions before I spend money on a new cable

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Long FLD

    Long FLD Road Train Member

    10,490
    41,405
    Mar 4, 2015
    0
    Get a test light and check the end of your pig tail that goes to the trailer. If everything is good there then the problem is on the trailer. If you don’t have any juice at the end of the pigtail then check the truck side. If everything is good on the truck side then the problem is the pig tail.

    Other things are spread the tongs out inside the trailer box for a better connection and get something to wedge under the plug so it fits snug when you plug into the trailer.

  4. Kyle G.

    Kyle G. Road Train Member

    3,541
    18,100
    Jan 23, 2016
    Eastern Iowa
    0
    Sometimes the receptacle on the trailer will separate inside. Remove the two bolts, pull it out and make sure the harness is tight.

  5. lester

    lester Midwest's #1 Feed Hauler

    2,885
    7,746
    Jan 2, 2012
    NW, Iowa
    0
    Screenshot_20240227_055948_Chrome.jpg No self respecting truck driver should ever be without one of these and a few other simple tools

  6. snowwy

    snowwy Road Train Member

    20,248
    12,898
    Jul 6, 2009
    0
    As mentioned..test light the plug. If nothing there. Test light the truck plug connection.

    You didn't mention what truck but you might have fuses for the trailer lights also. Test light the fuses. If one side lights but the other don't. The fuse is blown.

    Dwellsouth Thanks this.
  7. FLHT

    FLHT Road Train Member

    1,186
    1,830
    Aug 2, 2014
    0
    If pig tail is ok...
    Some wiring harness's use another plug to plug into the back of trailer plug ( Transcraft for sure )
    Their is a little white rubber plug that holds these together. You may have to clean the back of plug to see the little plug.
    new plug it around $100 so be careful not to force it if this is what you got. Don't take much to cost you a $100 bucks.
    The GROUND may just need to be cleaned ....

  8. tarmadilo

    tarmadilo Road Train Member

    1,490
    3,879
    Dec 12, 2018
    0

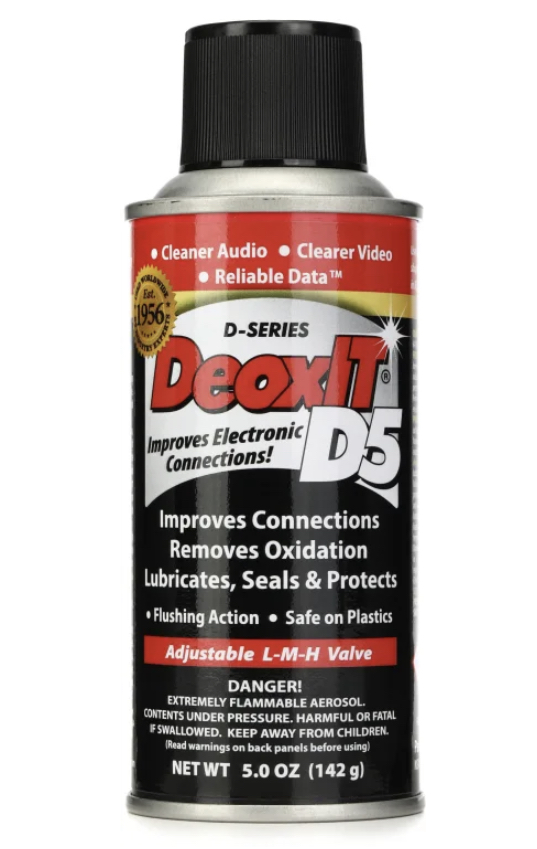

    Caig DeoxIT contact cleaner. Almost every time I’ve had trailer light issues, spraying this on the trailer contacts and into the pigtail has fixed it.


    JB7 Thanks this.
  9. bad-luck

    bad-luck Road Train Member

    3,166
    5,765
    Nov 16, 2013
    Baltimore, Maryland
    0
    First try and wiggle the plug where it plugs into the trailer. Otherwise get your self a test light or one of these. Screenshot_20240227_083447_Chrome.jpg

  10. Matt579

    Matt579 Bobtail Member

    5
    2
    Feb 15, 2024
    0
    I appreciate all the info guys my first week as an owner op I was company until now and didn’t really have to know all this stuff

  11. Opus

    Opus Road Train Member

    17,765
    103,689
    Dec 18, 2011
    South GA
    0
    The first thing I ever did was take a pocket knife and GENTLY split the trailer receptacle thingys on the trailer. It doesn't have to be much, and too much will break them off. Just split them to make a tighter connection. Also, a tube of electrical grease (yeah, there's such a thing), will help as well.
