Turning Area Size

Discussion in 'Experienced Truckers' Advice' started by MikeHasQuestions, Dec 3, 2020.

  1. MikeHasQuestions

    MikeHasQuestions Bobtail Member

    5
    3
    Dec 3, 2020
    0

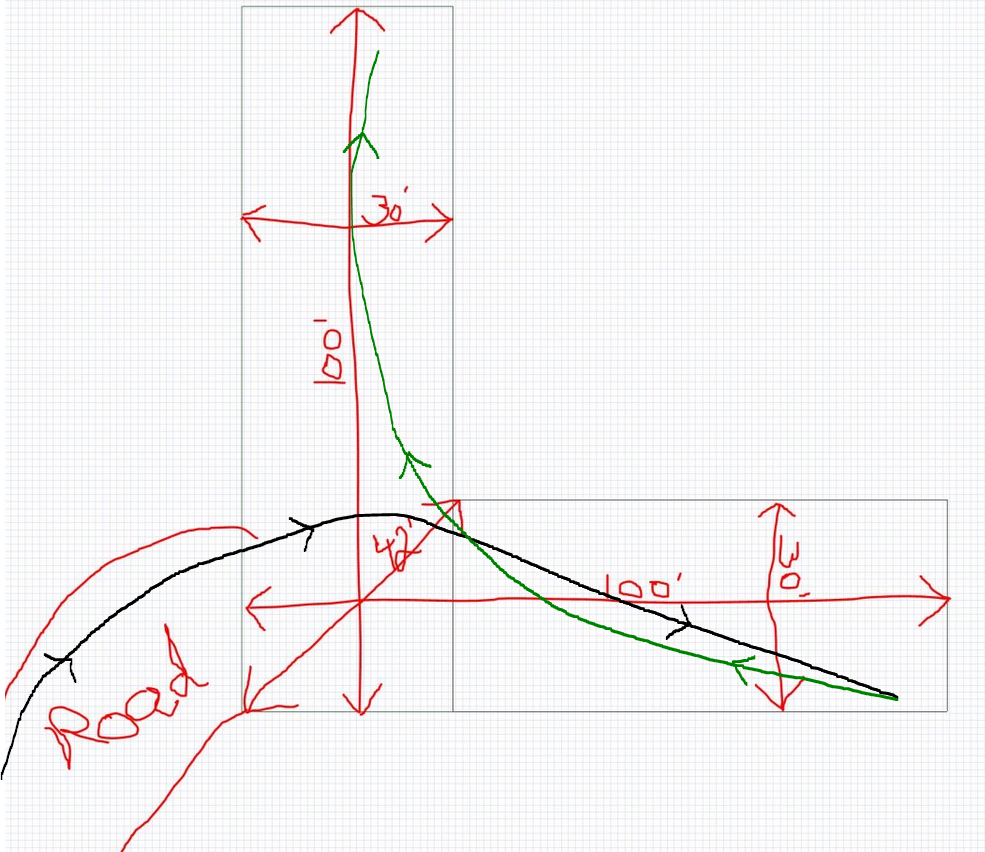

    I wanted to know if a semi driving down the road and going all the way to the right would have enough space to back up into the 90 degree area then drive back up the road. Thanks!


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Razorwyr

    Razorwyr Road Train Member

    2,284
    2,808
    Jul 27, 2010
    Meridian, Mississippi
    0
    Depends on a lot of different variables.... my truck wouldn't stand a chance, but its a 7 axle setup. A day cab with a pup trailer could do it all day long.

  4. ZVar

    ZVar Road Train Member

    7,942
    14,763
    Sep 10, 2010
    Flint, MI
    0
    Got a google satellite view?
    I would say it's not possible with your standard 5 axle, 53' trailer with a sleeper. At least so difficult that anything outside those dimensions will be damaged eventually.

    Coffey Thanks this.
  5. scott180

    scott180 Medium Load Member

    537
    1,835
    Dec 10, 2012
    Tooele, UT
    0
  6. scott180

    scott180 Medium Load Member

    537
    1,835
    Dec 10, 2012
    Tooele, UT
    0
    Look for what's been hit before. It'll clue you into what to watchout for. Good luck.

  7. God prefers Diesels

    God prefers Diesels Medium Load Member

    674
    2,302
    Jun 26, 2020
    South Texas
    0

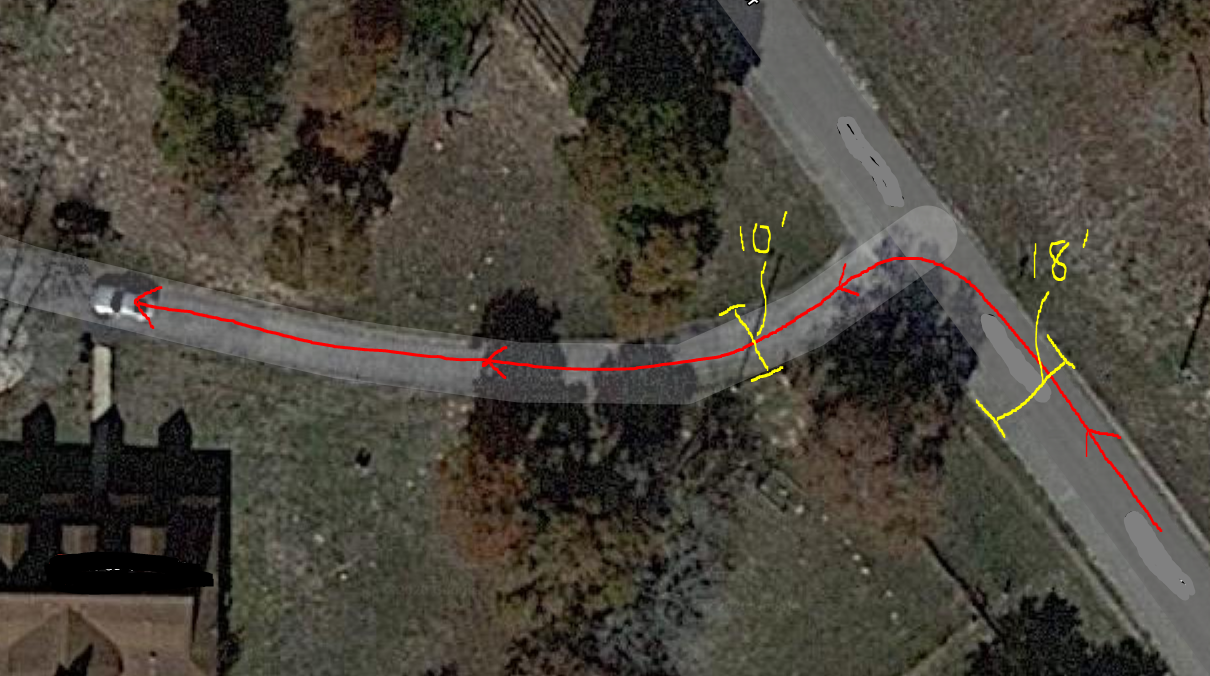

    You shouldn't have any problems in a regular truck. I have a 230" wheelbase, and a 48' trailer. Here is a pic of my driveway. I pull in, and I back out. Now, I do have to use my dump valve to make it possible, but it's way less room than you have. Unless you have something really stretched, or lots of axles, you shouldn't have any trouble.

    Here's what I'd do in your shoes:

    Concorde Thanks this.
  8. Concorde

    Concorde Road Train Member

    999
    1,906
    Jun 29, 2016
    West Melbourne Florida
    0
    Yes, no problem.

    I just recently did it at a receiver..sight side back.

    God prefers Diesels Thanks this.
  9. MikeHasQuestions

    MikeHasQuestions Bobtail Member

    5
    3
    Dec 3, 2020
    0
    Very helpful, thanks so much! I'm not a truck driver. I actually bought land and I'm trying to design (and figure out) the biggest size trucks that can make it in and out safely for construction, deliveries, etc. So if I want to be safe with nothing touching the house (see new picture), then a 48' trailer should have no problem going in and out? If you could also give me your opinion on how big the diagonal blue line needs to be so I know how wide to make the road going into the elevated building pad. Finally, the road to the house will have a 20% incline - is that OK?


    Attached Files:

    Coffey, God prefers Diesels and ZVar Thank this.
  10. Concorde

    Concorde Road Train Member

    999
    1,906
    Jun 29, 2016
    West Melbourne Florida
    0
    Most of your local construction trucks will be straight trucks...boom trucks, box trucks etc.

    If they do show up with a semi, most likely they’ll have a Moffit.

    ZVar and God prefers Diesels Thank this.
  11. God prefers Diesels

    God prefers Diesels Medium Load Member

    674
    2,302
    Jun 26, 2020
    South Texas
    0
    That's fine. But depending on the road base, you might want to have a dozer handy if it rains. @Concorde is right about the rest.

    Edit: If that road is asphalt, then ignore what I said.

    Concorde Thanks this.
