Unusual cupping right, rear drive. What's causing this?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by rbrauns, Nov 23, 2020.

  1. rbrauns

    rbrauns Light Load Member

    159
    45
    Dec 7, 2014
    0
    My 2008 Cascadia keeps going through drive tires on the rearmost axle, outer right hand side.

    This is what this tire looked like 2 weeks ago.

    Now, it looks like this:

    I have had 6 three axle alignments, changed all 4 rear leaf bushings, put all new German Sachs shocks on all 4 drives, the steer axle and even the cab mount shocks. The brake chamber is also new.

    The last place used a laser and actually adjusted the front axle and it is holding up pretty good but what happens is that over a month or so, my truck pulls more and more to the right until I'm fighting with the steering wheel. I am beginning to think that the pull to the right and the tire wear are related. Could something inside the axle be causing this?

    After 6 alignments and now 3 used drive tires, I am clearly not getting to the root cause.

    The diffs are Rockwell 40145 with 900,000 miles and full locks. They are filled with synthetic oil and make no noise or have any leaks.

    What is causing this?


    Last edited: Nov 23, 2020
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. rbrauns

    rbrauns Light Load Member

    159
    45
    Dec 7, 2014
    0
    Ok. I found out that this is called "heel toe" wear. It is normal?!

    BTW, I also installed Centramatics wheel balancers a few months ago.

  4. SmallPackage

    SmallPackage Road Train Member

    1,960
    5,136
    Dec 20, 2019
    Marion Texas
    0
    On the heel and toe. That is normal wear for drive tire tread patterns. Rotate them by changing the direction they roll. So they well flatten out the high side. If you let them continue to roll the same direction even in a different position they will get much worse. They will vibrate and be noisy until they smooth out. The pull to the right could be caused by the mismatched treads on the right forward drive.

    p608 and Dino soar Thank this.
  5. SmallPackage

    SmallPackage Road Train Member

    1,960
    5,136
    Dec 20, 2019
    Marion Texas
    0
    Do you pull the same trailer all the time? Does the steering fight you and still pull right when bobtail? If the tractor acts ok bobtail i’d Look into alignment on the whole unit together. Trailers need alignment too. Clean and replace grease on entire fifth wheel. The trailer could be pushing the rear of the tractor.

    Snailexpress and Dino soar Thank this.
  6. 6cuda6

    6cuda6 Light Load Member

    182
    105
    Oct 9, 2020
    0
    Do all the drives look like this? Highway mileage or city mileage? Retread or no retread [one i pick looks like a retread]? Are all tires the same make/model/size?

  7. magoo68

    magoo68 Road Train Member

    3,336
    5,101
    Jun 11, 2011
    st malo mb canada
    0
    I drove a 2009 that was the same way after numerous sets of drives and alignments . I went to Quebec shop and mechanic asked why we didn’t put the L brackets back on after doing bushings . We had never changed bushings the factory forgot them . That allowed axle to move side to side which kept chewing up tires and made it squirrelly to drive sometimes.

    jsnell Thanks this.
  8. rbrauns

    rbrauns Light Load Member

    159
    45
    Dec 7, 2014
    0
    Wow, thanks for the responses.
    @SmallPackage, I pull the same triaxle Reitnouer for about 3 months. It is a company trailer. Ususally, they find something wrong and give me another flat deck so I have to spend hours moving everything from my tool box to the new trailer. The pull to the right isn't noticeable when bobtailing. Only when the tires get hot or I'm loaded. That's one of the reasons I have had so many alignments.

    @6cuda6, only the rearmost axle looks like this. All the other drives are fine. I had recaps but they kept blowing out so I run virgin rubber. I had the Hankooks regrooved so maybe that's why it looks like a recap. I run highway and always heavy.

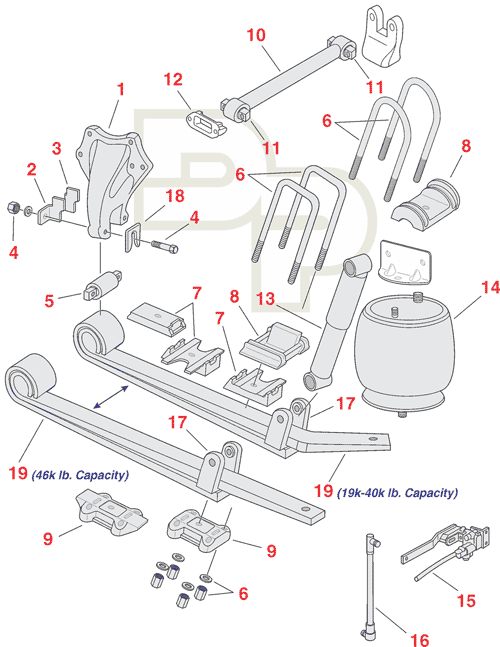

    @magoo68, I think you're onto something. I have the Airliner suspension and Stengelbros shows this:
    Items 2 and 3 are called "wear pads" and my truck doesn't have them. Are these the L brackets you mean?

  9. 6cuda6

    6cuda6 Light Load Member

    182
    105
    Oct 9, 2020
    0
    Mismatched tire diameter can do it, uneven tire pressures between tires, heavy torque loads and of course not rotating tires.
    Interesting....all 8 of my Hankooks on my new to me 08 Volvo look like yours...hence the reason i asked. Im wondering if the its just the tires themselves which are to soft or the tread is to deep and this is the result.

    Rideandrepair Thanks this.
  10. 6cuda6

    6cuda6 Light Load Member

    182
    105
    Oct 9, 2020
    0
    Curious what style of torque rods do you have? the bushing style or the bearing style?

  11. magoo68

    magoo68 Road Train Member

    3,336
    5,101
    Jun 11, 2011
    st malo mb canada
    0
    It’s been so long but that does look familiar . He took a pry bar and was able to slid axle side to side with truck lifted. Mine was ok bobtail too but loaded it was terrible if roads were rutted .
